Intended use
The external wireless switch is intended for independent switching on
and off up to two devices with a suitable wireless transmitter of the
RS2W system.
The permitted connected loads for the devices and their operating
voltages can be found in the chapter “Technical data”.
For safety and approval purposes, you must not rebuild and/or mo-
dify this product. If you use the product for purposes other than those
described above, the product may be damaged. In addition, improper
use can cause hazards such as short circuiting, re, electric shock
etc. Read the instructions carefully and keep them. Make this product
available to third parties only together with its operating instructions.
This product complies with the statutory national and European requi-
rements. All company names and product names are trademarks of
their respective owners. All rights reserved.
Safety instructions
Read the operating instructions carefully and espe-
cially observe the safety information. If you do not fol-
low the safety instructions and information on proper
handling in this manual, we assume no liability for any
resulting personal injury or damage to property. Such
cases will invalidate the warranty/guarantee.
• The device is not a toy. Keep it out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. This may
become dangerous playing material for children.
• -Protect the product from extreme temperatures, strong jolts, am
mable gases, vapours and solvents.
• Do not place the product under any mechanical stress.
• If it is no longer possible to operate the product safely, take it out of
operation and protect it from any accidental use. Safe operation can
no longer be guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions
or
- has been subjected to any serious transport-related stresses.
• Please handle the product carefully. Jolts, impacts or a fall even
from a low height can damage the product.
• -Also observe the safety and operating instructions of any other de
vices which are connected to the product.
• This device should be installed only by people with relevant electro-
technical knowledge and experience! *)
• If it is not installed properly, you risk:
- your own life
- the life of the user of the electrical system.
• If it is installed improperly, you risk severe damage to property, e.g.,
by re. You face the risk of personal liability for personal injury and
material damage.
Contact an electrician!
• *) Specialist knowledge required for the installation:
For the installation, in particular, the following specialist knowledge
is required:
- -the “5 safety rules” to be followed: Switch off power; secu
re against switching back on; determine voltage-free status;
earthing and short-circuiting; cover or fence off nearby live parts
- Choose appropriate tools, meters and, if necessary, personal
protective equipment
- Evaluation of the measurement results
- -Selection of the electrical installation material to ensure the shut
down conditions
- IP protection types
- Installation of the electrical installation material
- Type of mains supply network (TN system, IT system, TT system)
and the connection conditions that follow from them (classical
earthing, protective earthing, required additional measures, etc.)
• If you do not have the expertise required for the installation, do not
connect and install it yourself, rather ask a qualied technician.
• Do not use this product in hospitals or medical institutions. Although
RS2W system transmitters only emit relatively weak radio signals,
these may lead to the malfunctioning of life-support systems. The
same may also apply to other areas.
• In commercial institutions, the accident prevention regulations of
the Employer’s Liability Insurance Association for Electrical Sys-
tems and Operating Facilities are to be observed!
• The product may be mounted in indoor and outdoor areas (housing
with protection type IP66). However, it must not be installed in or
under water. Water can seep into the product, which will destroy it.
Furthermore, this could cause a lethal electric shock!
• The product may only be assembled and operated in a stationary
condition; the product is not suitable for installation and operation
in vehicles.
Latest operating instructions
Download the latest operating instructions via the
link www.conrad.com/downloads or scan the QR
code shown. Follow the instructions on the website.
Explanation of symbols
The lightning symbol inside a triangle is used when the-
re is a potential risk of personal injury, such as electric
shock.
An exclamation mark in a triangle indicates important ins-
tructions in this operating manual that absolutely have to
be observed.
The arrow symbol indicates specic tips and advice on
operation.
Observe the operating instructions!
Delivery content
• RS2W wireless outdoor switch
• 4 x waterproof plug
• 4 x screw
• 4 x dowel
• Operating instructions
Operating instructions
RS2W wireless outdoor switch
Item no. 1762779
• -Do not mount or use this product in rooms or under adverse envi
ronmental conditions where combustible gases, vapours or dust are
are or may be present! There is a danger of explosion!
• Keep the product away from strong magnetic elds generated by
machines, electric motors or loudspeakers.
• The product may only be operated on mains voltage (see sections
“Installation and connection” and “Technical data”). Never try to
operate the product at another voltage, as this will result in the de-
struction of the product.
• Only carry out the installation and connection when all the mains
cables to the inbuilt wireless switch are disconnected from the
mains voltage. Otherwise, there is a risk of a life-threatening electric
shock!
• During installation, all poles must be disconnected from the mains
voltage, e.g., via RCD. There must be an appropriately dimensioned
fuse or circuit breaker between the RCD and the product.
• Install the product only in an easy-to-reach position.
• If it can be assumed that safe operation is no longer possible, the
product must be turned off and precautions must be taken to ensure
that it is not used unintentionally. Do not touch the inbuilt wireless
switch or any device connected to it.
Disconnect the wireless inbuilt switch completely from the mains
by switching off at the appropriate circuit breaker or by pulling out
the fuse and switching of the corresponding earth leakage breaker.
After this, arrange for an expert to check the product.
• Never overload the product. Observe the maximum connected load
specied in the chapter “Technical data”.
• If the product is operated while opened (for a functional check or
programming), it must not get damp or wet. There is a risk of a life-
threatening electric shock!
If any liquid has still managed to enter the device, immediately turn
off the mains supply at all poles (turn off the automatic circuit brea-
ker or remove the fuse, then switch off the residual current operated
circuit breaker of the associated circuits). Contact a specialist. Do
not use the product any longer.
• Do not use the product if it is damaged. There is a risk of a life-
threatening electric shock!
• If it can be assumed that safe operation is no longer possible, the
product must be turned off and precautions must be taken to ensure
that it is not used unintentionally. Do not touch the product or any
device connected to it.
First switch off the mains voltage to all poles (switch off the con-
nected circuit breaker or remove the fuse and then switch off the
connected RCD).
• -Consult an expert when in doubt about operation, safety or connec
tion of the device.
• -Maintenance, modications and repairs are to be performed exclu
sively by an expert or at a qualied shop.
• If you have questions which remain unanswered by these operating
instructions, contact our technical support service or other technical
personnel.

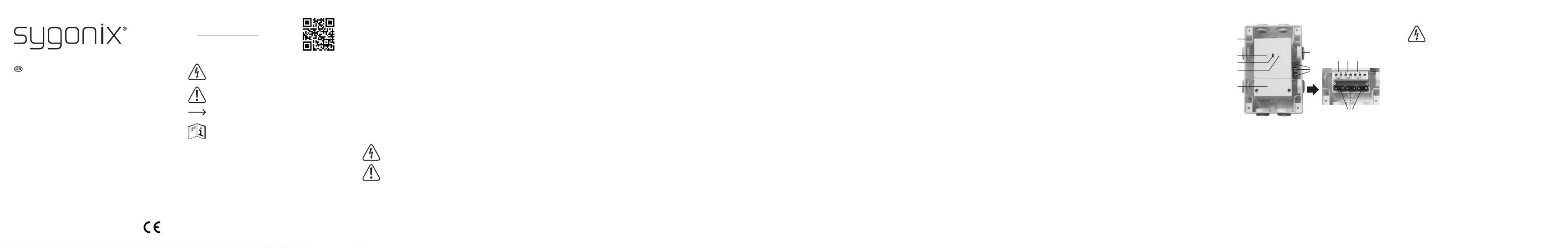

Operating elements
1
2
3
4
5
7
68 9 10
11
1 Opening for mounting the housing to a wall
2 Button for switching channel 1
3 LED
4 Button for switching channel 2
5 Cover for screw terminals/strain reliefs
6 Filler plug (x 8)
7 3x terminals for protective conductor
8 Output L/N for switching channel 1
9 Output L/N for switching channel 2
10 Input L/N and PE (earth symbol)
11 Strain reliefs
Installation and connection
Please observe the chapter “Safety instructions”!
The wireless inbuilt switch can be mounted in a suitable
place. The housing of the wireless inbuilt switch is protec-
ted according to IP66. Thus, it may be installed in unpro-
tected outdoor areas. Make sure that the housing is never
in or under water.
The wireless inbuilt switch must be disconnected from
the mains supply during installation. Turn off the mains
supply, by switching off the appropriate circuit breaker or
by pulling out the fuse. Secure it against unauthorised
reconnection, e.g., with a danger sign.
Furthermore, turn off the earth leakage circuit breaker to
disconnect all the poles from the mains voltage.
Check that the mains connection is current free with a
suitable tester.
• Open the cover of the protective housing by removing the 4 screws
on the top with a screwdriver. You can then remove the cover.
• The complete external wireless switch can be removed from the
housing.
• Remove the two screws on the cover (5) and remove the cover. The
screw terminals for the two outputs/switching channels , the (8+9)
input for power supply and the strain relief (10) (11) for the connec-
tion cables are situated under the cover.
• -Depending on the installation location and the position of the con
necting cables, up to 4 ller plugs (6) can be used instead of the 4
cable connections provided.
