Side 1/2
Cover
4“AA” batteries
Charging wire
Pull openPull open
Charging helicopter with Remote
Controller:
1 Be sure the helicopter power switch is .
in OFF position.
2 Remove black charging wire from the .
back of remote controller.
3 Plug charging wire into helicopter than .
turn on remote controller – transmitter
indicator will be red, but will turn blue
when the helicopter is fully charged.
4 Unplug the helicopter and replace charging wire for safe keeping..
230mm
180mm
40mm
105mm
-1-
-4- -5- -6- -7-
-2- -3-
GYRO

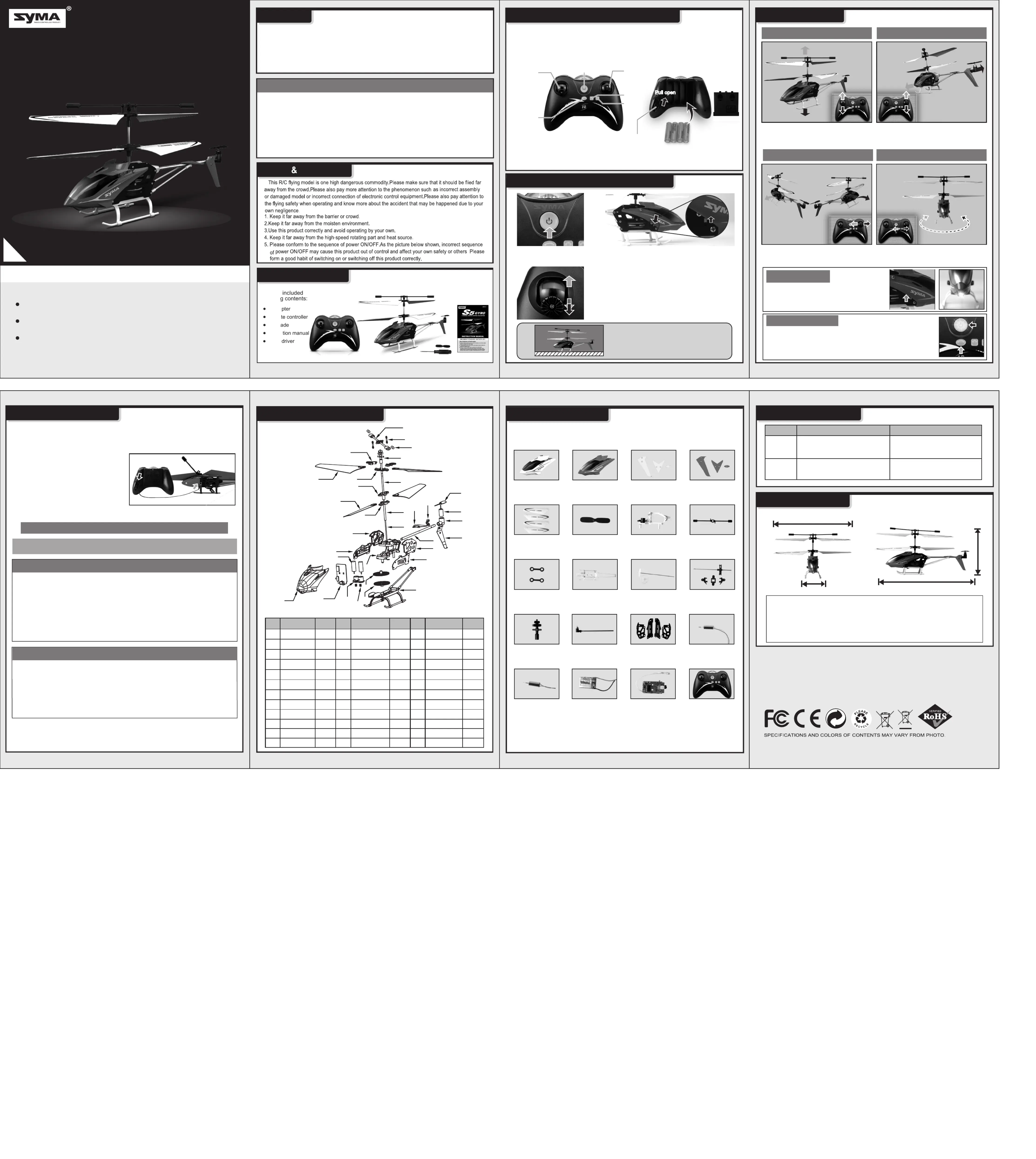

3 CHANNELS REMOTE CONTROL HELICOPTER
INSTRUCTION MANUAL
IMPLEMENT STANDARD: GB/T26701-2011
PREFACE
1.Please fly your helicopter safety and refere to our instruction manual to avoid
personal injury and property damage. The company not responsible for any
accident or damage resulting from the improper operation.
2.This model not suitable for children who under 14 years.
3.Please fly it in safety and legal environment.
4.Our company will hard to responsible for safety duty of error operation.
5.Please ask help from our dealer at local if you have any problem such as
operation, playing and maintenance etc.
ABOUT CONTENTS
Product
followin
Helico
Remo
Tail bl
Instruc
Screw
Battery Installation
Unscrew and remove battery cover from R/C unit, insert 4“AA” batteries, noting
polarity indicator. Replace battery cover.
FLIGHT CONTROL
Hover up and down
Turn Left and Right
Forward and backward
Slowly push the left stick up to make
helicopter fly higher, or release the stick
a bit to make helicopter fly lower.
Slowly push the right stick left to make
helicopter fly to left, or push the stick
right to make helicopter fly to right.
If helicopter rotates clockwise/counter-
clockwise, continually push left/right
trim switch until excessive turning stops.
Slowly push the right stick up to make
helicopter fly forward, or push the stick
down to make helicopter fly backward
lower.
BATTERIES CHARGING
Remote control charging
Charging it for 60-70 minutes and you can fly about 5-6 minutes.
BATTERY CAUTIONS
1.Don’t use or leave the battery near a heat source such as fire or heater.
2.Adult supervision is required when charging.
3.After flying, don’t charge batteries at once to avoid batteries too heat to
cause to the fire, make sure it cool down before charging.
4.Don’t hit or let batteries fall down when charging to avoid inner short-circuit.
5.After full charging, please take off charging wire in time, otherwise batteries
will discharge and charge again, this way will shorten batteries service life.
MAINTENANCE BATTERIES
1.keep the battery in a 18—25 cool dry environment.℃
2.To keep the batteries service life, don’t make it discharge and charge
repeatability, don’t over discharge.
3.Please make batteries full charging when keep in long-term.
4.Regular check the batteries voltage, if the voltage lower than 3v, make it full
charging.
BREAKDOWN & DIAGRAM PARTS (not included)
Following have some parts for your choice, you can purchase them from our
dealer at local.
TROUBLE SHOOTING
Symptom Cause Correction
Pegasus
can’t move
Pegasus
insensitive
reaction
1.Weak battery. 1.Recharge the Pegasus.
1.Replace controller batteries.
2.Choice another place for playing.
2.Replace controller batteries.
3.Matching frequence again.
2.Controller power weak, indicator
flashing.
3.Frequence matching fail.
1.Controller power weak.
2.There have interference with same
frequence.
MAIN PARAMETER
230mm 180mm
3.7V 100 mAh Li-poly
40mm
105mm
Body length: Main blade diameter:
Main motor code: 6 ∮
Battery:
Body width:
Body high:
AGES 14+
Dear customers:
Hello!
Thank you for purchasing our flying model.Please read this instruction manual
carefully in order to master the skill more quickly and operate this product more
safely.In the mean time,please well keep the original of this instruction manual for
future reference.
SAFTY CAUTIONS
Step 1: Press the power
switch to turn on the
transmitter.
Step 2: Turn on your helicopter.
Step 3: Transmitter indicator blinks for about 1-2
seconds to match signal. When finish
matching, it keeps light on, than please
push the left lever up and down to ready
flight.
Horizontal
position
TIPS: When matching signal, keep the
helicopter on horizontal position to
fast matching and start a stable
flight.
IMPORTANT INSTRUCTION
GET TO KNOW YOUR TRANSMITTER
READY TO FLY YOUR HELICOPTER
Up / Down
ON/OFF
Power / Charge
Indicator Forward /
Backward
Turn Left /
Turn Right
Turn left
trimmer
Turn right
trimmer
High / Low
speed switch
(A / B Band
Selector)
S5-01A S5-02A S5-02B
S5-03A S5-03B S5-04 S5-05A
S5-05B S5-06 S5-07 S5-08
S5-01B
S5-09 S5-11 S5-12 S5-13A
S5-13B S5-14 S5-15 S5-17
Key features of helicopter
A sophisticated built-in gyroscopic auto-stability feature makes for
smooth and stable flying.
Structure module design, Easy operate and maintenance.
All material, dimensions and spare parts included in this instruction are for
reference only. The company will not be responsible for any change of printed
parts and notify consumer. Any update or change please refer to our website.
Special plastic durable body for a good resistance to mill and stable
flight.It is suitable for indoor flight.
Search light
When turn on the helicopter,the search
light at the front of helicopter will light on.
Headcover-white
Gear Blade locker
Battery Receiver board Transmitter
Motor A
Motor B
Main shaft base Tail assembly Fuselage assembly
Main stand Balance stick
Connector buckle Tripod
Headcover-red Tail Decoration-
white
Tail Decoration-
red
Main blade Tail blade
1
2
3
4
8
6
9
11
10
14
16
18
21
20 22 23 25
24 26
15
27 30
31
32
33
29
28
12
13
17
19
5
7
15
16
17
18
19
20
08
09
10
11
12
13
22
14
23
24
25
26
21
28
29
30
31
32
33
27
35
36
34
01
02
03
04
05
06
07
Code Description Quantity Code Description Quantity Code Description Quantity
1
1
1
1
1
1
1
1
1
11
1
1
1
1
1
1
1
2
1
2
1
2
2
1
2
1
2
1
1
1
2
1
Connector buckle
Balance Bar
metal parts
Main stand
Spindle
Base rack
Under blade gear
Tail tube
Tail balancing
Tail dangling
connecting
Tail dangling
Head cover
Up left aluminum
plate
Up right aluminum
plate
Down left
aluminum plate
Down right
aluminum plate
Tail blade
Tail motor
Tail motor seat
Receiver board
Main motor
Motor seat
Motor teeth
Top blade gear
Balance stick
Main shaft base
Top blades
locker
Top blades
Top blades base
2.0 stainless
steel pipe
Below blades
locker
Below blades
Below blades
base
2.5 stainless
steel pipe
Low speed The factory default speed when turn on remote controller.：
High speed Turn on remote controller ,than press button “A” indicator light ： ，
flashes twice to be high speed .Press button "A" again indicator light flashes ，
one time to be low speed again.
A/B band selector Press button "A" for 2 seconds to choose "A"(indicator ：
light flashes one time) or "B"(indicator light flashes twice).
A
Key Description
3
Note:Make sure helicopter power switch to OFF position when charging.
Remoter instruction
Turn right/left calibration trim
