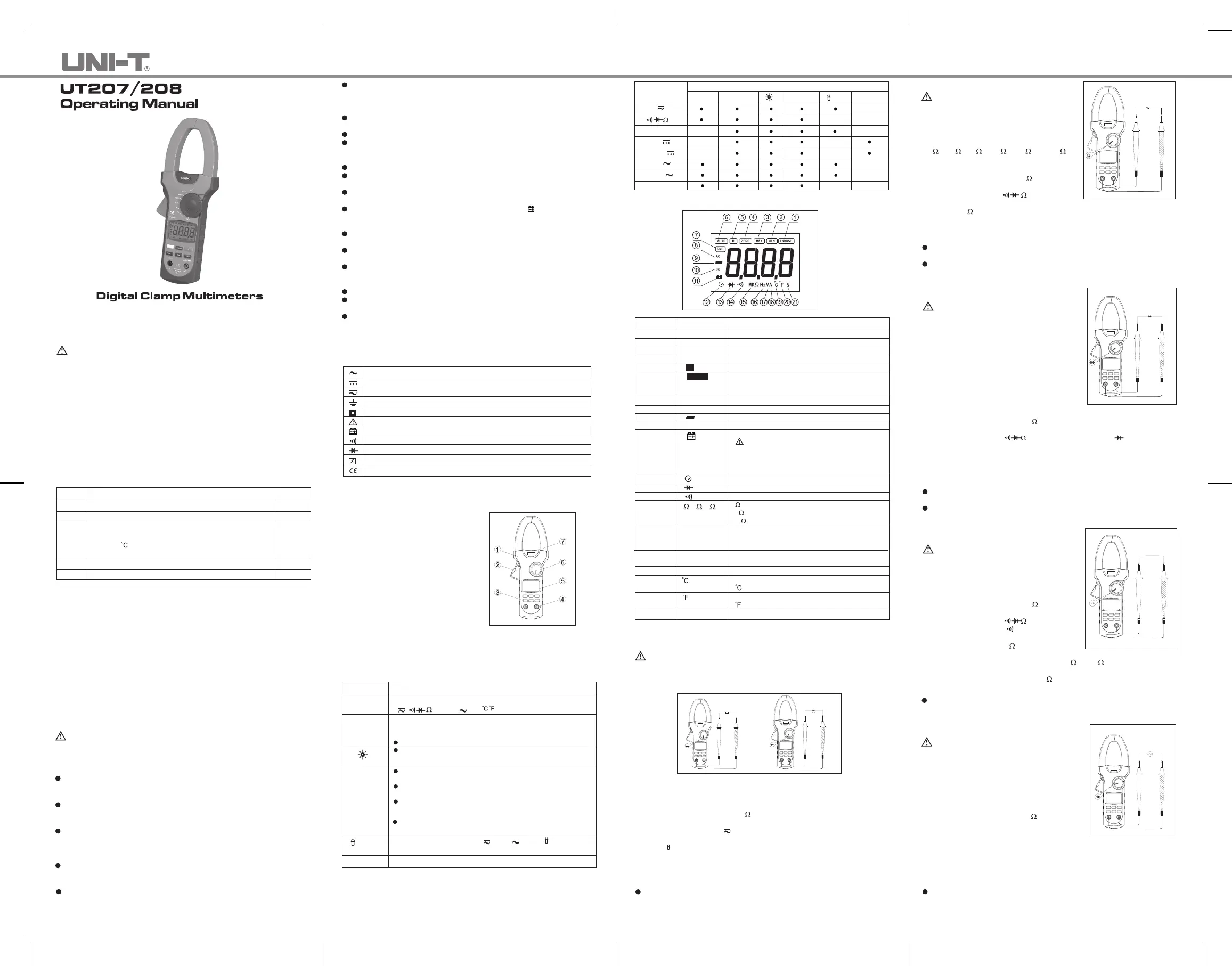

Overview
This Operating Manual covers information on safety and cautions. Please read the
relevant information carefully and observe all the and strictly.Warnings Notes
Warning
To avoid electric shock or personal injury, read the “Safety Information”
carefully before using the Meter.
Model UT207 and UT208 are 3 5/6 digit AC&DC digital clamp multimeters
( hereafter referred to as "the Meter" ) characterized with stable performance, high
reliability and novel structure. They are designed with large-scale integrated circuits
and dual integral A/D converter as its core and offer full-range overload protection.
The Meter can measure AC/DC Voltage, AC/DC Current, Frequency, Duty Cycle,
Resistance, Diodes, Continuity, Surge Current and etc.
UT208 has an extra temperature feature.
Item Description Qty
1
2
3
4
5
English Operating Manual
Test Lead
Poin Con act t t Tempera ure Probe nly 208) hit (O UT (T s
in luded poinc t c ta t ton ct empera ure probe an c onl be usey d
up to 23 0 . For any measurement is higher than that, the
rod type temperature probe must be used)
Tool box
9V Battery (NEDA1604A or 6LF22)
1 pc
1 pair
1 pair
1 pc
1 pc
Unpacking Inspection
Open the package case and take out the Mete r. yCheck the following items carefull
for any missing or damaged part:
In the event you find any missing or damaged part, please contact you dealerr
immediately.
Safety Information
This Meter complies with IEC61010-1, IEC61010-2-032, Pollution Degree 2,
Overvoltage Category(CAT. 600V, CAT 300V) and Double Insulation standards.Ⅱ Ⅲ
CAT. , , PORTII: Local level appliance ABLE PMEN wi smaller EQUI T etc ., th transient
overvoltages than CAT. III.
CAT. t v , fix t , th r s t ove t s t nIII: Di ibustr ion le el ed in allast ion wi smalle tran ien rvol age ha
CAT. IV
Use the Meter only as specified in this operating manual, otherwise the protection
provided by the Meter may be impaired.
In th manua is l, a W garnin i ifi iti and i dent es cond ons act ons that pos hazards to th e e
user, or may damage the Meter or the equipment under test.
A identifies the information that user should pay attention to.Note
To y, eavoid possible electric shock or personal injur and to avoid possibl
d ge e Met or e e t a e gama to th er to th quip ntme under est, dhere to th followin
rules:
Warning
Before using the Meter inspect the case. Do not use the Meter if it is
damaged or the case (or part of the case) is removed. Look for cracks or
missing plastic. Pay attention to the insulation around the connectors.
Inspect the test leads for damaged insulation or exposed metal. Check th e
test ea l ds for con inuit ty. d ged l ds th enti l m el Re acepl ama test ea wi id ca od
number or electrical specifications before using the Meter.
Do not apply more than the rated voltage, as marked on the Meter betwee , n
the terminals or between any terminal and grounding. If the value to be
measured is unknown, use the maximum measurement position and reduce
the range step by step until a satisfactory reading is obtained.
When measurement has been completed, disconnect the connection between
the test leads and the circuit under test, remove the testing leads away
from the input terminals of the Meter and turn the Meter power off.
The rotary switch should be placed in the right position and no any
changeover of range shall be made during measurement toprevent
damage of the Meter.
Do not carry out the measurement when the Meter’s back case and batter y
compartment are not closed to avoid electric shock.
Do not input higher than 600V between the two Meter’s input terminal to
avoid electric shock and damage to the Meter.
When the Meter working at an effective voltage over 70V in DC or 33V rms is
in AC, special care should be taken for there is danger of electric shock.
Use the proper terminals, function, and range for your measurements.
Do not use or store the Meter in an environment of high temperature,
humidity, explosive, inflammable and strong magnetic field. The performance
of the Meter may deteriorate after dampened.
When using the test leads, keep your fingers behind the finger guards.
To avoid electric shock, do not touch the bare wires, connectors, unused
input terminals or the tested circuit during measurement.
Di ci t a h ge a ge p ito b oresc ectonn rcui power nd disc ar ll high ol-v ta ca ac rs ef
testing resistance, continuity and diode.
Replace the battery as soon as the battery indicator appears. With a
low batter y, the Meter might produce false readings that can lead to electric
shock and personal injury.
When servicing the Meter, use only the replacement parts with the same
model or identical electrical specifications.
The internal circuit of the Meter shall not be altered at will to avoid damage
to the Meter and any accident.
Soft cloth and mild detergent should be used to clean the surface of the
Meter when servicing. No abrasive and solvent should be used to prevent
the surface of the Meter from corrosion, damage and accident.
The Meter is suitable for indoor use.
Turn the Meter off when it is not in use and take out the battery when not
using for a long time.
Constantly check the battery as it may leak when it has been using for
some time, replace the battery as soon as leaking appears. A leaking battery
will damage the Meter.
International Electrical Symbols
AC (Alternating Current)
DC (Direct Current)
AC or DC
Grounding
Double Insulated
Warning. Refer to the Operating Manual
Low Battery Indication
Continuity Test
Diode
Danger of High Voltage
Conforms to Standards of European Union
Figure 1
The Meter Structure (See Figure 1)
Hand ua han G rd to prote user’s s: ct d
from to ro uc t nhing he da ge us area.
T erigger: press the lever to open th
transformer jaws. When the pressur e
on the lever is released, the jaws wil l
close.
Functional Buttons
Input Terminals
LCD Display
Rotary Switch
T ransformer Ja des gned tow: i pi upck
t he AC and DC curren t f t hlowing hroug
the conducto r. It could transfer curren t
to voltage. The tested conductor must
vertically go through the Jaw cente r.
1.
2.
3.
4.
5.
6.
7.
Press button to select the alternate functions includingSELECT
V,, ,%Hz A and (UT208 only).
Starts recording of maximum and minimum values.
Press to st t t ep he display hrough high (MAX) and low (M N) readingI s
at any mode.
Press and hold for one second to exit MAX/MIN mode.
Press to turn on the backlight, repress to turn it off, otherwise
l automatically off after 1 minute.it wil
Functional Buttons
Below table indicated for information about the functional button operations.
Button Operation Performed
SELECT
MAX/MIN
Press to enter the Hold mode in any mode, the MeterHOLD
beeps.
Press HOLD again to exit the Hold mode to return to measuremen t
mode, the Meter beeps.
Turning the rotary switch or pressing button can also SELECT
exit Hold mode.
HOLD
Pres buttons HOLD for seconds when 2 turning on the Meter to
display full icon.
When the Meter is at %Hz, V and A , press Hz to measur e
frequency and duty cycle.
Hz
ZERO ZEROPress to zeroing the display before measuring DC current.
The Effectiveness of Functional Buttons
N i sw i lowot every funct onal buttons can be used on every rotary itch posit ons. Be
t able describe on which rotary switch position the functions of buttons are available.
SELECT MAX/MIN HOLD Hz ZERO
N/A
%Hz
66A
1000A
66A
1000A
N/A
N/A
N/A
N/A
N/AN/A
N/A
N/A
N/A
N/A
N/A
N/A
Rotary Switch
Positions
V
Functional Buttons
o
CoF
Figure 2
Display Symbols (See Figure 2)
Number Symbol Meaning
1
2
3
4
5
6
7
8
9
10
11
INRUSH
MIN
MAX
ZERO
Indicator for Surge current
Minimum reading displayed
Maximum reading displayed
Indicator for zeroing
Data hold is active
The Meter is in the auto range mode in which th e
Me ert au oma icallyt t s ts telec he range with t he best
resolution.
True RMS indicator
Indicator for AC voltage or current
Indicates negative reading
Indicator for DC voltage or current
The battery is low.
W : To l s, charning avoid fa se reading whi
could lead to possible electric shock or
personal injur y, replace the battery as soon as
the battery indicator appears.
H
AUTO
RMS
AC
DC
12
13
14
15
16
17
18
19
20
21
Sleep mode is on
Test of diode
The continuity buzzer is on
: Ohm. The unit of resistance.
k :Kilohm. 1x103or 1000 ohms
M :Megohm. 1x106or 1,000,000 ohms
Hz: Hertz. The unit of frequency.
KHz: Kilohertz. 1x103
or 1000 hertz.
MHz: Meghertz. 1x10
6 or1,000,000 hertz.
Volts. The unit of voltage.
mV: Millivolt. 1x10-3 or 0.001 volts
Amperes (amps). The unit of current.
The unit of temperature:
:Centigrade temperature
The unit of temperature:
:Fahrenheit temperature
Duty cycle measurement
,K ,M
H MHzz, kHz,
mV, V
A
%
A. Measuring DC/AC ( See Figure 3 )
To avoid harm to you or damage to the Meter from eletric shock, do not
attempt to measure voltages higher than 600V AC/DC, although readings may
be obtained.
Red Black
Red Black
Measurement Operation
Figure 3
Warning
The DC Voltage ranges are: 6.6V, 66V and 600V
The AC Voltage ranges are: 6.6V, 66V and 600V
To measure DC/AC voltages, connect the Meter as follows:
Insert the red test lead into the V Hz COM terminal and black test lead into the
terminal.
Set the rotary switch to V . DC measurement mode and auto ranging is a
default. Press to switch to AC measurement mode.SELECT
Press Hz u q l but button to meas re fre uency or duty cyc e, the freque cy ut n or d y
cycle readings obtained from this range is only for reference.
Connect the test leads across with the object being measured.
The measured value shows on the display.
1.
2.
3.
4.
Note
When DC/AC voltage measurement has been completed, disconnect the connection
between the testing leads and the circuit under test and remove testing lead s
from the input terminals.
B. Measuring Resistance (See Figure 4)
To avoid damage to the Meter or to the device s
under test, disconnect circuit power and
disc arh ge a ll the high- oltv age ca ac rsp ito be refo
measuring resistance.
The resistance ranges are:
660 , 6.6k , 66k , 660k , 6.6M and 66M
To measure resistance, connect the Meter as
follows:
Insert the red test lead into the V Hz terminal
and black test lead into the terminal. COM
Set t rotary s tc to he wi h . Resist cean
measurement is a default or press SELECT
to switch to measurement mode.
1.
2.
Red Black
Figure 4
Warning
Connect the test leads across with the object being measured.
The measured value shows on the display.
3.
Note
To tob ain a more precise r , y c remove t eading ou ould he objects being ed test from
the circuit during measurement.
When resistance measurement has been completed, disconnect the connection
between the testing leads and the circuit under test and remove testing leads
from the input terminals.
C. Testing Diodes (See Figure 5)
To avoid damage to the Meter or to the device s
under test, disconnect circuit power an d
di llsc arh ge a th high- olte v age ca ac rsp ito be refo
testing diodes.
Use the diode test to check diodes, transistors, an d
other semiconductor devices. The diode test send s
a ncurrent through the semicondutor junction, the
measure the voltage drop across the junction. A
good silicon junction drops between 0.5V and 0.8 V.
To test the diode out of a circuit, connect the Meter
as follows: Figure 5
Warning
Red Black
Insert the red test lead into the terminal and black test lead into theV Hz COM
terminal.
Set the rotary switch to . Press to switch to measurementSELECT
mode.
For forward voltage drop readings on any semiconductor component, place the
red test lead on the component’s anode and place the black test lead on the
component’s cathode.
1.
2.
3.
Note
To tob ain a more precise r , y c remove t eading ou ould he obje beingcts test fred om
the circuit during measurement.
When diode testing has been completed, disconnect the connection between th e
testing leads and the circuit under test and remove testing leads from the input
terminals.
D. Testing for Continuity (See Figure 6)
To avoid damag to the Meter or to the device s
under test, disconnect circuit power an d
di llsc arh ge a th high- olte v age ca ac rsp ito be refo
measuring continuity.
To test for continuity, connect the Meter as follows:
Insert the red test lead into the V Hz terminal
and the black test lead into the terminal.COM
Set the rotary switch to and press
SELECT button to select measurement mode.
The buzzer sounds if the resistance of a circuit
under test is less than 30 .
The buzzer may or may not sound if the
res stanci e of a ci it er rcu und test is b wet een 30 to 100 .
The buzzer does not sound if the resistance of
1.
2.
3.
Red Black
Warning
Figure 6
a circuit under test is higher than 100 .
Note
When continuity testing has been completed, disconnect the connection between
t t t g t t t t t t f thehe es in leads and he circui under es and remove es ing leads rom
input terminals.
E. Measuring Frequency (See Figure 7)
To avoid harm to you or damage to the Meter
from eletric shock, do not attempt to measur e
voltages higher than 600V AC/DC, althoug h
readings may be obtained.
The frequency ranges are:
660Hz, 6. , 6kHz 66kHz, 660kHz, 6.6MHz and 66MHz.
To measure frequenc y, connect the Meter as follows:
Insert the red test lead into the V Hz terminal
and the black test lead into the terminal.COM
Set the rotary switch to . Frequency%Hz
m surem t m is a fea en ode de ault or pre ss SELECT
to switch to measurement mode.Hz
Connect the test leads across with the object being measured.
1.
2.
3.
Red Black
Figure 7
Warning
Note
When frequency measurement has been completed, disconnect the connection
bet the i lea and ween test ng ds th rce ci uit u er te and re the i snd st, move test ng lead
away from the input terminals of the Meter.
The measured value shows on the display.

Produkt Specifikationer

Mærke: Uni-T
Kategori: Måleudstyr
Model: UT208

Har du brug for hjælp?

Hvis du har brug for hjælp til Uni-T UT208 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Måleudstyr Uni-T Manualer

Uni-T

Uni-T UT575B Manual

1 September 2024
Uni-T

Uni-T UT503PV Manual

1 September 2024
Uni-T

Uni-T UT225B Manual

31 August 2024
Uni-T

Uni-T UT377C Manual

31 August 2024
Uni-T

Uni-T UT387S Manual

31 August 2024
Uni-T

Uni-T UT243 Manual

31 August 2024
Uni-T

Uni-T A13T Manual

31 August 2024
Uni-T

Uni-T UT283A Manual

31 August 2024
Uni-T

Uni-T UT262E Manual

31 August 2024
Uni-T

Uni-T UT267B Manual

31 August 2024

Måleudstyr Manualer

Nyeste Måleudstyr Manualer

Stamos

Stamos S-LS-28 Manual

15 Oktober 2024
Stamos

Stamos S-LS-86 Manual

15 Oktober 2024
Stamos

Stamos S-LS-61 Manual

15 Oktober 2024
Stamos

Stamos S-LS-81 Manual

15 Oktober 2024
Stamos

Stamos S-LS-84 Manual

15 Oktober 2024
Stamos

Stamos S-LS-74 Manual

15 Oktober 2024
Stamos

Stamos S-LS-42 Manual

15 Oktober 2024
Stamos

Stamos S-LS-75 Manual

15 Oktober 2024
Stamos

Stamos S-LS-35 Manual

15 Oktober 2024
Stamos

Stamos S-LS-38 Manual

15 Oktober 2024
