VSP-V-1016,V-1022C-27C
Issue 4
1947296

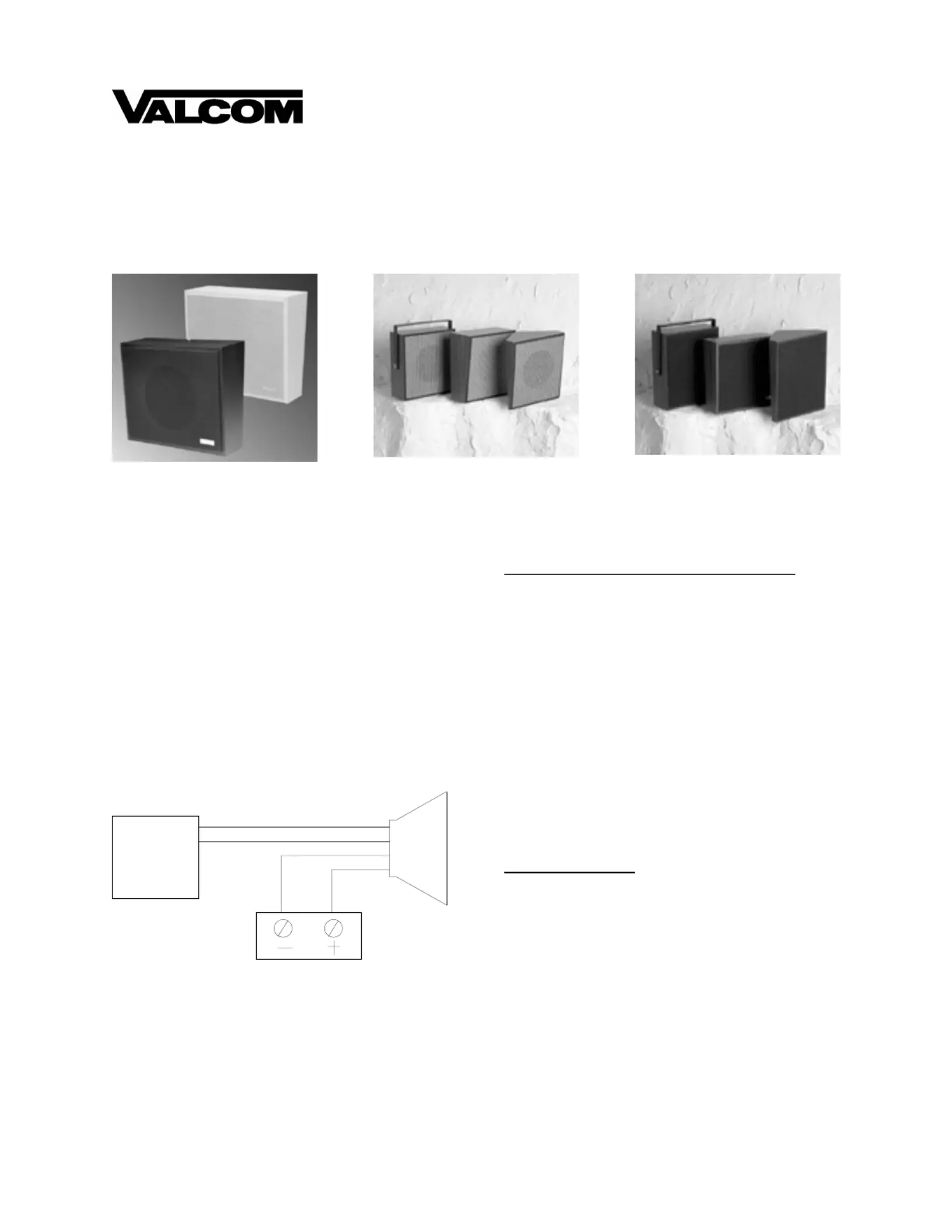

INSTALLATION INSTRUCTIONS FOR
ONE-WAY AMPLIFIED INTERIOR WALL SPEAKERS
V-1016-B, V-1016-W V-1022C, V-1024C, V-1026C V-1023C, V-1025C, V-1027C
Valcom One-Way Amplified Interior Speakers,
V-1016-W, V-1016-BK, V-1022C, V-1023C,
V-1024C, V-1025C, V-1026C, V-1026C-W,
V-1027C, are self-amplified and capable of
reproducing paging as well as background music.
These speakers have externally accessible volume
controls that are screwdriver adjustable. The
enclosures are vinyl laminated pressboard with either
a coordinating cloth or woven can grille. All
speakers require -24 Vdc, 50 mA (1 power unit) and
are FCC Part 68 registered under
BAFUSA-69358-KX-N.
INSTALLATION
Typical Connections
NOTE: Do not connect this speaker directly to a
25/70/100 volt amplifier as damage to both the
amplifier and speaker may occur. A V-1095 may
be used to allow the use of Valcom self-amplified
speakers on 70V speaker lines.
Mounting
Ideal mounting heights are 8 to 12 ft. above the floor.
V-1016-BK, V-1016-W, V-1022C, V-1023C:
Remove the screw holding the mounting bracket to
the speaker housing. Mount bracket using appro-
priate hardware such as #8 pan head screws. After
making the required connections, reattach the speaker
housing to the mounting bracket.
• V-1016 – 9.7”H x 11.5”W x 4.0”D
(24.6cm H x 29.2cm W x 10.16cm D)
• 4.1 lbs. (1.86kg)
• V-1022C – 9.6”H x 11.5”W x 4.2”D
(24.4cm H x 29.2cm W x 10.7cm D)
• 4.5 lbs. (2.04kg)
• V-1023C – 9.6”H x 11.5”W x 4.2”D
(24.4cm H x 29.2cm W x 10.7cm D)
• 4.1 lbs. (1.86kg)
V-1024C, V-1025C: After making required connec-
tions, use appropriate hardware such as an 8d
finishing nail to hang the speaker housing in the
corner.
• 10.5”H x 9.5”W x 6.3”D
(26.7cm H x 24.1cm W x 16cm D)
• 3.6 lbs. (1.63kg)
Page
Out
Valcom Page
Control
(Tip/A)
(Ring/B)
(-24Vdc)
(Gnd)
Valcom -24 Vdc
Power Supply
One-Way
Amplified
Speaker
