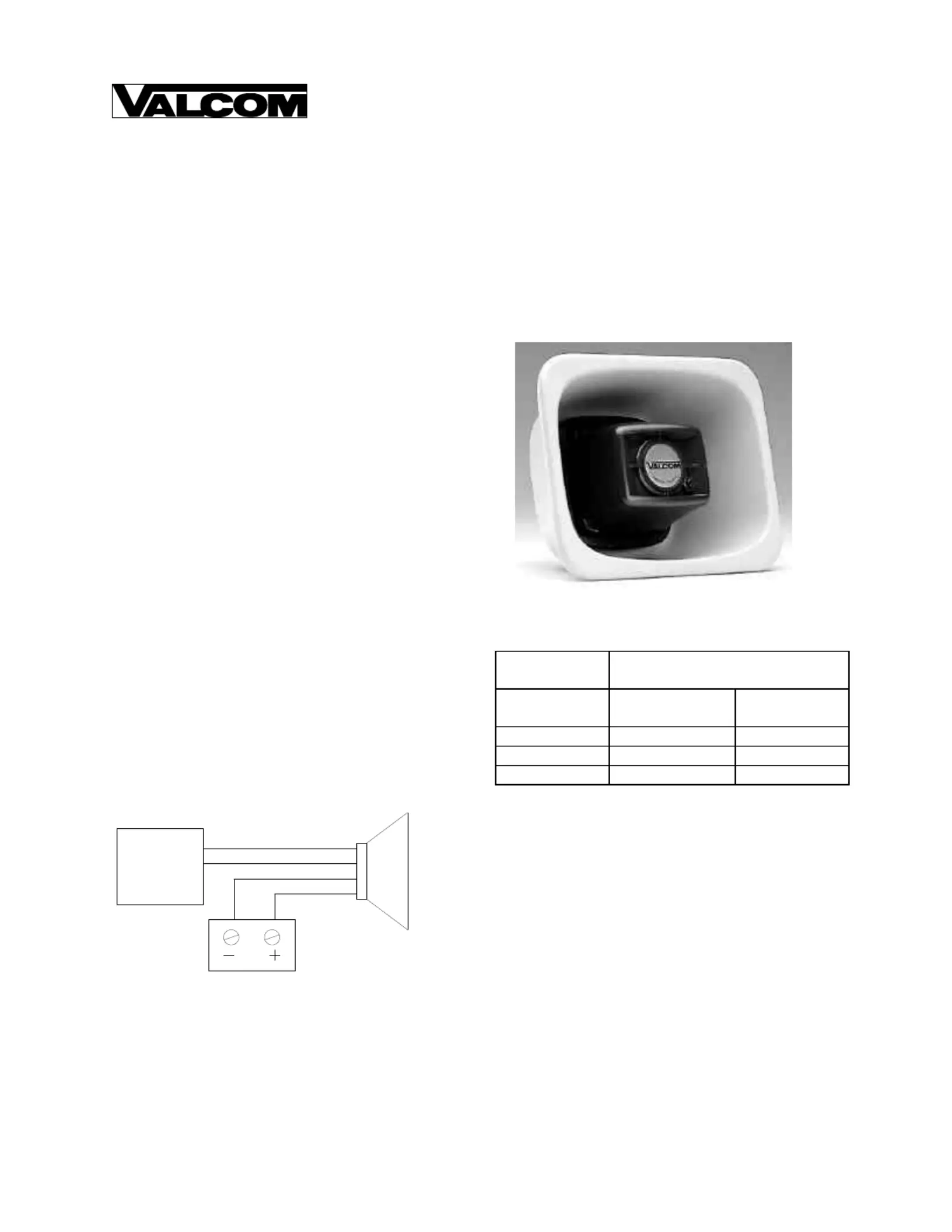

VSP V- -1080
Issue 3
1 947780
V-1080 FLEXHORN
THREE WATT ONE-WAY PAGING HORN
INTRODUCTION
The Valcom V- -1080 Flexhorn is a one way
self-amplified paging horn designed to provide voice
paging as well as background music. This horn is
weatherproof and can be used indoors or outside in
environments ranging from -20 to +55°C. A volume
control is accessible on the front of the cone. The horn
is offered in gray, beige and white.
Model V- -1080 GY Gray
Model V- -1080 BG Beige
Model V- -1080 W White
Dimensions/Weight
6.80"H x 8.30"W x 3.30"D
(17.27cm H x 21.08cm W x 8.38cm D)
2.1 lbs. (0.95 kg)
The V- -1080 requires 24VDC, 150mA (3 Valcom
Power Units) and is FCC Part 68 Registered under
BAFUSA-69358- -KX N.
CONNECTIONS
NOTE: Do not connect this speaker directly to
a 25/70/100 Volt amplifier as damage to both
the amplifier and speaker may occur. A V-1095
can be used to provide an interface between a
centrally amplified speaker line and Valcom
self-amplified horns.
POWER WIRE RUN
# Horns per
Power Run
Wire Run Length (feet)
V-1080
(3 Watts)
24 AWG
22 AWG
5 250 400
2 500 800
1 760 1200
MOUNTING INSTRUCTIONS
FLUSH MOUNT
Using the template packaged with the speaker, draw the
speaker outline on the wall to be cut. Make appropriate
wiring connections and test the speaker for operation.
Using appropriate mounting screws (not furnished)
drill and mount the flange as shown.
UNIVERSAL BRACKET
Loosen or separate the universal bracket leaves by
loosening or removing the handle and hardware. Using
the back leaf as a template, mark the wall through the
mounting holes, drill and mount to the wall using
appropriate screws (not furnished) or mount directly to
a junction box.
(Tip/A) Green
(Ring/B) Red
(-24VDC) White
(GND) Black
One-Way
Amplified
Speaker
Page
Out
Valcom Page
Control
Valcom -24VDC
Power Supply
