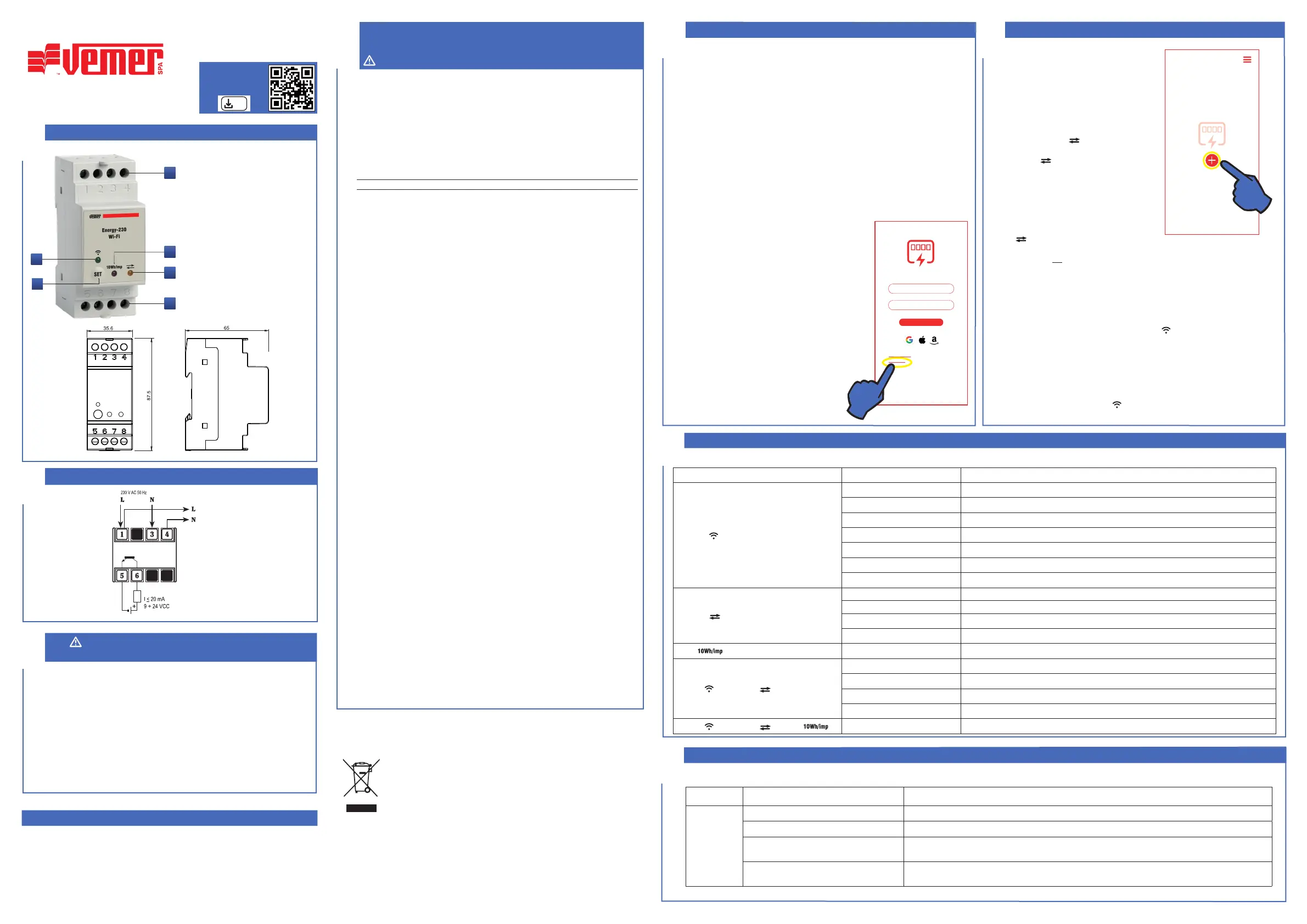

Side 1/2

03-2024

REFERENCE STANDARDS

EU CONFORMITY DECLARATION

Vemer declares that the device complies with the Communitary Directive 2014/53/EU

(RED) with reference to the following standards:

• EN 61010-1 • EN 50470-1 • EN 50470-3 • EN 300 328 • EN 301 489-1

• EN 301 489-17

The full text of the EU Conformity Declaration is available at www.vemer.it address.

V3IS01181-010

Mod. Energy-230 Wi-Fi

Manuals

download

PDF

2INSTRUMENT DESCRIPTION and DIMENSIONS

User Manual

SINGLE-PHASE ACTIVE ENERGY METER WITH WI-FI MODULE

Read all the instructions carefully

Energy meter from DIN bar designed to measure the consumption of active energy into

the grid in single-phase systems. The current insertion is direct for values up to 40A.

The integrated Wi-Fi module is used to manage the device remotely using your smartphone

or tablet. You need to connect the device to your home router and install the dedicated App

on your smartphone or tablet, available free of charge for Android and iOS devices.

On the application it is possible to view the measurements of total energy, partial

energy and instantaneous power. It has a pulse output for remote energy counting.

Energy-230 Wi-Fi is an electronic device intended to operate in environments with overvoltage

category III and pollution degree 2 according to the EN 61010-1 standard.

Code Model Description

VE794600 Energy-230 Wi-Fi

Single-phase active energy meter with Wi-Fi interface

SAFETY WARNINGS

During product installation and operation it is necessary to observe the following

instructions:

1) The product must be installed by a qualified person, strictly in observance of the

connection diagrams shown in this manual.

2) The product must be installed and activated in compliance with current electric

systems standards

3) After installation inaccessibility to the terminals without using dedicated tools

must be guaranteed

4) Do not use the product for anything other than the indicated purpose.

5) The product must be installed in an adequately protected closed electrical panel.

6) In the supply network there must be a bipolar disconnection.

7) In the electrical system upstream of the product must be installed a protection

device against the overcurrents.

8) Before accessing the connection terminals, make sure that the leads are not live.

9) Do not connect or feed the product if any part of it is damaged.

10) The product can be used in environments with Measurement Category III

and Pollution degree 2, according to the Standard EN 61010-1.

TECHNICAL SPECIFICATIONS

• Power supply: 230 Vac (-15% ÷ 10%) 50/60 Hz

• Absorption: 4.7 VA (1.5 W)

• Starting current: Ist = 20 mA

• Minimum current: Imin = 0.25 A

• Reference current: Iref = 5 A

• Maximum current: Imax = 40 A

• Insertion type: direct

• Pulse output for remote reading of the collected energy count:

- 200 imp/kWh

- Pulse duration 100 ms ±15%

- Pulse voltage 9 ÷ 24 VDC ± 10%

- Switchable output current 20 mA Max

• Cable terminal block with a maximum section of 6 mm

• Communication interface: Wi-Fi and Bluetooth BLE 5.0

• Operating frequency band:

- Wi-Fi: 2.4 GHz IEEE 802.11 b/g/n

- Bluetooth: 2400-2483.5 MHz

• Maximum transmitted radiofrequency power:

- Wi-Fi: 18.3 dBm

- Bluetooth: 4 dBm

• LED: 3 operation status signal LEDs

• Precision: Class B

• Keypad: 1 key for configuration

• Operating temperature: -10°C ÷ 45°C

• Operating humidity: 20 ÷ 90% non-condensing

• Storage temperature: -25°C ÷ 70°C

• Insulation: reinforced between accessible parts (front) and all the other clamps

• Container: 2 DIN modules

• Degree of protection: IP20/IP51 on the front

• Create a Vemer account:

1. Install and launch the App on your Energy Wi-Fi

smartphone (or tablet)

2. Choose and fill in the "e-mail" and"REGISTER NOW"

"password" fields

Note: for security reasons, it is advisable to choose a

password different from the one used to access your

e-mail inbox

3. Check your e-mail address: confirm account activation

by clicking on the link contained in the e-mail sent by the

system

4. Log in by entering the e-mails and passwords chosen

during registration

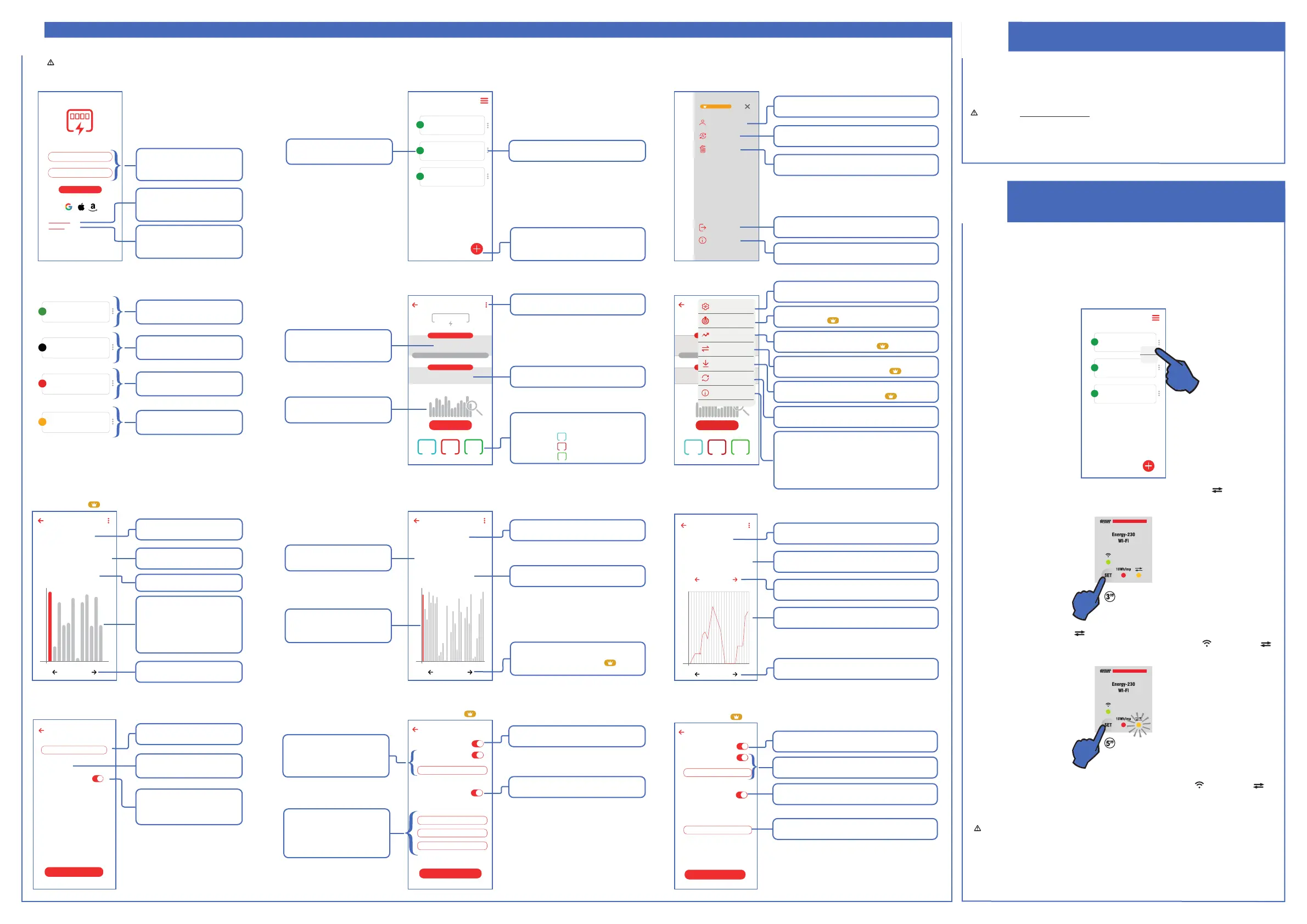

To configure the device using a smartphone

proceed as follows:

1. Verify that the phone you are using is connected

to the home Wi-Fi network where the device

will be connected.

2. Launch the and press the on App "+" button

the Home page.

3. On the Energy Wi-Fi, hold down the SET key

until the starts to flash quickly yellow LED ( )

to activate configuration mode. Now wait for the

yellow LED ( ) to start flashing slowly before

proceeding.

4. On the App:

a. follow the instructions in the wizard and press

"Next".

b. find and select in the list the device "EW_..."

to connect to the Energy Wi-Fi (the yellow

LED ( ) will come on fixed to indicate the

connection between the App and the device).

c. now enter the full name (SSID) and password of the Wi-Fi network to which the

device is connected, being sure to faithfully type in all the component characters

(upper-case, lower-case, spaces, digits).

Press to proceed. Continue

5. On the enter a name that helps identify the and confirm App Energy Wi-Fi

by pressing the Save

6. On the , check that the Energy Wi-Fi green LED ( ) starts flashing and after

a short while becomes fixed to indicate correct connection with the home network.

The configuration procedure has ended. At this point:

the displays the list of devices associated with your account which must also App

include the newly associated device

on the the Energy Wi-Fi green LED ( ) will be on fixed

7LED SIGNALS

The 3 LEDs on the device, based on the types of ignition described in the table, help to understand the operating status of the device:

LED Ignition type Operating status

GREEN ( )

Fixed on Normal operation

Slow  ashing Attempting to connect to the Wi-Fi network (during the remote control con guration phase)

Single  ashing Incorrect Wi-Fi password entered

Double  ashing No Wi-Fi connection or incorrect Wi-Fi network name entered

Triple  ashing Generic Wi-Fi connection error

Quadruple  ashing No Internet connection

Short shutdown Time absence

YELLOW ( )

Fixed on Power produced (during normal operation of the device)

Fixed on Connection with smartphone successful (during the remote control con guration phase)

Fast  ashing Preparation of BLE mode for remote control con guration

Slow  ashing BLE mode active for remote control con guration

RED ( ) Flashing Energy absorbed (each  ash indicates an increase in the energy meter of 10 Wh)

GREEN ( ) + YELLOW ( )

Simultaneous short ignition No network con guration

Simultaneous  xed access Starting and/or resetting of the device

Simultaneous fast  ashing Keypad lock enabled (displayed when the key is pressed)

Alternate Device identi cation (displayed with application command)

GREEN + RED( ) + YELLOW ( ) ( ) Simultaneous slow  ashing Internal memory error

(Max 40 A)

User / Load

Pulse output

5 Wh/Imp

3CONNECTION DIAGRAM

5PRELIMINARY OPERATIONS 6CONFIGURATION REMOTE CONTROL

WARNINGS

Use of the energy meter via the Energy Wi-Fi App must be performed

in the presence of a 2.4 GHz Wi-Fi network connected to the Internet.

The smartphone used for configuration must be connected to the same Wi-Fi network.

Make sure you have a Vemer account.

Also ensure that the distance from the router is such as

to ensure stable communication.

4WARNINGS FOR THE CORRECT POSITIONING AND

CONNECTION OF THE DEVICE TO A WI-FI NETWORK

For the correct operation and use of the device through the remote control via the App,

carefully follow the points below:

• Install and connect the device according to the connection diagrams in this manual.

• Check that:

1. the Router and/or the Wi-Fi Access Point are correctly switched on and at a distance

such as to guarantee a stable communication signal with the device

2. the Router has full access to the Internet and there are no browsing restrictions

(firewall settings, parental control,...)

3. The 2.4 GHz frequency band is also enabled in the Router settings (if the Router

only supports the 5 GHz frequency range, it will not be possible to operate the device;

for further information see the user instructions of your Router)

4. the smartphone used for configuration is connected to the same Wi-Fi network to which

the device is connected

5. position detection (GPS) of your smartphone is active and the consent to the

Energy Wi-Fi App to be able to identify the position (GPS) of the device is enabled

(adapt the settings on the smartphone such as to be able to perform this tracking;

for further information see the instructions of your

smartphone)

E-mail

Password

Forgotten password?

Or login with:

No devices

currently configured.

Set up a new device

The key on the device, depending on the type of pressure exerted, is used to perform the operations described in the table:

KEY Pressure type Function

SET

Prolonged pressure (> 3 sec) Enabling of BLE mode for remote control con guration

Short pressure Forcing of communication with the server

Short pressure

(during the remote control con guration phase) BLE mode output for remote control con guration

Prolonged pressure (> 5 sec)

(during the remote control con guration phase) Reset settings: reset of all settings to factory values and deletion of account association

8KEYBOARD OPERATION

Vemer S.p.A.

I - 32032 Feltre (BL) • Via Camp Lonc, 16

e-mail: info@vemer.it - web site: www.vemer.it

1 Green LED: Wi-Fi network connection

status 

2 SET key: con guration activation/

deactivation

3 Clamps for pulse output

4 Yellow LED: Wi-Fi con guration/

pairing or power output

5 Red LED: absorbed energy signal

( ashing with a frequency of 10Wh)

6 Clamps for direct insertion of

measuring conductors

information to users pursuant to art. 14 of the directive

2012/19 / EU of the european parliament and of the council

of 4 july 2012 on waste electrical and electronic equipment (WEEE)

If the crossed-out bin symbol appears on the equipment or packaging,

this means the product must not be included with other general waste

at the end of its working life.

The user must take the worn product to a sorted waste center,

or return it to the retailer when purchasing a new one.

Products for disposal can be consigned free of charge (without any new purchase obligation)

to retailers with a sales area of at least 400 m

2, if they measure less than 25 cm.

An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its

subsequent recycling, helps avoid the potential negative effects on the environment and people’s health,

and encourages the re-use and/or recycling of the construction materials.
