Features

Applications Specifications

• Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with

permanent laser etched graphics. Speaker/mic screen. Heavy duty metal keypad

buttons and T-10 Security Torx drive mounting screws.

• Marine grade 316 stainless steel faceplate and screws. Weather Resistant Features:

Keypad internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate,

mic and speaker gaskets.

• Built-in high resolution analog NTSC color video camera with wide viewing angle,

tilt/swivel adjustments and wide operating temperature: -40°F to 140°F

• Built-in 125KHz 26-bit Wiegand proximity card reader with LED and beep card read

confirmation and EWP board protection

• Two sets of SPDT 2 Amp relay contacts for door/gate or camera control

• Optional for Secure Remote Relay Control, see RC-4A DOD 582

• Blue “Call /Status” LED indicator

• SIP compliant (see page 2 for compatible SIP servers and IP phone systems)

• Outbound Proxy, Authentication ID, Peer to Peer, VLAN Tagging

• PoE powered (class 2, <6.5 Watts)

• Automatic Noise Canceling (ANC) feature for operation in noisy environments

• Viking’s proprietary VOX switching eliminates the need for “Push to Talk” mode

• Network downloadable firmware

Power: PoE class 2 (<6.5 Watts)

Dimensions: Overall: 5” x 10” x 2.5” (127 mm x 254 mm x 63.5 mm)

Rough-in box: 4.5” x 9.12” x 2.5” (114 mm x 232 mm x 64 mm)

Shipping Weight: K-1275-IP: 4.4 lbs (2.0 kg), K-1275-IP-EWP: 4.6 lbs (2.09 kg)

Operating Temperature: -30°F to 140°F (-34°C to 60°C)

Humidity - Standard Products: 5% to 95% non-condensing

Humidity - EWP Products: Up to 100%

Audio Codecs: G711u, G711a, G722

Network Compliance: IEEE 802.3 af PoE, SIP 2.0 RFC3261, 100BASE-TX with

auto cross over

Regulatory Compliance: CE, FCC Part 15 and Canada ICES-003 Class A

Connections: (1) RJ45 10/100 Base-T, (12) gel-filled butt connectors

The K-1275-IP is a durable and attractive handsfree phone for apartment and residential door entry

applications requiring a vandal resistant VoIP speaker phone with an integrated 125 KHz Proximity Card

Reader and analog Color Video Camera. The phone is designed to provide quick and reliableK-1275-IP

handsfree communication for SIP VoIP phone systems or cloud based service providers. The unit can be

programmed from any PC on the same LAN or remotely using a Static IP Address. The entryK-1275-IP

phone can dial up to 12 programmable numbers and 12 rollover numbers. The brushed stainless steel

faceplate has a built-in 12 resident directory with a waterproof, scratch resistant lens and 12 buttons for

single push auto-dialing of a tenant’s phone number or business extension.

When the phone is connected to an apartment or business tenant, a built-in contact closure mayK-1275-IP

be activated to control an electric gate or door strike. Up to 1,000 keyless entry codes may be programmed,

providing tenants with keyless entry. The has a built-in Proximity Card Reader with capacity toK-1275-IP

program up to 1,000 card numbers. Keyless entry codes and card numbers can be programmed to only

allow access at specific times and/or day of the week. The includes a request for exit (REX)K-1275-IP

input and also offers event logging with time and date stamp.

The K-1275-IP-EWP K-1275-IP shares all of the features of the in addition to Enhanced Weather Protection

(EWP) for outdoor installations where the unit is exposed to precipitation or condensation. EWP products

are designed to meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled

butt connectors, as well as potted circuit boards. For more information on EWP, see . DOD 859

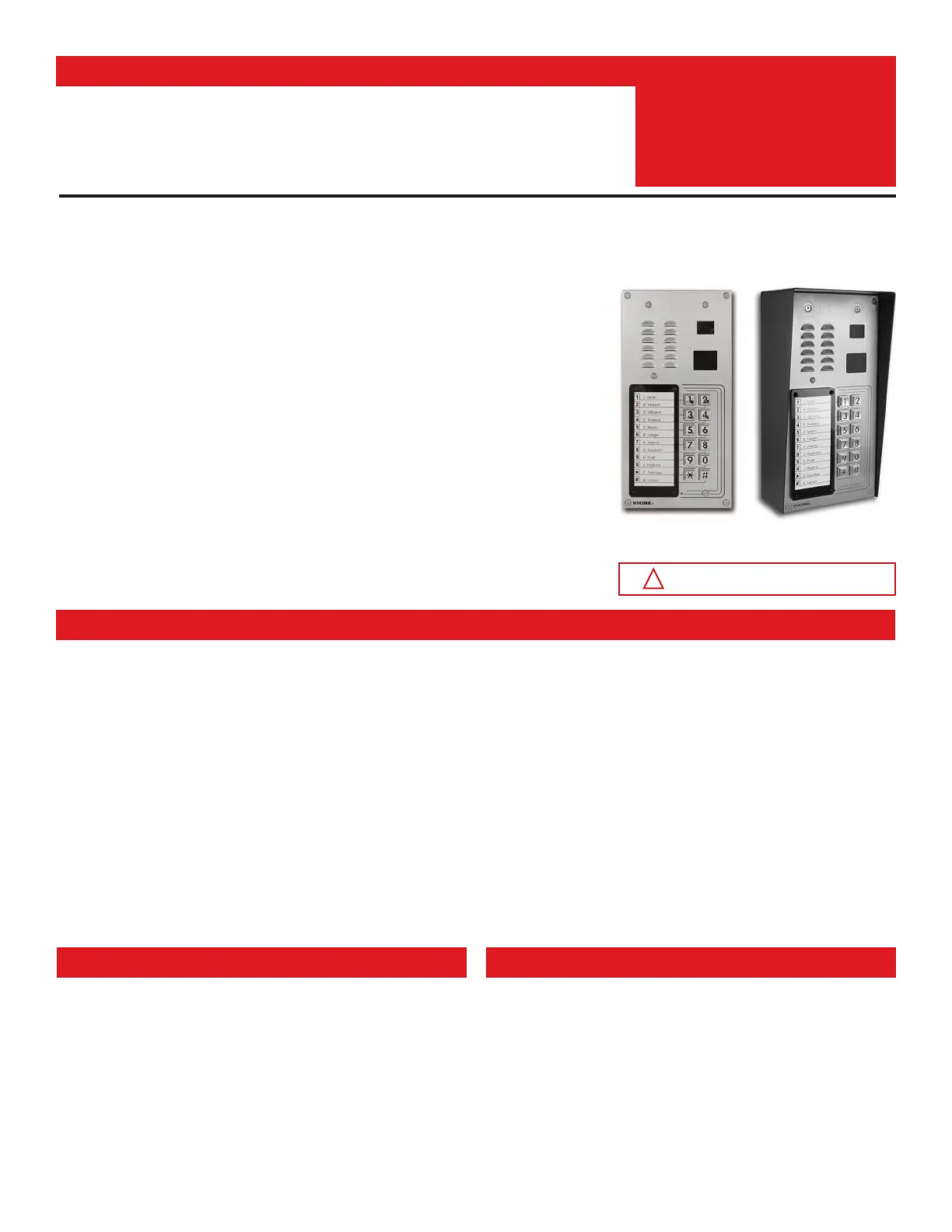

K-1275-IP

(shown in optional VE-5x10-SS

surface mount box)

• Programmable to speed dial up to 12 numbers

• Cycles to rollover phone number on busy or no-answer

• Program up to 1,000 keyless entry codes and/or proximity card numbers

• Keyless entry codes and proximity card numbers can be programmed to only allow

access at specific times and days of week

• Event logging with time and date stamp

• Optional Enhanced Weather Protection (EWP), EWP products are designed to meet IP66

Ingress Protection Rating, see DOD 859

• Hangs up on busy signal, time-out or touch tone command

• Remotely programmable

• Extended temperature range -40°F to 140°F

• Programmable volume adjustments for microphone and speaker

• Selectable auto-answer feature for monitoring

• Flush mount with included Zinc plated steel rough-in box,

• Surface mount using an optional surface mount box (not included, see VE-5x10 DOD 424)

• Optional Long Range RFID receiver, see LRR-4 DOD 226

• Optional kit to illuminate the front panel at night, see VE-LIGHT DOD 428

• Diagnostics for testing mic, speaker, relays, and proximity cards

Vandal Resistant VoIP Entry Phone System with Built-In Directory,

Proximity Card Reader, 12 Button Auto Dialer, and Analog Video Camera

K-1275-IP

“Brushed 316 Stainless Steel”

(similar to brushed nickel)

Installation requires the assistance of a

Network Administrator / IT Technician.

Information: 715-386-8861

www.VikingElectronics.com

• Residential Gate Entrance

• Courtesy Assistance Phone

• Customer Service Phone

• Automated Teller (ATM) Phone

• Use with Long Range RFID Transmitter LRR-4 DOD 226

• Use with any of Viking’s Proximity Credentials: , PRX-C PRX-C-ISO,

PRX-FOB LRT-4 DOD 198 226, and see and

• Kiosk Phone

• Door Entry Phone

• Apartment Entry Phone

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA

K-1275-IP Series

VoIP Entry Phone System

with Built-In Proximity Card

Reader and Color Camera

September 28, 2021

SECURITY & COMMUNICATION

VIKING
