Applications

The K-1900-7 Series panel phones will auto-dial a 1-32 digit programmable phone number

each time the handset is lifted. The unit will touch tone or pulse dial and will not auto-dial

on incoming calls.

The K-1900-7 Series housing consists of a heavy gauge stainless steel panel, an armored

cable, a heavy duty handset, and an all metal cradle. The K-1900-7 Series phone can be

easily touch tone programmed at the shop or installation site. All programming is stored in

non-volatile memory.

The K-1900-712L and K-1900-712L-EWP feature a 12” long armored cable with an internal

stainless steel lanyard for additional cable strength.

The K-1900-7-EWP and K-1900-712L-EWP share all of the features of the K-1900-7 and

K-1900-712L in addition to Enhanced Weather Protection (EWP) for outdoor installations

where the unit is exposed to precipitation or condensation. EWP products are designed to

meet IP66 standards and may feature foam rubber gaskets, sealed connections, gel-filled

butt connectors, as well as potted circuit boards with internally sealed, field-adjustable trim

pots and DIP switches for easy on-site programming. For more info on EWP, see DOD 859.

Note: SR-1 DOD 477 LPR-1 DOD 550 If a ringer is required, use an external unit such as the Viking ( ), or ( ).

Vandal Resistant

Hot-Line Panel Phones

Features

Specifications

PRODUCT

MANUAL

Designed, Manufactured and Supported in the USA K-1900-7 Series

Hot-Line Panel Phone

June 6, 2022

SECURITY & COMMUNICATION

VIKING

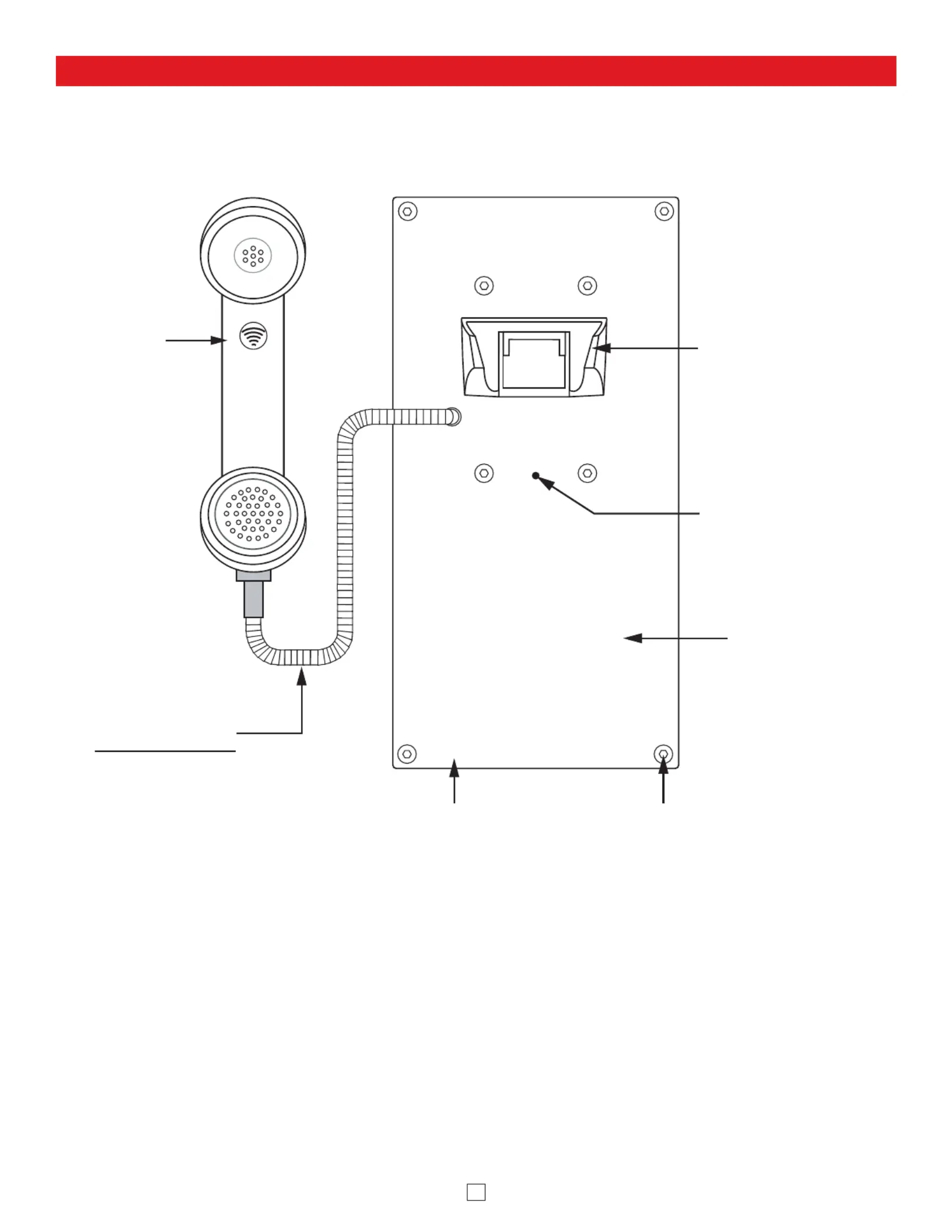

• Vandal Resistant Features: 12 gauge (0.105” thick) 316 stainless steel panel

with permanent laser etched graphics, armored cable, metal cradle and hex

drive mounting screws

• Marine grade 316 stainless steel faceplate and Weather Resistant Features:

screws

• Auto dials one programmable speed dial number (up to 32 digits)

• Touch tone or pulse dialing

• Non-volatile memory (no batteries required)

• Operates on analog PABX and key system extensions or Centrex and CO lines

• Programmable 6 digit security code

• Touch tone programmable

• Optional Enhanced Weather Protection (EWP) available - EWP products are

designed to meet IP66 Ingress Protection Rating, see DOD 859

• 12” armored handset cord on andK-1900-712L K-1900-712L-EWP

• 36” armored handset cord on K-1900-7

• 54” armored handset cord on K-1900-7-EWP

• Programmable pre-dial pause

• Blocks fraudulent calls from hand held pocket dialers

• Hearing aid compatible amplified handset with sealed push button volume

control

• Programmable default volume level

• Programmable volume control disable

• Flush mount using a standard double-gang box (not included)

• Surface mount using an optional surface mount box (not included, see VE-5x10

DOD 424)

Power: Telephone line powered (20V DC/18mA minimum)

Dimensions for Standard Model:

Phone: 5.0” x 10.0” x 5.1” (127mm x 254mm x 130mm)

With rough-in box: 5.0” x 10.0” x 5.2” (127mm x 254mm x 132mm)

Dimensions for EWP Model:

Phone: 5.0” x 10.0” x 5.18” (127mm x 254mm x 132mm)

With rough-in box: 5.0” x 10.0” x 5.28” (127mm x 254mm x 134mm)

Shipping Weight: 4 lbs (1.8 kg )

Operating Temperature: -30°F to 140°F (-34°C to 60°C)

Humidity - Standard Model: 5% to 95% non-condensing

Humidity - EWP Model : Up to 100% condensing

K-1900-712L(EWP) Handset Cable Length: 12” to 12.7” (31 cm to 33 cm)

K-1900-7 Handset Cable Length: 34” to 37” (86 cm to 94 cm)

K-1900-7-EWP Handset Cable Length: 52” to 57” (132 cm to 145 cm)

Touch Tone Dial Speed: Normal = 120ms on/off, Fast = 50ms on/off

Pulse Dial Speed: Normal = 10 pps, Fast = 20 pps

Connections: (2) gel-filled butt connectors

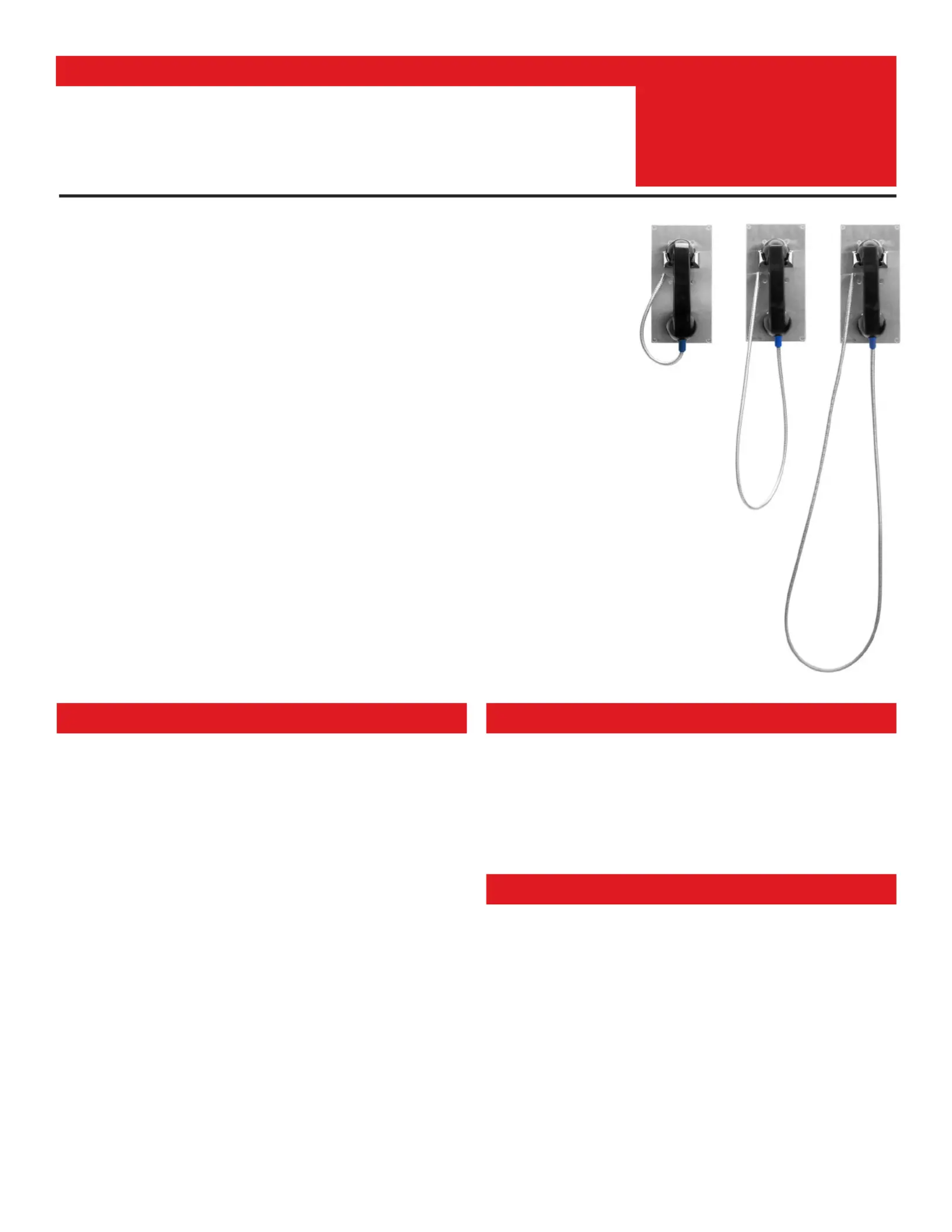

K-1900-7-EWP

with 54”

armored cable

K-1900-712L or

K-1900-712L-EWP

with 12” armored

cable and lanyard

K-1900-7

with 36”

armored cable

• Catalog sales

• Kiosks

• Courtesy phones

• Automated tellers (ATM’s)

• Customer service phones

• Hot-line reservation phones

• Security and emergency phones

• Replaces leased ringdown circuits

• Gate/entrance communication in noisy

areas (diesel trucks, factory noise, etc.)
