Module signalisation LED Petrarca
6154 (LED rouge) - 6V54 (LED verte)
Pour introduire le module dans les postes de la série
PETRARCA, effectuer les opérations suivantes:
Fig. 1: Ouvrir le poste d’appartement, séparer le
couvercle du fond en faisant force du côté inférieur
du couvercle.
Fig. 2: Insérer le module LED dans le fond du
poste d’appartement et effectuer le raccordements.
Tension de fonctionnement: 15V c.c. - c.a.
Fig. 3 - 4: Diviser les boutons-poussoirs, extraire
le bouton-poussoir du meuble et insérer le
bouton-poussoir transparent fourni avec le module
led. Insérer le bouton-poussoir transparent
correspondant au lieu du bouton-poussoir enlévé du
poste d’appartement.
Anzeigemodul mit LED Petrarca
6154 (roter LED) - 6V54 (grüner LED)
Für den Einbau des Moduls in Haustelefone der
Serie PETRARCA, wie folgt vorgehen:
Abb. 1: Das Haustelefon öffnen, den Deckel vom
Boden entfernen durch Drücken auf die Unterseite
des Deckels.
Abb. 2: Den Modul LED in den Haustelefonboden
einstecken und die Anschlüsse durchführen. 15V
D.C. / A.C. Betriebsspana
Abb. 3 - 4: Die Tasten teilen, die Taste vom
Gehäuse ausziehen und eine mit dem Modul
LED mitgelieferte durchsichtige Taste einstecken.
Die entsprechende durchsichtige Taste (statt
der aus dem Haustelefon ausgezogenen Taste)
verwenden.
Módulo sinalização LED Petrarca
6154 (LED vermelho) - 6V54 (LED verde)
Para inserir o módulo nos telefones das séries
PETRARCA proceder do seguinte modo:
Fig. 1: Abrir o telefone, afastar a tampa do fundo
fazendo força no lado inferior da tampa.
Fig. 2: Inserir o módulo no fundo do interfone e
efetuar as ligações. Tensão de funcionamento:
15V c.c./ c.a.
Fig. 3 - 4: Dividir os botões, extrair o botão
transparente do móvel e inserir um botão
transparente fornecido com o módulo led. Utilizar
o botão correspondente transparente em vez do
botão retirado do interfone.
Módulo señalización LED Petrarca
6154 (LED rojo) - 6V54 (LED verde)
Para insertar el módulo en los teléfonos serie
PETRARCA operar de la siguiente manera:
Fig. 1: Open the interphone, split the cover from
the bottom making pressure on the lower side of
the cover
Fig. 2: Insertar el módulo LED en el fondo del
interfono y efectuar el conexionado. Tensión de
funcionamiento: 15V c.c./c.a.
Fig. 3 - 4: Dividir los pulsadores, extraer el pulsador
del mueble e insertar el pulsador transparente
suministrado con el módulo led.
Utilizar el pulsador transparente correspondiente
en lugar del pulsador quitado desde el interfono.
Modulo segnalazione LED Petrarca
6154 (LED rosso) - 6V54 (LED verde)
Per inserire il modulo nei citofoni serie PETRARCA
operare nel se guen te modo:
Fig. 1: Aprire il citofono, separare il coperchio dal
fondo facendo forza nel lato inferiore del coperchio.
Fig. 2: Inserire sul fondo del citofono il modulo
LED ed eseguire i collegamenti. Tensione di
funzionamento: 15V c.c.-c.a.
Fig. 3 - 4: Dividere i tasti in corrispondenza del
modulo LED, estrarre il tasto dal mobile ed inserire
un tasto trasparente fornito con il modulo LED.
Utilizzare il tasto trasparente corrispondente al
posto del tasto tolto dal citofono.

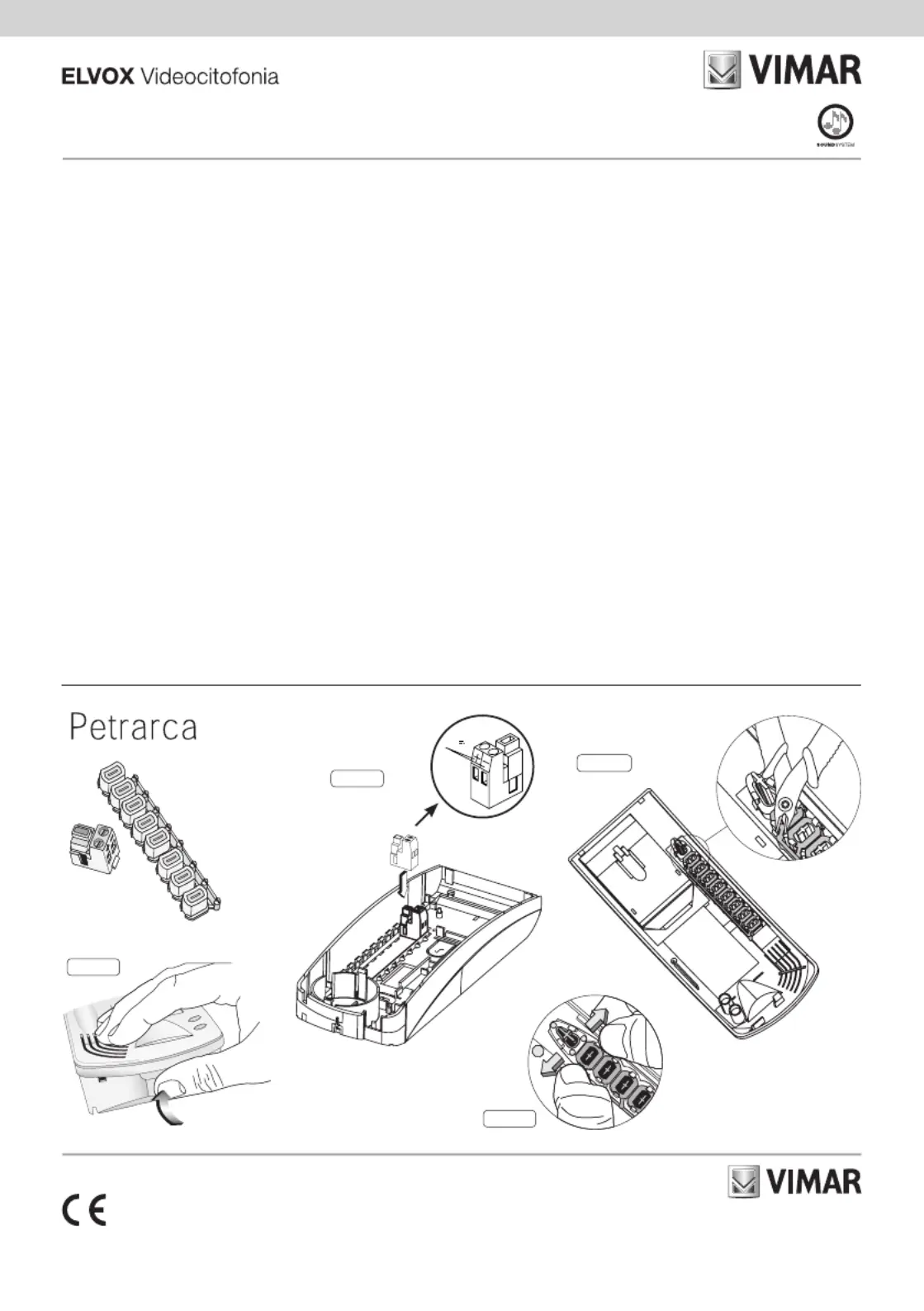

Petrarca LED indication module
6154 (red LED) - 6V54 (green LED)
Proceed as follows to install the module in
interphones series PETRARCA:
Fig. 1: Open the interphone, split the cover from
the bottom making pressure on the lower side of
the cover
Fig. 2: Insert the LED module in the telephone
bottom and carry out the connections 15V D.C. /
A.C.operating supply voltage.
Fig. 3 - 4: Split the push-buttons, remove the push-
button from the housing and insert the transparent
push-button supplied with the module led. Fit the
transparent corresponding push-button in the
interphone instead of the removed push-button.
Fig. 1
Fig. 3
+ -
+ -
15V
~
Fig. 2
Fig. 4
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
6154 - 6V54
49400673A0 01 2011
