Wagner ProjectPro 213 Extra Manual
Wagner
malingssprøjte
ProjectPro 213 Extra
Læs nedenfor 📖 manual på dansk for Wagner ProjectPro 213 Extra (56 sider) i kategorien malingssprøjte. Denne guide var nyttig for 16 personer og blev bedømt med 4.5 stjerner i gennemsnit af 2 brugere
Side 1/56
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/wagner/projectpro-213-extra/html/bg1.png)
ProjectPro
213 Extra
D/GB/F/NL
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/wagner/projectpro-213-extra/html/bg6.png)
ProjectPro 213 Extra
D ..........................................................................1 - 12
........ ........................................................................13 - 24
........................................................................25 - 36
........................................................................37 - 48
........................................ 50
GB
NL
F
+ +
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/wagner/projectpro-213-extra/html/bg19.png)
GB
19
ProjectPro 213 Extra
Adjusting the Material Volume (Fig. 7, item 3)
Set the material volume by turning the regulator on the trigger guard of the spray gun.
- turn to the left lower material volume
+ turn to the right higher material volume
Setting the Amount of Air (Fig. 7, item 1)
Depending on the viscosity of the material to be sprayed and the nish of the object to be
coated, it may be advisable to vary the amount of air. Very low viscosity materials, such as
watery glazes do not have to be atomised with the maximum amount of air. In this case it
is advisable to reduce the amount of air and thus minimize the spray vapour.
This also applies for the use of the low-scale and radiator/detail spray attachment
(accessory).
- turn to the left lower amount of air
+ turn to the right higher amount of air
Spray Technique
The spray result depends heavily on the smoothness and cleanliness of the surface to be
sprayed. Therefore the surface should be carefully prepared and kept free of dust.
Cover all surfaces not to be sprayed.
Cover screw threads or similar parts of the target object.
It is advisable to test the spray gun on cardboard or a similar surface to nd the correct
setting.
Important: Begin spraying outside of the target area and avoid interruptions inside the
target area.
The spray movement should come from the arm, not just from the wrist. This ensures that
a uniform distance is maintained between the spray gun and the spray surface during the
spray operation. Select a distance of 5 - 15 cm, depending on the desired spray jet width.
Fig. 10 A: CORRECT: Even distance to the object.
Fig. 10 B: INCORRECT: Uneven distance causes uneven coating.
Move the spray gun evenly cross-wise or up-and-down, depending on the spray pattern
setting.
An even movement of the spray gun results in an even surface quality.
When coating material builds up on the nozzle and air cap (Fig. 10), clean both parts
with a solvent or water.
Interruption of Work till 4 Hours
Turn the machine o.
Vent the container. This can be done by briey turning open and then closing the container
or by pulling the trigger guard and letting the paint into the original paint container.
Insert the spray gun into the gun holder.
When processing 2-component varnishes, clean the device immediately.
Taking Out of Operation and Cleaning
Proper cleaning is the prerequisite for problem-free operation of the paint application
device. No warranty claims are accepted in case of improper or no cleaning.
Turn the machine o.1)
Divide the spray gun. Press the hook (Fig. 6 "click") slightly downwards. Turn the gun 2)
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/wagner/projectpro-213-extra/html/bg1a.png)
20
GB
20
ProjectPro 213 Extra
front part and gun rear part against each other.
ATTENTION: Never hold the gun handle under water or immerse it into liquids.
3)
Clean the housing only with a moistened cloth.
Unscrew the container. Empty any remaining coating material back into the material 4)
tin.
Preclean the container and feed tube with a brush. Clean the ventilating bore (Fig.11, 5)
item C).
Pour solvent or water into the container. Screw the container back on.
6)
Use only solvents with a ashpoint over 21°C.
Assemble the gun again (Fig. 6).7)
Turn on the machine and spray the solvent or water into a container or a cloth.8)
Repeat the above procedure until the solvent or water emerging from the nozzle is
9)
clear.
Turn o the machine and divide the spray gun.10)
Screw of the container and empty it. Pull out the suction tub with container seal.11)
CAUTION! Never clean seals, diaphragm and nozzle or air holes of the spray
gun with metal objects.
The ventilation hose and diaphragm are only solvent-resistant to a limited
extent. Do not immerse in solvent, only wipe.
Pull the ventilating hose (Fig.11 A, item 13) at the top from the gun body. Screw o 12)
the valve cover (14). Remove the diaphragm (15). Clean all the parts carefully.
Unscrew the union nut and remove the air cap and nozzle. Clean the air cap, nozzle 13)
seal and nozzle with a brush and solvent or water (Fig. 11, item 5).
Clean the outside of the spray gun and container with a cloth soaked in solvent or 14)
water.
Assemble the parts again (see “Assembly”).15)
Assembly
The unit may only be operated with an integer diaphragm (Fig. 11A, item 15). Place the
diaphragm with the pin facing upwards on the bottom section of the valve. Also see
the marking on the gun body. Place on the valve cover and screw it closed. Place the
ventilating hose on the valve cover and on the nipple at the gun body.
Slide the nozzle seal (Fig. 11, item 4) with the groove (slot) facing forwards into the nozzle
(Fig. 11B). Put the nozzle onto the gun body and nd the correct position by turning it.
Put the air cap onto the nozzle and tighten it using the union nut.
Place the container seal from below on the suction tube and slide it over the collar, while
turning the container seal slightly. Insert the suction tube with container seal in the gun
body.
Maintenance
WARNING! Never operate the machine without the air lter; dirt could
be sucked in and interfere with the function of the machine.
Do not store any objects in the air lter compartment.
Change the air lter if it is soiled. Unplug the power plug. Open the cover of the air lter
compartment (Fig. 12). Insert a new air lter into the compartment. Close the cover of
the air lter compartment.
In order to mount the gun more easily apply lubricating grease (enclosed) liberally to the
![](https://manualstech.ams3.cdn.digitaloceanspaces.com/html/nl/wagner/projectpro-213-extra/html/bg1b.png)
GB
21
ProjectPro 213 Extra
O-ring at the spray attachment (Fig. 11, item 18) and to the O-ring of the plug connection
of the air hose (Fig. 11, item 19).
Storage
Remove the hose and when storing it in the cover put in the gun handle rst.
Spare Parts List (Fig. 12)
Pos. Designation Order No.
1 Union nut 0417 319
2 Air cap (Brilliant, blue)
Air cap (Perfect Spray 800, red)
(Australia version spare part no. in brackets)
0414 384
(0414 387)
0414 368
(0414 378)
3 Nozzle (Brilliant, blue)
Nozzle (Perfect Spray 800, red)
0414 381
0417 349
4 Nozzle seal 0417 706
5 Brilliant Spray attachment complete with 800 ml
aluminium container (Australia version spare part
no. in brackets)
2304 006
(2304 007)
6 Gun handle with air hose (7,5m) 0420 704
7 Rubber band 0420 259
8 Cover of air lter compartment 0420 328
9 Air lter 0420 702
10 Container with cover 800 ml (aluminium) 0420 708
11 Suction tube 0417 357
12 Container seal 0417 358
13
14
15
Ventilating hose
Valve cover
Diaphragm
0417 927
16 Lubricating grease 9892 550
17 Closure 0420 701
18 O-ring of spray attachment 0417 308
19 O-ring of air hose 0420 316

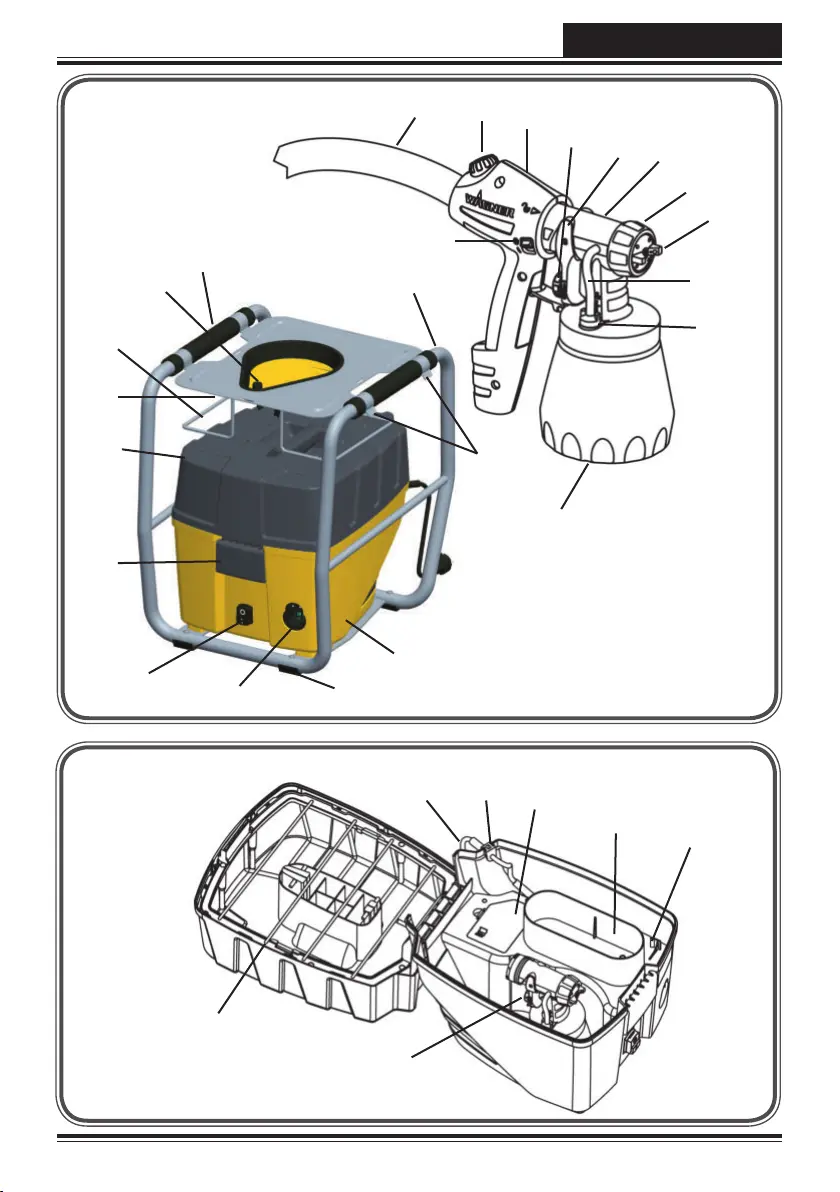

Spare Parts List (Fig. 1)
11 Frame 0420 244
12 Frame carry handle (2x) 0420 707
13 Frame cover/ Gun holder 0420 706
15 Fastening belts for air hose (2x) 0420 703
20 Frame base (4x) 0420 705
