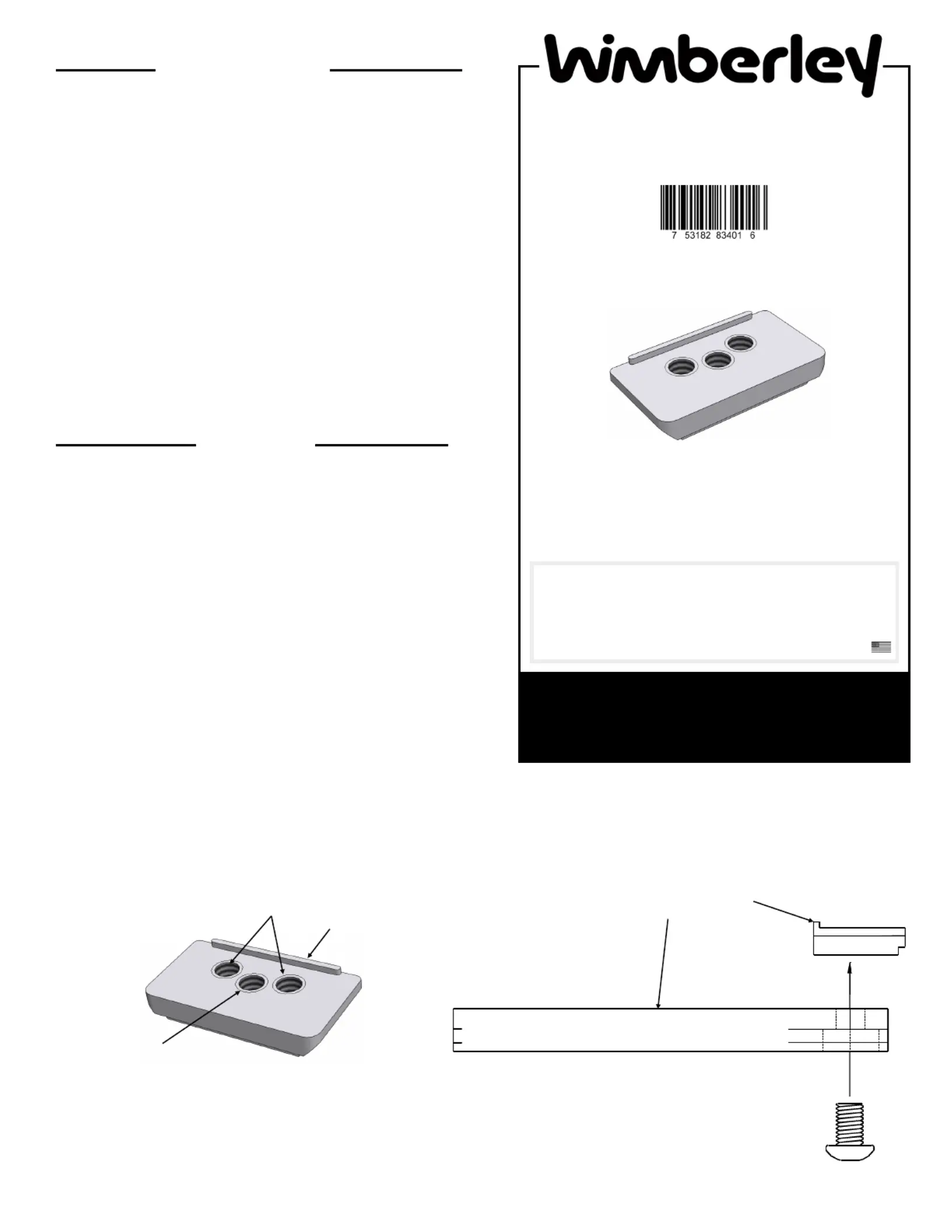

The AP 11 Dovetail Adapter- attaches to older style
Kirk and Really Right Stuff lens plates and adds a
second dovetail to these single dovetail plates. This
enables attachment of an arca swiss quick release - -
such as Wimberley Modular Flash Bracket System
This adapter can also be used to attach quick-
release flash brackets made by Kirk, Really Right
Stuff, Jobu and other manufacturers that use the
arca swiss configuration.-
Instructions
Wimberley, Inc. - - - Phone: 1 540 665 2744
974 Baker Lane Toll Free: 1 2746 -888-665-(USA & Canada)
Winchester, VA
22603 USA www.tripodhead.com info@tripodhead.com
Connecting the AP 11 to a Plate:-
Step 1: Attach the AP 11 plate to the lens plate where -
you would normally attach a flash bracket. Use the en-
closed hex key and fasteners one fastener for Kirk -
plates, two fasteners for Really Right Stuff plates (Fig 1).
Step 2: Attach the plate so that the end with the lip faces
the middle of the lens plate (Fig 2).
After installation, if there is not enough clearance be-
tween the adapter and the lens barrel to allow attachment
of the flash bracket, you may need to buy a lower profile
double dovetail Wimberley lens plate.
If this is the case, you can return the AP 11 for a full re--
fund. Call or email us to request a Return Authorization
number.
About the AP-11
Weight: 0.7 oz
Dimensions (Overall L x W x H): 1.5 x 0.81 x 0.24 in
Materials: Anodized 6061 Aluminum, stainless steel
Wimberley, Inc. ©2017, All Rights Reserved Rev. 170707
Figure 2
Orient so that the end with the lip faces
the middle of the plate
Really Right Stuff or Kirk Plate (Side View)
Thank you for your interest in Wimberley products. If you have any questions or comments please feel free to contact us.
Package Contents:
AP-11 Flash Cord Adapter (Qty 1)
1/4” 3/8” -20 x Mounting screws (Qty 2)
5/32” Hex key (Qty 1)
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
Wimberley, Inc. - - - Phone: 1 434 529 8385
1750 Broadway St Toll Free: 1 2746 -888-665-(USA & Canada)
Charlottesville, VA
22902 USA www.tripodhead.com info@tripodhead.com
5 Year Warranty – See www.tripodhead.com/warranty.cfm for complete details
Made in USA
Figure 1
For RRS
Brackets
For Kirk
Brackets
Flash bracket
mounting lip
AP-11 Dovetail Adapter Plate
