PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

WARNING

Always follow the basic precautions listed below to avoid the possibility of

serious injury or even death from electrical shock, s hort-circuiting,

damages, fire or other hazards. These precautions include, but are not

limited to, the following:

• This device contains no user-serviceable parts. Do not open the device or

attempt to disassemble the internal parts or modify them in any way. If it

should appear to be malfunctioning, discontinue use immediately and have it

inspected by qualified Yamaha service personnel.

• Do not expose the device to rain, use it near water or in damp or wet

conditions, or place on it any containers (such as vases, bottles or glasses)

containing liquids which might spill into any openings. If any liquid such as

water seeps into the device , have the device inspected by qualified Yamaha

service personnel.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of

physical injury to you or others, or damage to the device or other property.

These precautions include, but are not limit ed to, the following:

• Do not place the devi ce in an unstable posit ion where it might accidentally fall

over.

• Do not place the device in a location where it may come into co ntact with

corrosive gases or salt ai r. Doing so may result in malfunction.

• Construction work should be carried out in accordance with construction-

related law and always by a professional constructor. If the device installation

requires construction work, make sure to observe the following precautions.

- Choose mounting ha rdware and an installation location that can support the

weight of the device.

- Avoid locations that are exposed to constant vibration.

- Use the required tools to install the device.

- Inspect the device periodically.

• Before connecting the device to a power amplifier, turn off the power for all

devices. Before turning the power on or off for all devices, set all volume

levels to minimum.

• Use only speaker cables for connecting speakers to the speaker jacks. Use of

other types of cables may result in fire.

• Do not wipe the outer packaging with benzine, thinner, or synthetic detergent

and do not use electrical contact cleaner. These may damage the outer

packaging and dissolve the parts.

PRECAUTIONS

Do not open

Water warning

Location

Connections

Maintenance

• Do not insert your fingers or hands in openings on the device.

• Do not operate the device if the sound is distorting. Prolonged use in this

condition could cause overheating and result in fire.

• When choosing a power amplifier for use with this device, make sure that the

output power of the amplifier is lower than the power capacity of this device

(see SPECIFICATIONS).

Even if the output power of the amplifier is lower than the power capacity of

this device (PGM), use of excessive input signals resulting in clipping may

cause damage to the device.

Malfunction or fire may occur especially when the following sounds or noises

are generated:

- feedback, when using a microphone

- continuous and extreme volume sound from a musical instrument

- extreme continuous distorted sound

- noise caused by plugging/unplugging the cable while the amplifier is turned

NOTICE

To avoid the possibility of malfunction/damage to the product or damage to other

property, follow the notices below.

ƔHandling and Maintenance

• Do not place vinyl, plastic or rubber objects on the device, since this might

discolor the panel.

• When cleaning the device, use a dry and soft cloth. Do not use paint thinners,

solvents, cleaning fluids, or chemical-impregnated wiping cloths.

• Condensation can occur in the device due to rapid, drastic changes in

ambient temperature-when the device is moved from one location t o another,

or air conditioning is turned on or off, for example. Using the device while

condensation is present can cause damage. If there is reason to believe that

condensation might have occurred, leave the device for several hours until

the condensation has completely dried out.

• Be sure to observe the amplifier’s rated load impedance (see

SPECIFICATIONS), particularly when connecting speakers in parallel.

Connecting an impedance load outside the amplifier’s rated range can

damage the amplifier.

• When connecting t he speakers with high impedance, be sure that the total

rated input capacity of the speakers does not exceed the output power of the

amplifier.

• When using a high-impedance speaker connection, make sure the audio

signal is passed through an 80 Hz or above high-pass filter before being input

to the speakers.

• ABOUT THE PROTECTION CIRCUIT

This speaker system has an internal protection circuit that shuts off the

speaker unit when an excessive input signal is applied.

If the speaker unit emits no sound, reduce the volume level of the amplifier

immediately.

The sound will return automatically in several seconds.

• Do not swing the speaker by its carrying band.

• Do not place the speaker face down with the grille attached, as deformation of

the grille may result.

• When placing the speaker face down, always place it on a flat and smooth

surface.

• Do not touch the speaker driver unit.

ƔAbout This Manual

The illustrations as shown in this manual are for instructional purposes only, and

may appear somewhat different from those on your device.

Yamaha cannot be held responsible for damage caused by impr oper use or

modifications to the devi ce.

Handling caution

UNPACKING

Unpack the contents and confirm that all the following items are included.

• Speaker × 2

• Grille × 2

• O-ring × 2

• Tile Rail × 4

• Screw × 4

• Cutout Template × 1

• Owner’s Manual (this manual)

* Speaker cable and safety wire are not included.

SPECIFICATIONS

*1: Half-space (2π)

*2: Calculated based on power rating and sensitivity, exclusive of power compression.

*3: 30 mm or less for the Anti-Drop Tab.

The contents of this manual apply to the latest specifications as of the printing date. Since Yamaha makes continuous improvements to the product, this manual

may not apply to the specifications of your particular product. To obtain the latest manual, access the Yamaha website then download the manual file. Since

specifications, equipment or separately sold accessories may not be the same in every locale, please check with your Yamaha dealer.

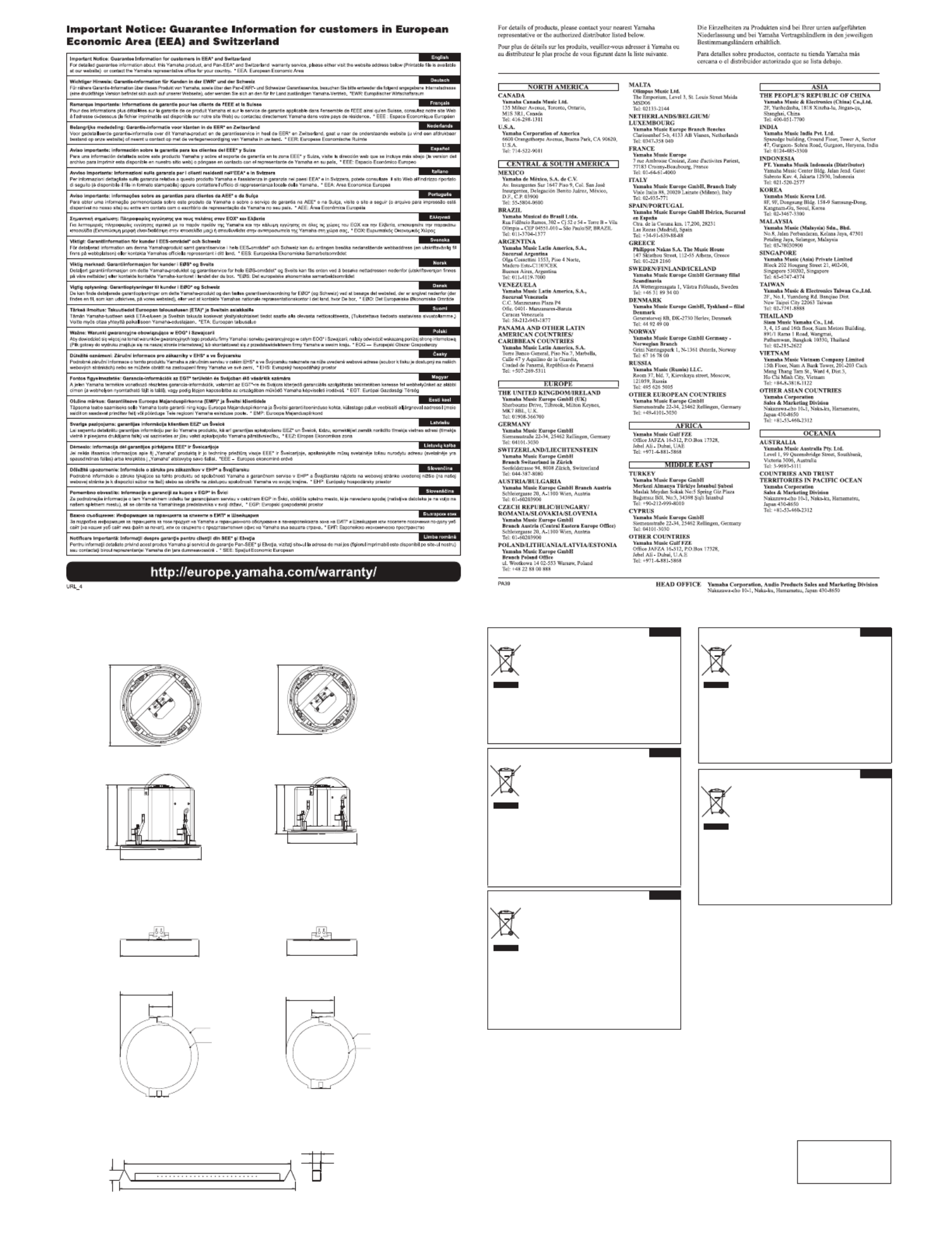

The dimensions are shown overleaf.

VXC8/VXC8W VXC6/VXC6W

Type 2-way, Coaxial type, with Back Can, Acoustic Suspension

Component LF 8" (20 cm) cone driver 6-1/2" (16 cm) cone driver

HF 1" (2.5 cm) soft dome tweeter 4/5" (2 cm) soft dome tweeter

Coverage angle (500 Hz – 4 kHz on average) 100° conical 110° conical

Nominal impedance 8 Ω

Power rating NOISE 90 W 75 W

PGM 180 W 150 W

MAX 360 W 300 W

Sensitivity (1W, 1m) * 190 dB SPL 86 dB SPL

Maximum SPL (Calculated, 1m) * 2116 dB SPL 111 dB SPL

Frequency range (-10 dB) * 155 Hz – 20 kHz 56 Hz – 20 kHz

Crossover frequency (12 dB/Oct) 3 kHz 3.2 kHz

Connector Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)

Max. wire size 12 AWG (2.5 mm 2)

Transformer taps 70 V 60 W, 30 W, 15 W, 7.5 W

100 V 60 W, 30 W, 15 W

Overload protection Full-range power limiting to protect network and transducers

Magnetically shielded No

Enclosure Shape Back Can

Back Can material Steel 1.2 mm, Black Steel 1 mm, Black

Baffle material HIPS

Grille Material Powder coated perforated steel (t=0.6 mm)

Trim Ring: ABS

Aperture ratio: 51%

Finish VXC8/VXC6 : Black painting (approximate value: Munsell N3)

VXC8W/VXC6W : White painting (approximate value: Munsell 9.3)

Dimensions (Speaker only) Ø325 × 258.5D mm (Ø12-13/16" × 10-3/16"D) Ø286 × 204D mm (Ø11-1/4" × 8-1/16"D)

Net weight (Speaker only, 1 piece) 6.6 kg (14.6 lbs) 4.4 kg (9.7 lbs)

Cutout size Ø285 mm (Ø11-1/4") Ø247 mm (Ø9-3/4")

Required ceiling board thickness 5 mm – 35 mm * 3

Conduit tube up to 1/2"

Packaging Packaged in pair

INSTALLING THE SPEAKERS

Install the speakers onto the ceiling with the supplied hardware. Ensure that

the strength of the ceiling rail is sufficiently strong.

Illustrations in this manual are for the VXC6. The installation method is the

same for other models.

Pre-installation (Preparation of the Cable)

Use stranded wire for cables attached to the Euroblock connector. Strip

their insulation as shown in the figure and connect them.

NOTE

Do not plate stranded wires by solder. Doing so will cause the wire to break.

1Put the supplied cutout template to the ceiling and draw a circle by

tracing it.

Make sure to use the cutout template so that hole is the correct

diameter.

NOTE

If you use a circular cutter, set the diameter with the cutout template.

2Cut the hole by tracing the circle.

Be careful to prevent chips or powder entering your eyes while

cutting the hole.

1Insert the two tile rails through the cut hole and place them on the

ceiling surface within your reach. Be sure that each tile rails are

oriented as shown below.

2Insert the folded O-ring through the cut hole and open it in the ceiling.

3Secure the O-ring and tile rails with supplied two screws through

either slot of both O-ring brackets.

1Pull the wiring from the amplifier through the cut hole.

2Loosen the screw at the right of the terminal cover to open the

terminal cover and remove the Euroblock connector.

3After loosening the terminal screws of the Euroblock connector with a

flat-blade screwdriver, insert the cable into each terminal and tighten

the screws. Make sure that cables cannot be pulled out.

NOTE

Use a flat-blade screwdriver with a blade less than 3 mm (0.1 in.).

1CUT OUT A HOLE IN THE CEILING

2INSTALL THE TILE RAILS AND O-RING

3CONNECT THE WIRING TO THE CONNECTOR AND FIX

THE CABLE

About 7 mm (0.3 in.)

O-ring

Tile rail

Terminal cover

Euroblock connector

Less than 3 mm (0.1 in.)

There are two acceptable wiring methods.

CAUTION

When connecting with low impedance, take note of the combined

resistance.

Using Loop-Through Terminals

For this method, cables are connected from terminals 1 and 4 to the

subsequent speaker. If the Euroblock connector is disconnected from

a speaker, all subsequent speakers will not work. This can be useful

to identify which speaker has a problem.

Paralleling Input Terminals

For this method, cables are connected to terminals 2 and 3 of each

speaker. Since the cables are connected via Euroblock connectors,

subsequent speakers can work even if a problem occurs with a

speaker.

4Plug the connected Euroblock connector into the socket in the

speaker.

5Loosen the screw A of the strain relief clamp.

6Remove the screw B of the strain relief clamp.

If the cable is not to be held, remove the screw A and remove the

strain relief fitting, then proceed to step 8.

From amplifier or

previous speakers To subsequent

speakers

subsequent

speakers

Euroblock

connector

Power

amplifier

Speaker

From amplifier or

previous speakers

To subsequent

speakers

Power

amplifier

Speaker

Euroblock

connector

subsequent

speakers

7Hold the cable in the strain relief clamp, then tighten screws A and B.

8Close the terminal cover and tighten the screw.

1Attach the safety wire to the safety wire ring, and connect the wire to

an independent support point, such as a joist.

CAUTION

Always take measures to prevent the speaker from falling down.

If the safety wire is too short, prepare another wire appropriate for th e

speaker weight and installation conditions. If the wire is too long,

should the speaker fall, the wire may snap as a result of too much

strain.

2Push up the speaker slowly into the ceiling, taking care not to trap the

cable.

4FIX THE SPEAKERS ONTO THE CEILING

Screw

Safety wire ring

Anti-Drop Tab

When all the Anti-Drop Tabs cross

over the O-ring, the speaker is held

temporarily.

To release the speaker from the

O-ring, press the Anti-Drop Tabs.

These are located above the U

mark near the edge of the baffle’s

face.

3Turn the screwdriver a half turn counterclockwise to loosen the

attachment screw (located beside the U mark). This makes the

clamp easier to align in the channel.

4Turn the screwdriver clockwise to tighten the attachment screw.

The first turn of the attachment screw aligns the clamp with the

channel. Further turns move the clamp down the channel to pull the

speaker up into the ceiling.

CAUTION

• Do not over-tighten the attachment screw. Otherwise, the

attachment screw and clamp will break.

• Do not turn any screws other than attachment screw (located

beside the U mark). Otherwise, the speaker may fall or

malfunction.

Select the line voltage/impedance (100V/70V/8Ω) and power tap for 100V/

70V line distributed system, by rotating the tap selector switch on the front

side of the speaker with a flat-blade screwdriver.

CAUTION

• The “X” position should not be selected. The 8Ω position should be

selected for 8Ω audio systems only. If the setting is incorrect, it may

cause malfunction of the speaker and amplifier.

• Make sure the amplifier is switched off before operating the tap selector

switch.

Fit the grille to the baffle front and turn it clockwise.

CAUTION

The grille may fall down if it is attached inadequately. Attach it firmly.

5SET THE LINE VOLTAGE/IMPEDANCE AND POWER

6ATTACH THE GRILLE

Clamp

Illustration indicates the setting at 60 W for 100 V

line and 30 W for 70 V line.

Owner’s Manual

Ceiling Speaker

English

ZE88180

Produkt Specifikationer

Mærke:	Yamaha
Kategori:	Højttaler
Model:	VXC8
Bredde:	- mm
Dybde:	259 mm
Højde:	- mm
Vægt:	6600 g
Produktfarve:	Sort
Udgangseffekt (RMS):	90 W
Frekvensområde:	55 - 20000 Hz
Impedens:	8 ohm (Ω)
Forbindelsesteknologi:	Ledningsført
Højttaler, type:	2-vejs
Lyd-output kanaler:	- kanaler
Højttaler, placering:	I væggen/i loftet
Diameter:	325 mm
Diskanthøjttaler:	Ja
Peak Music-Udgangseffekt (PMPO):	360 W
Sensitivitet:	90 dB
Diskant diameter:	1 "
Bashøjttaler:	Ja
Woofer diameter (britisk mål):	8 "
Antal Euroblock input stikforbindelser:	1
