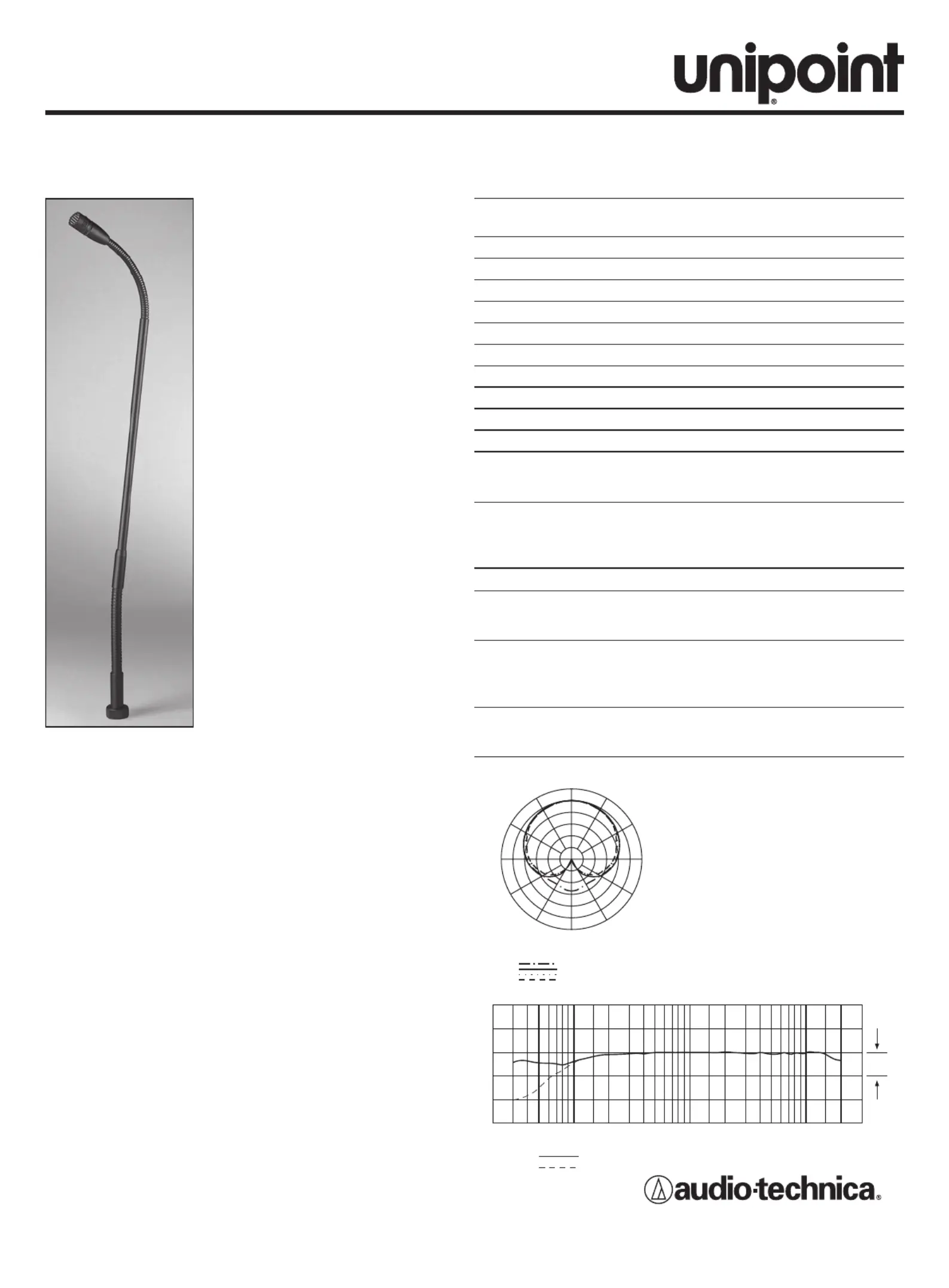

CARDIOID CONDENSER ADAPTER-MOUNT

GOOSENECK MICROPHONE

- Designed for high-quality sound

reinforcement, professional record-

ing and broadcasting.

- Superior off-axis rejection for maxi-

mum gain before feedback.

- UniGuard™ RFI-shielding technol-

ogy offers outstanding rejection of

radio frequency interference (RFI).

- Easy-to-adjust, rugged, small-

dimeter, alternating gooseneck with

virtually no “memory” permits quick

positioning into desired shape.

- UniSteep® lter provides a steep

low-frequency attenuation to im-

prove sound pickup without affect-

ing voice quality.

- Accepts interchangeable elements

to permit angle of acceptance from

90° to 360°.

- Two-stage foam windscreen yields

dramatically improved resistance to

P-pops and other breath blasts.

- Direct mounts to any "-27 stand, ⅝

or to included threaded mounting

ange.

The U857R stands 305mm from the table or podium, it is also

available in a 421mm version as U857RL. The two models are

identical in all other respects.

The microphone requires 11V to 52V DC phantom power for

operation.

Output from the power module's XLRM-type connector is low

impedance (Lo-Z) balanced. The signal appears across Pins

2 and 3; Pin 1 is ground (shield). Output phase is "Pin 2 hot" -

positive acoustic pressure produces positive voltage at Pin 2.

At integral 80 Hz high-pass UniSteep ® filter provides easy

switching from a at frequency response to a low-end roll-off.

The roll-off position reduces the microphone's sensitivity to

popping in close vocal use. It also reduces the pickup of low-

frequency ambient noise (such as trafc, air-handling systems,

etc.), room reverberation and mechanically coupled vibrations.

The microphone features a 3m permanently attached miniature

cable. It connects to provided AT8538 power module via a spe-

cial TA3F-type connector designed to optimize RFI immunity.

Avoid leaving the microphone in the open sun or in areas where

temperatures exceed 43°C for extended periods. Extremely

high humidity should also be avoided.

SPECIFICATIONS

ELEMENT

POLAR PATTERN

FREQUENCY RESPONSE

LOW FREQUENCY ROLL-OFF

OPEN CIRCUIT SENSITIVITY

IMPEDANCE

MAXIMUM INPUT SOUND LEVEL

DYNAMIC RANGE (TYPICAL)

SIGNAL-TO-NOISE RATIO

PHANTOM POWER REQUIREMENTS

SWITCH

WEIGHT U857R

U857RL

POWER MODULE

DIMENSIONS U857R

U857RL

BOTH

POWER MODULE

OUTPUT CONNECTOR

CABLE

OPTIONAL INTERCHANGEABLE

ELEMENTS

ACCESSORIES FURNISHED

Fixed-charge back plate

permanently polarized condenser

Cardioid

30-20,000 Hz

80 Hz, 18 dB/octave

-39 dB (11.2 mV) re 1V at 1 Pa

250 ohms

139 dB SPL, 1 kHz at 1% T.H.D.

115 dB, 1 kHz at Max SPL

70 dB, 1 kHz at 1 Pa

11-52V DC, 2 mA typical

Flat, roll-off

124 g

131 g

81 g

305 mm - long

421 mm - long,

12.2 mm - head diameter

92.9 mm - long, 18.9 mm - diameter

Integral 3-pin XLRM-type

3m long, 3.2mm diameter,

2-conductor shielded cable with

TA3F-type connector

UE-C cardioid (120°)

UE-H hypercardioid (100°)

UE-O omnidirectional (360°)

UE-UL UniLine™ (90°)

AT8538 power module;

AT8153 two-stage foam windscreen

Cable

10 dB

20k10k5k2k1k50020010050

8 kHz

200 Hz

1 kHz

5 kHz

0°

330°

300°

270°

240°

210°

180°

150°

120°

90°

60°

30°

Optional Accessories:

AT8601 Desk stand.

AT8614 Desk stand with thru-hole.

AT8506 four-channel 48V phantom power

supply (AC powered).

AT8801/EU single-channel 48V phantom

power supply (AC powered).

Polar Pattern

Frequency Response

SCALE IS 5 DECIBELS PER DIVISION

LEGEND

Frequency in Hertz

LEGEND 12” or more on axis

Roll-off

Response in dB

FORM No. ATGC-L0004-05-E

Machida • Tokyo • Japan
