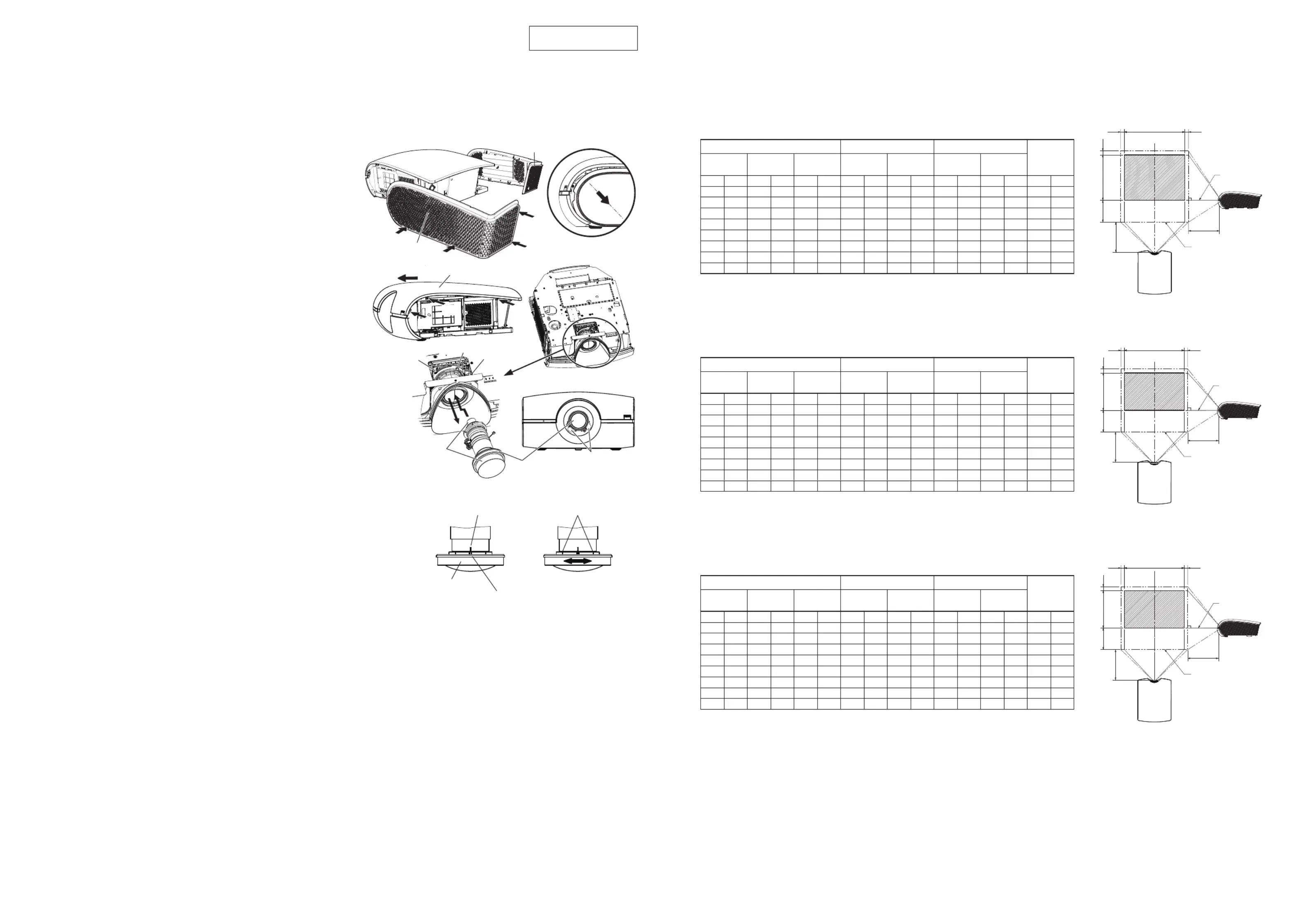

OPTION LENS
H LENS 0.8-1.0
Lens Mounting Manual
•Lens mounting must be performed by service personnel.
•Check that the lens shift is at the factory default position (or the lens shift reset position) before mounting the option lens.
•Be sure to turn off the projector and unplug the power cord from the wall outlet before mounting the option lens.
Lens mounting procedure
Mount the option lens using the following procedure.
1. Loosen the four screws (a) of the Side cover and release the
Side cover in the direction of the arrow (b) from the unit.
Release the Side cover of the left and right.
2. Remove the six screws (c) securing the Top cover.
3.
(There are three screws each on the left and right.)
Release the Top cover in the direction of the arrow (d) from the unit.
Release the connector (e) for the zoom/focus motor of the standard
lens.
4. While holding down the lock button (f), slightly turn the fixed ring (g)
counterclockwise to release the lock.
5. While holding the lens to prevent it from falling, turn the fixed ring (g)
6.
fully counterclockwise to unlock the lens.
Remove the standard lens in the arrow’s direction.
ar re. (Remove the lens caps before e positioned as shown by the figu
attaching the option lens.)
8.
7.
Turn the fixed ring (g) until it is put into place (and the lock button (f)
clicks into place) to secure it.
9. Lock the connector for the zoom/focus motor of the option lens.
10. Mount the top cover in the reverse order of removal.
11. Mount the side cover of the left and right in the reverse order of removal.
Attach the option lens in the arrow’s direction so that the motors (h)
Check after mounting the lens
After replacing the lens, be sure to check the following for ensuring safety.
•Check that the connector for the zoom/focus motor is locked securely.
•Check that no lead wires are caught in mechanical parts.
Cautions after mounting
•Do not transport the projector with the option lens mounted. The projector may be damaged.
•With the option lens mounted, the brightness, resolution, and color uniformity in the projected image may differ from those with
the standard lens.
•With the option lens mounted, the adjustable angle in the keystone adjustment differs from that with the standard lens.
•In the keystone adjustment with the option lens mounted, the proper aspect ratio may not be obtained.
•
Projected images may become distorted, have decreased resolution, or have shadows at their corners if they are positioned close
to the top (or bottom in the case of a ceiling-mount projector) or right or left edge of the effective projection area shown on the right.
•For details about ZOOM/FOCUS adjustment and LENS SHIFT LOCK, see User Manual of the projector.
Be careful not to caught in the opening in the lens while the lens is moving.
ENGLISH
Specifications
F No. F2.4
Focal distance f = 11.4-14.2 mm
Zoom/focus Electrical drive
When you have any inquiries, contact your dealer.
Cleaning of the lens
Remove dust or dirt using the commercially available lens care products (such as cleaning paper or cloth for lens and blower brush).
• Since the lens surface is sensitive, do not scrub it with a solid object or tap on it.
• Do not wipe the lens with lens cleaner or solvent containing alcohol. Doing so may cause wipe marks or peel off the lens coating
and the focus performance may be affected.
• Make sure to clean the lens after the lamp is turned off and the lens is cooled suffi ciently.
Focus correction function
H LENS 0.8-1.0 has the focus correction function that corrects
the focus balance at and around the center of the screen.
Focus correction procedure
1. Align the center scale of the focus correction ring with the reference line.
2. Adjust the screen focus using the projector.
Normally, the screen focus is adjusted properly using the procedure
described above. However, the focus balance at and around the center of
the screen may be different depending on the characteristics of the lens
and the projector. In such a case, following the procedure described below
may improve the symptom.
1. Turn the focus correction ring clockwise or counterclockwise manually
and align the edge scale with the reference line.
2. Adjust the screen focus using the projector.
XGA model
Screen size (4:3) Projection distance (L) Lens shift height Lens shift
width
(W1)
Diagonal
size
Width
(W)
Height
(H)
Shortest
(Wide)
Longest
(Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102 32 81 24 61 25 0.6 31 0.8 12 30 2 6 3 8
60 152 48 122 36 91 38 1.0 47 1.2 18 46 3 9 5 12
80 203 64 163 48 122 51 1.3 64 1.6 24 61 4 11 6 16
100 254 80 203 60 152 64 1.6 80 2.0 30 76 6 14 8 20
150 381 120 305 90 229 96 2.4 120 3.1 45 114 8 21 12 30
200 508 160 406 120 305 128 3.3 161 4.1 60 152 11 28 16 41
250 635 200 508 150 381 161 4.1 201 5.1 75 191 14 36 20 51
300 762 240 610 180 457 193 4.9 242 6.1 90 229 17 43 24 61
L
L
W1W1
H1 H2H
W
Center of the
lens
Maximum
projection area
WUXGA model
Screen size (16:10) Projection distance (L) Lens shift height Lens shift
width
(W1)
Diagonal
size
Width
(W)
Height
(H)
Shortest
(Wide)
Longest
(Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102 34 86 21 54 25 0.6 32 0.8 10 26 4 10 3 8
60 152 51 129 32 81 39 1.0 49 1.2 15 39 6 15 5 12
80 203 68 172 42 108 52 1.3 65 1.7 21 52 8 20 7 17
100 254 85 215 53 135 65 1.7 82 2.1 26 66 10 25 8 21
150 381 127 323 79 202 98 2.5 123 3.1 39 98 15 37 12 31
200 508 170 431 106 269 131 3.3 165 4.2 52 131 20 50 16 42
250 635 212 538 132 337 165 4.2 206 5.2 65 164 24 62 20 52
300 762 254 646 159 404 198 5.0 248 6.3 77 197 29 75 25 62
L
W1W1
H1 H2H
W
Center of the
lens
Maximum
projection area
WXGA model
Screen size (16:10) Projection distance (L) Lens shift height Lens shift
width
(W1)
Diagonal
size
Width
(W)
Height
(H)
Shortest
(Wide)
Longest
(Tele) H1 H2
inch cm inch cm inch cm inch m inch m inch cm inch cm inch cm
40 102 34 86 21 54 27 0.7 34 0.9 10 25 5 12 3 9
60 152 51 129 32 81 41 1.0 51 1.3 15 37 7 17 5 13
80 203 68 172 42 108 55 1.4 68 1.7 19 49 9 23 7 17
100 254 85 215 53 135 68 1.7 86 2.2 24 62 11 29 9 22
150 381 127 323 79 202 103 2.6 129 3.3 36 92 17 43 13 33
200 508 170 431 106 269 138 3.5 173 4.4 49 123 23 58 17 44
250 635 212 538 132 337 173 4.4 216 5.5 61 154 28 72 21 55
300 762 254 646 159 404 208 5.3 260 6.6 73 185 34 86 26 65
L
W1W1
H1 H2H
W
Center of the
lens
Maximum
projection area
•
•
The above numbers are approximate and may be slightly different from the actual measurements.
The lens shift height and width show distances from the factory default position.
•
•
The above numbers are approximate and may be slightly different from the actual measurements.
The lens shift height and width show distances from the factory default position.
•
•
The above numbers are approximate and may be slightly different from the actual measurements.
The lens shift height and width show distances from the factory default position.
13/12/2013 Printed in Hyogo Japan
(e)
(f)
(g)
(h)
Option lens
Lens cap
Reference line
Center scale
Focus correction ring
Edge scale
L
L
Direction to release
the side covers from the unit.
Top cover
Side cover
Side cover
(c)
(c) (c)
(d)
(b)
(a)
(a)
(a)
(a)
