Dear Customer,
Cong tulations on your purchase of an BLAUPUNKT subwoofer, we are devoted to making ra
our musical reproduction the very best, and we are pleased you have chosen our product.
Through years of engineering expertise, hand craftsmanship, and critical testing procedures,
we have created a wide range of products that reproduce music with all the clarity and
richness you deserve.
For maximum performance we recommend you have your BLAUPUNKT product installed by
an authorized BLAUPUNKT dealer, as they have the knowledge, skills that will maximize the
performance of your subwoofer. Please read this manual, keep your receipt, and original
carton for possible future use.
If after reading this manual, you still have questions regarding your product, we recommend
that you see your nearest BLAUPUNKT dealer,
G 401/406/525/570/650TX
COAXIAL SPEAKERS
INSTRUCTION MANUAL
WARNING
Continuous, excessive exposure to sound pressure levels in excess of 85dB
can cause hearing loss. While BLAUPUNKT sound systems are capable of
producing sound pressure levels greater than 85dB, they are also designed
for enjoyment at reasonable levels. Please observe all local sound ordinances
while listening to your BLAUPUNKT sound system.
Need we say more! Use common sense.
Dimension:
Specifications:
Features:
High Quality Polyproplene Cone
Butyl Surround
High Tempe ture Aluminium Voice Coilra
Ceramic Magnet
Mylar Dome Tweeter
Mounting:
NOTE: BLAUPUNKT strongly recommends that you ope te your system at low ra
volume levels prior to the completed installation of your BLAUPUNKT series
speakers. This will allow for a test of the subwoofers before permanently securing
it to a location.
IMPORTANT: Never cut any metal that is an inte al part of the vehicles safety or gr
structural support system. Again, if you are unsure, it is best to have the speakers
professionally installed. It could be a lot less expensive in the long run. Never
sacrifice your safety for sound.
CHOOSING A LOCATION: It is always best to plan the complete installation prior to
attempting to install any product. The routing of wires, power connections and
mounting locations should be planned first. As with any car stereo installation, all
work performance should be checked thoroughly and carefully prior to the opera
tion of the system.
The placement of your BLAUPUNKT speakers within your vehicle will greatly aect
the overall performance of your audio system. Every model of car is dierent, so
installation into particular locations of the vehicle may not be possible without
modifications. Factory provided locations are usually.
BLAUPUNKT speakers are designed to fit in almost any factory location. Again, if at
all possible, it is recommended that you use a factory location. This applies mostly
to later model cars. For those earlier models that do not have factory locations or
are limited to just front speaker, it is recommended that you choose a location with
a sucient amount of air space.
If you allow an insucient amount of air space, the subwoofer may not produce
low frequencies very well. It is recommended to mount the speaker in the door
panels, kick panels, rear decks, etc. Ideally, the speakers should be mounted where
it will be in an enclosed airspace. This will allow for extended bass response.
Troubleshooting:
If you start having problems with distorted sound or loss performance after
installing your subs, you can follow the instructions below to try and locate what is
causing the problem.
1). If you have any distorted sound, loss of performance, or rattling from your subs,
check the connections running from your amplifier or other processors to the box.
You will also want to check the connections inside the box to make sure no wires
have become unhooked or are loose.
2). If the above does not solve the problem, check your enclosure thoroughly to
see if there are any leaks, cracks, or broken pieces. Any loss of structural integrity of
your enclosure can cause significant performance loss and distortion.
3). The next step you can take is to remove the subs and look for any burned wire
leads or separated components. You can normally smell something burning when
a sub bl s or is going bad. Sometimes when you play subs to hard for too long, ow
they will start to heat up.
4). If none of the above steps solve the problem, you will want to start looking at
the other components in the vehicle. Start by checking all connections to and
from the box, amplifier, source unit, or any other processors you may be using. You
will need to reference to that particular manufacturer for any setting configura
tions or troubleshooting.
Warning:
Investigate the layout of your automobile thoroughly before drill or cutting any
holes. Take care when you work near the gas tanks, gas lines, hydraulic lines, and
electrical wiring. Attach the system securely to the automobile to prevent damage,
particularly in the event of an accident. Do not mount the system so that the wire
connections are unprotected or are subject to pinching or damage from nearby
objects.
The +12V DC power wire must be fused at the battery positive terminal connec
tion. Before making or breaking power connections at the system power terminals,
disconnect the +12V wire at the battery end. Confrm your radio/head unit or other
equipment is turned o while connectiong the input jacks and subwoofer termi
nals.
If you need to replace the power fuse, replace it only with a fuse identical to that
supplied with the system. Using a fuse of dierent type or ting may result in ra
damage to this system.
Contents
Dimensions............................................................. 3
Features.................................................................... 4
Specifications......................................................... 4
Mounting................................................................. 5
Troubleshooting................................................... 6
Warning................................................................... 6

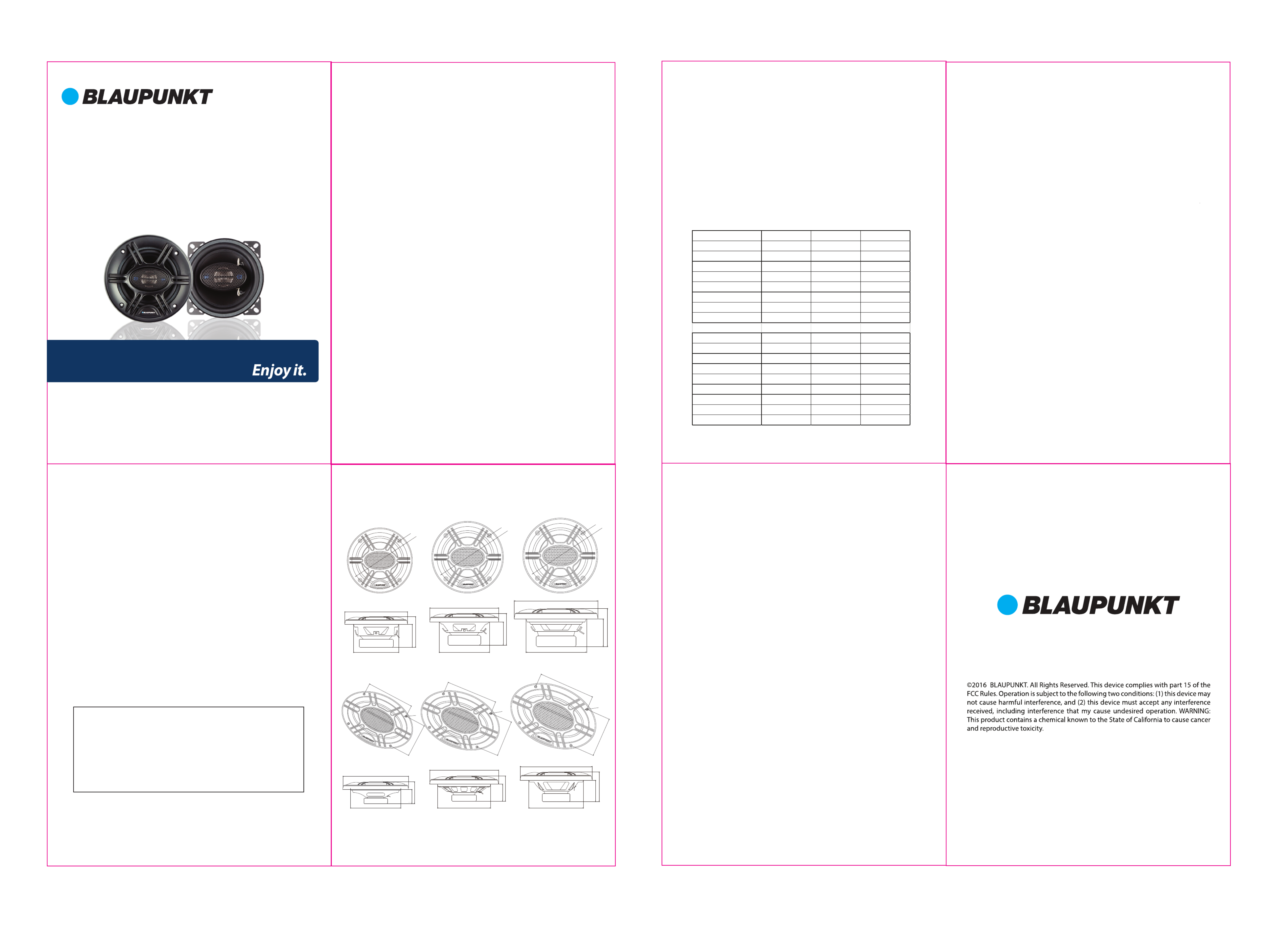

Front Cover Back Cover Page 1 Page 2
Page 2 Page 3
Page 4 Page 5
Page 6
2.55”
Ø3.74”
Ø5.393”
1.92”
Ø4.48”
0.15”-Ø0.17”
Ø5.31”
0.15”- Ø0.17”
Ø4.48”
Ø6.22”
2.75”
2.08”
Ø5.62”
0.15”- Ø0.17”
Ø4.84”
Ø6.61”
3.03”
2.24”
GTX401 GTX525 GTX650
4.80”
2.89”
0.15”-Ø0.15”
4.46”
4.56”
0.15”- Ø0.17”
6.53”v
4.68”
0.15”-Ø0.15”
GTX406 GTX570 GTX690
2.44”
1.81”
7.04” x 4.92”
5.66”x 3.50”
3.07”
2.28”
7.12”x 4.96”
9.05”x 6.29”
4.21”
9.01” x 6.14”
10.35”x 7.20”
3.30”
Model GTX401 GTX406 GTX525
Size 4" 4-Way 4" x 6" 4-Way 5.25" 4-Way
Impedance 4 Ohms 4 Ohms 4 Ohms
Frequency Response 110Hz ~ 20KHz 120Hz ~ 20KHz 90Hz ~ 20KHz
SPL (dB-1W/1M) 90dB 90dB 90dB
Power Rating (RMS) 80Watts 80Watts 100Watts
Power Rating (Peak) 240Watts 240Watts 300Watts
Voice Coil 1" 1" 1"
Magnet Weight 6oz 6oz 10oz
Model GTX650 GTX570 GTX690
Size 6.5" 4-Way 5" x 7" 4-Way 6"x9" 4-Way
Impedance 4 Ohms 4 Ohms 4 Ohms
Frequency Response 80Hz ~ 20KHz 80Hz ~ 20KHz 50Hz ~ 20KHz
SPL (dB-1W/1M) 90dB 90dB 90dB
Power Rating (RMS) 120Watts 120Watts 150Watts
Power Rating (Peak) 360Watts 360Watts 450Watts
Voice Coil 1" 1" 1"
Magnet Weight 13oz 13oz 20oz
4-WAY COAXIAL SPEAKER
Instruction Manual
CAUTION Make sure that all of the speaker’s wiring is fully protected from cuts,:
tears and possible wea Any short circuits created from cuts, tears or wear could r.
severely damange the source unit or amplier. Make sure all speakers wires easily
reach the speakers terminal with no stress on the wire or connectors.
GTX401
GTX406
GTX525
GTX570
GTX650
GTX690
Shaghal Ltd. 2231 Colby Ave, Los Angeles, California 90064
