I N S T A L L A T I O N I N S T R U C T I O N S
SLB-224 and SLM-224 Interface Brackets
SLB and SLM series Interface brackets are designed for use with Chief RPA, RPM, and Smart-Lift series projector mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative by calling
1-800-582-6480.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation:
WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE
TO EQUIPMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB Interface bracket. If an SLM bracket is being installed proceed to step 2.
1. Screw four thumb screws onto four 10-24 x 5/8" Philips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place the three spacers over the three threaded inserts in the bottom of the projector.
4. Place the interface bracket on the spacers, lining up the three holes with the three threaded inserts.
5. Using the three M4 X 25mm mounting screws, start them through the spacers and into the mounting holes by hand and secure all three
fasteners at this time.
NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
(1) Interface Bracket (3) SPACER, Nylon, .50 x .257 x .625
(4) 10-24 Thumb Nuts ** (3) SCREW, Phillips flat head, M4 x 25mm
(1) All-Points Security Kit (1) KEY, 5/32"
**Only used when installing SLB Interface brackets.

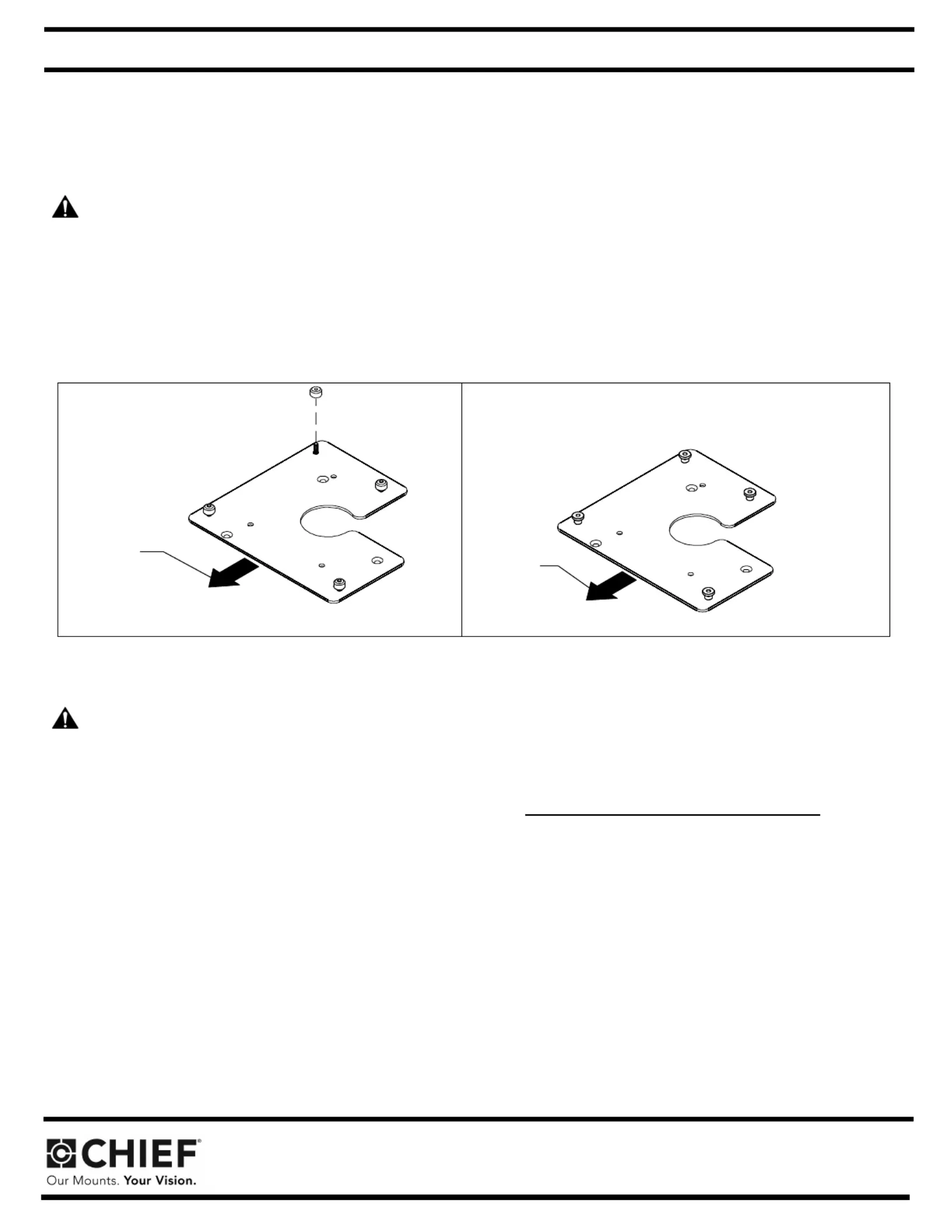

SLB-224
SLM-224
Towards front of
Towards front of
Projector
Projector
