I N S T A L L A T I O N I N S T R U C T I O N S

CSAV, Inc., and its affiliated corporations and subsidiaries (collectively, "CSAV"), intend to make this manual accurate and complete. However, CSAV makes no claim that the infor-

mation contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The

information contained in this document is subject to change without notice or obligation of any kind. CSAV makes no representation of warranty, expressed or implied, regarding the

information contained herein. CSAV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918

8802-002035

8/31/07

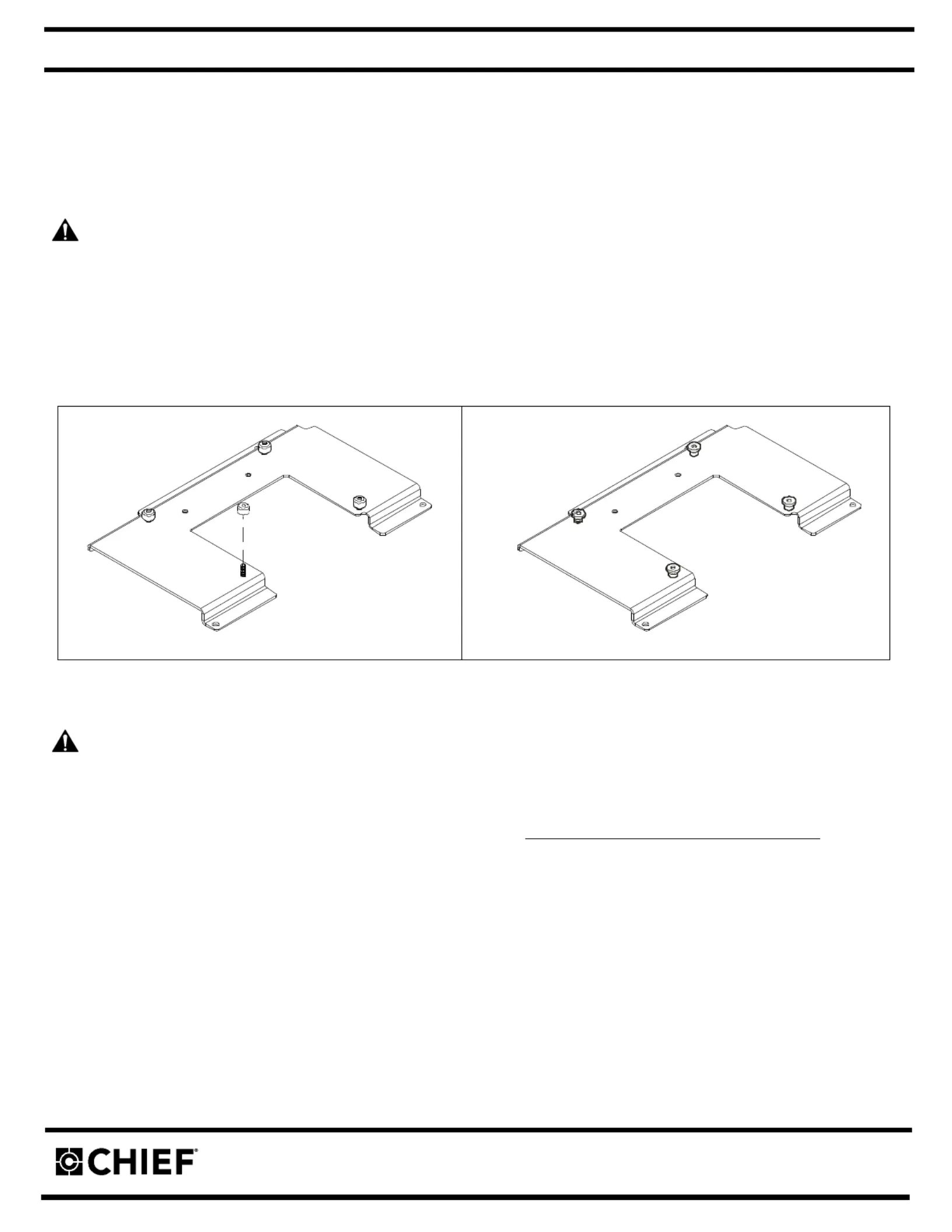

SLB-230 and SLM-230 Interface Brackets

for Mitsubishi VPL-XD200U, VPL-SD200U, VPL-XD300U, VPL-XD350U,

SLB and SLM series Interface brackets are designed for use with Chief RPA, RPM, and Smart-Lift series projector mounts. See the specific

installation instructions provided with the mount for additional installation information.

Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative by calling

1-800-582-6480.

WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND

DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!

Installation:

WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE

TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.

NOTE: Step 1 is only required when installing an SLB Interface bracket. If an SLM bracket is being installed proceed to step 2.

1. Screw four thumb screws onto four 10-24 x 5/8" Philips pan head screws. DO NOT fully tighten thumb screws at this time.

2. Turn projector upside down on a flat surface.

3. Place the interface bracket on to the bottom of the projector lining up the three mounting holes in the interface bracket with the three

threaded inserts in the bottom of the projector and secure using the three M4 -8mm mounting screws and M4 Flatwashers.

NOTE: Security screws can be substituted when mounting Interface bracket to projector by using the parts and installation instructions in the

All-Points Security Kit.

(1) Interface Bracket (3) Washer, Flat, M4

(4) 10-24 Thumb Nuts ** (3) SCREW, Pan head, M4 x 8mm

(1) All-Points Security Kit

**Only used when installing SLB Interface brackets.

SLB-230 SLM-230
