SSB-7720, SSM-7720, SLB-7720 and SLM-7720 Interface Brackets
SSB-7720, SSM-7720, SLB-7720 and SLM-7720 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the
specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Remove the front adjustable foot on projector by lifting up the finger tab and sliding it in the direction of the finger tab (see Figure 1).
(1) Interface Bracket (2) Screw, Phillips Pan Head, M4 -20mm
(4) 10-24 Thumb Nuts ** (1) Screw, Flat Head, M3x 16mm
(1) All-Points Security Kit (2) Washer, Flat, M4
(3) Spacer, Nylon, .500 x .194 x .500
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.

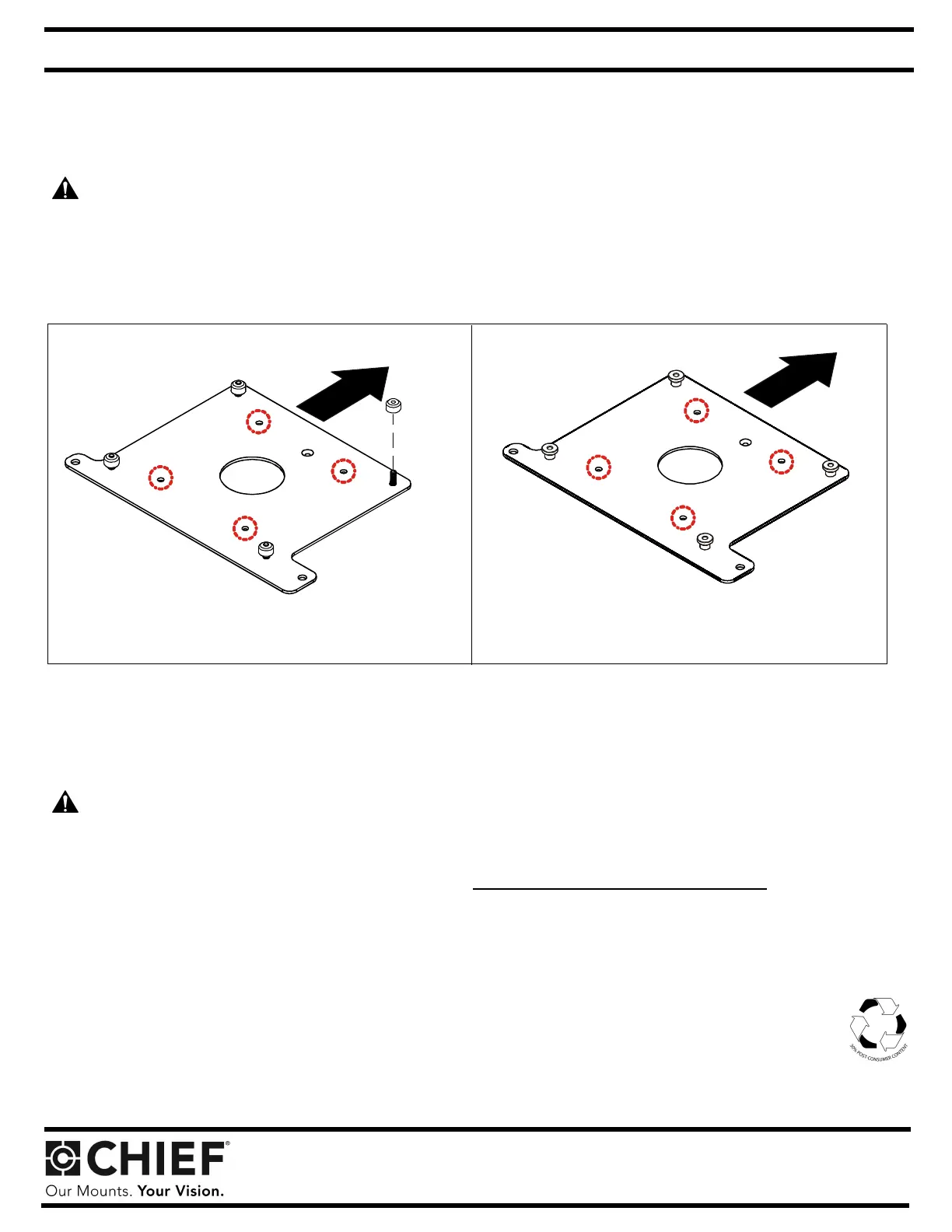

SLB-7720 SLM-7720
Towards front of
projector
Towards front of
projector
(Note: SSB-style inter face brack et co nnec tions
a
r
e
e
n
c
i
r
c
l
e
d
)
(Note: SSM-style inte rface brac ket co nnec tion
s
ar e enc ircled)
