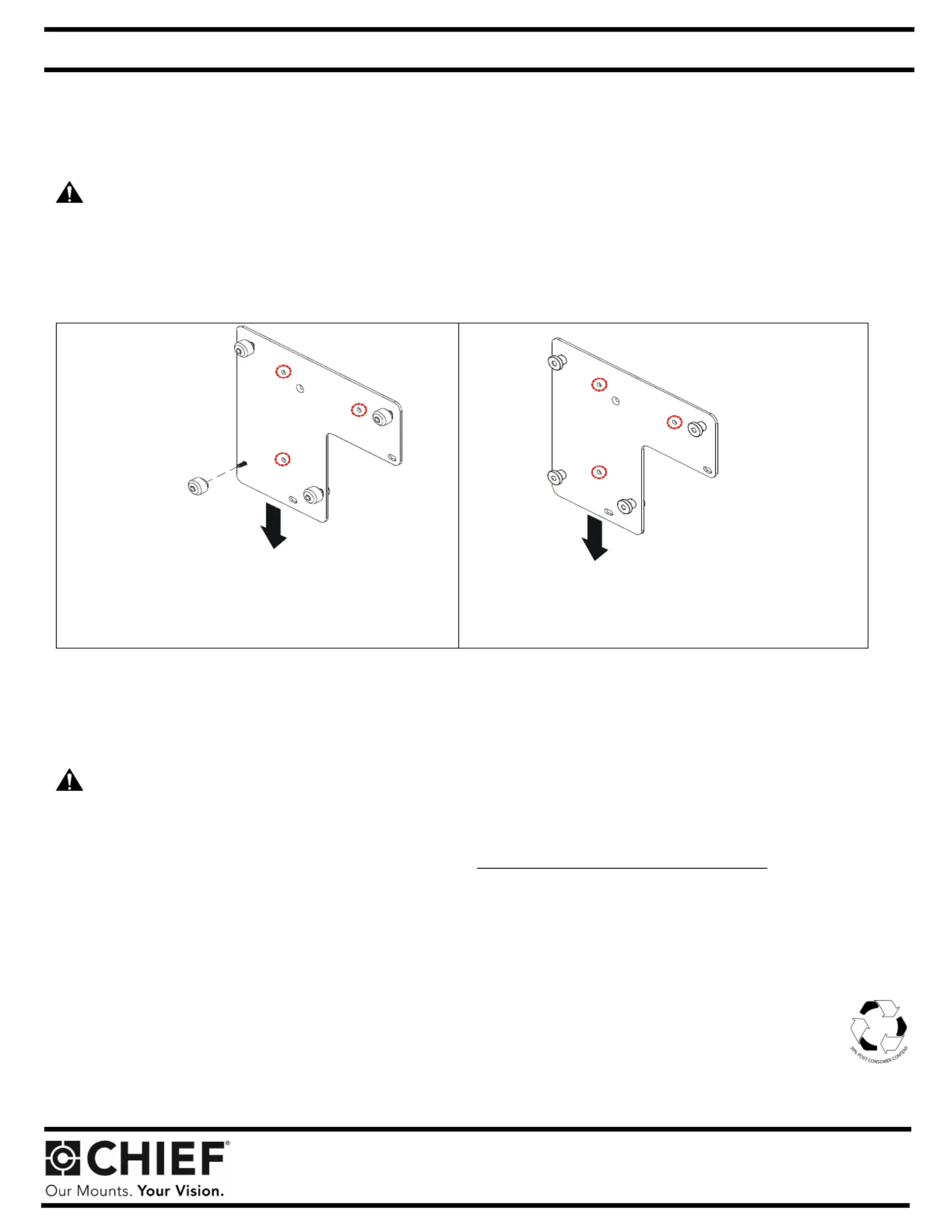

I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8802-002013 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
SSB-022, SSM-022, SLB-022 and SLM-022 Interface Brackets
SSB-022, SSM-022, SLB-022 and SLM-022 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing Interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Place the 1/2” nylon spacers over the treaded inserts on the bottom of the projector.
4. Place the interface bracket onto the 1/2” spacers so the spacers are between the projector and the bracket.
5. Align the holes in the bracket with the holes in the 1/2” spacers.
6. Place the M3 x 16mm flat head screw through the countersink hole in the bracket and screw it into the projector.
7. Place the remaining M3 x 16mm pan head screws in the slotted holes and tighten all fasteners at this time, securing the bracket to the
projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation
instructions in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (3) 1/2” x .218 x 1/4” Round Nylon Spacers
(4) 10 - 24 Thumb Nuts** (2) M3 - 16mm Pan Head Screws
(1) All-Points Security Kit (1) M3 - 16mm Flat Head Screws
(2) M3 Flat Washers
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.
SLB-022
SLM-022
(Note: SSM-style interface bracket connection
s
a
r
e
e
n
c
i
r
c
l
e
d
)
(Note: SSB-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
Towards front of
projector
Towards front of
projector
