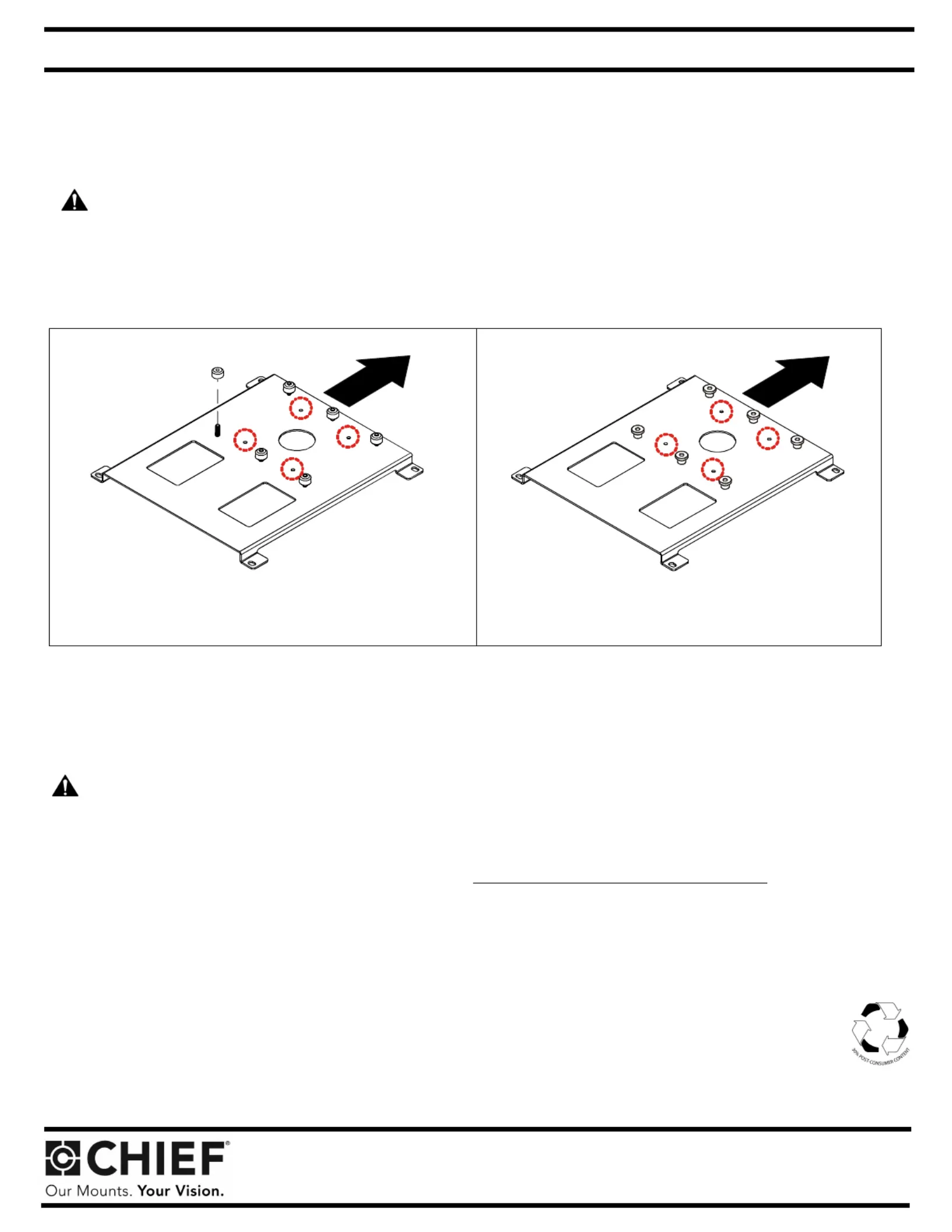

Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Place interface bracket onto bottom of projector and align bracket with threaded inserts in projector.
4. Using M5 x10 Phillips pan head machine screws and the flat washers, secure interface bracket to projector and tighten all fasteners at this
time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation
instructions in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
SSB-026, SSM-026, SLB-026 and SLM-026 Interface Brackets
SSB-026, SSM-026, SLB-026 and SLM-026 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the
specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY
AND DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
(1) Interface Bracket (4) Screw, Phillips Pan Head, Machine, M5 x 10mm
(6) 10-24 Thumb Nuts ** (4) Washer, Flat, M5
(1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and
SSM-style interface bracket installation.
SLB-026 SLM-026
Towards front of
