I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8850-000052 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
SSB-060, SSM-060, SLB-060 and SLM-060 Interface Brackets
SSB-060, SSM-060, SLB-060 and SLM-060 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information. Unpack carton and verify kit contents. If any listed parts
are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10 - 24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Using bottom interface bracket and rubber bump-ons, push one bump-on into each hole of bracket from inside.
4. Slide top interface bracket onto bottom bracket (i.e., so front of projector is toward two tabs sticking up, and the top of projector is sitting
on the rubber bump-ons).
5. Place interface bracket over bottom bracket (i.e., so two tabs are toward back of projector and down to prevent projector from sliding).
6. Align mounting holes in top bracket with threaded inserts in bottom bracket.
7. Using four 10-24 x 3/8" Phillips pan head screws and flat washers, secure interface to projector and tighten all fasteners at this time.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions
in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Bracket, Bottom (4) Screw, Phillips Pan Head, Machine, 10-24 x 3/8"
(1) Bracket, Top (4) Rubber Bumper Spacer
(4) 10-24 Thumb Nuts ** (4) #10 Washer
(1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.

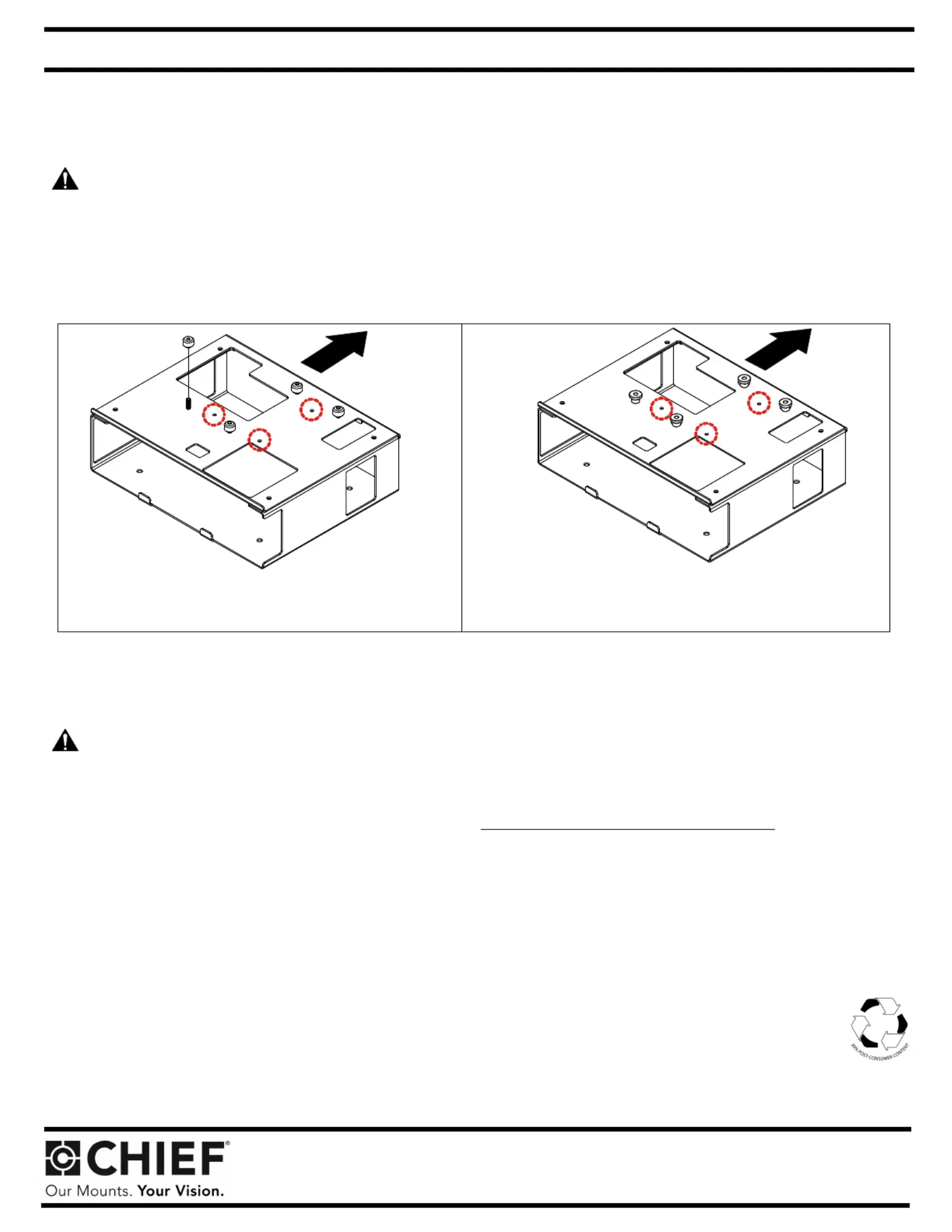

SLB-060 SLM-060
(Note:SSM-styleinterfacebracketconnections
areencircled)
(Note: SSB-style interfacebracketconnections
areencircled)
