I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8850-000060 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
SSB-070, SSM-070, SLB-070 and SLM-070 Interface Brackets
SSB-070, SSM-070, SLB-070 and SLM-070 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation:
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto the 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place interface bracket onto projector bottom and align mounting holes in bracket with the threaded inserts in projector.
4. Secure interface bracket to projector using M3 x 10mm Phillips pan head screws and flat washers. Tighten all fasteners at this time,
securing the bracket to the projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (3) Screw, Phillips Pan Head, Machine, M3 x 10mm
(4) 10-24 Thumb Nuts ** (3) Washer, Flat M3
(1) All-Points Security Kit (1) Wrench, Hex, 5/32"
**Only used when installing SLB/SSB interface brackets.

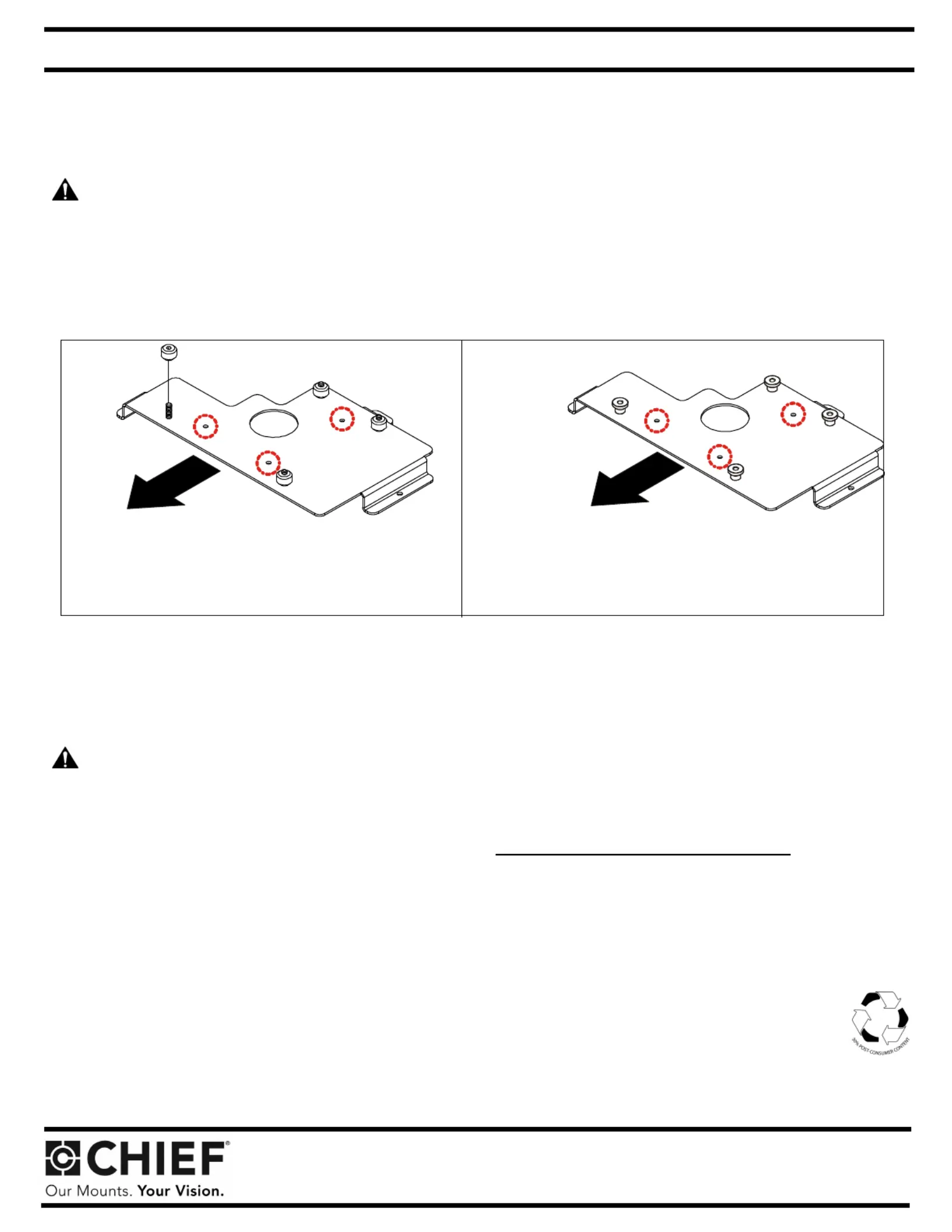

NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.
SLB-070 SLM-070
Towards front of
projector
Towards front of
projector
(Note: SSB-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
(Note: SSM-style interface bracket connections
are encircled)
