I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8802-000229 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
SSB-161, SSM-161, SLB-161 and SLM-161 Interface Brackets
SSB-161, SSM-161, SLB-161 and SLM-161 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information. Unpack carton and verify kit contents. If any listed parts
are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVERTIGHTENING OF SCREWS CAN DAMAGE PARTS AND LEAD TO SERIOUS PERSONAL INJURY AND DAMAGE
TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Unscrew two rear adjustable feet of projector.
4. Install two rubber bumpers from inside pushing out into two larger holes of brackets (A) and (B).
5. Slide bracket (B) around projector with back mounting slot between foot and bottom of projector to prevent projector from sliding forward
or backward.
6. Slide bracket (A) around opposite side of projector from bracket (B) with back mounting slot between foot and bottom of projector to
preventing projector from sliding forward or backward.
7. Align two slotted holes in bracket (B) with two threaded holes in bracket (A) until brackets touch side of projector.
8. Secure two brackets to projector using 10-24 x 1/4" Phillips pan head screws. Tighten all fasteners at this time, securing the bracket to
the projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation
instructions in the All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Bracket ( )A(2) Screw, Phillips pan head, machine, 10-24 x 1/4"
(1) Bracket ( )B(2) Rubber Bumper
(4) 10-24 Thumb Nuts ** (1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets. ****Used when mounting surface of projector is recessed.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.

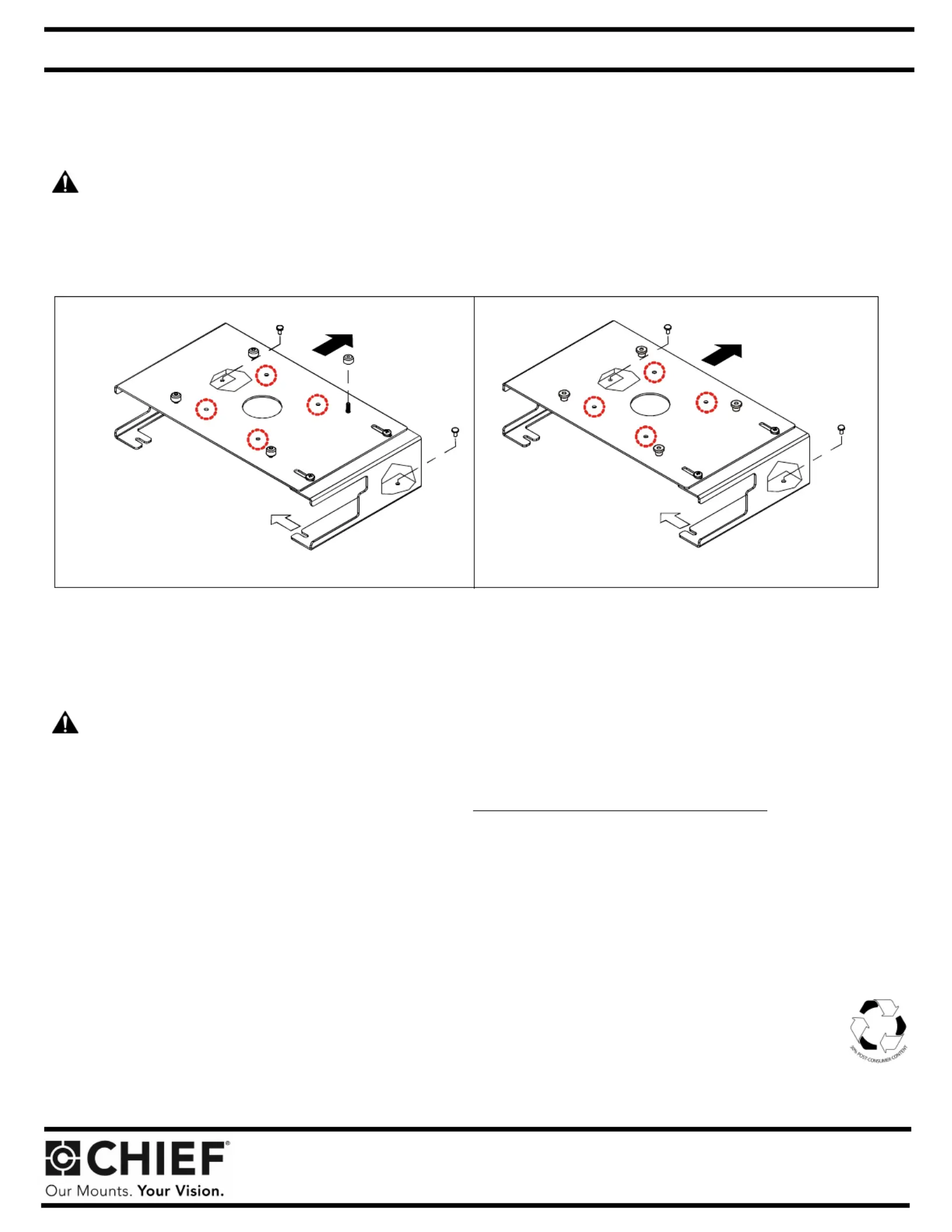

SLB-161 SLM-161
Towards front of
projector
Towards front of
projector
(Note: SSM-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
(
Note: SSB-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
( )
A
( )
B
( )
B
( )
A
