SSB-186, SSM-186, SLB-186 and SLM-186 Interface Brackets
SSB-186, SSM-186, SLB-186 and SLM-186 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the specific
installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUPIMENT! DO NOT over tighten screws when installing interface brackets.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down on a flat surface.
3. Place .500" nylon spacers over the threaded inserts in the bottom of the projector
4. Place the interface bracket onto the nylon spacers in the bottom of the projector and align the holes in the bracket with the threaded inserts
in the bottom of the projector.
5. Using the M4 x 20mm mounting screws, position screws into the mounting holes. Tighten all fasteners at this time, securing the bracket
to the projector.
NOTE: Security screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (4) Screw, Flat Head, Machine, M4 x 20mm
(4) 10-24 Thumb Nuts ** (4) Spacer, .500 x .194 x .500
(1) All-Points Security Kit
**Only used when installing SLB/SSB interface brackets.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.

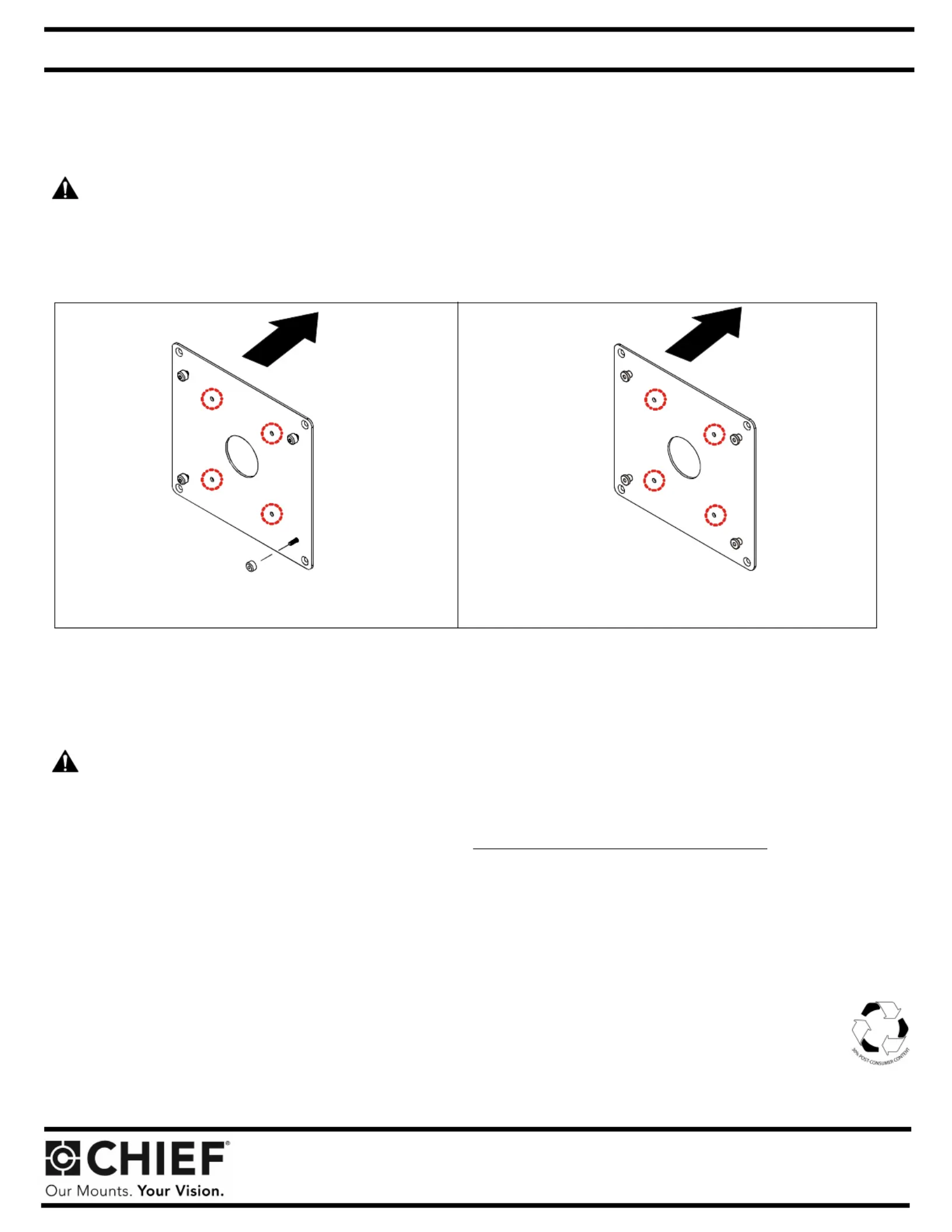

SLB-186 SLM-186
Towards front of
projector
Towards front of
projector
(
Note: SSB-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
(Note: SSM-style interface bracket connections
are encircled)
