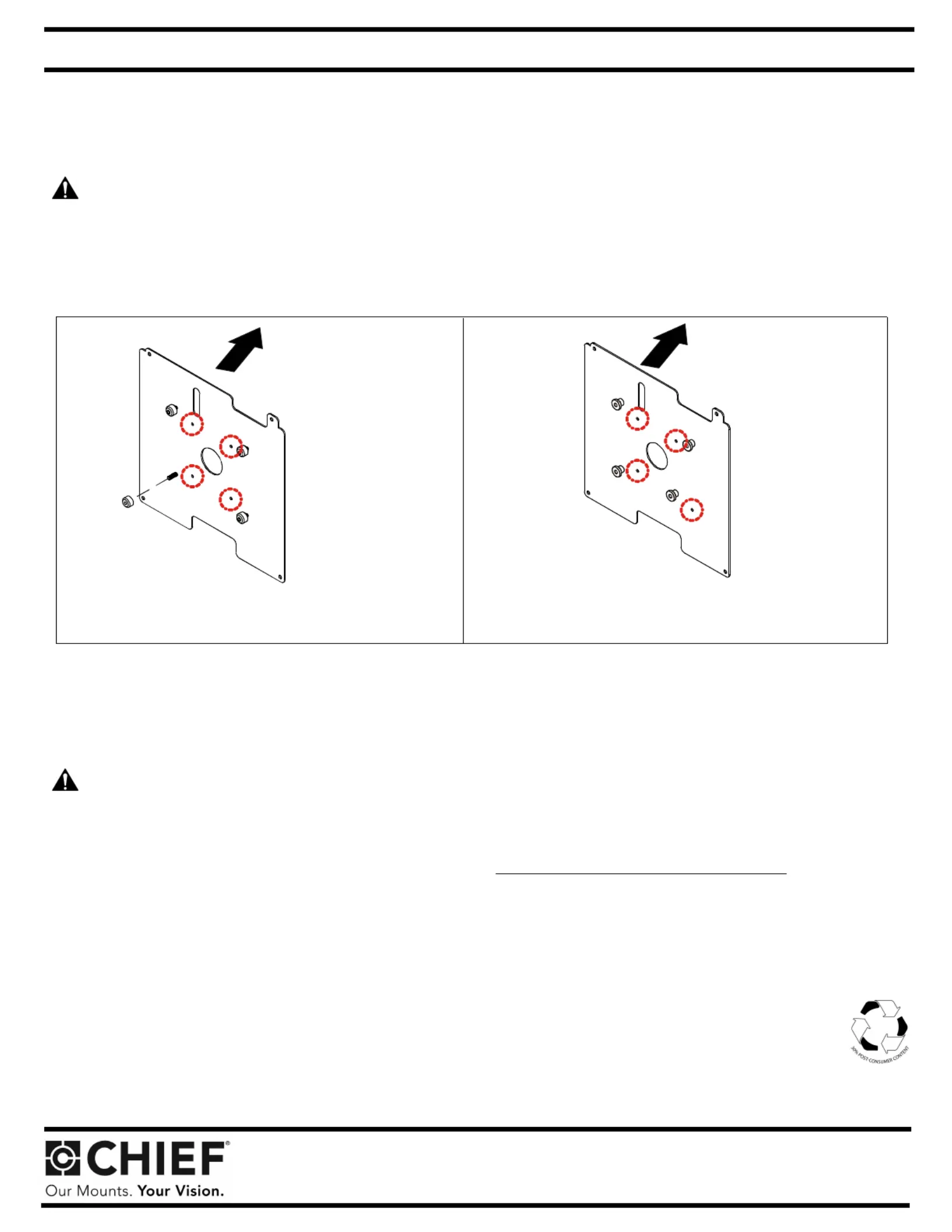

I N S T A L L A T I O N I N S T R U C T I O N S
Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes
no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use
of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or
implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief Manufacturing, a products division of Milestone AV Technologies
8401 Eagle Creek Parkway, Savage, MN 55378
• P: 800.582.6480 / 952.894.6280 • F:877.894.6918 / 952.894.6918
8802-002018 Rev01
©2009 Milestone AV Technologies,
a Duchossois Group Company
05/09
SSB-1065, SSM-1065, SLB-1065 and SLM-1065 Interface Brackets
SSB-1065, SSM-1065, SLB-1065 and SLM-1065 Interface Brackets are designed for use with Chief® Series Projector Mounts. See the
specific installation instructions provided with the mount for additional installation information.
Unpack carton and verify kit contents. If any listed parts are missing, immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO EQUIPMENT FALLING CAUSING SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT substitute hardware. Use only hardware supplied by manufacturer!
Installation Instructions
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY AND
DAMAGE TO EQUIPMENT! DO NOT over tighten screws when installing interface bracket.
NOTE: Step 1 is only required when installing an SLB/SSB interface bracket. If an SLM/SSM bracket is being installed, proceed to step 2.
1. Screw thumb screws onto the 10-24 x 5/8" Phillips pan head screws. DO NOT fully tighten thumb screws at this time.
2. Turn projector upside down.
3. Place 1/4" spacers over the threaded inserts in bottom of projector.
4. Place interface bracket onto bottom of projector and align spacers with mounting holes.
5. Using the M4 x 16mm Phillips pan head screws and flat washers, secure interface bracket to projector and tighten all fasteners at this time.
NOTE: Security Screws can be substituted when mounting interface bracket to projector by using the parts and installation instructions in the
All-Points Security Kit.
Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.
(1) Interface Bracket (4) Screw, Phillips Pan Head, Machine, M4 x16mm ****
(4) 10 - 24 Thumb Nuts ** (4) Washer, Flat, M4
(1) All-Points Security Kit (4) 1/2" x .218" x 1/4" Round Spacer ****
**Only used when installing SLB/SSB interface brackets. ****Used when mounting surface of projector is recessed.
NOTE: Specific to SSB-style and SSM-style interface bracket installation, all appropriate screws come pre-installed as reflected in the
encircled locations above. DO NOT attempt to substitute and USE ONLY this pre-installed hardware for SSB-style and SSM-style
interface bracket installation.
SLB-1065 SLM-1065
Towards front of
projector
Towards front of
projector
(Note: SSM-style interface bracket connection
s
a
r
e
e
n
c
i
r
c
l
e
d
)
(
Note: SSB-style interface bracket connections
a
r
e
e
n
c
i
r
c
l
e
d
)
