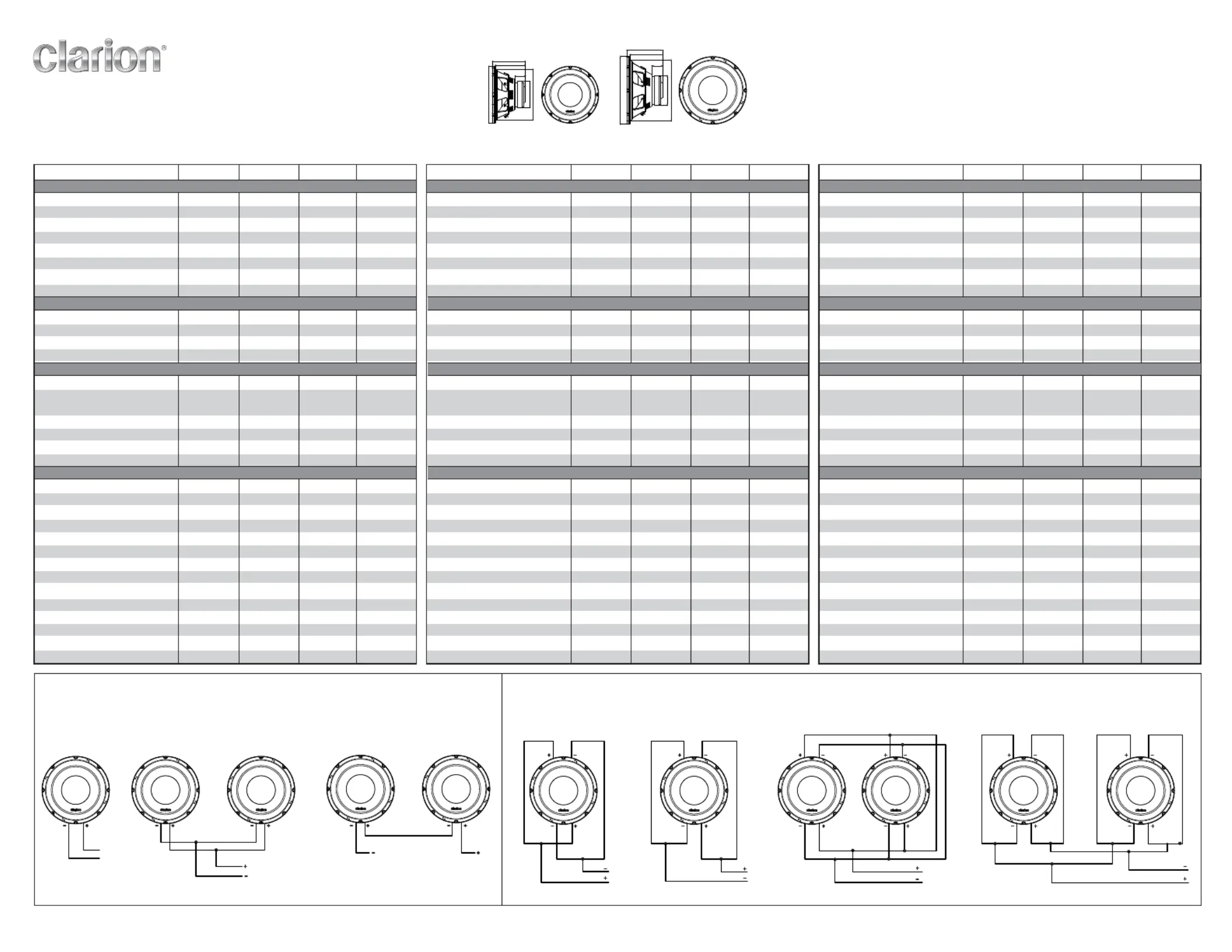

Side 1/1
WG2520 10 Inch Single Voice Coil Subwoofer (4 ) Ω
WG2520D 10 Inch Dual Voice Coil Subwoofer (4 ) + (4 ) Ω Ω
WG3020 12 Inch Single Voice Coil Subwoofer (4 ) Ω
WG3020D 12 Inch Dual Voice Coil Subwoofer (4 ) + (4 ) Ω Ω
Owner’s & Installation manual
Mode d’emploi et manuel d’installation
Manual de instrucciones y de instalación
WG Subwoofer
WG2520 WG2520D WG3020 WG3020D
Spécifications générales
Taille du caisson de basse 10” 10” 12” 12”
Gestion de la puissance maximale 1000W 1000W 1000W 1000W
Gestion de la puissance continue 300W 300W 300W 300W
Impédance 4
Ω
Dual (4 4Ω)+( Ω)
4
Ω
Dual (4 4Ω)+( Ω)
Réponse en fréquence 30Hz to 1kHz 30Hz to 1kHz 25Hz to 1kHz 25Hz to 1kHz
SPL 87dB 87dB 88dB 88dB
Profondeur de montage 5-3/8” 5-3/8” 5-7/8” 5-7/8”
Diamètre du trou de montage 9-7/32” 9-7/32” 11” 11”
Spécifications de l'enceinte SCELLÉE
Volume scellé recommandé (pieds cubes)
0.75 0.75 1.0 1.0
Volume scellé minimum (pieds cubes)
0.50 0.50 0.75 0.75
Volume scellé maximum (pieds cubes)
1.00 1.00 1.25 1.25
Fc 57.43 Hz 55.48 Hz 58.80 Hz 60.61 Hz
Spécifications de l'enceinte à évent
Volume ventilé recommandé (pieds cubes)
1.25 1.25 1.50 1.50
Taille d'évent recommandée
(largeur x hauteur x longueur) inch 1.0x11.1x21 1.0x11.1x21 1.18x12.7x23 1.18x12.7x23
Volume ventilé minimum (pieds cubes)
1.00 1.00 1.25 1.25
Volume ventilé maximum (pieds cubes)
1.50 1.50 1.75 1.75
Fb 32 Hz 22 Hz 31.45 Hz 23.54 Hz
F3 36 Hz 35 Hz 39.08 Hz 39.08 Hz
Paramètres Thiele-Small
Re en série (±10 %) 3.79 Ohm 7.43 Ohm 3.63 Ohm 7.49 Ohm
Le 0.69 mH 1.08 mH 0.75 mH 1.34 mH
Diamètre de bobine acoustique 38.6 mm 38.6 mm 50.8 mm 50.8 mm
Longueur de bobine acoustique 22 mm 22 mm 22mm 22 mm
Sd 337 cm² 337 cm² 523 cm² 523 cm²
Vas 39.8 L 40.8 L 93.4 L 65.5 L
Fs 34 Hz 36.6 Hz 28 Hz 34 Hz
Qts 0.54 0.63 0.43 0.63
Qes 0.59 0.72 0.46 0.72
Mms 89.2 g 74.7 g 130.8 g 130.8 g
Mmd 85.7 g 71.2 g 124.0 g 124.0 g
BL 11.02 N/A 11.02 N/A 13.61 N/A 17.15 N/A
Xmax 6 mm 6 mm 6 mm 6 mm
Poids de l'aimant 30 oz 30 oz 39 oz 39 oz
WG2520 WG2520D WG3020 WG3020D
Especificaciones generales
Tamaño del subwoofer 10” 10” 12” 12”
Manipulación de potencia máxima 1000W 1000W 1000W 1000W
Manipulación de potencia continua 300W 300W 300W 300W
Impedancia 4
Ω
Dual (4 4Ω)+( Ω)
4
Ω
Dual (4 4Ω)+( Ω)
Respuesta a la frecuencia 30Hz to 1kHz 30Hz to 1kHz 25Hz to 1kHz 25Hz to 1kHz
SPL 87dB 87dB 88dB 88dB
Profundidad de montaje 5-3/8” 5-3/8” 5-7/8” 5-7/8”
Diámetro del orificio de montaje 9-7/32” 9-7/32” 11” 11”
Especificaciones del gabinete SELLADO
Sellado recomendado (pies cúbicos)
0.75 0.75 1.0 1.0
Sellado mínimo (pies cúbicos) 0.50 0.50 0.75 0.75
Sellado máximo (pies cúbicos) 1.00 1.00 1.25 1.25
Fc 57.43 Hz 55.48 Hz 58.80 Hz 60.61 Hz
Especificaciones del gabinete CON PUERTOS
Ventilación recomendada (pies cúbicos)
1.25 1.25 1.50 1.50
Tamaño de puerto recomendado
(ancho x alto x largo) 1.0x11.1x21 1.0x11.1x21 1.18x12.7x23 1.18x12.7x23
Ventilación mínima (pies cúbicos) 1.00 1.00 1.25 1.25
Ventilación máxima (pies cúbicos) 1.50 1.50 1.75 1.75
Fb 32 Hz 22 Hz 31.45 Hz 23.54 Hz
F3 36 Hz 35 Hz 39.08 Hz 39.08 Hz
Parámetros Thiele-Small
Re en serie (±10%) 3.79 Ohm 7.43 Ohm 3.63 Ohm 7.49 Ohm
Le 0.69 mH 1.08 mH 0.75 mH 1.34 mH
Diámetro de la bobina de voz 38.6 mm 38.6 mm 50.8 mm 50.8 mm
Longitud de la bobina de voz 22 mm 22 mm 22mm 22 mm
Sd 337 cm² 337 cm² 523 cm² 523 cm²
Vas 39.8 L 40.8 L 93.4 L 65.5 L
Fs 34 Hz 36.6 Hz 28 Hz 34 Hz
Qts 0.54 0.63 0.43 0.63
Qes 0.59 0.72 0.46 0.72
Mms 89.2 g 74.7 g 130.8 g 130.8 g
Mmd 85.7 g 71.2 g 124.0 g 124.0 g
BL 11.02 N/A 11.02 N/A 13.61 N/A 17.15 N/A
Xmax 6 mm 6 mm 6 mm 6 mm
Peso del imán 30 oz 30 oz 39 oz 39 oz
WG2520 WG2520D WG3020 WG3020D
General Specifications
Subwoofer size 10” 10” 12” 12”
Maximum Power Handling 1000W 1000W 1000W 1000W
Continuous Power Handling 300W 300W 300W 300W
Impedance 4
Ω
Dual (4 4Ω)+( Ω)
4
Ω
Dual (4 4Ω)+( Ω)
Frequency Response 30Hz to 1kHz 30Hz to 1kHz 25Hz to 1kHz 25Hz to 1kHz
SPL 87dB 87dB 88dB 88dB
Mounting Depth 5-3/8” 5-3/8” 5-7/8” 5-7/8”
Mounting Hole Diameter 9-7/32” 9-7/32” 11” 11”
Sealed enclosure specifications
Recommended Sealed (cubic feet) 0.75 0.75 1.0 1.0
Minimum Sealed (cubic feet) 0.50 0.50 0.75 0.75
Maximum Sealed (cubic feet) 1.00 1.00 1.25 1.25
Fc 57.43 Hz 55.48 Hz 58.80 Hz 60.61 Hz
Ported enclosure specifications
Recommended vented (cubic feet) 1.25 1.25 1.50 1.50
Recommended port size
(WxHxL) inch 1.0x11.1x21 1.0x11.1x21 1.18x12.7x23 1.18x12.7x23
Minimum vented (cubic feet) 1.00 1.00 1.25 1.25
Maximum vented (cubic feet) 1.50 1.50 1.75 1.75
Fb 32 Hz 22 Hz 31.45 Hz 23.54 Hz
F3 36 Hz 35 Hz 39.08 Hz 39.08 Hz
Thiele small parameters
Re in series (±10%) 3.79 Ohm 7.43 Ohm 3.63 Ohm 7.49 Ohm
Le 0.69 mH 1.08 mH 0.75 mH 1.34 mH
Voice coil diameter 38.6 mm 38.6 mm 50.8 mm 50.8 mm
Voice coil length 22 mm 22 mm 22mm 22 mm
Sd 337 cm² 337 cm² 523 cm² 523 cm²
Vas 39.8 L 40.8 L 93.4 L 65.5 L
Fs 34 Hz 36.6 Hz 28 Hz 34 Hz
Qts 0.54 0.63 0.43 0.63
Qes 0.59 0.72 0.46 0.72
Mms 89.2 g 74.7 g 130.8 g 130.8 g
Mmd 85.7 g 71.2 g 124.0 g 124.0 g
BL 11.02 N/A 11.02 N/A 13.61 N/A 17.15 N/A
Xmax 6 mm 6 mm 6 mm 6 mm
Magnet weight 30 oz 30 oz 39 oz 39 oz
Clarion Corporation of America Made in ChinaFor more information please visit Clarion website or call 1-800-GO-CLARION www.clarion.com
1.81” (46mm)
Ø4.72” (120mm)
Ø9.1” (232mm)
5.9” (150mm)
5.36” (136.5mm)
Ø10” (25 9mm)
Ø (5.27” 134mm)
Ø (10.86” 275.8mm)
6.38” (162mm)
5.83” (148.2mm)
1.85” (47mm)
Ø (12” 307mm)
WG2520
WG2520D
WG3020
WG3020D
Dual Voice Coil Wiring GuideSingle Voice Coil Wiring Guide
Option 1
One Woofer Application (Parallel)
(WG2520D/WG3020D)
Option 2
One Woofer Application ( ) Series
(WG2520D/WG3020D)
Option 4
Two Woofer Application ( arallel) Series-P
(WG2520D/WG3020D)
Option 3
Two Woofer Application (Parallel)
(WG2520D/WG3020D)
2 (Parallel) Configuration 1 (Parallel) Configuration 4 (Series-Parallel) Configuration8 (Series) ConfigurationΩ Ω ΩΩ
(1) Dual 4 + 4 (1) Dual 4 + 4 (2) Dual 4 + 4 (2) Dual 4 + 4Ω Ω Ω Ω Ω Ω Ω Ω
Option 1
One Woofer Application
(WG2520/WG3020)
Option 3
Two Woofer Application ( ) Series
(WG2520/WG3020)
Option 2
Two Woofer Application (Parallel)
(WG2520/WG3020)
2 (Parallel) ConfigurationΩ
8 (Series) Configuration4 Configuration ΩΩ
(1) Single 4 (2) Single 4 (2) Single 4Ω Ω Ω
