Side 1/2

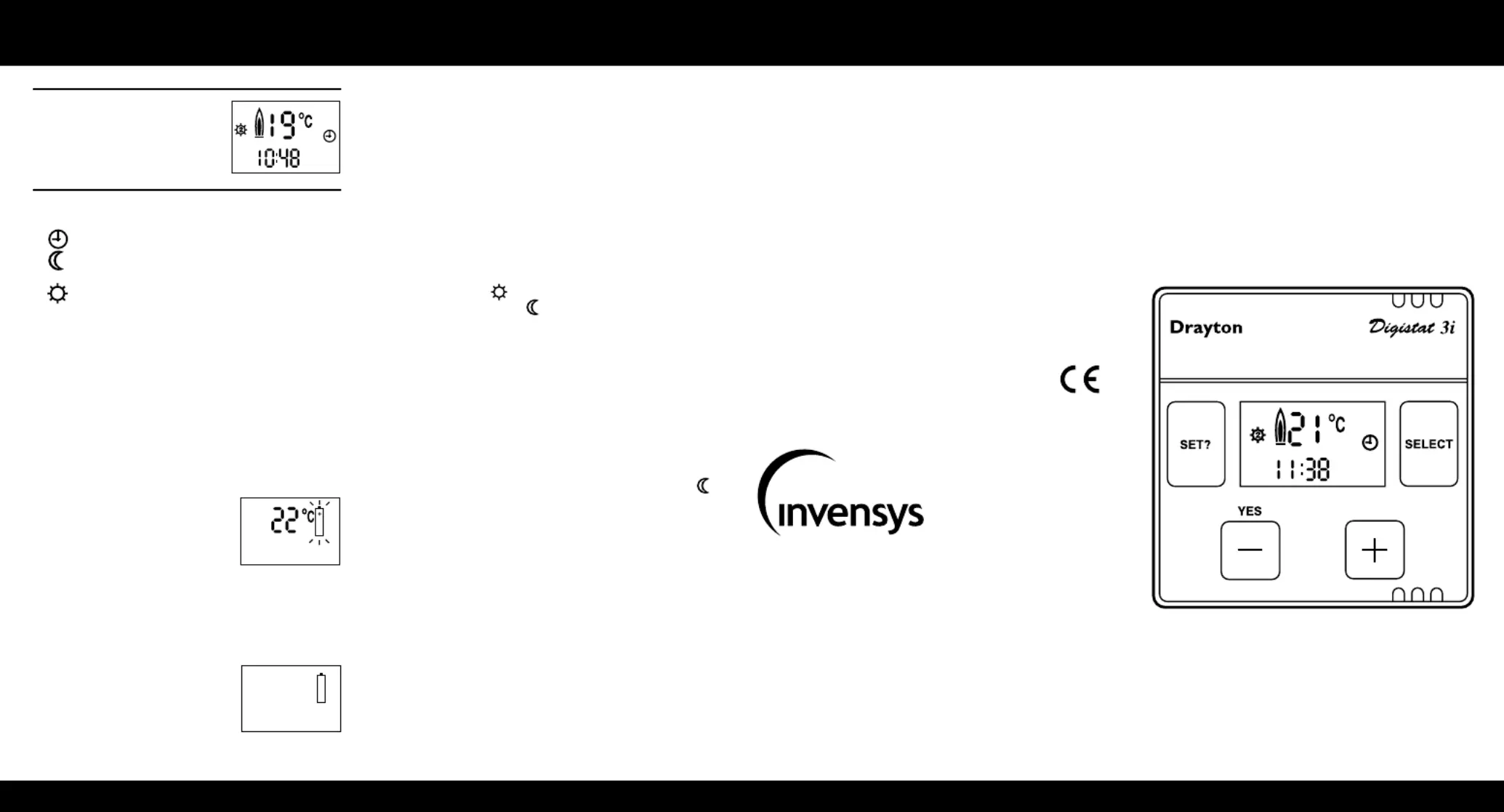

14.Continue to press “SET?”

button until you return to

normal operating mode with

a display similar to the one

shown here.

OPERATING MODES

The Digistat can be operated in one of three modes.

1) – Timed, all preset times and temperatures

2) – Continuous night temperature (useful for low

limit temperature protection when on holiday)

3) – Continuous ‘DAY 1’ temperature

Use the SELECT button to change the operating mode to

suit your requirements, the symbols are positioned on the

right hand side of the display.

TEMPERATURE OVERRIDE

If at anytime during normal operation, you wish to

temporarily increase or decrease the set temperature use

the + or – buttons to change to your desired setting. This

can be done without entering the SET mode. Five seconds

after releasing the + or – button the display will revert to

showing the actual room temperature. The Digistat will

now control the temperature to the override setting until

the next programmed switching time, when it will revert to

the times and temperatures you have already programmed.

BATTERY REPLACEMENT

30 days before the batteries need re-

placing, a battery symbol will flash in the

right hand side of the display (Diagram

C). This signifies that two 1.5V type

AA alkaline batteries will be

needed to replace the existing ones.

If battery replacement is carried out in this condition the

programmed settings will only be held in the memory for a

maximum of one minute, after which re-programming may

be necessary.

IMPORTANT

To avoid the possibility of having to

re-programme the switching times and

temperatures, it is advisable to wait

until the display with a flashing battery

symbol changes to a continuous

battery only display (after 30 days

Digistat 3i

User instructions

– Diagram D). In this condition the unit will remain OFF but

your programmed settings will be held in memory for a number

of weeks. The battery compartment can now be left open, to

replace the batteries, for approximately one hour. If the

compartment is left open for longer, the unit will revert to the

factory preset times and temperatures. It may be necessary to

reset the correct time of day after changing the batteries.

The battery compartment is situated at the bottom of the

unit (press to unlatch and slide down). Ensure new batteries are

installed correctly.

HELPFUL HINTS

1) First/Last Set Times

The Day 1 setting cannot be programmed before 12.00

midnight. The night setting can be programmed at whatever

time you require, even after 12.00 midnight so long as it is not

programmed more than 23 hours 50 minutes after the Day 1

setting.

2) Part or Full Day Omission

If during programming the Digistat, one of the symbols on the

left hand side of the screen starts to flash, this indicates that two

or more of the switching times have been set to the same time.

This facility enables you to omit one or more of the switched

periods. When one or more switching times are programmed

together the later setting takes precedent. For example, if all

four switching times were set together the Digistat would

control continuously at the fourth (night) temperature setting .

3) Programme Sequence

The Digistat will not allow you to program the switched periods

out of sequence but will hold the times together as stated above.

4) Reset

If at any time during the programming you get confused and

would like to start the procedure from the beginning press the

SELECT and – buttons at the same time and hold for two

seconds. This resets the Digistat to the factory preset times and

temperatures shown in the table (overleaf).

5) Self Revert

If during programming no button is pressed for between

one and two minutes the Digistat will revert automatically to its

normal operating mode.

Diagram C

Diagram D

CONFORMS TO THE ESSENTIAL

REQUIREMENTS OF THE FOLLOWING

DIRECTIVES:

89/336/EEC – Electromagnetic compatibility

73/23/EEC – Low voltage directive

Drayton

Invensys Climate Controls Limited

Cordwallis Street, Maidenhead

Berkshire SL6 7BQ

Telephone: (01628) 672121

Sales Facsimile: (01628) 675062

Technical Helpline: (01895) 460444

An Invensys Product

Invensys Climate Controls reserve the right to make changes without 090 799

notice and cannot accept liability for errors. 0200
