Installation and mounting manual for -RES X3 EK series reservoir
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com
installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly place since the liquid seal is ensured by the rubber o-ring gaskets.in
3. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.
4. DO NOT USE any kind of alcohol or alcohol derivate with this reservoir or the acrylic tube may crack and fail! Do not clean it using alcohol either!
STEP 1: GENERAL INFORMATION. Factory provided EK-RES X3
series
reservoir
Congratulations on your purchase of EK-RES X3 series reservoir! By default the EK-RES X3 series reservoir comes with the following:
- -RES X3 EK
series
reservoir with preinstalled EK-RES X3 - Anticyclone
- -Multioption RES X2 Holder 60mm (2 pcs) EK
- Polyether an -vortex foam (H=15mm) ti
- Mounting mechanism:
o 4x G1/4 Plug
o 2x EK-G1/4 Extender
o Allen Key 6mm
STEP 2: INSTALLING THE RESERVOIR HOLDERS
EK-RES X3
series
reservoirs comes with a pair of special -Reservoir holders. These holders are meant to be installed directly on the computer chassis. User EK
may need to drill 2 (two) holes through chassis metal using electric power drill if there are no appropriate mounting holes available. Φ4mm
STEP 2.1
STEP 2.2
STEP 2.3
Use enclosed M4 screw, washer and
nut to mount the reservoir holder
through the pre-drilled hole to the
computer chassis.
Install reservoir onto reservoir holders.
Using a gentle force the reservoir will
easily 'click' into position. The clamps
should always hold onto acrylic tube and
not the acetal top or bottom.
Once the reservoir is positioned please use
enclosed 2.5mm Allen key to tighten the
hex head screw in order to clamp the
reservoir. Do not use high force. Partially
unscrew the aforementioned screw when
removing the reservoir.
Alternatively one can purchase various reservoir holders, such as EK-UNI Holder 50/70 (EAN: 3830046997715): One can use the EK-UNI Holder 50/70 if the
chassis lack the appropriate holes to install the reservoir and the drilling is out of the question. EK-UNI Holder 50/70 can be install on 5. Drive Bay cage and 25”
fixated with M4 screws and nuts to carry the Reservoir Holders.
For more reservoir add-ons please EK Webshop!

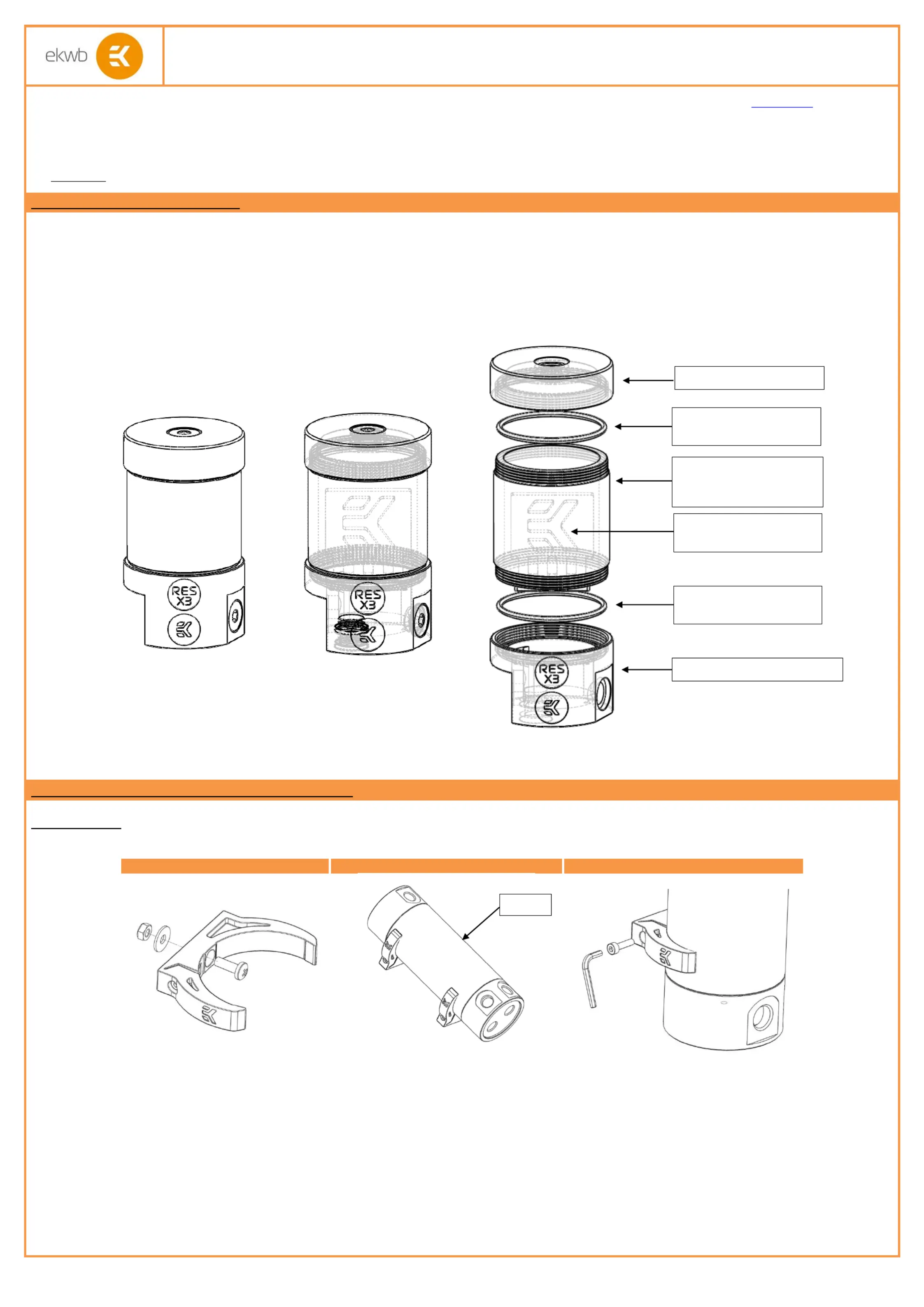

TUBE
EK-RES X3 Sealing gasket –
(O-Ring 52x2.5mm)
EK-RES X3 TUBE –
(64-, 104-, 204- or 354mm)
depending on the variant
EK-RES X3 Sealing gasket –
(O-Ring 52x2.5mm)
EK-RES X3 Ancyclone –
(Short, Long)
EK-RES X3 Reservoir Boom –
EK-RES X3 Reservoir Top –
