All disclosures, notices and warranty condions are being wrien on the EKWB website. Please read terms of use. Released on 24th of May, 2014. Revision 1.0

Installation and mounting manual for EK- -295X2 waterblock FC R9

This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability

whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. Before www.ekwb.com

installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

Before you start using this product please follow these basic guidelines:

1. Please carefully read the manual before through before beginning with the installation process!

2. Please remove your motherboard from the computer to assure safest mounting process in order to prevent any possible damages to your CPU and/or motherboard’s circuit board (PCB).

3. The EK High Flow and EK-PSC type fittings require only a small amount of force to screw them firmly in place since the liquid seal is ensured by the rubber o-ring gaskets.

4. The use of corrosion inhibiting coolants is always recommended for any liquid cooling system.

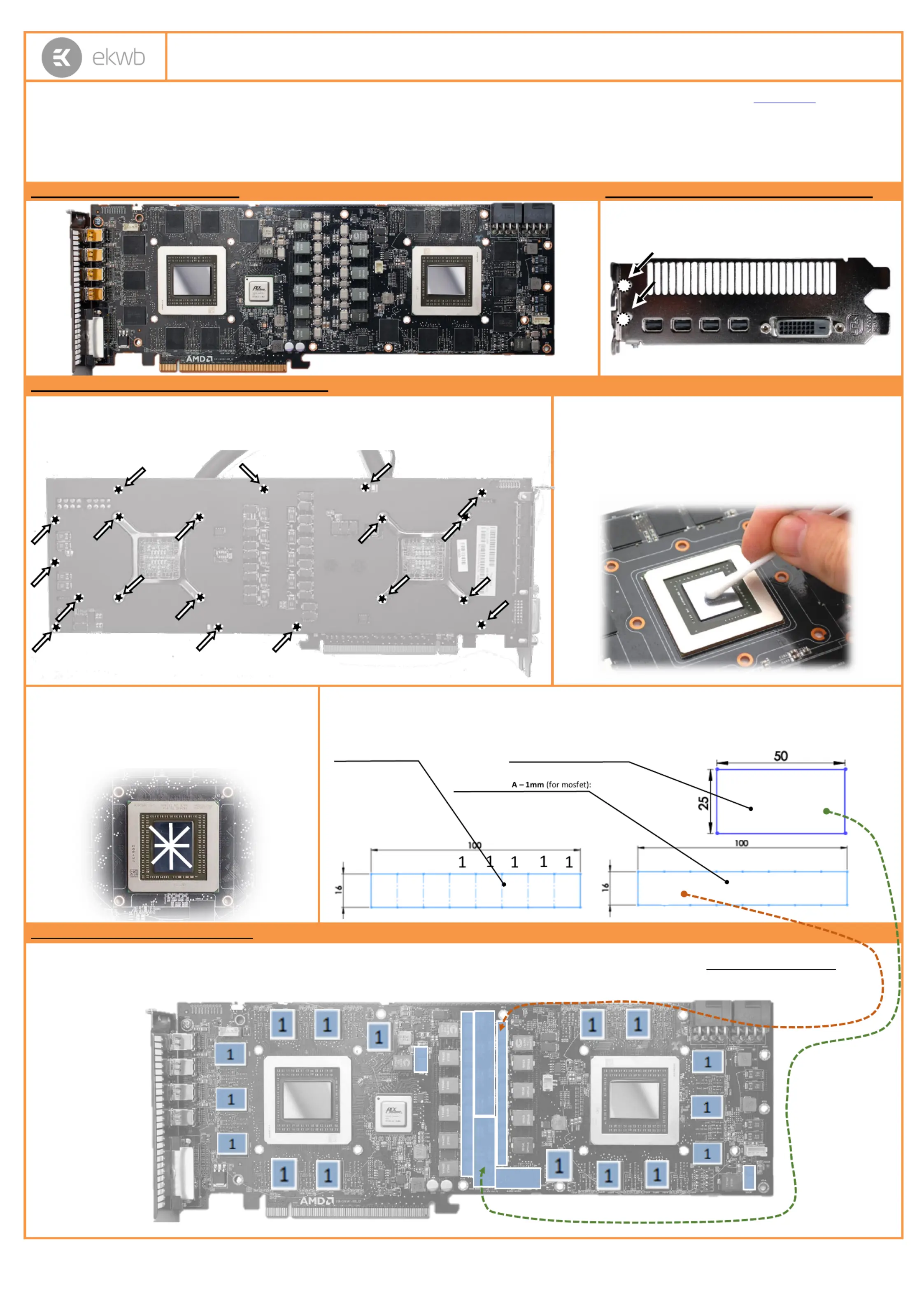

STEP 1: GENERAL INFORMATION. Sample picture of AMD Radeon R9 295X2

STEP 2: PREPARING YOUR GRAPHIC CARD.

1. REMOVING STOCK COOLER: Remove encircled screw on

the bracket (required only on certain models):

STEP 2 cont.: PREPARING YOUR GRAPHIC CARD

1 cont.. REMOVING STOCK COOLER. Remove all encircled screws. All heat sink assembly screws

should be removed, including self-adhesive washers on both sides of the PCB (if present). There are up to

19 screws on the back of the graphics card. After you remove the fan housing do not forget to unplug the

fan. You may need Torx T6 screwdriver instead of Philips head screwdriver (depending on manufacturer).

2. CLEANING THE PCB. Carefully detach the original stock cooler

after removing screws securing it to the board. Wipe off the all

remains (by using non abrasive cloth or –

qtip

, as shown on sample

photo) of the original thermal compound until the components and

circuit board are completely clean. EKWB recommends the use of

denatured alcohol for removing TIM leftovers.

3. APPLYING THERMAL COMPOUND. Apply thermal

compound: lightly coat both

nVidia

GPU chips as well as

PLX bridge chip with for example Arctic Cooling MX-2

™ 4 ™, -MX or GELID GC-Extreme ™ thermal grease.

EKWB recommends to apply thermal grease in cross form

for best performance (see sample picture).

4. CUTTING THERMAL PADS. Your block comes with thermal pads, some of which are already pre-cut. Others

have to be cut to smaller chunks in order to cover all the VRM components such as MOSFETs and drivers. PLEASE

REMOVE THE PROTECTIVE FOIL FROM BOTH SIDES OF THE THERMAL PADS PRIOR TO INSTALLATION.

Replacement thermal pads:2x Thermal Pad A 1.0mm (16x100mm),2x Pad D 0.5mm (8xRAM) – – , 1 Pad C 1.5mm (25x50mm) x –

STEP 3: INSTALLING WATER BLOCK

1. PLACING THERMAL PADS ON PCB. Place thermal pads on chips so that numbers on chips match size of thermal pads. EKWB made sure users have more than

enough pads to cover all surfaces that need to be covered to make block fully functional). EK recommends using small drops of electrically non-conductive (for WB

example: Arctic Cooling MX- , - or GELID GC-2 ™ MX 4 ™ Extreme™) thermal grease on each phase regulator (that is being covered with thermal pad) in order to even
