Installation and mounting manual for EK-UNI Holder DDC V2
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at www.ekwb.com for updates. Before installation
of this product please read important notice, disclosure and warranty conditions printed on the back of the box.
Before you start using this product please follow these basic guidelines:
1. Please carefully read the manual before through before beginning with the installation process!
2. The EK High Flow and EK-CSQ type fittings require only a small amount of force to screw them firmly place since the liquid seal is ensured by the rubber o-ring gaskets.in
3. The use of corrosion inhibiting coolants is strongly recommended for any liquid cooling system.
STEP 1: GENERAL INFORMATION:
STEP 2 PREPARING THE PUMP:
EK-UNI Holder DDC V2 is only compable with the Laing DDC pump X-Res/X-Top (see picture below). EK does
not guarantee compability with other brands DDC water pumps or 3rd party pump tops (volutes). Only EK-
DDC family products are supported! -UNI Holder DDC V2 cannot be used with original Laing DDC pump top EK
(volute)! Remove four (4) M4x25 DIN 7984 screws with enclosed Allen key like shown on picture below.
STEP 3: ATTACHING EK-UNI HOLDER
STEP 4: ATTACHING TO CASE:
1. Install the DDC pump on X- -Top RES/X per item’s instruction manual.
2. Place sub assembly on DDC holder so holes are concentric.
3. Place polyamide washer beneath each M4x30 DIN7985 screws head
(included).
4. Screw gently as excessive force may cause screws to strip.
Use 2 x8 ISO7380 screws in conjusction with washers and nuts in order to attach assembly M4
to PC case. This holder is meant to be installed directly on the computer chassis. User may
need to drill 2 (two) Φ4mm holes through chassis metal using electric power drill if there are no
appropriate mounting holes available.
IMPORTANT DISCLOSURES:
VERY IMPORTANT NOTICE: Once the installation is completed, it is a recommended practice to test the cooling circuit for leaks prior to powering up the computer. We recommend
a 24 hour leak test prior to powering up the computer. Do not test the water block using tap water pressure. This will rupture the top of the housing and render the block unusable
(and will void your warranty).While all efforts have been made to provide the most comprehensive tutorial possible, EK Water Blocks assumes no liability expressed or implied for
any consequential damage(s) occurring to your equipment as a result of using EK Water Blocks cooling products, either due to errors or omissions on our part in the above
instructions, or due to failure or defect in the EK Water Blocks cooling products.
WARRANTY:Our products are warranted against defects in materials or workmanship for a period of 24 months beginning from the date of delivery to the final user. During this
period, products will be repaired or have parts replaced at our discretion provided that: (I) the product is returned to the agent from whom it was purchased; (II) the product
has been purchased by an end user and has not used for commercial purposes; (III) the product has not been misused, handled carelessly, or used in a manner other than in
accordance with the instructions provided describing its installation and proper use. This warranty does not confer rights other than those expressly set out above and does not
cover any claims for consequential loss or damage. This warranty is offered as an extra benefit and does not affect your statutory rights as a consumer. This warranty is voided
if the product comes in contact with aggressive UV additives or other improper liquids.
Any other RMA issues can be reported to for further analysis. support@ekwaterblocks.com

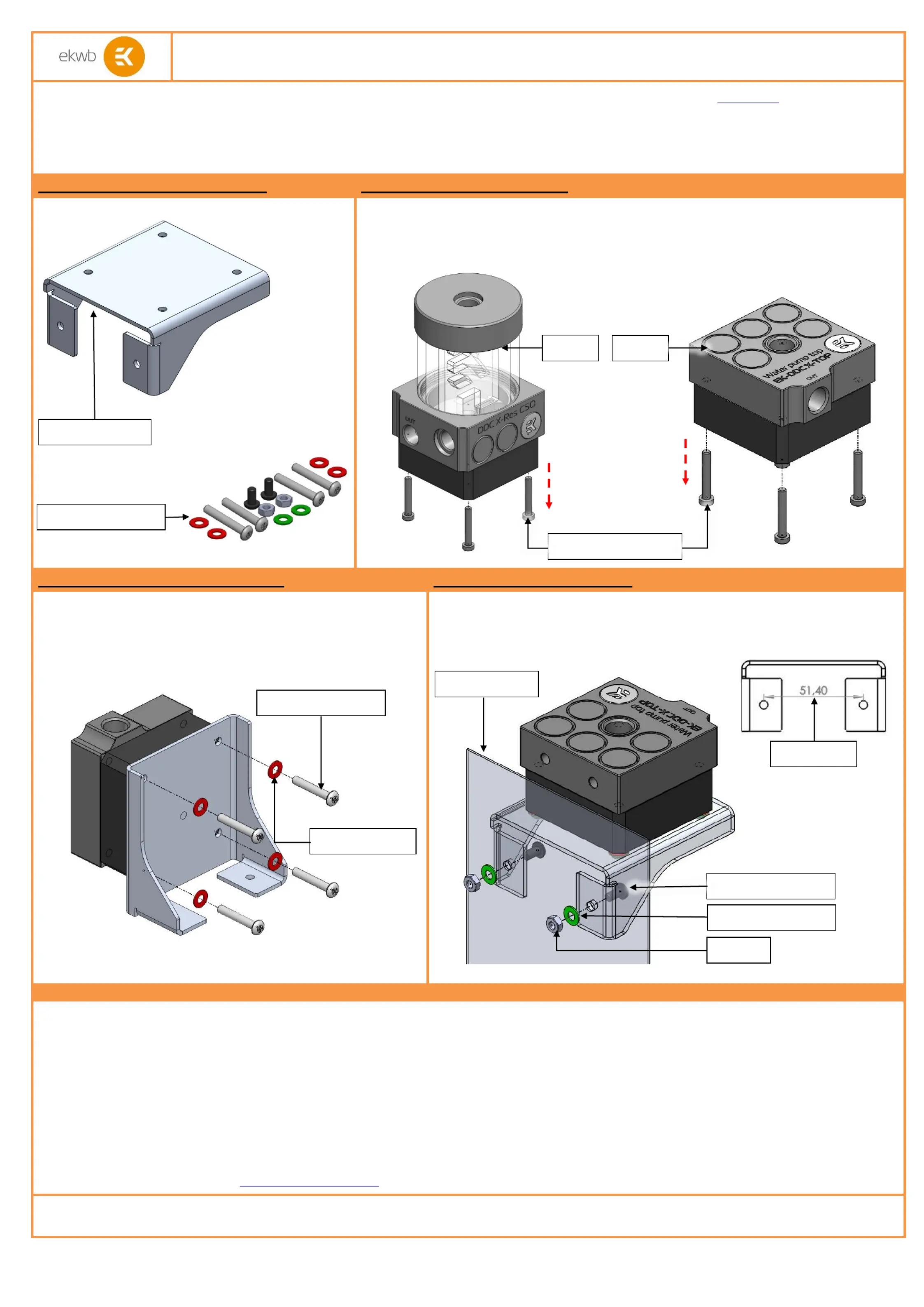

REQUIRED TOOLS
Phillips head screwdriver
X-Top
X-Res
UNI Holder DDC V2
Mounng mechanism
M4x25 DIN 7984 screw
M4x30 DIN7985 screw
Polyamide washer
Hole spacing
M4x8 ISO7380 screw
M4 metal washer
M4 nut
computer chassis
