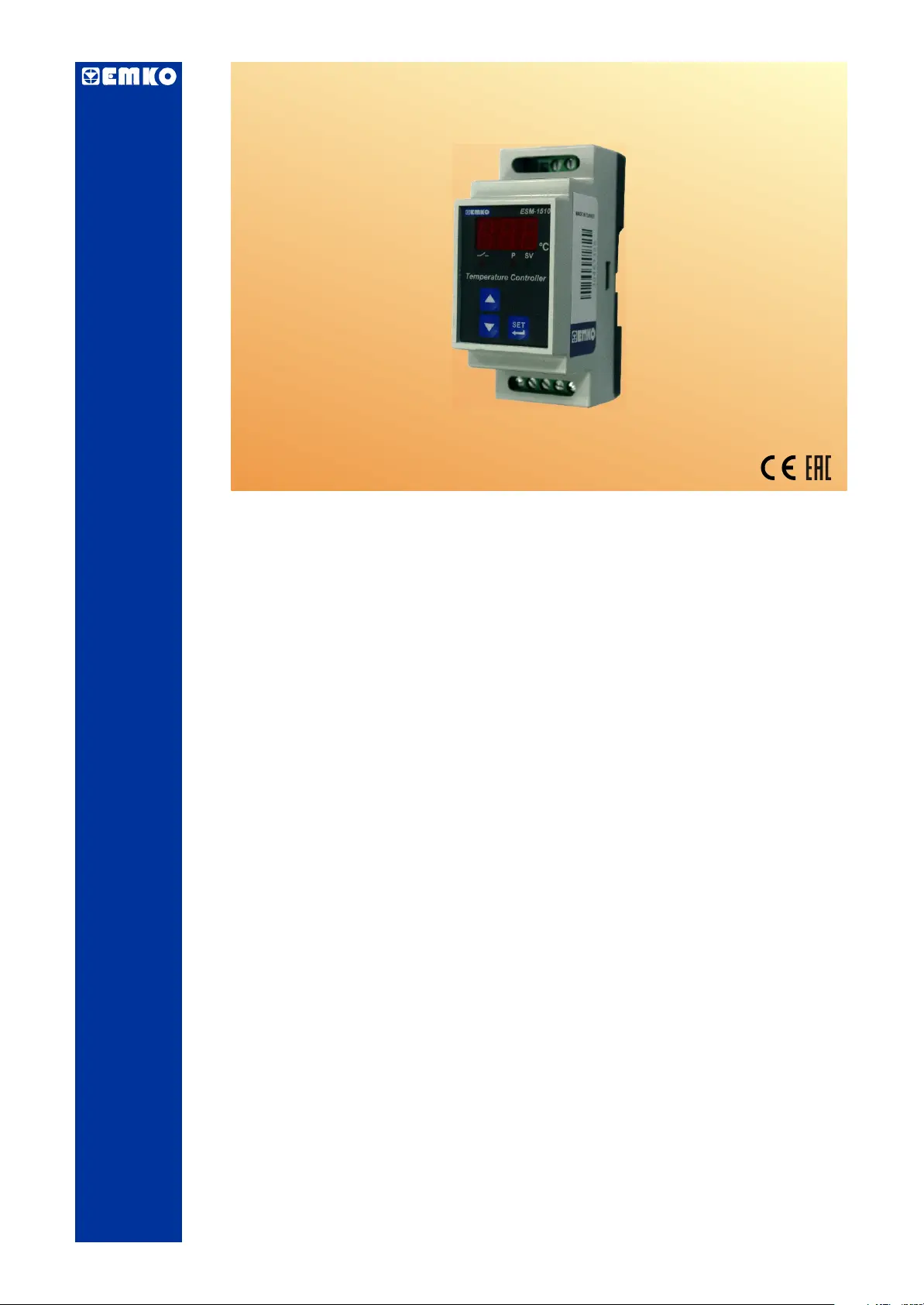

ESM-1510N DIN Rail Mounting Temperature Controller
- 3 Digits display
- NTC Input or,
PTC Input or,
J type thermocouple Input or,
K type thermocouple Input or,
2-Wire PT 100 Input or,
2-Wire PT 1000 Input (It must be determined in order)
- ON/OFF temperature control
- Selectable heating or cooling function
- Selection of operation with hysteresis
- Adjustable temperature offset
- Set value low limit and set value high limit boundaries
- Relay or SSR driver output
- Operation selection of compressor operates continuously, stops
or operates periodically in case of probe defect
- Compressor protection delays
- Password protection for programming mode
Instruction Manual. ENG ESM-1510N 01 V00 02/16
ESM-1510N DIN Rail Mounting Type
Digital, ON / OFF Temperature Controller
2
1.Preface
1.2 General Specifications
ESM-1510N series temperature controllers are designed for measuring and controlling
temperature. They can be used in many applications with their On / Off control form, heating and
cooling control form and easy-use properties. Some application fields which they are used are
below:
Application Fields Applications
Glass Heating
Food Baking Ovens
Plastic Incubators
Petro-Chemistry Storages
Textile, Automative Air Conditioning
Machine Production Industries Etc...
Etc...
Operating Temperature : 0 to 50 °C
Max. Operating Humidity : 90% Rh (non-condensing)
Altitude : Up to 2000 m.
Forbidden Conditions:
Corrosive atmosphere, Explosive atmosphere,
Home applications (The unit is only for industrial applications)
1.1 Operating Conditions
c
ESM-1510N
Optional
Standard
Control Output
Alarm Output
NTC
PTC
J or K Type TC
2-wire PT 100
2-wire PT 1000
Output-1
(SSr Driver Output)
Control Output
Alarm Output
Heating or Cooling
Function
ON/OFF Operation
Temperature Sensor
Input
Power Supply
Input
Standard
230 V (±%15) , 50/60HzV
Optional Supply Input
115 V (±%15) , 50/60HzV
24 V (±%15) , 50/60HzV
10...30 V Z
24 V (-%15, +%10),W
50/60Hz
Output-1
(Relay Output)
3
1.4 Warranty
EMKO Elektronik warrants that the equipment delivered is free from defects in material and
workmanship. This warranty is provided for a period of two years. The warranty period starts from
the delivery date. This warranty is in force if duty and responsibilities which are determined in
warranty document and instruction manual performs by the customer completely.
1.5 Maintenance
Repairs should only be performed by trained and specialized personnel. Cut power to the device
before accessing internal parts.
Do not clean the case with hydrocarbon-based solvents (Petrol, Trichlorethylene etc.). Use of
these solvents can reduce the mechanical reliability of the device. Use a cloth dampened in ethyl
alcohol or water to clean the external plastic case.
In package ,
- One piece unit
- One piece rail lock apparatus
- One piece instruction manual
A visual inspection of this product for possible damage occured during shipment is
recommended before installation. It is your responsibility to ensure that qualified
mechanical and electrical technicians install this product.
If there is danger of serious accident resulting from a failure or defect in this unit, power
off the system and separate the electrical connection of the device from the system.
The unit is normally supplied without a power supply switch or a fuse. Use power switch
and fuse as required.
Be sure to use the rated power supply voltage to protect the unit against damage and to
prevent failure.
Keep the power off until all of the wiring is completed so that electric shock and trouble
with the unit can be prevented.
Never attempt to disassemble, modify or repair this unit. Tampering with the unit may
results in malfunction, electric shock or fire.
Do not use the unit in combustible or explosive gaseous atmospheres.
During the equipment is putted in hole on the metal panel while mechanical installation
some metal burrs can cause injury on hands, you must be careful.
Montage of the product on a system must be done with it’s fixing clamps. Do not do the
montage of the device with inappropriate fixing clamp. Be sure that device will not fall
while doing the montage.
It is your responsibility if this equipment is used in a manner not specified in this
instruction manual.
Before beginning installation of this product, please read the instruction
manual and warnings below carefully.
1.3 Installation
c
2 General Description
2.1 Front View and Dimensions of ESM-1510N Temperature Controller
4
4.6 Entering To The Programming Mode, Changing and Saving Parameters
iIf no operation is performed in Programming mode for 20 seconds, device turns to
operation screen automatically
Press increment button
for accessing to the
password entering
screen.
Enter programming
mode accessing
password with
increment and
decrement buttons Press SET/OK button
for accessing to the
parameters
Operation Screen
Password Entering
Screeen
When SET button is pressed for 5
seconds, “P” led starts to blink. If
programming mode entering password is
different from 0, programming mode
entering screen will be observed.
5 secs
Programming Mode
Entering Screen
Note-2: Parameters can be observed by pressing SET/OK button in
password entering screen without entering the programming mode
entering password. But parameters can not be changed.
Note-1: If programming mode accessing password is 0, hysteresis
screen is observed instead of Programming screen
accessing password
Password Entering
Screeen
Parameter is accessed
by pressing increment
button. If set button is
pressed, next
parameter is shown.
Hysteresis Parameter
Hysteresis Parameter
Value
Change the
parameter with
increment and
decrement buttons
13
iIf no operation is performed in Programming mode for 20 seconds, device turns to
operation screen automatically
14
Hysteresis Parameter
Value
Press Set button for
saving the parameter
value
Hysteresis Parameter
Minimum Set Value
Parameter Minimum Set Value
Parameter is
accessed by pressing
increment button. If
set button is pressed,
next parameter is
shown.
Minimum Set Value
iOther Programming mode parameters can be accessed
with the same method explained above, observed and
changed.
Press Set button for
accessing to the next
parameter
Change the
parameter with
increment and
decrement buttons
Minimum Set Value
Parameter
Press Set button for
saving the parameter
value
7. Specifications
Device Type : Temperature Controller
Housing&Mounting : 86mm x 35mm x 59mm plastic housing for Rail Mounting.
Protection Class : IP20.
Weight : Approximately 0.14 Kg.
Environmental Ratings : Standard, indoor at an altitude of less than 2000 meters
with none condensing humidity.
o o o o
Storage / Operating Temperature: -40 C to +85 C / 0 C to +50 C
Storage / Operating Humidity : 90 % max. (None condensing)
Installation : DIN Rail Mounting
Overvoltage Category : II.
Pollution Degree : II, office or workplace, none conductive pollution
Operating Conditions : Continuous
Supply Voltage and Power : V (± 15%) 50/60 Hz. 1.5 230 VVA
115 V V (± 15%) 50/60 Hz. 1.5 VA
24 V (± 15%) 50/60 Hz. 1.5 VVA
24 V W (- 15%, + 10%) 50/60 Hz. 1.5 VA
10...30 V 1.5 WZ
Temperature Sensor Inputs : NTC, PTC, TC, RTD
NTC Input Type : NTC (10 k @.25 °C )W
PTC Input Type : PTC (1000 @.25 °C )W
Thermocouple Input Types : J, K (IEC584.1)(ITS90)
Thermoresistance Input Type : PT-100, PT-1000 (IEC751)(ITS90)
Accuracy : ±1% of full scale for thermocouple and thermoresistance
Cold Junction Compensation : Automatically ± 0.1°C/1°C.
Sensor Break Protection : Upscale
Sampling Cycle : 3 samples per second
Control Form : ON / OFF
Relay Output : Resistive Load 5 A@250 V V
(Electrical Life : 100.000 operation (Full Load)
Optional SSR Output : Maximum 28 mA, Maximum 15 V Z
Display : 9 mm Red 3 digits LED Display
Leds : SV (Green) , OUT (Red) , P(Red) 3 mm
Approvals : GOST-R,
16
6. Ordering Information
All order information of ESM-1510N
Temperature Controller are given on the
table at left. User may form appropriate
device configuration from information and
codes that at the table and convert it to the
ordering codes.
Firstly, supply voltage then other
specifications must be determined. Please
fill the order code blanks according to your
needs.
Please contact us, if your needs are
out of the standards.
V Symbol means Vac,
Z Symbol means Vdc,
Symbol means Vac/dcW
c
A BC D E FG HI /
/
U V W Z/
/0 00 2 0 0
1Relay Output ( resistive load 10 A@250 V , 1 NO + 1NC )V
Output-1
E
Supply VoltageA
Input TypeBC Scale(°C)
ESM-1510N (77x35 DIN Size)
24V ( ± 15% ) 50/60Hz V
3
115V ( ± 15% ) 50/60Hz V
4
230V ( ± 15% ) 50/60Hz V
5
10...30 V Z
8
9Customer
2SSR Driver Output (Maximum 28 mA, 15 V )Z
00
12
05
09
J ,Fe CuNi IEC584.1(ITS90)
PTC (Note-1) -50°C 150°C
0°C 800°C
-19.9°C 99.9°CPT 100 , IEC751(ITS90)
10 K ,NiCr Ni IEC584.1(ITS90)
-50°C 400°C
0°C 999°C
11 PT 100 , IEC751(ITS90)
14 -50°C 400°CPT 1000 , IEC751(ITS90)
13 -19.9°C 99.9°C
PT 1000 , IEC751(ITS90)
15 PTC (Note-1) -19.9°C 99.9°C
Temp. Sensor which is given with ESM 1510
V
0None
1PTC-M6L40.K1.5 (PTC Air Probe with 1.5 m silicon cable)
2PTCS-M6L30.K1.5.1/8” (PTC Liquid Probe with 1.5 m silicon
cable)
Customer
3NTC-M5L20.K1.5 (NTC Probe, thermoplastic moulded with
1.5 m cable for cooling application)
4NTC-M6L50.K1.5 (NTC Probe, stainless steel housing with
1.5 m cable for cooling application)
9
Note-1 : If input type is selected PTC or NTC (BC = 12, 15, 18, 19 ),
Temperature sensor is given with the device. For this reason,
If input type is selected as PTC, sensor type (V = 0,1 or 2) or
If input type is selected as NTC, sensor type (V = 0,3 or 4) must be
declared in ordering information.
19 -19.9°C 99.9°C
-50°C 100°C18
NTC (Note-1)
NTC (Note-1)
24V ( -15%,+10% ) 50/60Hz W
2
15
5. Failure Messages in ESM-1510N Temperature Controller
Probe defect in analogue inputs. Sensor connection is wrong or
there is no sensor connection.
Manufacturer Information:
Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA / TURKEY
Tel : +90 224 261 1900
Fax : +90 224 261 1912
Repair and maintenance service information:
Emko Elektronik Sanayi ve Ticaret A.Þ.
Demirtaþ Organize Sanayi Bölgesi Karanfil Sk. No:6 16369 BURSA / TURKEY
Tel : +90 224 261 1900
Fax : +90 224 261 1912
8. Other Informations
Your Technology Partner
www.emkoelektronik.com.tr
Thank you very much for your preference to
use Emko Elektronik products, please visit our
web page to download user manual.
Rail Lock Apparatus
35 mm / 1.38 inch
90 mm / 3.54 inch
90 mm / 3.54 inch
61.2 mm / 2.40 inch
35.7 mm / 1.40 inch
46.5 mm / 1.83 inch
2 3 41 5
678910
Produkt Specifikationer
| Mærke: | Emko |
| Kategori: | Temperaturregulator |
| Model: | ESM-1510-N |
Har du brug for hjælp?
Hvis du har brug for hjælp til Emko ESM-1510-N stil et spørgsmål nedenfor, og andre brugere vil svare dig
Temperaturregulator Emko Manualer
30 August 2024
30 August 2024
30 August 2024
30 August 2024
28 August 2024
28 August 2024
28 August 2024
27 August 2024
27 August 2024
19 August 2024
Temperaturregulator Manualer
- Temperaturregulator Panasonic
- Temperaturregulator AEG
- Temperaturregulator Atag
- Temperaturregulator Carel
- Temperaturregulator Honeywell
- Temperaturregulator Ventus
- Temperaturregulator Dimplex
- Temperaturregulator Davis
- Temperaturregulator Voltcraft
- Temperaturregulator Kathrein
- Temperaturregulator JUNG
- Temperaturregulator Technoline
- Temperaturregulator Fluke
- Temperaturregulator Techno Line
- Temperaturregulator ACV
- Temperaturregulator AstralPool
- Temperaturregulator Cocraft
- Temperaturregulator SRS
- Temperaturregulator Inkbird
- Temperaturregulator Bulex
- Temperaturregulator Ziehl
- Temperaturregulator Ygnis
- Temperaturregulator Wachendorff
- Temperaturregulator Jumo
Nyeste Temperaturregulator Manualer
1 Oktober 2024
29 September 2024
20 September 2024
19 September 2024
18 September 2024
4 September 2024
28 August 2024
28 August 2024
28 August 2024
28 August 2024
