Side 1/5

Ver. 20170104

Outdoor antenna

with built-in amplifier

Art.no 38-3633 Model ANDVB2692A

Please read theentire instruction manual before use and save it for

future reference. We reserve theright for any errors in text or images

and for making any necessary technical changes to this document.

If you should have any questions concerning technical problems please

contact our Customer Services.

Product description

Outdoor antenna with built-in ampliﬁer. Specially constructed reception

for theterrestrial digital network (DVB-T) or DAB radio.

The packaging includes

• DVB-T outdoor antenna

• Assembly details for wall and pole mounts

• Coaxial cable

• Power inserter

• AC/DC adaptor (230 V AC)

• User’s manual

Parts

1. Outdoor antenna

2. Coaxial cable

3. DVB-T digital receiver (not included)

4. Antenna cable (not included)

5. TV (not included)

6. AC/DC adaptor (230 V AC / 50 Hz)

7. Power inserter

8. TV with built-in DVB-T digital receiver (not included)

Installation

Note! Thebuilt-in ampliﬁer in theantenna needs power in order

to function. Most terrestrial digital receivers can send out power

via theantenna output. Often one must active thepower supply in

themenu of thedigital receiver. This function is often called:

Antenna voltage 5 V Active antenna, or in themenu. Check in

theuser’s manual of thedigital receiver, if you are uncertain.

If thedigital receiver (or TV with built-in digital receiver) does not have

this function, you must use AC/DC adaptor (6) and thepower inserter (7).

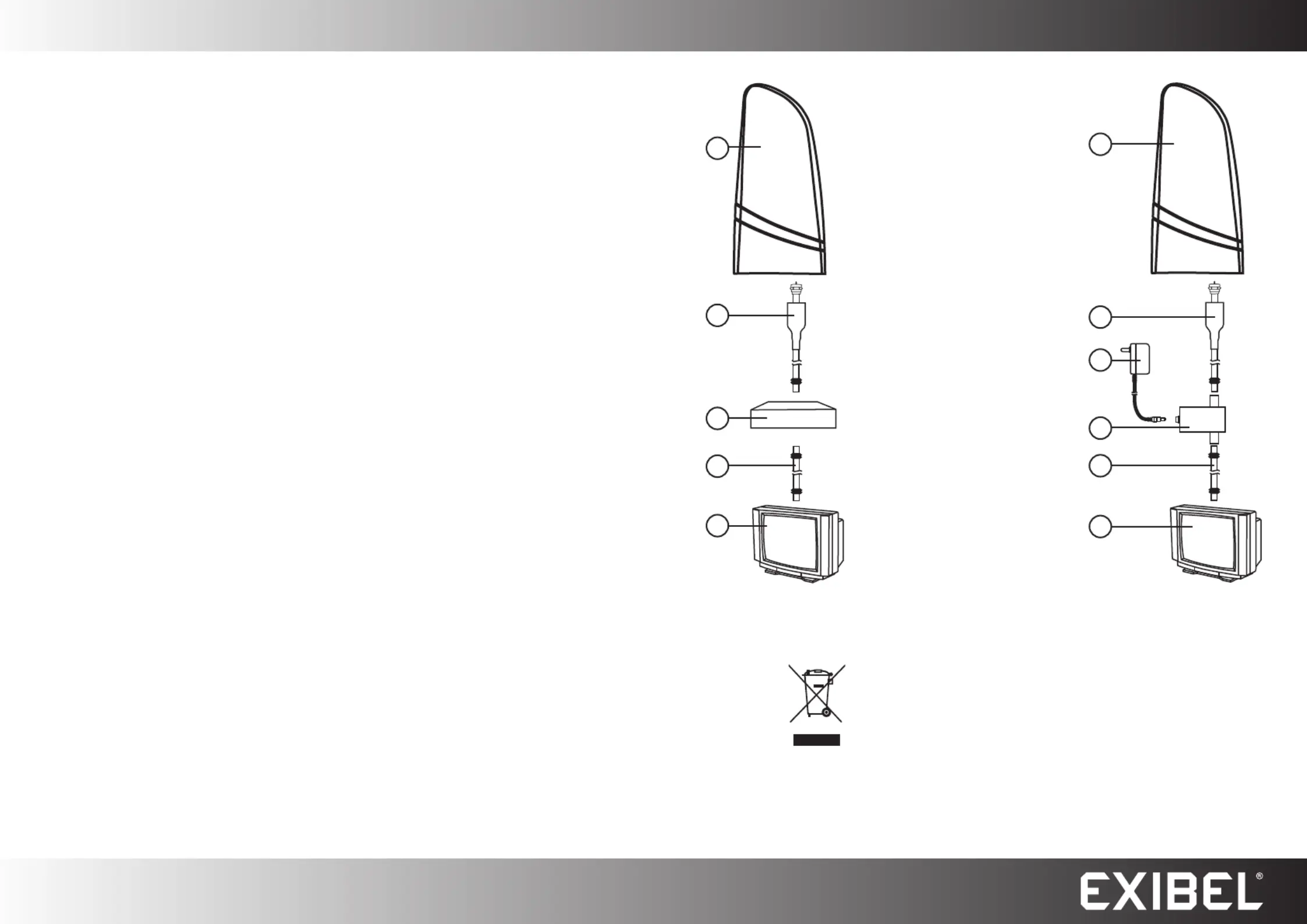

Installation without

AC/DC adaptor

1. Connect theoutdoor antenna

(1) to theDVB-T receiver (3) with

theenclosed coaxial cable (2).

2. Connect anantenna cable (4) (not

included) between DVB-T receiver (3)

and theTV (5).

3. Mount theoutdoor antenna as high

up as possible for thebest possible

reception (thecoaxial cable is

5 meters long).

4. Adjust thelocation of theoutdoor

antenna before theﬁnal assembly.

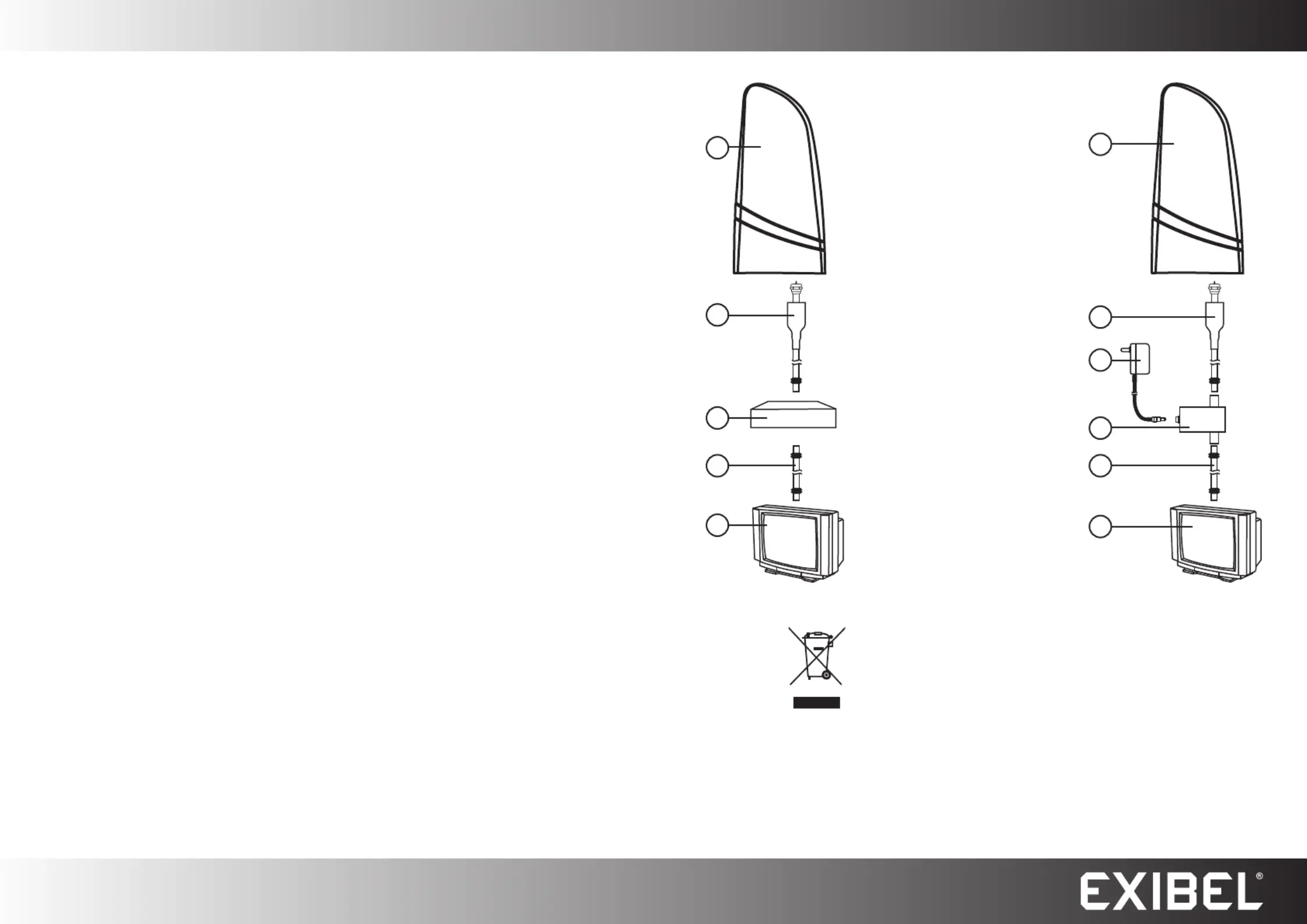

Installation with

AC/DC adaptor (6)

1. Connect theoutdoor antenna

(1) to power inserter (7) with

theenclosed coaxial cable (2).

2. Connect anantenna cable

(4) (not included) between

thepower inserter (7) and TV

with built-in digital receiver (8).

3. Mount theoutdoor antenna

as high up as possible for

thebest possible reception

(thecoaxial cable is 5 meters

long).

4. Adjust thelocation of

theoutdoor antenna before

theﬁnal assembly.

Specifications

Power supply 6 V DC, 50 mA

Receiving frequency VHF 174–230 MHz

UHF 470–790 MHz

Amplifying VHF 15 dB Min.

UHF 15 dB Min.

GREAT BRITAIN - CUSTOMER SERVICE contact number: 020 8247 9300 e-mail: customerservice@clasohlson.co.uk internet: ww w.clasohlson.co.uk postal: 10 – 13 Market Place, Kingston Upon Tha mes, Surrey, K T1 1JZ

English

Responsible disposal

This symbol indicates that this product should not be

disposed of with general household waste. This applies

throughout the entire EU. In order to prevent any harm to

the environment or health hazards caused by incorrect

waste disposal, the product must be handed in for

recycling so that the material can be disposed of in a

responsible manner. When recycling your product, take

it to your local collection facility or contact the place of

purchase. They will ensure that the product is disposed of

in an environmentally sound manner.
