4a Press and hold the

test / button for

5 seconds.

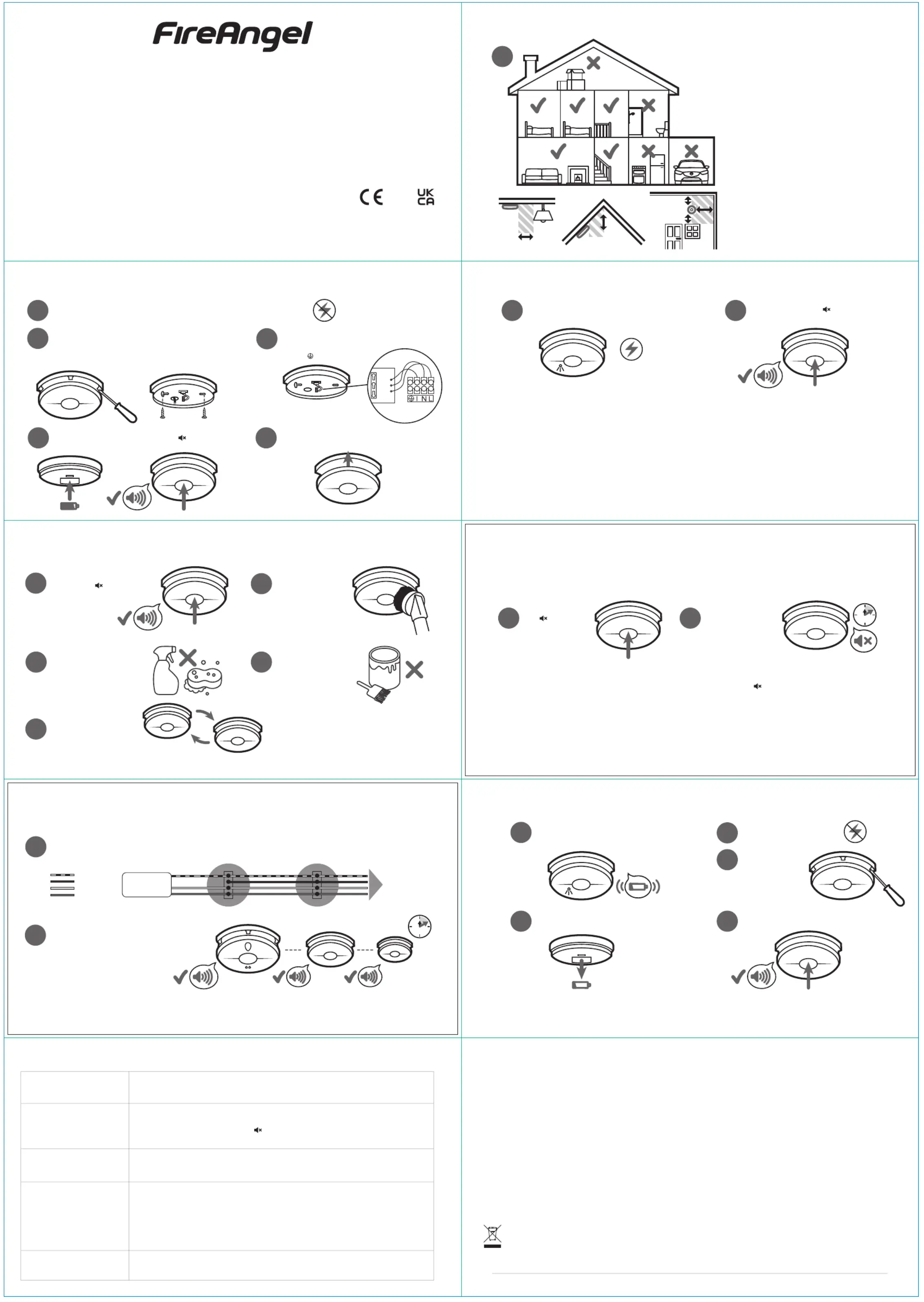

1. POSITIONING

Switch off electricity supply.

Ensure a permanent connection to the house wiring is made in a suitable junction box.

Using a screwdriver, gently open the 3 clips on the base

to remove the base plate.

Fit the base to ceiling using the screws provided. Feed the

wiring through the hole in the base plate or via YT2

trunking knock-outs at the side.

Connect the wiring to the connector terminals.

Ensure that the house wiring ‘Earth’ is only

terminated in the terminal

marked ‘ ’ as indicated.

Unwrap battery. Insert battery into battery compartment

(match ‘+’ to ‘+’). Press and hold the test / button for

5 seconds. The alarm will sound.

2. INSTALLATION

3. MAINTENANCE

3a Test the alarm every month.

Press the test / button for

5 seconds. The alarm will sound.

3b Vacuum your alarm

every 3 months.

5a For multiple alarm installations use a ‘three core and earth’ style cable between all the alarms to be interconnected.

Connect the interconnect cable between each alarm’s 'I' terminal.

5b Test each alarm and ensure every connected alarm

sounds within 10 seconds.

3c Do not use cleaners or solvents. 3d Do not paint the alarm.

TROUBLESHOOTING GUIDE WARRANTY AND DISPOSAL

In a known false alarm, the alarm can be silenced temporarily.

4. SILENCE FEATURE

Up to 12 FireAngel mains smoke (SW1), heat (HW1) or carbon monoxide alarms (CW1) can be

interconnected on a single network.

5. OPTIONAL INTERCONNECTING FEATURE

SW1-PF MAINS POWERED OPTICAL SMOKE ALARM

WITH 9V BATTERY BACK-UP

USER MANUAL

220-240 V AC 50-60 Hz mains powered smoke alarm. 9V battery back-up.

WARNING: Wiring should be installed by a qualiﬁed electrician in accordance with local building standards.

The wiring must conform to current regulations for electrical installations. Check with local building and ﬁre

regulations for your property, to ensure compliance.

Optical smoke alarms are suitable for detecting slow smouldering ﬁres. Like other smoke alarms, they can be

subject to nuisance alarms from steam and should not be placed near bathrooms.

For the earliest warning, we recommend smoke alarms are ﬁtted in all rooms where the temperature is

between 0°C (32°F) and 40°C (104°F).

Prolonged exposure to temperatures outside those stated above will reduce product life.

This smoke alarm is not intended for any non-residential, commercial or industrial application, nor for any

other purpose than described above.

WARNING: Experience has shown that children may not be woken by ﬁre alarm tones. It is important that

children are never left alone in a house. Families should have a ﬁre escape plan that is rehearsed, so that

everyone knows how to escape when ﬁre occurs. The immediate priority when ﬁre occurs is to ensure that

any sleeping children are woken from sleep and are immediately taken to a place of safety outside the

property, along with all other occupants. The ﬁre and rescue service should always be called without delay,

no matter how small the ﬁre.

GN5042R9

Turn the electricity supply back on and check

that the green LED is on.

Replace the alarm every

10 years.

3e Do not use any other test method except

the process described in this manual.

IMPORTANT: The circuit used to Power the alarm must be a 24 hour voltage circuit that cannot be turned off by a switch.

In accordance with BS 5839: Part 6, we recommend: For mains powered alarms, each with an integral standby supply, the mains

electricity supply should take the form of either a) an independent circuit at the dwelling’s main circuit board, in which case no

other electrical equipment should be connected to this circuit (other than a dedicated monitoring device installed to indicate

failure of the mains electricity supply to the alarms); or b) a separately electrically protected, regularly used local lighting circuit.

Check with local building and ﬁre regulations for your property, to ensure compliance.

Ensure dust cover is removed before operation.

The red LED on the front of the alarm should ﬂash once every 32 seconds (approx.) to show that the alarm sensor is actively

monitoring for smoke. When the test button is pressed, the alarm will ﬂash once every 8 seconds for 8 minutes.

If desired, the alarm can be interconnected with up to 11 other smoke (SW1), heat (HW1) or carbon monoxide (CW1) alarms from

the FireAngel range via the 'I' connector. (See Optional Interconnecting Feature).

Smoke alarms can react to cooking fumes or other non emergency situations. Your alarm features ‘Silence’ technology.

In the event of a known false alarm you can temporarily silence it by pressing the test / button. After 8 minutes your alarm will

automatically return to full sensitivity.

The red LED on the front of the alarm will ﬂash once every 8 seconds to show that it is in Silence mode.

The alarm will sound continuously and the red LED will ﬂash every second when the alarm senses smoke.

NEVER IGNORE ANY ALARM. If an alarm is sounding, it is warning you of a potentially hazardous situation. Do not ignore it.

Ignoring the alarm may result in injury or death. If your smoke alarm activates and you are not absolutely certain of the source of

smoke, get everyone out of the house immediately.

The alarm will silence for

8 minutes.

FireAngel Safety Technology Limited warrants to the original purchaser that its enclosed smoke alarm be free from defects in materials and

workmanship under normal residential use and service for a period of 5 (ﬁve) years from the date of purchase (not including the replaceable

battery). Provided product is sent back to FireAngel Safety Technology Limited with proof and date of purchase, FireAngel Safety Technology

Limited hereby warrants that during the 5 (ﬁve) year period commencing from the date of purchase FireAngel Safety Technology Limited, at its

discretion, agrees to replace the unit free of charge. The warranty on any replacement SW1 alarm, will last for the remainder of the period of the

original warranty in respect of the alarm originally purchased – that is from the date of original purchase and not from the date of receipt of the

replacement product. FireAngel Safety Technology Limited reserves the right to offer an alternative product similar to that being replaced if the

original model is no longer available or in stock. This warranty applies to the original retail purchaser from the date of original retail purchase and

is not transferable. Proof of purchase is required.

This warranty does not cover damage resulting from accident, misuse, disassembly, abuse or lack of reasonable care of the product, or

applications not in accordance with the user manual. It does not cover events and conditions outside of FireAngel Safety Technology Limited’s

control, such as Acts of God (ﬁre, severe weather etc.). It does not apply to retail stores, service centres or any distributors or agents. FireAngel

Safety Technology Limited will not recognise any changes to this warranty by third parties.

FireAngel Safety Technology Limited shall not be liable for any incidental or consequential damages caused by the breach of any expressed or

implied warranty. Except to the extent prohibited by applicable law, any implied warranty of merchantability or ﬁtness for a particular purpose is

limited in duration for 5 (ﬁve) years.

This warranty does not affect your statutory rights. Except for death or personal injury, FireAngel Safety Technology Limited shall not be liable

for any loss of use, damage, cost or expense relating to this product or for any indirect, or consequential loss, damages or costs incurred by

you or any other user of this product.

DISPOSAL

Waste electrical products should not be disposed of with your other household waste. The alarm is ideally suited for disposal within the

waste electronic and electrical equipment (WEEE) recycling scheme.

Please recycle where facilities exist. Check with your local authority, retailer or contact our Technical Support team for recycling/disposal

advice as regional variations apply.

Once the batteries are removed, the low battery warning chirp will stop. The batteries should always be removed before disposal.

Do not attempt to open. Do not burn.

6. LOW BATTERY WARNING

Your alarm requires 1 x 9V (PP3) battery. Under normal use, the battery should last approximately one year.

Use of a battery other than those recommended here may have a detrimental effect on the alarm performance:

Duracell MN1604, Gold Peak: GP1604S, GP1604A, Raymax: 6F22, 6LR61.

6a When the alarm battery is low, the alarm will ‘chirp’

and the LED will ﬂash once every 32 seconds.

6c Using a screwdriver,

gently open the 3

clips on the base to

remove the alarm.

6d Replace the batteries and re-install.

(See 'Installation') 6e Always test the alarm after replacing

the batteries.

IMPORTANT: Align arrows on the side of the alarm and

the side of the base. Gently push alarm onto base.

On an interconnected network, only the alarm that senses the ﬁre will sound and ﬂash its LED. Other connected alarms will sound a

warning but will not ﬂash their LED. Do not connect more than 11 other devices.

IMPORTANT: The interconnect wire (minimum 0.75 mm2 cable) must be treated as Live, it should be insulated and sheathed.

Mains 230V AC

Power Supply

WIRING KEY

= Live

= Interconnect

= Neutral

= Earth

To other alarms

if ﬁtted

ALARM TEST:

Press and hold the test / button for

5 seconds. The alarm will sound.

Switch off electricity supply.

If the green LED does not

light when the alarm is

connected to power

• Check that your smoke alarm is connected to the power supply and that the battery is correctly

installed.

If your smoke alarm does

not sound during testing

• Check that your alarm is connected to the power supply and that the battery is installed correctly.

• If testing after installation, allow a few seconds for the alarm to settle.

•Push and hold the centre of the test / button ﬁrmly for 5 seconds.

• Check that the alarm is properly connected to the mains power.

If your smoke alarm

activates when no smoke

is visible

• Check the location of your smoke alarm.

• Clean the smoke alarm

If your smoke alarm

sounds unusual or ‘chirps’

intermittently

• Check the location of your smoke alarm.

• Check that your smoke alarm is deﬁnitely the source of the chirping; make sure the noise isn’t

coming from another alarm.

• If the alarm ‘chirps’ every 32 seconds and the red LED ﬂashes at the same time - replace the

battery.

• If the alarm ‘chirps’ every 32 seconds without a red LED ﬂash, a fault is indicated - contact

Techincal Support.

If you experience frequent

unwanted alarms • Check the location of your smoke alarm.

• Clean the smoke alarm.

Your smoke alarm is suitable for the landing,

hallway, bedroom, living room and dining

room.

Smoke alarms should be sited at least

300mm from light fittings and walls. Ideally

as central as possible in the room.

If there is fluorescent lighting, smoke alarms

should be installed at least 1500mm from

these fittings and wiring. Keep any wiring at

least 1000mm from fluorescent lighting. Do

not use circuits containing fluorescent light

fittings or dimmer switches.

Smoke alarms should be positioned at no

more than 600mm vertically below the

highest point in the room.

If positioning your smoke alarm on the wall,

the top of the alarm must be between

150mm and 300mm below the ceiling, and

at least 300mm from a neighbouring wall.

Locations of alarms must be compliant

with either BS 5839: Part 6 or relevant

Building Regulations if in any doubt.

300mm

150mm

600mm

FireAngel Safety Technology Limited. Email: (UK) technicalsupport@ﬁreangeltech.com, (DE) technik@ﬁreangeltech.com,

(FR) supporttechnique@ﬁreangeltech.com, (NL) klantenservice@ﬁreangeltech.com, (INT) Internationalsupport@ﬁreangeltech.com

Note: This user manual is also available in large text and other formats. Please email: technicalsupport@ﬁreangeltech.com or call 0330 094 5830 for further information.

0905-CPR-00650

EN 14604:2005 +AC:2008

Smoke alarm devices

FSTDOP19005

Vanguard Centre, Coventry CV4 7EZ, UK

www.ﬁreangeltech.com

Technical Support

Online: www.ﬁreangeltech.com/support

E-mail: technicalsupport@ﬁreangeltech.com

Phone: 0330 094 5830

Fire & Rescue Customers: 0800 141 2561
