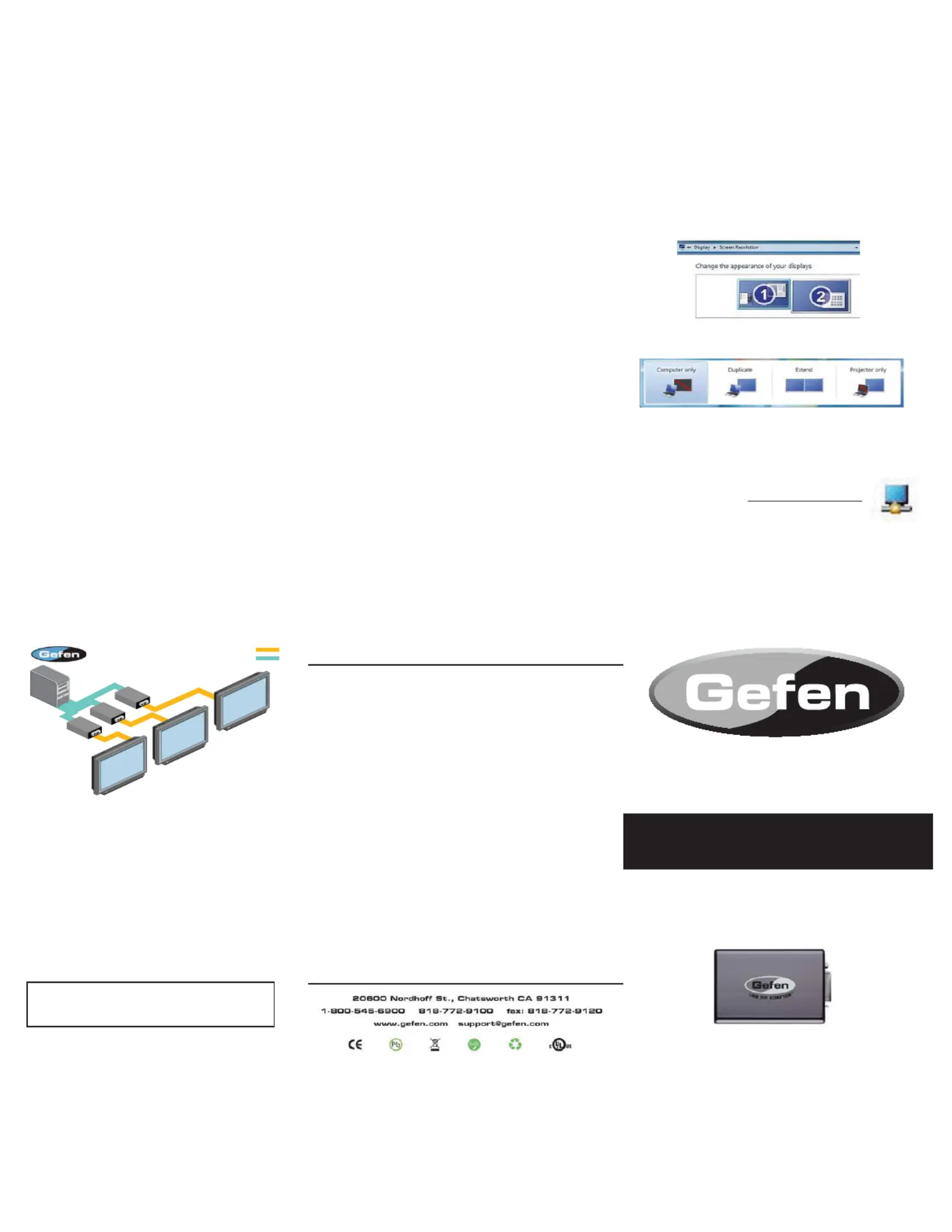

EXT-USB-2-DVIHD Quick Start Guide Rev X5

Connect each add-on monitor you wish to use to the DVI Out

port on its USB to DVI Adapter. Use the VGA to DVI adapter if your

monitor is VGA. Power on your Add-on Monitor, then follow the

appropriate installation procedure below.

Depending on the

Operating System in use, installation will fall into two main

types, Automatic or Manual.

4. Changing the Display Mode

The add-on monitor can serve as a mirror (copy) of the

main display or can extend the desktop. The Windows

Display Properties (WDP) facility provides a simple way to

attach, rotate, duplicate or extend screens.

To use WDP,

position the cursor on your computer’s desktop background,

right-click and select Personalize > Display Settings on Vista

or Properties > Settings on Windows XP/2000. You can also

access WPD by right-clicking on the DisplayLink icon in the

system tray. Below is a portion of the WPD settings screen:

1 2

3. Installing the Adapter and Driver

Windows 7 users : Use Automatic Installation method.

Windows Vista users: Use Manual Installation.

Windows XP/2000 users: Use Manual Installation.

Mac users: Open the DMG le and click on the DisplayLink

Software Installer .PKG le.

Automatic Installation Procedure: Connect the USB-2-

DVIHD Adapter to a free USB 2.0 port. Windows should

automatically detect the Adapter and download the driver.

You will see the License Agreement. If this does not happen

automatically, use the Manual Installation Procedure.

Manual Installation Procedure: Make sure your Adapter is

not connected. Insert the driver CD-ROM and double-click

SETUP.EXE, then follow the instructions. Enter the adminis-

trator password or approve the driver le signature. Accept

the Software License Agreement. Connect the USB to

DVIHD Adapter to a free USB 2.0 port when prompted. The

screen may ash on and o a few times. You may need to

reboot your PC in order to complete the procedure.

Caution: Remove old versions of the driver ﬁrst.

1. Introduction and Features of the USB to DVIHD

Thank you for purchasing the USB-2-DVIHD Add-on Monitor

Extender. With this ingenious device, you may now:

- Extend or mirror up to 6 Hi-Res desktops from a single PC

- Support resolutions up to 2048 x 1152 (Product dependant)

- Rotate your add-on display or make it the Primary display

- Support multiple users, sleep mode and hibernation

- Plug or unplug the USB-2-DVIHD without rebooting

- Use an external display as the main display of a laptop, and more.

3. System Requirements

Supported Operating Systems are:

• Windows 7 or Vista 32/64-bit (Vista needs Service Pack 1 or 2)

• Windows XP Home/Pro/Tablet with at least Service Pack 2

• Windows 2000 with Service Pack 4

• Mac OS X (Tiger, Leopard & Snow Leopard)

Windows 7 and Vista users will need WEI scores of at least 3 overall

and 3 in the Graphics/Aero category along with 30MB of available

disk space and one free USB 2.0 port for each EXT-USB-2-DVIHD

used. Access to the Internet and a CD-ROM drive are advised for

driver installations. Windows XP and 2000 users need 1GB RAM.

All other requirements are identical to Windows 7/Vista.

MacOS users can download the drivers from the Downloads

section in the Support area of Gefen’s website.

You can also activate WPD in Windows 7 by pressing the

Windows Key+P together to see this icon-driven Quick-menu:

For detailed settings such as making the DisplayLink Adapter the

primary display, use the DisplayLink tray icon to bring up the

DisplayLink Manager software (the icon is shown below). On

Windows XP/2000, click the Show hidden icons arrow in the

systray if you cannot see it. On Windows 7 and Vista, this icon is

located on the Taskbar. The User’s Manual has further informa-

tion on using the advanced features.

DisplayLink Software

Manager Icon

Rev X1

2. What’s In the Box

CPU and RAM requirements are as follows:

• 1-2 monitors for business applications; partial frame rate

DVD playback: 1.2 GHz Single Core CPU with 512mb RAM.

• 3 monitors with one dedicated to DVD video and 2 monitors

running as before: 1.6 GHz CPU with 1GB RAM.

• 6 monitors with one dedicated to full frame DVD playback:

1.8 GHz Core Duo CPU with 1GB RAM.

The USB to DVIHD package includes the following items:

(1) USB to DVIHD Add-on Monitor Adapter

(1) DVI-I to VGA Adapter

(1) 3-foot USB-to-Mini-USB cable (for connecting Adapter to PC)

(1) Driver Software CD-ROM

(1) User’s Manual

This Quick Installation Guide describes only the basic

instructions on installation. For more information please

refer to the User’s Manual at www.gefen.com.

USB to DVIHD

ADAPTER

Turns USB 2.0 into an additional DVI port

supporting high resolutions of up to 2048x1152.

Gefen, LLC

QUICK INSTALLATION GUIDE

Rev X1

Gefen warrants the equipment it manufactures to be free from defects in material and

workmanship.

If equipment fails because of such defects and Gefen is notied within two (2) years from the

date of shipment, Gefen will, at its option, repair or replace the equipment, provided that the

equipment has not been subjected to mechanical, electrical, or other abuse or modications.

The two year warranty is only valid on new products purchased as of January 2007. All

products purchased before this date still retain their 1 year warranty. Equipment that fails

under conditions other than those covered will be repaired at the current price of parts and

labor in eect at the time of repair. Such repairs are warranted for ninety (90) days from the day

of reshipment to the Buyer.

This warranty is in lieu of all other warranties expressed or implied, including without

limitation, any implied warranty or merchantability or tness for any particular purpose, all of

which are expressly disclaimed. Please note that if a product is returned for repair, proof of sale

may be required in order to claim the warranty. Customers returning products for repair from

locations outside the USA are responsible for shipping charges to and from Gefen. The

warranty for copper cables is limited to 30 days and returned cables must be in their original

condition.

The information in this manual has been carefully checked and is believed to be accurate.

However, Gefen assumes no responsibility for any inaccuracies that may be contained in this

manual. In no event will Gefen be liable for direct, indirect, special, incidental, or consequential

damages resulting from any defect or omission in this manual, even if advised of the possibility

of such damages. The technical information contained herein regarding the features and

specications is subject to change without notice. For the latest warranty coverage

information, please visit Gefen’s Warranty page at

http://www.gefen.com/kvm/aboutus/warranty.jsp

PRODUCT REGISTRATION

Please register your product online by visiting Gefen’s web site at

http://www.gefen.com/kvm/Registry/Registration.jsp

WARRANTY

For more advanced functions, please see the manual. Here is a

partial list of topics that can be found therein:

- Detailed instructions for Extending/Cloning the main display

- Supported/compatible media players

- Making the Add-on monitor the Primary display

- Adding monitor(s) to a laptop and bypassing Sleep Mode

- Standby and Hibernate, Shut down and Restart

- Enabling multiple users, each with their own settings

- Behavior when disconnecting and re-connecting the adapter

- Automatic and Manual Updates to the Software

- Resolution, Color Quality and Refresh rates

- Troubleshooting Common Issues

Figure 1: Adding Several Adapters/Displays to one PC

Display

Com puter

USB to DVI HD

Ada pter

USB to DVI HD

Ada pter

USB to DVI HD

Ada pter

DVI CABLE

USB CABLE

Rev X5

EXT-USB-2-DVIHD Quick Start Guide
