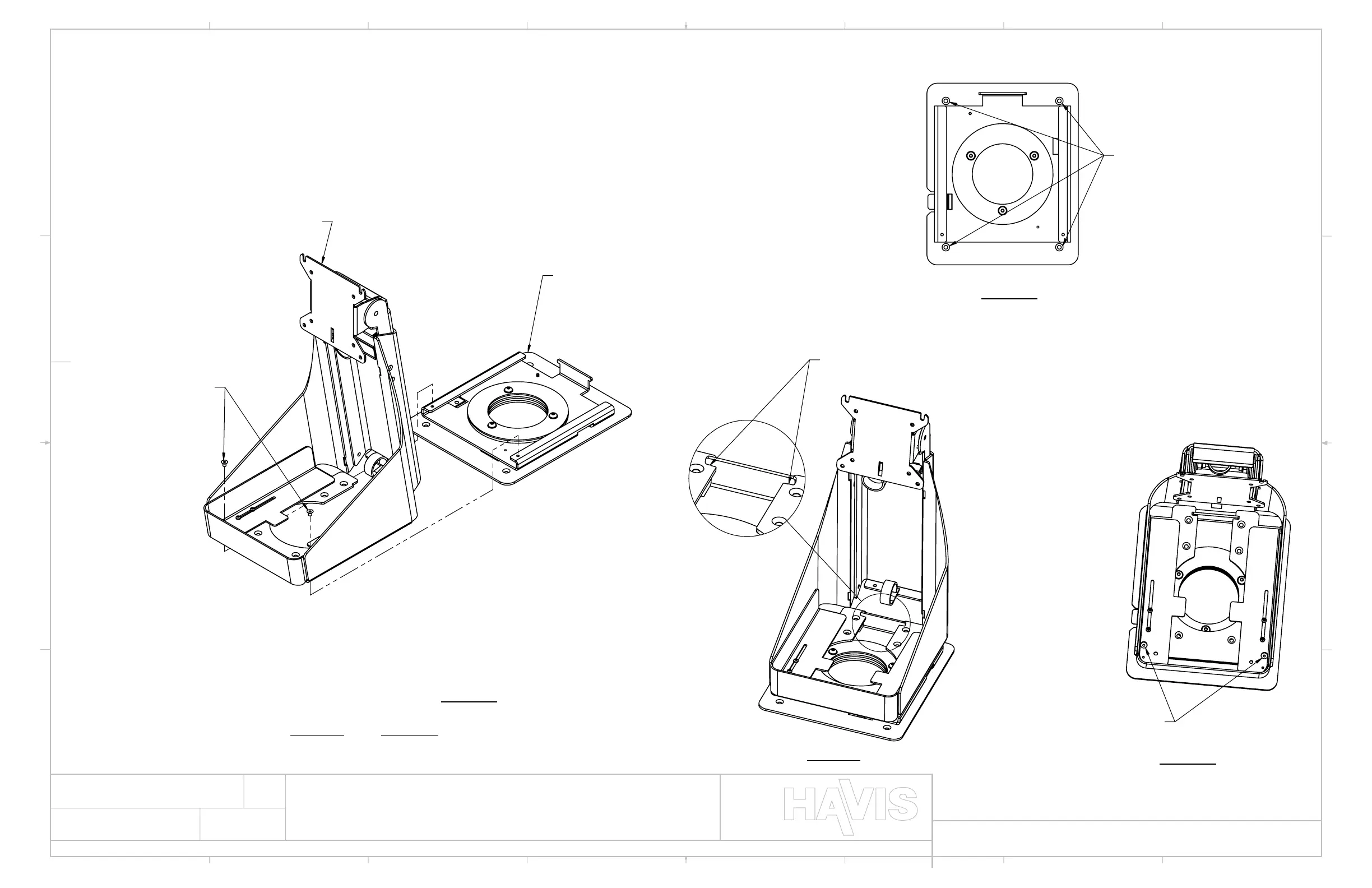

UNTHREAD SOCKET SCREW FROM UPPER
RIGHT (CLOCKWISE) LOCATION TO LOWER
LEFT LOCATION FOR COUNTER-CLOCKWISE ROTATION
COUNTER-CLOCKWISE
ROTATION SCREW LOCATION
BOTTOM OF SWIVEL BASE
CLOCKWISE ROTATION
SCREW LOCATION

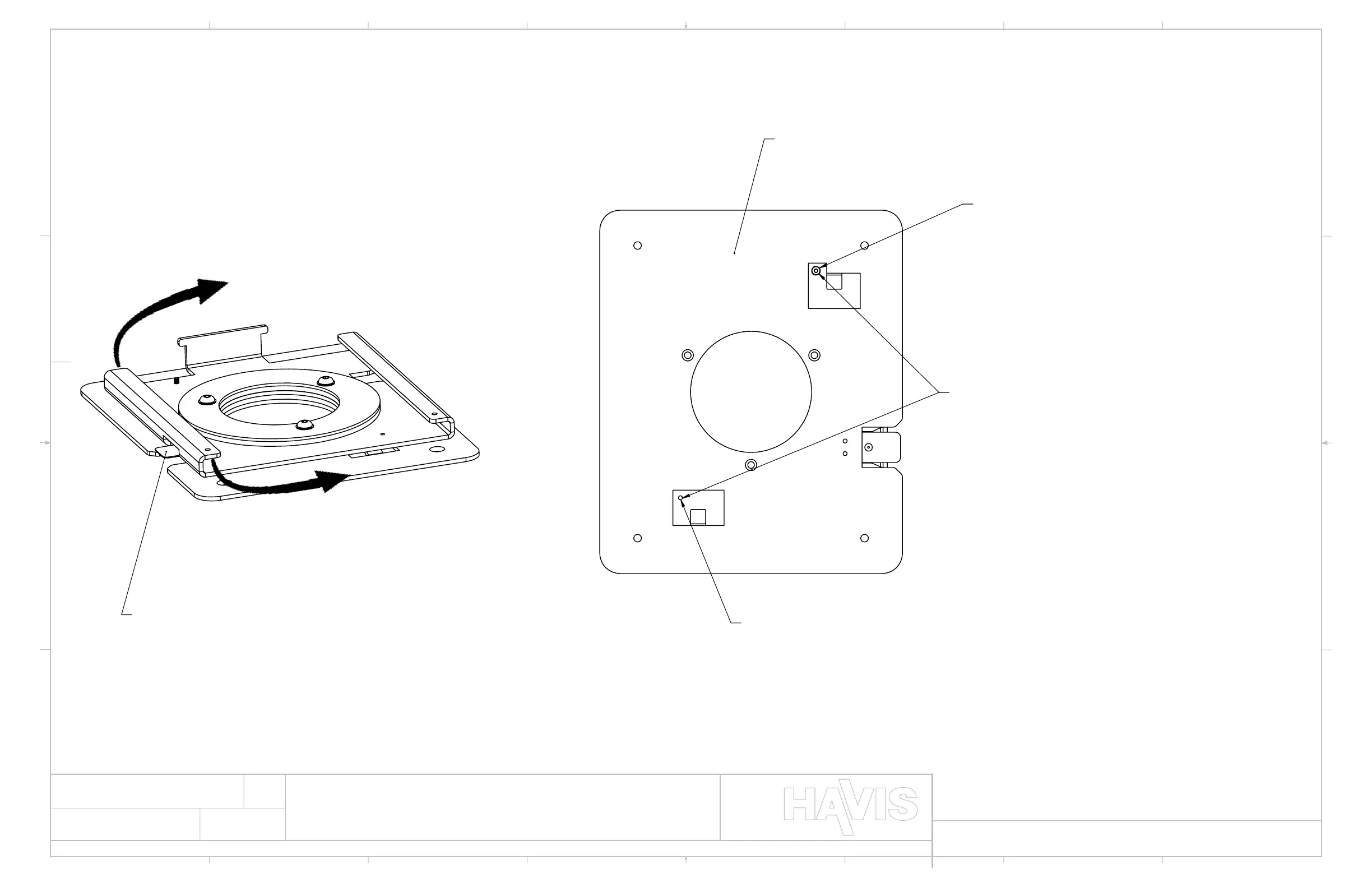

PRESS LEVER TO ROTATE SWIVEL BASE
SWIVEL BASE IS ASSEMBLED WITH CLOCKWISE ROTATION FROM THE FACTORY.
TO CHANGE FROM CLOCKWISE TO COUNTER-CLOCKWISE, REMOVE ROTATE
STOP SCREW AND RE-INSTALL TO COUNTER-CLOCKWISE LOCATION ON
BOTTOM OF SWIVEL BASE.
CLOCKWISE ROTATION
COUNTER-CLOCKWISE
ROTATION
INSTALLATION INSTRUCTIONS
(SHEET 1)
TOOLS LIST:
1. 2MM HEX WRENCH OR BIT WITH DRIVER
2. 3MM HEX WRENCH OR BIT WITH DRIVER
3. #1PHILLIPS SCREW DRIVER
4. #2 PHILLIPS SCREW DRIVER
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.
DRAWN
DATE
TITLE
DWG. NO.
REV.
SHEET 1 OF 3
CUSTOMER INSTRUCTIONS
3/27/2023
S. YANG
C
SC-1000-CS
SWIVEL BASE
COUNTER TOP,
SELF CHECK-OUT,
