2X SET SCREWS
DISPLAY BRACKET
4X M4 X 10MM
PHILLIPS SCREWS
LOOSEN 4X SCREWS TO
ADJUST PRINTER BRACKET
DETAIL A

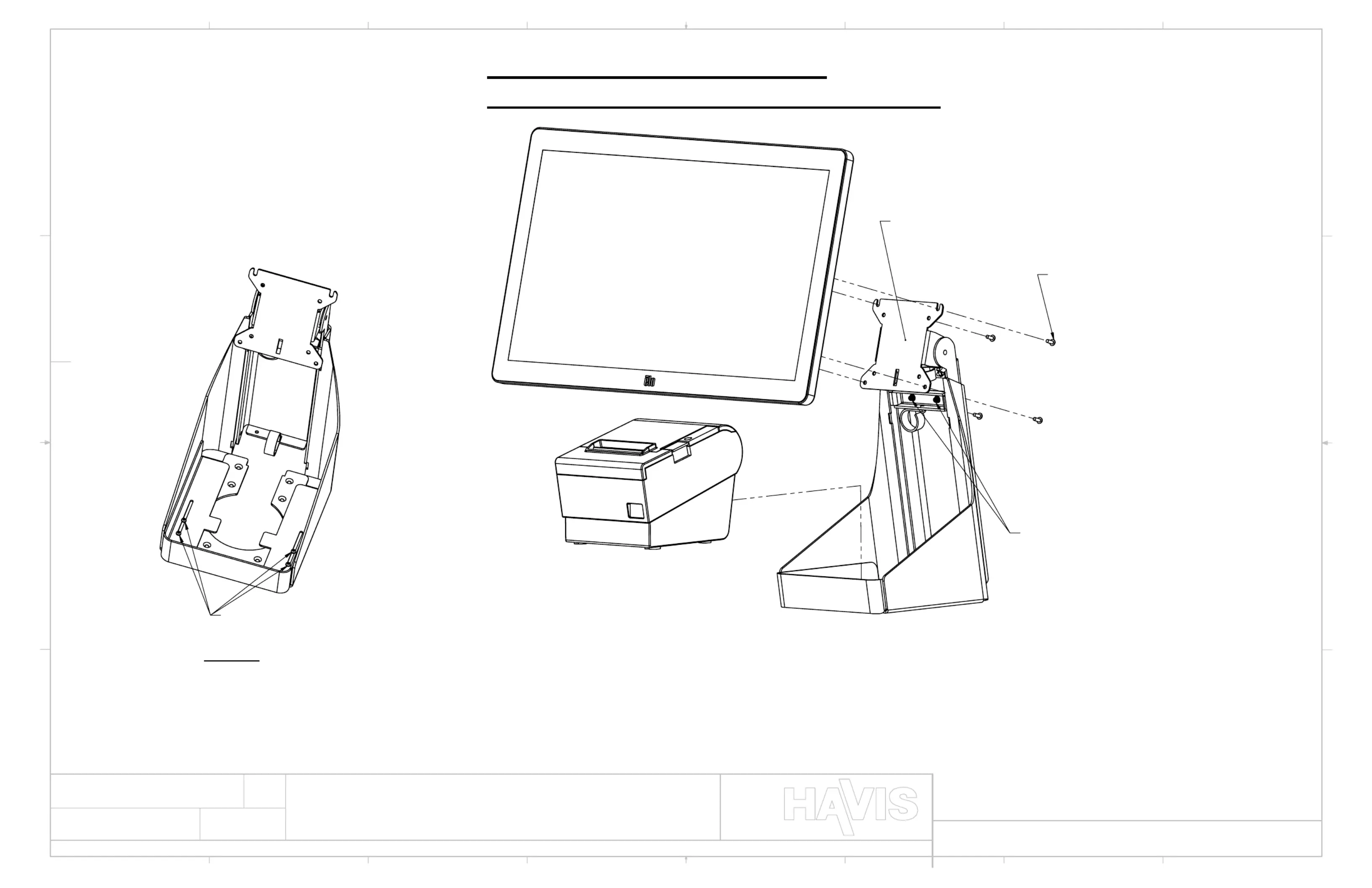

ASSEMBLY STEPS:
1. LOOSEN 2X SET SCREWS.
2. HOLD DISPLAY ATTACHMENT BRACKET AT DESIRED HEIGHT.
3. TIGHTEN 2X SET SCREWS.
4. ATTACH DISPLAY WITH 4X M4 X 10MM LONG PHILLIPS SCREWS.
5. PLACE PRINTER INTO SC-1000-CF UNIT. 4X SCREWS CAN BE LOOSENED TO ADJUST PRINTER BRACKET (SEE DETAIL A).
(
OPTIONAL
) DUAL LOCK (2 STRIPS INCLUDED) CAN BE USED UNDER THE PRINTER TO HOLD IT IN PLACE IF DESIRED.
DISPLAY & PRINTER INSTALL
(SOME PARTS HIDDEN FOR CLARITY)
TOOLS LIST:
1. 3MM HEX WRENCH OR BIT WITH DRIVER
2. #1 PHILLIPS SCREW DRIVER
D
C
B
A
A
B
C
D
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF HAVIS, INC. AND REPRODUCTION IN PART OR IN WHOLE WITHOUT THE WRITTEN PERMISSION OF HAVIS, INC. IS PROHIBITED.
DRAWN
DATE
TITLE
DWG. NO.
REV.
SHEET 1 OF 1
CUSTOMER INSTRUCTIONS
3/27/2023
S. YANG
C
SC-1000-PF
FREE STANDING
PEDESTAL MOUNTED,
SELF CHECK-OUT,
