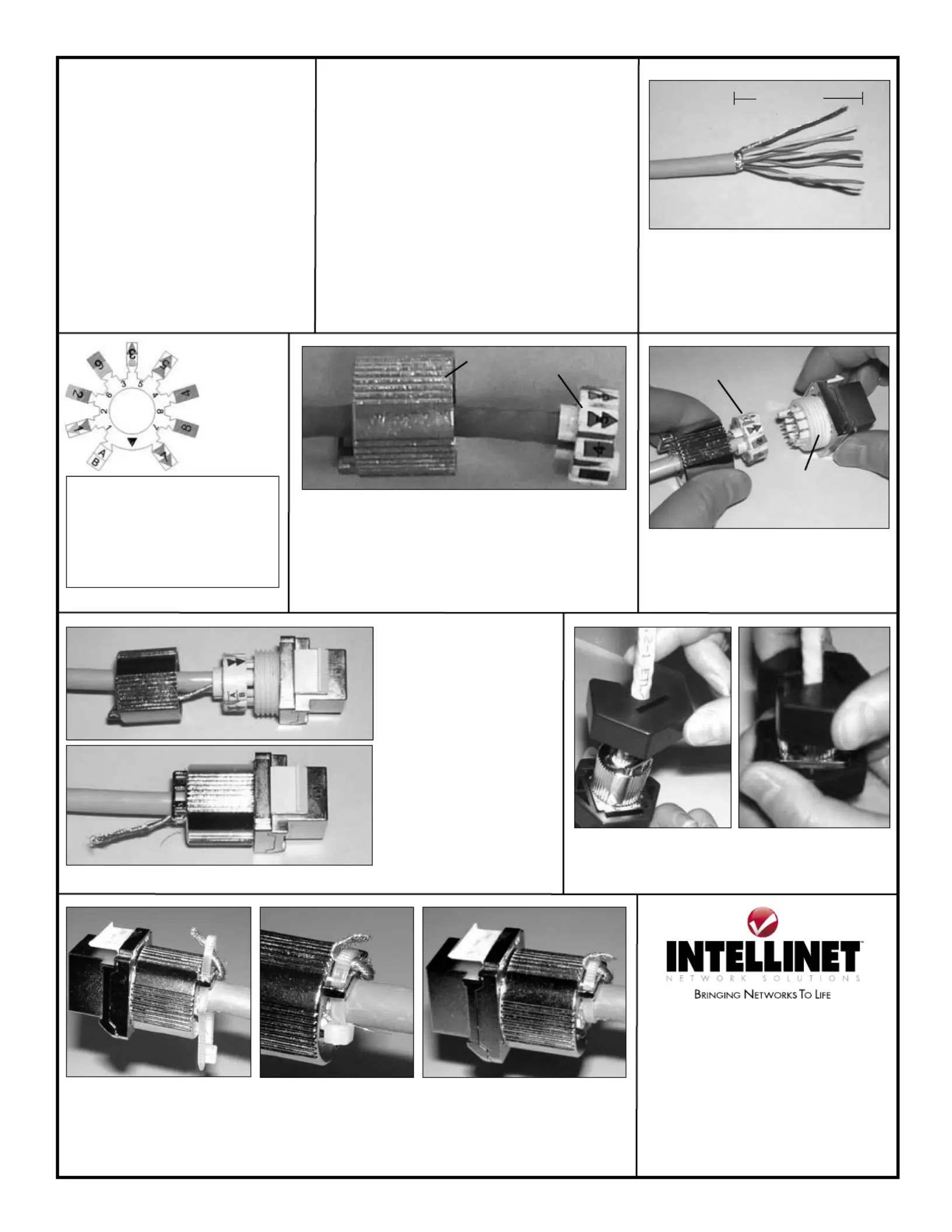

TWIST-ON
KEYSTONE
JACK, Cat6
QUICK
START
GUIDE
INT-KJTO-QSG-1206-01
Thank you for your purchase of this
INTELLINET NETWORK SOLUTIONS
Cat6 Twist-On Keystone Jack.
Follow the steps on this quick start guide for
easy installation and use of both the fully
shielded twisted pair (FTP) and the unshielded
twisted pair (UTP) versions of this product, both
of which can be installed without the need for
a punch-down tool.
1. Strip away approx. 30 mm of the
cable jacket. Separate the wires
into four pairs while isolating the
ground wire.
2. Place the threaded metal collet on the cable.
Referring to the color-code chart at left, insert
the wires into their corresponding wire slots on
the cap. Pull the grounding wire back toward
the collet as the cable is inserted in the cap.
3. Connect the cap with the IDC
base, using the guidepost for
proper alignment.
4. Sliding it over the
grounding wire,
position the collet over
the cap and screw it
onto the IDC base.
Tighten the collet by
hand, making sure the
grounding wire
protrudes from the back
of the collet as shown
at left-bottom.
NOTE: The optional tightening tool (included in
50-pc. cartons) can be used as shown.
5. Run the grounding wire through the cable holder on the collet. Insert the cable tie through
the cable holder, then around the cable and the grounding wire. Lightly tighten the cable tie
to secure the cable and complete the installation.
Pin number
and color
references
T568A
PIN 5 WHITE/BLUE
P 4 BIN LUE
P 1 WIN HITE/GREEN
P 2 GIN REEN
P 3 WIN HITE/ORANGE
P 6 OIN RANGE
P 7 WIN HITE/BROWN
P 8 BIN ROWN
T568B
PIN 5 WHITE/BLUE
P 4 BIN LUE
P 1 WIN HITE/ORANGE
P 2 OIN RANGE
P 3 WIN HITE/GREEN
P 6 GIN REEN
P 7 WIN HITE/BROWN
P 8 BIN ROWN
approx. 30 mm
collet cap
IDC base
cap
