INTRODUCTION:
FEATURES:
34
HDMI 2.0 4X4 Matrix Switcher 4:4:4
This 4x4 4K UHD Matrix provides a high level of audio and video performance with
support for resolutions up to 4K@60Hz (YUV 4:4:4, 8-bit) and pass-through support of
digital audio formats including LPCM 7.1 (with sampling rates up to 192kHz), bitstream,
and HD bitstream. The 4 HDMI inputs and 4 HDMI outputs support fully matrixed
switching. A sophisticated WebGUI interface supports storing and recalling up to four
routing presets, making remote control and configuration of the unit a breeze.
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in the shipping carton:
1) Main unit.
2) 12 V/2A DC Power Supply.
3) Remote Control.
4) User’s Manual.
● HDMI inputs and outputs with 18Gbps (600MHz) 4K UHD support
● DVI 1.0 compliant with the use of an HDMI-DVI adaptor
● HDCP 1.4 and 2.2 compliant
● HDR 4:2:2 12 Bit Support
● Supports HD resolutions up to 3840x2160@60 Hz (YUV 4:4:4, 8-bit) &
4096x2160@60 Hz (YUV 4:4:4, 8-bit)
● Supports 48-bit Deep Color up to 1080p60
● Supports 3D signal bypass
● Supports pass-through of LPCM 7.1, bitstream and HD bitstream audio formats over
HDMI
● Supports storing and recall of up to four routing presets
● Controllable via front-panel buttons, RS-232, telnet, WebGUI, and IR remote

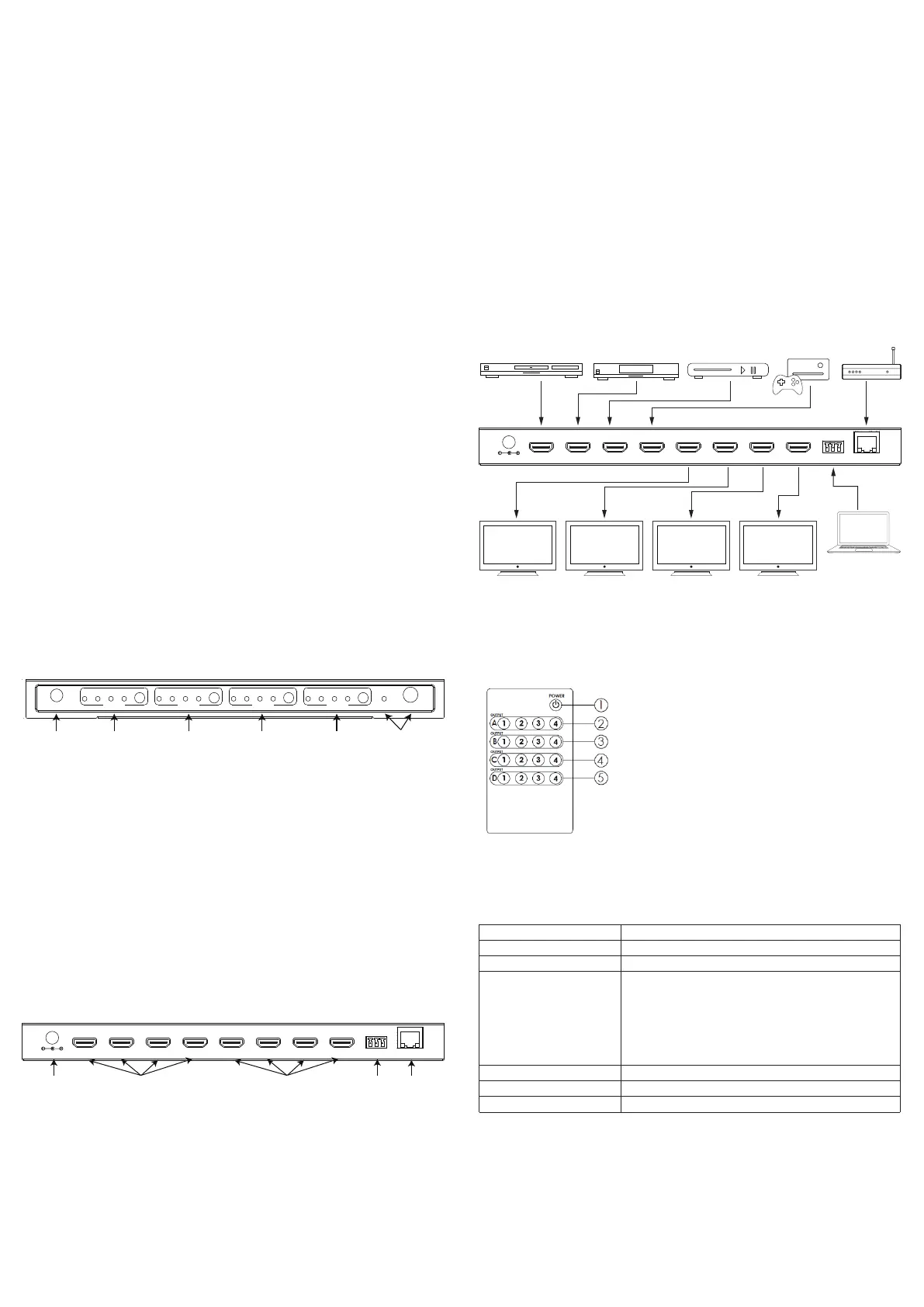

CONNECTION DIAGRAM:
OPERATION CONTROLS AND FUNCTIONS:
SPECIFICATIONS:
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS:
Quick Installation Guide
Ver. 1.0
All brand names and trademarks are properties of
their respective owners
REMOTE CONTROL:
①Remote control sensor
②Input Select/Indicators (A):
Press the “HDMI OUT A” button repeatedly to switch to your desired source, and the LED
will illuminate to indicate which input source is being selected, and routed to HDMI A
display.
③ Input Select/Indicators (B):
Press the “HDMI OUT B” button repeatedly to switch to your desired source, and the LED
will illuminate to indicate which input source is being selected, and routed to HDMI B
display.
④ Input Select/Indicators (C):
Press the “HDMI OUT C” button repeatedly to switch to your desired source, and the LED
will illuminate to indicate which input source is being selected, and routed to HDMI C
display.
⑤ Input Select/Indicators (D):
Press the “HDMI OUT D” button repeatedly to switch to your desired source, and the LED
will illuminate to indicate which input source is being selected, and routed to HDMI D
display.
⑥ Power Switch & LED Indicator:
The LED will illuminate when the power is turned on.
ON/OFF
Power
IR
1 2 3 4
Output A
Select
1 2 3 4
Output B
Select
1 2 3 4
Output C
Select
1 2 3 4
Output D
Select
① ② ③ ④ ⑤ ⑥
Output D Output C Output B Output AInput4 Input3 Input2 Input1 RS232 Ethernet
12 V/DC, 2 A
① Power:
Plug the 12V/2A DC power supply adapter into the unit and connect the adaptor to AC
wall outlet.
② HDMI inputs 1~4:
Connect to the HDMI output of your source equipment such as DVD player or set-top-
box.
③ HDMI outputs A~D:
Connect each of these output ports to the HDMI input of an HDMI display.
④ RS232 Communication Port:
Connect to a PC or Laptop via RS232 terminal to D-Sub 9-pin cable for the
transmission of RS-232 commands.
⑤ Ethernet:
Connect to an internet or network activate device.
④③① ② ⑤
HDMI version
HDCP version
Video Bandwidth
HDMI resolution
supported
HDMI connector
Operation temperaure
Relative humidity
HDMI 2.0
HDCP 2.2
18G
1920*1080@60Hz
1920*1080 3D@24Hz
1080P@120Hz
4K2K@30Hz
4K2K@60Hz(4:2:0)
4K2K@50/60Hz(4:4:4)
Type A ,19 pin, Female
0 50℃～ ℃
0 95%(no condensation)～
① Power:
Press the button to turn on/off the unit.
② Input Select for HDMI OUT A:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT A.
③ Input Select for HDMI OUT B:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT B.
④ Input Select for HDMI OUT C:
Press 1, 2, 3 or 4 to select the desired input source for
HDMI OUT C.
Blu-Ray DVD Player PS4
HD DVD STB
HD TV HD TV HD TVHD TV
Output D Output C Output B Output AInput4 Input3 Input2 Input1 RS232 Ethernet
12 V/DC, 2 A
RS232 Equipped
PC or Notebook
Routor
