RouterBOARD Small Outdoor Case
Installation Guide and Warranty Information
Case and Mounting Kit
The RouterBOARD you have received, is shipped with the
following parts:
Assembling the Kit

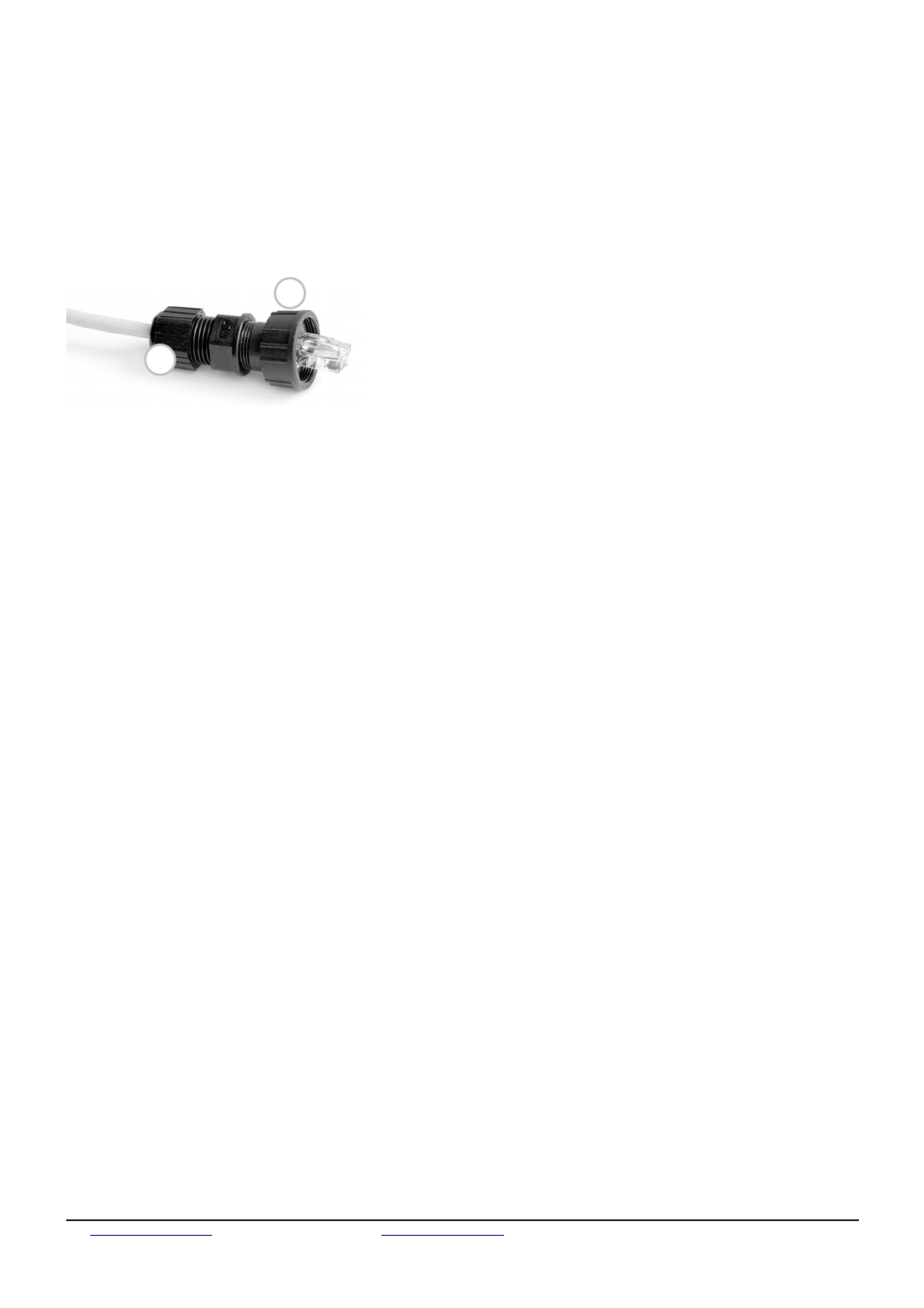

1. Mount antenna connectors and Ethernet insulator in their
respective holes. Seal the unused holes with the provided
rubber seals and .H I
2. Install the distancers on the baseplate using screws , J C K
according to the drawing below. There are 4 distancers for
mounting a RouterBOARD. Place them on top of the baseplate
in one of the positions marked with the same letter
(placement differs depending on the RouterBOARD type used,
so choose letter A, B, C or D, according to the list below the
drawing) and tightened with screws from underneath. Note
that the baseplate is not symmetric, so it is very important to
place it as seen on the drawing.exactly
A – RouterBOARD 532
B – RouterBOARD 133
C – RouterBOARD 112
D – reserved for future products
3. Place the baseplate inside the case box , minding the orientation of the baseplate. Note that if you have installed the C A
baseplate correctly, a hole in the case will match the point O on the drawing. Install the grounding screw in the point G
O. It is supposed to go all the way through the baseplate and through the case. Then fasten the baseplate with screws K
at the points marked as S on the drawing above.
4. Connect all antenna pigtails and Ethernet cords to the RouterBOARD and secure it on the previously installed distancers
with the screws . Note that the RouterBOARD must be oriented with it's Ethernet ports towards the “CONNECTORS” K
mark on the drawing above.
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. rev. E (2-Sep-2010)
Item B (1 pcs). Cover
Item C (1 pcs). Baseplate
Item D (2 pcs). Mounting rail
Item A (1 pcs). Base
Item E (1 pcs).
Rubber isolation
cord
CD
D
D
D
A
B
Item F (4 pcs).
Case screw M4
Item G (1 pcs).
Ground screw M4
Item H (1 pcs).
Ethernet seal
Item I (2 pcs).
Antenna seal Item J (4 pcs).
Distancer
Item K (12 pcs).
Inner screw M3
Item L (1 pcs).
Lock washer M4 Item M (1 pcs).
Wing nut M4
A
AA
B
BB
CONNECTORS
C
C
C
Item N (3 pcs).
Mounting screw Item O (13 pcs).
Washer M4 Item P (2 pcs).
Mounting ring
O
S
S
S
S
