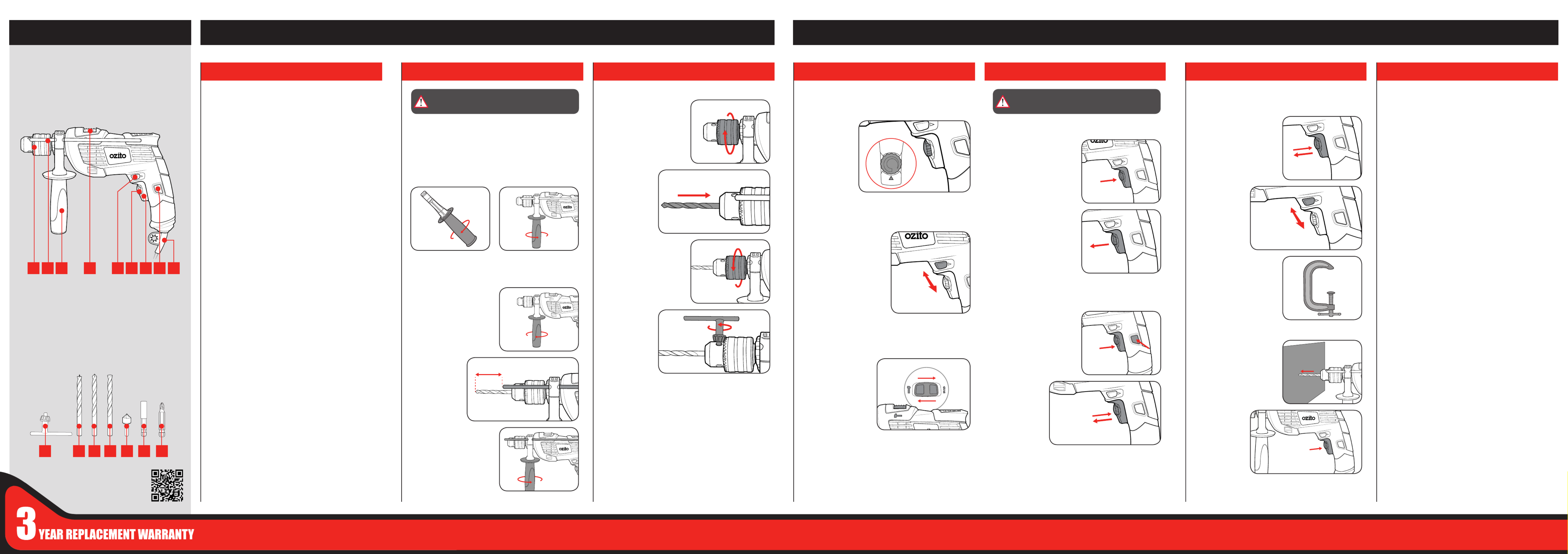

Side 1/3

13MM

HAMMER

DRILL

1010W

ORIGINAL INSTRUCTIONS

SPECIFICATIONS

Motor: 1010W

Input: 230-240V ~ 50Hz

Chuck Size: 13mm (1/2

”) Keyed

No Load Speed: 0-3,000/min

Impact Rate: 0-48,000bpm

Max Drilling Capacities: Timber 32mm

Steel 13mm

Masonry 16mm

Protection Class: II

Weight (Tool Only): 2.1kg

HDR-1100U

WHAT’S IN THE BOX

Hammer Drill

Depth Rod

22 x Drill Bits &

1 x Counter Sink Bit

27 x Driver Bits

Side Handle

Chuck Key & Magnetic

Bit Holder

Variable speed trigger is locked

Ensure that the forward / reverse lever is in the correct position;

pressed left for forwards direction, pressed right for backwards

direction. If it is in between the two settings the variable speed trigger

will be locked.

Sparking visible through the housing air vents

A small amount of sparking may be visible through the housing vents.

This is normal and does not indicate a problem.

Excessive sparking visible through the housing air vents

and/or the drill failing to operate

May indicate the carbon brushes have worn out and need to be

replaced. Carbon brushes should only be replaced by a qualied

electrician or power tool repairer.

MAINTENANCE TROUBLESHOOTING

1. When not in use, the drill should be stored in a dry, frost free location,

keep out of children’s reach.

2. Keep ventilation slots of the drill clean at all times and prevent anything

from entering.

3. If the housing of the drill requires cleaning, do not use solvents. Use of a

cloth only is recommended.

4. Blow out the ventilation slots with compressed air periodically.

Carbon Brushes

When the carbon brushes wear out, the drill will

spark and/or stop. Discontinue use as soon as this

happens. Carbon brushes should be replaced prior

to recommencing use of the drill. They are a wearing

component of the drill and therefore not covered

under warranty. Continuing to use the drill when

carbon brushes need to be replaced may cause

permanent damage to the drill. Carbon brushes

will wear out after many uses. When the carbon brushes need to be replaced,

take the drill to an electrician or a power tool repairer for a quick and low cost

replacement. Always replace both carbon brushes at the same time.

Note: Ozito Industries will not be responsible for any damage or injuries

caused by the repair of the drill by an unauthorised person or by mishandling

of the drill.

ozito-diy.co.uk

OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG

All of our products undergo strict quality checks to ensure that they reach

you in perfect condition. In the unlikely event that your device develops a

fault, please contact our service department at the address shown on this

guarantee card. You can also contact us by telephone using the customer

service number shown. Please note the following terms under which

guarantee claims can be made:

1. These warranty terms regulate additional warranty services, which the

manufacturer mentioned below promises to buyers of its new products

in addition to their statutory guarantee claims are not affected by this

guarantee. Our guarantee is free of charge to you.

2. The warranty services only covers defects due to material or

manufacturing faults on a product which you have bought from the

manufacturer mentioned below are limited to either the rectication of said

defects on the product or the replacement of the product, whichever we

prefer.

Please note that our devices are not designed for use in commercial, trade

or professional applications. A guarantee contract will not be created if the

device has been used by commercial, trade or industrial business or has

been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly

instructions or due to incorrect installation, a failure to follow the operating

instructions (for example connecting it to an incorrect mains voltage or

current type) or a failure to follow the maintenance and safety instructions

or by exposing the device to abnormal environmental conditions or by lack

of care and maintenance.

- Damage to the device caused by abuse or incorrect use (for example

overloading the device or the use or unapproved tools or accessories),

ingress of foreign bodies into the device (such as sand, stones or dust,

transport damage), the use of force or damage caused by external forces

(for example by dropping it).

- Damage to the device or parts of the device caused by normal or natural

wear or tear or by normal use of the device.

4. Your Product is guaranteed for a period of 36 months from the original

date of purchase and is intended for DIY (Do It Yourself) use only. Warranty

excludes consumable parts. Guarantee claims should be submitted

before the end of the guarantee period within two weeks of the defect

being noticed. No guarantee claims will be accepted after the end of the

guarantee period. The original guarantee period remains applicable to the

device even if repairs are carried out or parts are replaced. In such cases,

the work performed or parts tted will not result in an extension of the

guarantee period, and no new guarantee will become active for the work

performed or parts tted. This also applies if an on-site service is used.

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST

RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR

Please refer to the restrictions of this warranty concerning wearing parts,

consumables and missing parts as set out in the service information in

these operating instructions.

CUSTOMER SERVICE HELPLINE

GB: 0151 294 4488

IRL: 1850 882711

Ozito-diy.co.uk

WARRANTY

1017

DESCRIPTION OF SYMBOLS

SPARE PARTS

Spare parts can be ordered from the Special Orders

Desk at your local Bunnings Warehouse or Homebase

store.

For further information, or any parts visit

www.ozito-diy.co.uk or contact Ozito Customer Service:

Great Britain: 0151 294 4488

Ireland: 1850 882711

E-mail: info@ozito-diy.co.uk

SERVICE INFORMATION

Danger! Read the operating instructions to reduce the risk of

inquiry.

Caution! Wear ear-muffs. The impact of noise can cause

damage to hearing.

Caution! Wear a breathing mask. Dust which is injurious to

health can be generated when working on wood and other

materials. Never use the device to work on any materials

containing asbestos!

Caution! Wear safety goggles. Sparks generated during

working or splinters, chips and dust emitted by the device can

cause loss of sight.

To avoid damaging the gearbox, the drill / hammer

drill selector switch should only be moved when the

machine is at a standstill

Double insulated / Protection class II

Please note that the following parts of this product are subject to normal

or natural wear and that the following parts are therefore also required

for use as consumables.

* Not necessarily included in the scope of delivery!

Category Example

Wear parts* Carbon brushes, chuck

Consumables* Drill bits

Missing parts

SOUND & VIBRATION

DECLARATION OF CONFORMITY

For EU countries only

Never place any electric power tools in your household refuse.

To comply with European Directive 2012/19/EC concerning old electric

and electronic equipment and its implementation in national laws, old

electric power tools have to be separated from other waste and disposed

of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the return request:

As an alternative to returning the equipment to the manufacturer, the

owner of the electrical equipment must make sure that the equipment is

properly disposed of if p1-he no longer wants to keep the equipment. The old

equipment can be returned to a suitable collection point that will dispose

of the equipment in accordance with the national recycling and waste

disposal regulations. This does not apply to any accessories or aids

without electrical components supplied with the old equipment.

The reprinting or reproduction by any other means, in whole or in part, of

documentation and papers accompanying products is permitted only with

the express consent of the iSC GmbH.

Subject to technical changes

Sound and vibration values were measured in accordance with EN 60745.

Lpa sound pressure level: 90.0 dB

pa uncertainty: 3 dB

Lwa sound power level: 101 dB

wa uncertainty: 3 dB

Wear ear-muffs.

The impact of noise can cause damage to hearing.

Total vibration values (vector sum of three directions) determined in

accordance with EN 60745.

Hammer drilling in concrete (handle)

Vibration emission value ah = 12.00 m/s2

K uncertainty = 1.5 m/s2

Hammer drilling in concrete (additional handle)

Vibration emission value ah = 8.00 m/s2

K uncertainty = 1.5 m/s2

Drilling in metal (handle)

Vibration emission value ah = 7.90 m/s2

K uncertainty = 1.5 m/s2

Drilling in metal (additional handle)

Vibration emission value ah = 7.90 m/s2

K uncertainty = 1.5 m/s2

Additional information for electric power tools

Warning!

The specied vibration value was established in accordance with a

standardized testing method. It may change according to how the electric

equipment is used and may exceed the specied value in exceptional

circumstances.

The specied vibration value can be used to compare the equipment with other

electric power tools.

The specied vibration value can be used for initial assessment of a harmful

effect.

Keep the noise emissions and vibrations to a minimum.

• Only use appliances which are in perfect working order.

• Service and clean the appliance regularly.

• Adapt your working style to suit the appliance.

• Do not overload the appliance.

• Have the appliance serviced whenever necessary.

• Switch the appliance off when it is not in use.

• Wear protective gloves.

Yang/Product-ManagementWeichselgartner/General-Manager

explains the following conformity according to EU directives and norms for

the following product

Hammer Drill HDR-1100U (Ozito)

2014/29/EU

2005/32/EC_2009/125/EC

2014/35/EU

2006/28/EC

X 2014/30/EU

2014/32/EU

2014/53/EC

2014/68/EU

90/396/EC_2009/142/EC

89/686/EC_96/58/EC

X 2011/65/EU

X 2006/42/EC

Annex IV

Notied Body:

Notied Body No.:

Reg. No.:

2000/14/EC_2005/88/EC

Annex V

Annex VI

Noise: measured LWA = dB (A); guaranteed LWA = dB (A)

P = KW; L/Ø = cm

Notied Body:

2012/46/EU

Emission No.:

Standard references: EN 60745-1; EN 60745-2-1; EN 55014-1;

EN 55014-2; EN 61000-3-2; EN 61000-3-3

Landau/Isar, den 02.11.2017

First CE: 17 Archive-File/Record: NAPR017973

Art.-No.: 30.002.48 I.-No.: 11017 Documents registrar: Alex Kurz

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar

WARNING!

• The impact of noise can cause Wear ear plugs when using hammer drills.

damage to hearing.

• Losing control of the machine Use the additional handles supplied with the tool.

can cause injuries.

• Hold the tool by the insulated handles when carrying out work during which

the plug-in tool could strike concealed power cables or its own mains lead.

Contact with a live cable will also make the metal parts of the tool live and will cause

an electric shock.

• The drill is not designed for use with attachments.

• Do not use near vapors or inammable liquids.

• Make sure you have a steady foothold when working on ladders and platforms.

• Prior to drilling in walls where electricity, water or gas lines are concealed, use a

cable/pipe detector to locate the lines.

WARNING! Some dust created by power sanding, sawing, grinding,

drilling and other construction activities contain chemicals known to cause

cancer, birth defects or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints

• Crystalline silica from bricks and cement and other masonry products

• Arsenic and chromium from chemically treated timber

Your risk from exposure to these chemicals varies, depending on how often you

do this type of work. To reduce your exposure to these chemicals: work in a well

ventilated area and work with approved safety equipment, such as dust masks that

are specially designed to lter out microscopic particles.

This appliance is not intended for use by young or inrm persons unless

supervised by a responsible person to ensure that they can use the appliance

safely. Young children should be supervised to ensure that they do not play with the

appliance.

HAMMER DRILL SAFETY WARNINGS

WARNING! When using mains-powered tools, basic safety precautions, including the

following, should always be followed to reduce risk of re, electric shock, personal injury

and material damage.

Read the whole manual carefully and make sure you know how to switch the tool off in an emergency,

before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

Before you connect the equipment to the mains supply make sure that the data on the rating plate are

identical to the mains data.

This tool is double insulated therefore no earth wire is required.

If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid

a hazard.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The

insulation system is for added protection against injury resulting from a possible electrical insulation failure

within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the

extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not

suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric

shock.

GENERAL POWER TOOL SAFETY WARNINGS

ELECTRICAL SAFETY

WARNING! “Read all safety warnings, instructions, illustrations and specications

provided with this power tool.” Failure to follow the warnings and instructions may result in electric

shock, re and/or serious injury.

Save all warnings and instructions for future reference. The term “power tool” in the warnings refers

to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b. Do not operate power tools in explosive atmospheres, such as in the presence of ammable

liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c. Keep children and bystanders away while operating a power tool. Distractions can cause you to

lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any

adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will

reduce risk of electric shock.

b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and

refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the

risk of electric shock.

d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.

Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase

the risk of electric shock.

e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a

cord suitable for outdoor use reduces the risk of electric shock.

f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)

protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do

not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A

moment of inattention while operating power tools may result in serious personal injury.

b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust

mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce

personal injuries.

c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to

power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your

nger on the switch or energising power tools that have the switch on invites accidents.

d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left

attached to a rotating part of the power tool may result in personal injury.

e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the

power tool in unexpected situations.

f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away

from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure

these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and

ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool

will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be

controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

the power tool before making any adjustments, changing accessories, or storing power tools.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the

power tool or these instructions to operate the power tool. Power tools are dangerous in the hands

of untrained users.

e. Maintain power tools and accessories. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tool’s operation. If damaged,

have the power tool repaired before use. Many accidents are caused by poorly maintained power

tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are

less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use of the power tool for

operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and

grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a. Have your power tool serviced by a qualied repair person using only identical replacement

parts. This will ensure that the safety of the power tool is maintained.

Produkt Specifikationer

Mærke:	Ozito
Kategori:	Boremaskine
Model:	HDR-1100U

Har du brug for hjælp?

Hvis du har brug for hjælp til Ozito HDR-1100U stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Boremaskine Ozito Manualer

Ozito PXDDS-201 Manual

27 Maj 2024

Ozito DDC-280 Manual

11 April 2024

Ozito BDP-500 Manual

6 Februar 2024

Ozito HDR-1100U Manual

28 Januar 2024

Ozito PXDDK-200U Manual

28 Januar 2024

Ozito PXDDK-070U Manual

22 Januar 2024

Ozito ZLDDK-150U Manual

22 December 2023

Ozito DP-350 Manual

20 December 2023

Ozito PXHDS-301U Manual

7 November 2023

Ozito HDR-1100 Manual

6 November 2023

Boremaskine Manualer

Nyeste Boremaskine Manualer

Alpha Tools A-ID 550 E Manual

18 November 2024

Festo DGSC-6-10-P-P Manual

17 November 2024

Black Decker KR506 Manual

14 November 2024

14 November 2024

14 November 2024

18 Oktober 2024

18 Oktober 2024

18 Oktober 2024

18 Oktober 2024

MSW -DDMWT-10L Manual

18 Oktober 2024
