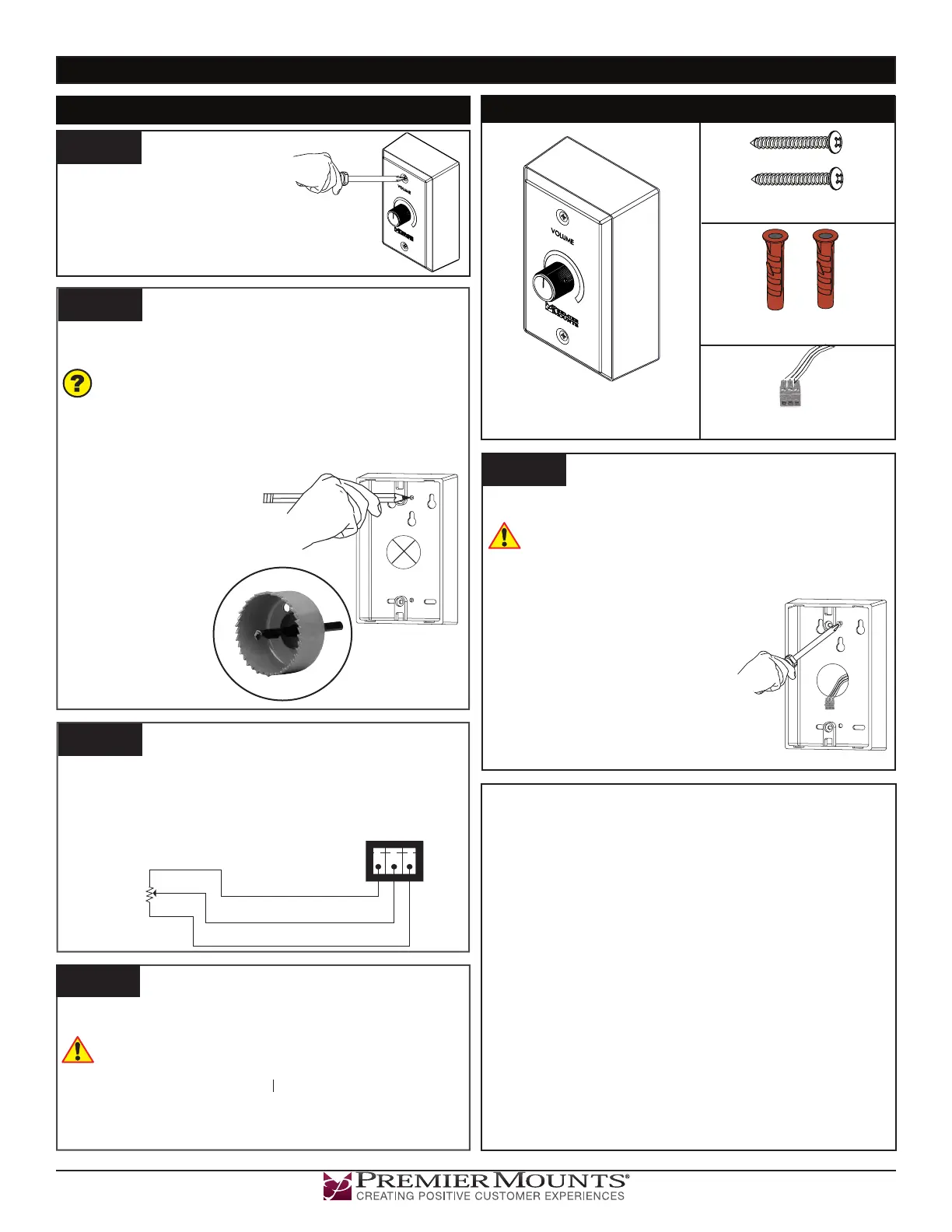

Page 1 Installation Instructions
Installation Instructions
9533-030-011-00
Parts List
WP-50
(Qty 1)
Step 1
Step 4
Step 3
#8 x 3/4 Wood Screw
(Qty 2)
Plastic Wedge Anchor
(Qty 2)
Installing External Volume Control
WP-50
PREMIER MOUNTS
LIMITED LIFETIME WARRANTY
What and Who is Covered by this Limited Warranty and for How Long
Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of the
original owner of this product. The limited warranty is valid only for the original purchaser of the product.
What Premier Mounts Will Do
At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is
defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will be
shipped to you at no charge, but you must pay any labor costs.
What is Not Covered; Limitations
PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DISPLAYS,
PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN PART, FROM
IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.
PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER MOUNTS
IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED
TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOVING AND REPLACING DEFECTIVE
PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR
CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.
What Customers Must Do for Limited Warranty Service
If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to the
address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original consumer
purchaser must accompany all warranty claims. Warranty claims must also include a description of the problem,
the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier Mounts
Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.
Premier Mounts
Attn: Warranty Claim
3130 East Miraloma Ave.
Anaheim, CA 92806
How State Law Applies
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH
VARY FROM STATE TO STATE.
Volume Control Cable
(Qty 1)
(Figure 2)
1. Position your WP-50 backplate on the wall so that the 1” cable routing hole
lines up with the newly cut hole.
Make sure that your screw hole marks still match up after the center hole
has been drilled (use a level to assure wall plate is straight). If they do
not line up, you will need to make new marks.
2. Remove the wall plate and pre-drill using a 3/16” drill bit in the two marked
locations.
3. Insert one wedge anchor (2 total) into each hole and tap in.
Step 5
1. Remove the front plate from the
WP-50 by unscrewing the pre-
installed 6-32 x 1/2 at screws
(Figure 1). (Figure 1)
Step 2
1. Once the front plate is removed, knock out the center
1” cable routing hole on the back of the box.
Locate the desired position of your WP-50 on the wall.
2. Place the WP-50 backplate against the wall in the
desired position and with a pencil, mark where the top
and bottom screw holes are as well as around your 1”
cable routing hole (Figure 2)
Recommended tool for next step
is a 1” hole saw. See gure 3 for
example.
3. Remove the wall plate. Drill a 1”
hole into the wall where you
marked the center cable
routing hole using a
hole saw.
1. Position your WP-50 so that all holes are alighned with those in the wall plate.
Route cables through center cable routing hole in backplate before it is
secured on wall.
2. Secure the backplate by inserting one #8 x 3/4 wood screw through each of
the two holes in the backplate and into the plastic wedge anchors.
3. Plug the other end of the volume control
cable into the volume control input on the
back of your WP-50 face plate.
4. Reinstall the face plate on the wall box by
tightening the 6-32 x 1/2 at screws previously
pre-installed.
5. Test your volume control. Refer to AMP manual
for detailed wiring instructions.
Figure 3
Step 3
1. Plug one end of the volume control cable supplied with your WP-50 into
the volume control input on the back of your CPA amplier. The other end will
be attached in step 5.
2. Route cable to location of newly cut 1” hole in wall (where the WP-50 will be
installed) VOLUME
10k Pot Volume
Wiring Diagram
10V (Pin 1)
Vol/Mute (Pin 2)
GND (Pin 3)
Pot Volume
10K Ohm
3130 E. Miraloma Avenue, Anaheim, CA 92806 | 800.368.9700 USA | F 800.832.4888 | www.mounts.com
Unit 3, The Moorings Business Park, Channel Way | Longford, Conventry, CV6 6RH, UK | +44 (0) 2476 644105 | F +44 (0) 2476 644165
