Side 1/8

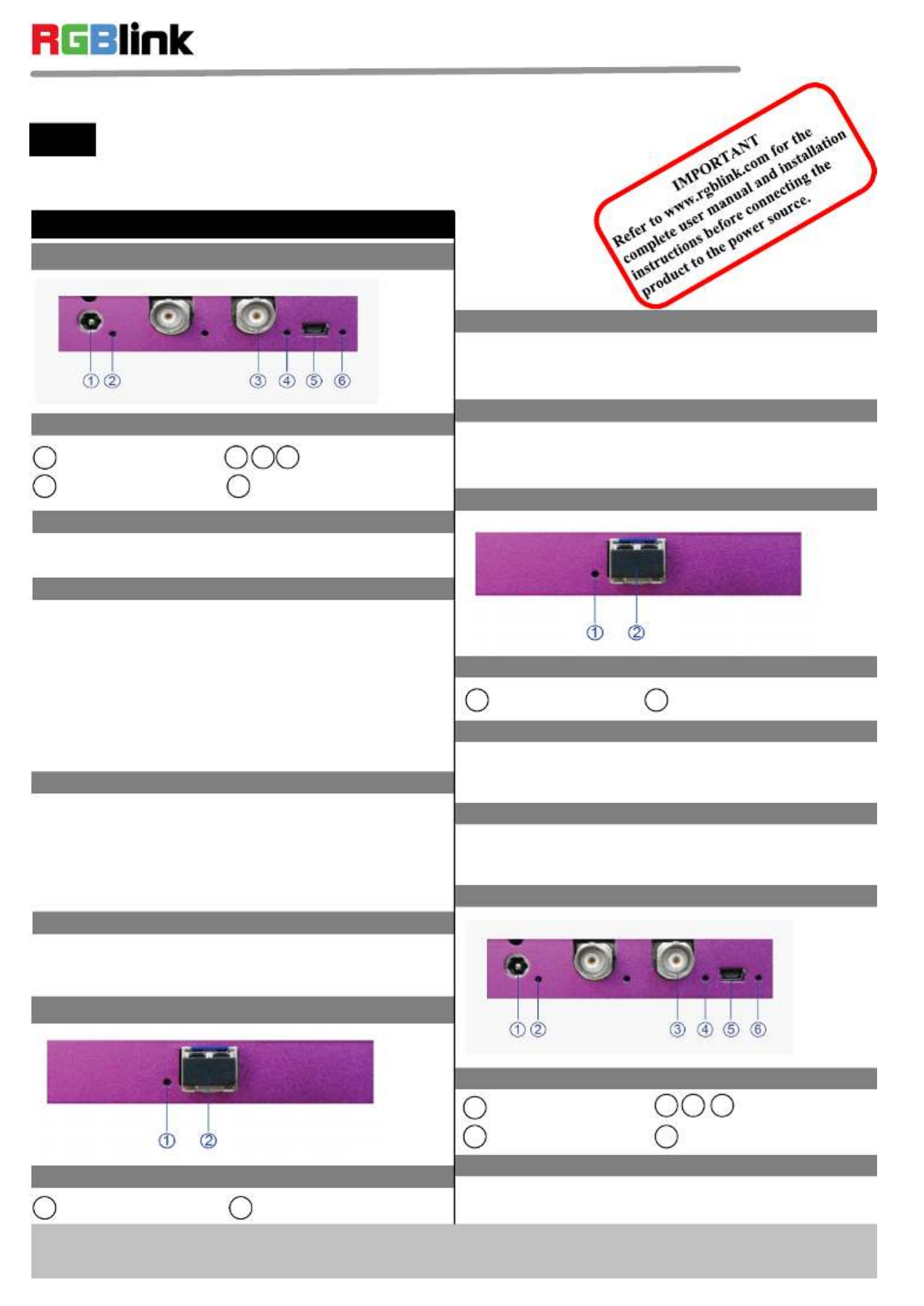

MSP 217 –Quick Start
MSP 217-TX SDI to Fiber Right Panel
Signal Indicator
Power Interface
Connection
MSP 217-RX Fiber to SDI Left Panel
1 4
Remote communication device control interface, used
to connect to the computer or console.
Power Interface
USB Interface
Interface
The device uses the standard 12V/1.5A power supply.
Signal Indicator
SDI Input Interface
SDI input interface Can receive video signal from ，
HD player, and HD camera, connect interface 16 via
75 ohms impedance BNC port. Connect LED screens
via network cable.
Fiber Output Interface
1
1
VIEW SIZE THE WORLD
NOTE For full installation, configuration, and operation details, please refer to
the MSP 217 user manual, which is available at www.rgblink.com.
This guide provides quick start instructions for an experienced installer
to set up and operate the MSP 217.
Address: S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone, Xiamen, Fujian Province, P.R.C
Tel: 00865925771197 Fax:00865925771202
Email: sales@rgblink.com http://www.rgblink.cn
MSP 217 Quick Start
Rev 1.0
Page 1 of 2
53
62
SDI Input Interface USB Interface
Power indicator 2 lights when device has power
supply.
LED indicator 4 is on when connect SDI cable and
the device is in normal Operation.
LED indicator 6 is on when connect USB cable and
the device is in normal Operation.
MSP 217-TX SDI to Fiber Left Panel
Connection
1 2Signal Indicator Fiber Output Interface
Signal Indicator
LED indicator 1 is on when connect fiber cable and
the device is in normal operation.
Used to connect fiber cable, the device uses single
mode one-core, LC interface.
Connection
2Signal Indicator Fiber Input Interface
Signal Indicator
LED indicator 1 is on when connect fiber cable and
the device is in normal operation.
Fiber Input Interface
Used to connect fiber cable, the device uses single
mode one-core, LC interface.
MSP 217-RX Fiber to SDI Right Panel
Connection
53
642Power Interface Signal Indicator
SDI Output Interface USB Interface
Power Interface
The device uses the standard 12V/1.5A power supply.

Produkt Specifikationer

Mærke: RGBlink
Kategori: Audio / video konverter
Model: MSP 217
