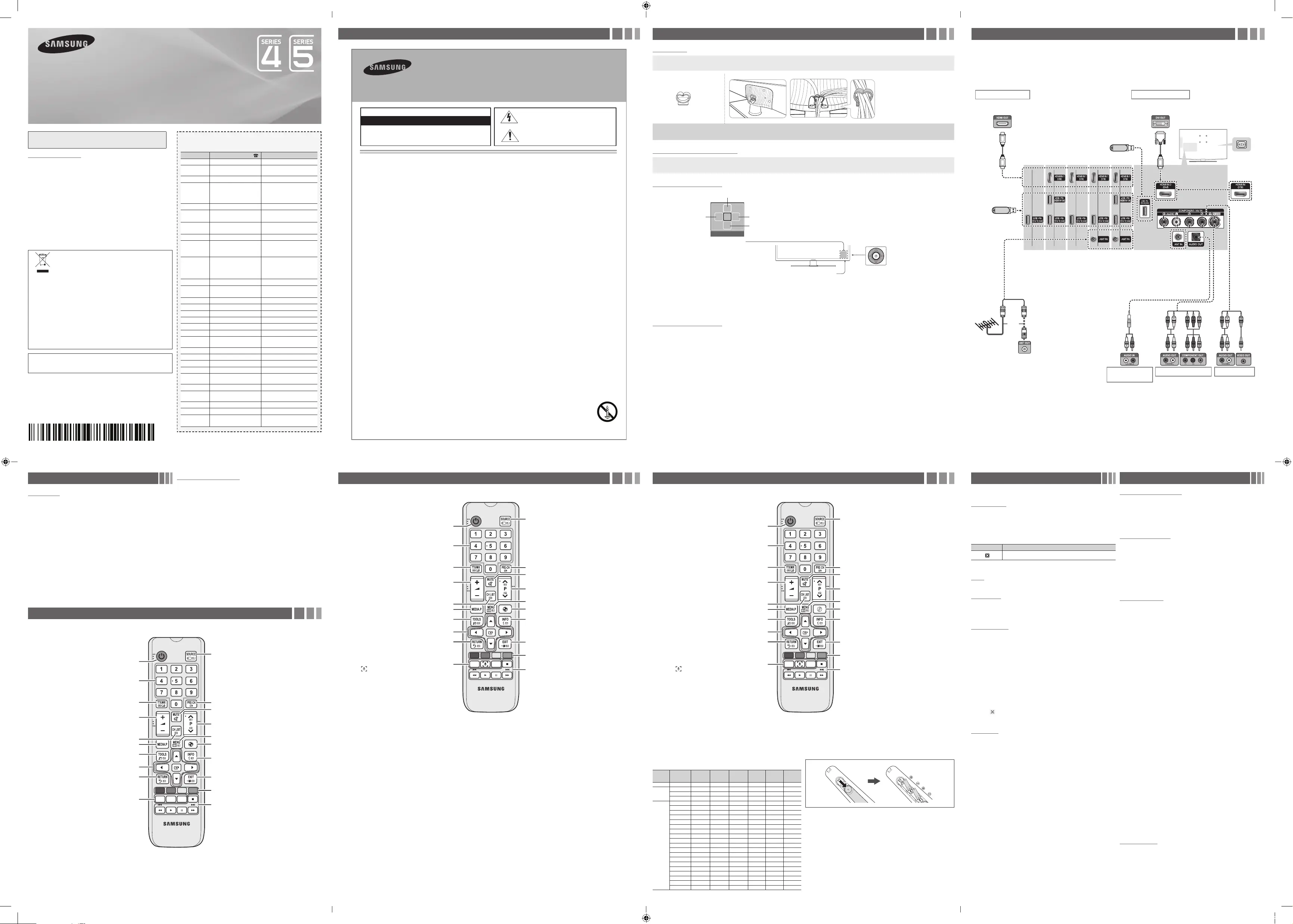

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and specifications

may be changed without notice.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV

programme logo, panorama or 4:3 image format, stock or news bar at screen bottom

etc.) on the screen. Constant displaying of still picture can cause ghosting of LED

screen, which will affect image quality. To reduce risk of this effect, please follow below

recommendations:

yAvoid displaying the same TV channel for long periods.

yAlways try to display any image on full screen, use TV set picture format menu for

best possible match.

yReduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

yFrequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

For India Only

This product is RoHS compliant.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking on the product & accessories literature indicates

that the product and its electronic accessories (e.g. charger,

headset, USB cable) should not be disposed of with other

household waste at the end of their working life. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, please separate these items from

other types of waste and recycle them responsibly to promote

the sustainable reuse of material resources House hold users

should contact either the retailer where they purchased this

product, or their local government office, for details of where and

how they can take these items for environmentally safe recycling.

Business user should contact their supplier and check the terms

and conditions of the purchase contract. This product and its

electronic accessories should not be mixed other commercial

wastes for disposal.

For more information on safe disposal and recycling visit our website www.

samsung.com/in or contact our helpline number - 18002668282, 180030008282

For personal and non-commercial use only.

Usage is subject to following the guidelines in the User Manual and may not be

available in all regions.

BN68-05733E-16

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE

PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It

is dangerous to make any kind of contact with any internal

part of this product.

This symbol alerts you that important literature concerning

operation and maintenance has been included with this

product.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus,

and to protect it from overheating, these slots and openings must never be blocked or covered.

−Do not cover the slots and openings with a cloth or other materials.

−Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

−Do not place this apparatus in a conﬁned space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of ﬁre or electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a

swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately.

• Make sure to pull out the power cord from the outlet before cleaning.

• This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the

environment. Please contact your local authorities for disposal or recycling information.

• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in ﬁre or electric shock.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular

attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

electrical supply. (depending on the model)

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualiﬁed technician should open this apparatus.

• Make sure to plug the power cord in until it is ﬁrmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not

touch the power cord with wet hands.

• If this appratus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact

an authorized dealer or service center.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially

when children, elderly or disabled people will be left alone in the house).

−Accumulated dust can cause an electric shock, an electric leakage, or a ﬁre by causing the power cord to generate sparks and heat, or cause

the insulation to deteriorate.

• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity,

chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious damage

to your set.

• Use only a properly grounded plug and receptacle.

−An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily accessible

at all times.

• Do not allow children to hang onto the product.

• Store the accessories (batteries, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted ﬂoor, or a location exposed to vibration.

• Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

• To clean the product, unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such

as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the

product.

• Do not expose the apparatus to dripping or splashing.

• Do not dispose of batteries in a ﬁre.

• Do not short circuit, disassemble, or overheat the batteries.

• There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Warning! Important Safety Instructions

(Please read the safety instructions below before installing and using the product.)

Important Safety Instructions Getting Started

Accessories

yRemote Control & Batteries (AAA x 2)

yOwner’s Instructions

yWarranty Card / Regulatory Guide (Not available in some locations)

yPower Cord

yCable Holder(1EA)

✎Not for UA23H4003

Assembling the Cable Holder

Input Cables (Sold Separately)

yComposite (AV)

yComponent

yCoaxial (RF)

yHDMI

yHDMI-DVI

TV Controller (Panel Key)

Function menu

MEDIA.P

m R s

Return

Selecting the Media Play

Selecting a Source

Power off

Selecting the Menu

Remote control sensor TV Controller

The image is drawn by facing

the front side of the TV.

✎To close the , List, or List, press the Controller for more than 1 second.Menu Media Play Source

✎When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you cannot operate it to move

the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of screens and on-screen prompts will assist you in configuring the TV’s basic settings. Plug the

power cord into a wall outlet, and then press the button to turn on the TV. Set the initial setup following instructions that the TV guides.POWER

✎If you are not using a cable box or satellite box, make you sure have connected the TV to an Aerial or cable connection before you turn on the TV.

✎Connecting the power cord and antenna. (refer to ‘Connections’)

Connections

yFor better picture and audio quality, connect to a digital device using an

HDMI

cable.

yThe picture may not display normally (if at all) or the audio may not work if an

external device that uses an older version of HDMI mode is connected to the TV.

If such a problem occurs, ask the manufacturer of the external device about the

HDMI version and, if out of date, request an upgrade.

yBe sure to purchase a certified HDMI cable. Otherwise, the picture may not

display or a connection error may occur.

yPC / DVI AUDIO IN input is not supported.

yFor HDMI/DVI cable connection, you must use the port. HDMI IN 2 (DVI)

yConnecting through the cable may not be supported depending on the PC. HDMI

yIf an to cable is connected to the port, the audio does HDMI DVI HDMI IN 2 (DVI)

not work.

yFor Set-top box connection using HDMI cable, we highly recommend you to

connect the port.HDMI IN 1 (STB)

Power Input

TV Rear Panel

TV Side Panel

VHF/UHF Antenna

Cable

USB

HDMI connection

Blu-ray player / DVD / Set-

top box

Audio connection

(Analog)

DVD / Home Theater

Component connection

Blu-ray player / DVD

AV connection

VCR

PC connection

yThe rear panel may differ

depending on the model.

UA24H4100

UA24H4150

UA28H4100

UA20H4003

UA22H5003

UA24H4003

UA24H4053

UA20H4003

UA22H5003

UA23H4003

UA24H4003

UA24H4053

UA23H4003

UA28H4000 UA32H4000

UA32H5050

UA40H5000

UA40H5050

UA48H5050

UA20H4003

UA22H5003

UA23H4003

UA24H4003

UA24H4053

UA24H4100

UA24H4150

UA28H4000

UA28H4100

UA32H4100

UA32H5100

UA32H5150

UA40H5100

UA40H5140

UA40H5141

UA40H5142

UA40H5150

UA48H5100

UA48H5140

UA48H5141

UA48H5142

UA48H5150

Changing the Input Source

Source List

Use to select TV or other external input sources such as DVD / Blu-ray

players / cable box / STB satellite receiver connected to the TV.

1. Press the SOURCE button.

2. Select a desired external input source.

■

TV / / Component / HDMI1 / HDMI2/DVIAV

✎You can only choose external devices that are connected to the TV. In the

Source List, connected inputs will be highlighted.

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access , enter menu and select . Name Edit Name Support Edit Name

the device connected to the input jacks to make your input source

selection easier.

✎When connecting a PC to the port with HDMI cable, you should HDMI IN 2 (DVI)

set the TV to PC mode under . Edit Name

✎When connecting a PC to the port with HDMI to DVI cable, you HDMI IN 2 (DVI)

should set the TV to DVI PC mode under .Edit Name

✎When connecting an AV devices to the port with HDMI to DVI HDMI IN 2 (DVI)

cable, you should set the TV to DVI mode under .Edit Name

Remote Control

✎This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Channel Menu

Seeing Channels

Channel List

Select a channel in the , screen by All Channels Added Channels

pressing the ▲/▼ buttons, and pressing the ENTER

button. Then

you can watch the selected channel.

✎Using the remote control buttons with the Channel List

Channel Status Display icons

Icons Operations

A channel deleted.

Retuning Channels

Area

You can change the desired area.

Auto Store

(Depending on the country)

Scan mode for Southwest Asia: Full/Turbo

Scans for a channel automatically and stores in the TV.

Manual Store

Scans for a channel manually and stores in the TV.

✎According to channel source, may be supported.Manual Store

✎Programme Colour System Sound System Channel Search Store, , , , , : If there

is abnormal sound or no sound, reselect the sound standard required.

Channel List Option Menu

Set each channel using the menu options ( / ). Channel List Add Delete

Option menu items may differ depending on the channel status.

Set each channel using the menu options. Option menu Channel List

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎All deleted channels will be shown on the menu.All Channels

✎A “ ” beside the channel indicates the channel has been deleted.

✎The menu only appears for deleted channels.Add

Fine Tune

If the reception is clear, you do not have to fine tune the channel, as this

is done automatically during the search and store operation. If the signal

is weak or distorted, fine tune the channel manually.

✎Fine tuned channels that have been saved are marked with an asterisk “*” on the

right-hand side of the channel number in the channel banner.

✎This is available for analogue broadcasts only.

Picture Menu

Picture Mode

Select your preferred picture type.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

Backlight Contrast Brightness Sharpness / / / /

Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎In analogue , modes of the PAL system, the function is not TV AV Tint (G/R)

available.

✎When connecting a PC, you can only make changes to , , Backlight Contrast

Brightness Sharpness and .

✎Settings can be adjusted and stored for each external device connected to

the TV.

✎Lowering picture brightness reduces power consumption.

Picture Options

■

Colour Tone: Select the colour temperature.

✎Warm Dynamic will be deactivated when the picture mode is .

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use mode 16:9

most of the time.

16:9: Sets the picture to 16:9 wide mode.

4:3: Sets the picture to basic (4:3) mode.

Zoom1/Zoom2: Zoom out 16:9 wide mode vertically to fit the screen

size.

✎Do not watch in 4:3 format for a long time. Traces of borders displayed on the

left, right and centre of the screen may cause image retention (screen burn)

which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when

HDMI(720p/1080i/1080p) signals are inputted.

✎NOTE

xDepending on the input source, the picture size options may vary.

xThe available items may differ depending on the selected mode.

xSettings can be adjusted and stored for each external device connected to an

input on the TV.

■

Digital Clean View Auto Low Medium High: ( / Off / / / ) If the

broadcast signal received by your TV is weak, you can activate the

Digital Clean View feature to reduce any static and ghosting that may

appear on the screen.

✎When the signal is weak, try other options until the best picture is displayed.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎Available only in mode (RGB signals).HDMI

■

Film Mode Auto : ( / Off) Sets the TV to automatically sense and

process film signals from all sources and adjust the picture for

optimum quality.

✎Available in TV mode, AV, COMPONENT (480i / 1080i) and HDMI (480i /

1080i).

■

Motion Lighting: Reduce power consumption by brightness control

adapted motion.

✎Only available in mode.Standard

■

Analogue Clean View: Reduces diagonal noise in picture caused by

the crosstalk of signals.

✎Not available for H4003

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently.

Display Modes (HDMI/DVI Input)

Optimal resolution

4 series:1366 x 768@60Hz,1600 x 900@60Hz / 5 series: 1920 x 1080@60Hz

Mode Resolution

Horizontal

Frequency

(KHz)

Vertical

Frequency

(Hz)

Pixel Clock

Frequency

(MHz)

Sync Polarity

(H / V) 1366 x 768 1920 x 1080

IBM 720 x 400 31.469 70.087 28.322 -/+

c c

MAC

640 x 480 35.000 66.667 30.240 -/-

c c

832 x 624 49.726 74.551 57.284 -/-

c c

1152 x 870 68.681 75.062 100.000 -/-

VESA DMT

640 x 480 31.469 59.940 25.175 -/-

c c

640 x 480 37.861 72.809 31.500 -/-

c c

640 x 480 37.500 75.000 31.500 -/-

c c

800 x 600 37.879 60.317 40.000 +/+

c c

800 x 600 48.077 72.188 50.000 +/+

c c

800 x 600 46.875 75.000 49.500 +/+

c c

1024 x 768 48.363 60.004 65.000 -/-

c c

1024 x 768 56.476 70.069 75.000 -/-

c c

1024 x 768 60.023 75.029 78.750 +/+

c c

1152 x 864 67.500 75.000 108.000 +/+

1280 x 720 45.000 60.000 74.250 +/+

c c

1280 x 800 49.702 59.810 83.500 -/+

1280 x 1024 63.981 60.020 108.000 +/+

1280 x 1024 79.976 75.025 135.000 +/+

1366 x 768 47.712 59.790 85.500 +/+

c c

1440 x 900 55.935 59.887 106.500 -/+

1600 x 900RB 60.000 60.000 108.000 +/+

1680 x 1050 65.290 59.954 146.250 -/+

1920 x 1080 67.500 60.000 148.500 +/+

Installing batteries (Battery size: AAA)

✎NOTE

xUse the remote control within 23 feet from TV.

xBright light may affect the performance of the remote control. Avoid using nearby

special fluorescent light or neon signs.

xThe Colour and shape may vary depending on the model.

Remote Control

✎This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a specific feature.

E-MANUAL: Not available.

P.SIZE: Selects the picture size.

SLEEP: Automatically shuts off the TV at a preset time.

Cuts off the sound temporarily.

Turns the on or off.Soccer Mode

✎Sports Mode for Southwest Asia

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction on

screen.

Changes channels.

Displays the main on-screen menu.

Views the .Media Play

Adjusts the volume.

A B C D

P.SIZE

E-MANUAL

SLEEP

UH4000/5000/4003/4053/5003

Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a specific feature.

UH4100/4150/5100/5140/5141/5142/5050/5150

E-MANUAL: Not available.

: Provides a way to capture the images and audio.

SLEEP: Automatically shuts off the TV at a preset time.

Cuts off the sound temporarily.

Turns the on or off.Soccer Mode

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction on

screen.

Changes channels.

Displays the main on-screen menu.

Views the .Media Play

Adjusts the volume.

A B C D

SLEEP

E-MANUAL

Remote Control

✎This remote control has Braille points on the Power, Channel, and Volume buttons and can be used by visually impaired persons.

Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a specific feature.

UH4100/4150/5100/5140/5141/5142/5050/5150

For Southwest Asia

E-MANUAL: Not available.

: Provides a way to capture the images and audio.

SLEEP: Automatically shuts off the TV at a preset time.

Cuts off the sound temporarily.

Turns the on or off.Cricket Mode

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction on

screen.

Changes channels.

Displays the main on-screen menu.

Views the .Media Play

Adjusts the volume.

A B C D

SLEEP

E-MANUAL

LED TV

user manual

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

AUSTRALIA 1300 362 603 www.samsung.com/au/support

NEW ZEALAND

0800 SAMSUNG (0800 726

786)

www.samsung.com/nz/support

CHINA 400-810-5858 www.samsung.com/cn/support

HONG KONG (852) 3698 4698 www.samsung.com/hk/support

(Chinese)

www.samsung.com/hk_en/

support (English)

MACAU 0800 333 www.samsung.com/support

INDIA 1800 3000 8282 - Toll Free

1800 266 8282 - Toll Free

www.samsung.com/in/support

INDONESIA 021-56997777

08001128888

www.samsung.com/id/support

JAPAN 0120-363-905 www.samsung.com/jp/support

MALAYSIA 1800-88-9999

603-77137477 (Overseas

contact)

www.samsung.com/my/

support

PHILIPPINES 1-800-10-7267864 [PLDT]

1-800-8-7267864 [Globe

landline and Mobile]

02-4222111 [Other landline]

www.samsung.com/ph/support

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com/sg/support

THAILAND 0-2689-3232,

1800-29-3232

www.samsung.com/th/support

TAIWAN 0800-32-9999 www.samsung.com/tw/support

VIETNAM 1 800 588 889 www.samsung.com/vn/support

GEORGIA 0-800-555-555 www.samsung.com/support

ARMENIA 0-800-05-555 www.samsung.com/support

AZERBAIJAN 0-88-555-55-55 www.samsung.com/support

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com/support

KYRGYZSTAN 8-10-800-500-55-500 www.samsung.com/kz_ru/

support

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com/support

MONGOLIA 7-495-363-17-00 www.samsung.com/support

BELARUS 810-800-500-55-500 www.samsung.com/support

MOLDOVA 0-800-614-40 www.samsung.com/support

ALGERIA 021 36 11 00 www.samsung.com/n_africa/

support

PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/support

TUNISIA 80-1000-12 www.samsung.com/n_africa/

support

MYANMAR 01-2399888 www.samsung.com/support

BANGLADESH 09612300300 www.samsung.com/in/support

SRI LANKA 0094117540540

0094115900000

www.samsung.com/support

- 2 -- 1 -

- 6 -- 5 -

- 3 -

- 7 -

- 4 -

- 8 -

[UH4000-SEA]BN68-05733E-16ENG.indb 1 2014-08-26 오후 12:59:33

Produkt Specifikationer

Mærke:	Samsung
Kategori:	LED fjernsyn
Model:	UA24H4003TR

Har du brug for hjælp?

Hvis du har brug for hjælp til Samsung UA24H4003TR stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

LED fjernsyn Samsung Manualer

Samsung UE40ES8000Q Manual

15 Oktober 2024

Samsung UA32M4000AR Manual

14 Oktober 2024

Samsung UE49NU7675U Manual

13 Oktober 2024

Samsung UA58TU8200K Manual

10 Oktober 2024

Samsung UA75TU8200K Manual

9 Oktober 2024

Samsung UA24H4003TR Manual

9 Oktober 2024

Samsung UA32J4002AK Manual

9 Oktober 2024

Samsung UA65AU9000K Manual

8 Oktober 2024

Samsung UE50TU7570U Manual

7 Oktober 2024

Samsung UE43AU7560U Manual

20 August 2024

LED fjernsyn Manualer

Nyeste LED fjernsyn Manualer

Trevi LTV 2201 HD Manual

15 Oktober 2024

Bush 40/135O-WB-11B4-FEGP-UK Manual

15 Oktober 2024

Durabase L65F246X3C Manual

15 Oktober 2024

Finlux 24HBE274B-NC Manual

15 Oktober 2024

Hisense 50H5C Manual

15 Oktober 2024

Changhong LED24B1000 Manual

14 Oktober 2024

Finlux 46S8030 Manual

14 Oktober 2024

Durabase DL40F180X2 Manual

14 Oktober 2024

Toshiba 50L420U Manual

14 Oktober 2024

Westinghouse DWM32H1A1 Manual

13 Oktober 2024
