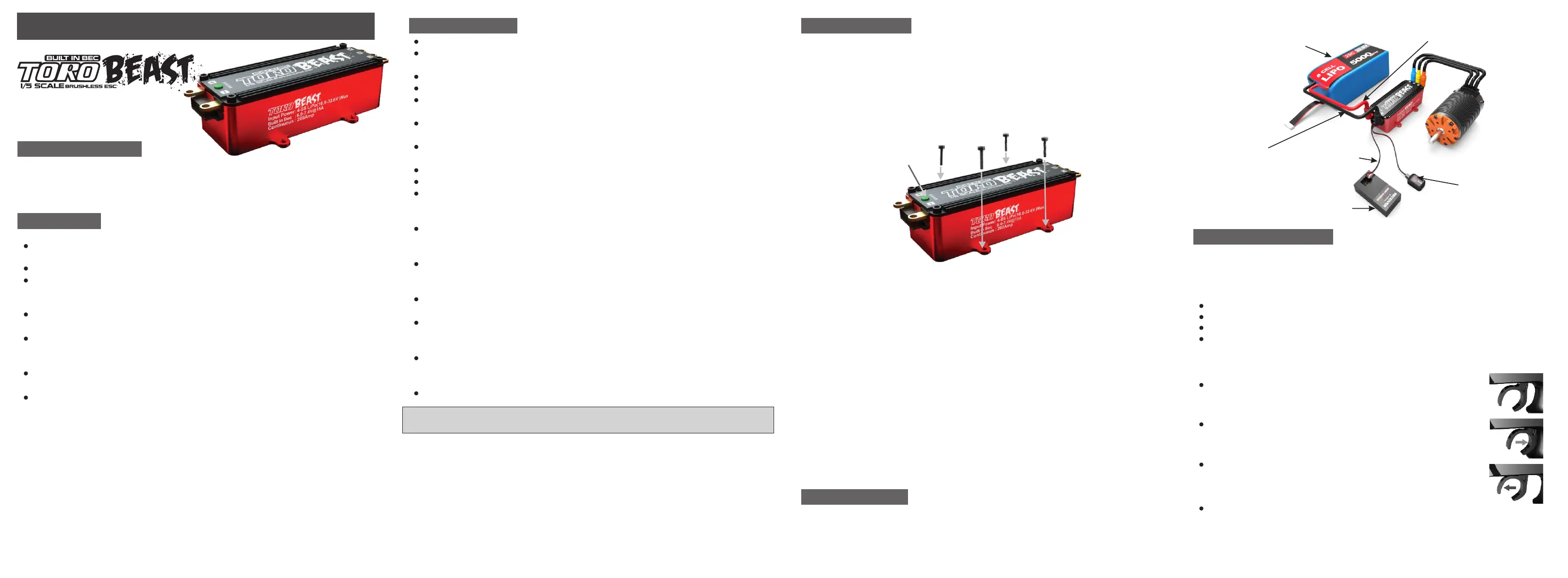

Thank you for purchasing TORO BEAST 1/5 200A ESC from SKYRC TECHNOLOGY
CO.,LTD. Please read the Instruction Manual thoroughly before you use the product. These
operating instructions are designed to ensure that you quickly become familiar with its
features and functions and make full use of this product.
FEATURES
Built-in high power BEC. Output voltage is selectable between 6.0V and 7.4V. Maximum
output current is up to 15A.
Support LiPo batteries up to 8S.
Data Logging: The controller can measure and record parameters such as your battery
volts, amp draw, motor rpm, and controller temperature. This is a great way to make sure
that the rest of your setup is performing within its limits.
Red copper connector is used internally of the ESC. It can decrease the internal
resistance at high current situation.
Heat transfer: The internal resistance can be reduced by laminated copper stack control
technology so that the dynamic thermal equilibrium can be got. In this case, the metal
heat sinks can works effectively.
Safety features: low voltage protection, motor and ESC overheat protection and signal
lost protection.
It can be programmed by Program Box(SK-300046), PC via SKYLINK(SK-600013) or
smart phone via Wi-Fi Module(SK-600075).
The firmware can be updated by connecting the ESC with PC or smart phone.
INTRODUCTION
SAFETY NOTE
It is not a toy and suitable for users older than 14 years old.
Never allow water, moisture, oil or other foreign materials to get inside ESC, motor, or on
the PC Boards. It may damage the ESC completely.
Never disassemble the ESC and modify the components on the PC Boards.
Suggest using the original wires and connectors which are packed in the box.
Never solder one part for more than 5 seconds as some components will get damaged
by high temperature.
Never run the ESC w/o load at full throttle and it may damage the bearings and other
moving parts.
Please make sure the location where to fix the ESC has good airflow ventilating so that
the heat could dissipate quickly.
To avoid short circuit, please keep the ESC connectors far away from other metal parts.
Never connect the battery in polarity in reverse.
Please remove the pinion gear before performing calibration and programming functions
with this system. Please keep your hands, hair, cloth, clear from the gear train and
wheels of an armed high performance
Before you switch on the ESC, please make sure all the cables are well soldered with
the connectors (It is easy to get loose when running) . What's more, make sure the
cables not touch the moving parts.
Electronic motor timing will increase the temperatures of ESC and brushless motor. Use
extreme caution when setting up and testing your application to avoid overloading and
overheating.
To avoid signal interference, please always turn on the transmitter first THEN turn on the
speed control. Do the opposite when powering it off.
Never use faulty accessories, e.g. motor which may damage the ESC. Always insulate
exposed wiring with heat shrink tubing or electrical tape to prevent short circuits, which
can damage ESC too.
Always disconnect the battery pack from the speed control when not in use to avoid
short circuits and possible fire hazard. When the ESC is switched off, there is still small
current and it may cause over discharge of the battery after some time.
The ESC can support 6-8 cells LiPo battery.
We will not be responsible for any damage caused by non-compliance with above
instruction.
Note:
PREPARATION
Plan Speed Control Placement
Choose a location for the speed control that is protected from debris. To prevent radio
interference, place the speed control as far away from the radio receiver as possible and
keep the power wires as short as possible. Select a location that has good airflow
ventilating. If the ESC gets air flow, it will run cooler; and that means it will be more
efficient.
Mount Speed Control in Vehicle
Soldering
Cut the ESC's BLUE, YELLOW & ORANGE silicone motor power wires to the desired
length and strip about 3.2mm-6.35mm (1/8”-1/4”) of insulation from the end of each wire.
“Pre-tin”the wire by heating the end and applying solder until it is thoroughly covered.
CAUTION: By very careful not to splash yourself with hot solder.
Place the ESC's BLUE Phase ‘A’ motor wire onto motor's ‘A’ solder tab and solder. Use
soldering iron to apply heat to exposed wire; begin adding solder to tip of soldering iron
and wire. Add just enough solder to form a clean and continuous joint from the plated
area of the solder tab up onto the wire. Solder the ESC's YELLOW Phase‘B’ motor wire
to the motor's ‘B' solder tab and Solder the ESC's ORANGE Phase ‘C' motor wire to
motor’s ‘C’ solder tab.
1)
2)
3)
ESC CALIBRATION
Calibration is necessary for the first use of the ESC, or whenever used with a new/different
transmitter. Individual transmitter's signals for full throttle, full brake and neutral vary. You
must calibrate your ESC so that it will operate more effectively with your transmitter.
How to calibrate the ESC?
ESC switch OFF.
Connect the ESC to the battery and the motor.
Turn on the transmitter.
Press and hold the ESC switch for few seconds, the motor will ring long beep once. After
that, the red LED will blink the motor will ring like beep-beep-beep… in a row which indicates
it is time to set the neutral position, full throttle and full brake one by one. You could release
the ESC switch now.
Keep the throttle trigger in neutral position, press the ESC switch once, the
green LED will blink once then extinguish and the motor will ring beep once
which indicates the neutral position has been set.
Hold full throttle and press the ESC switch once, the green LED will blink
twice then extinguish and the motor will ring twice like beep-beep which
indicates the full throttle has been set.
Move the throttle trigger to full brake and hold full brake, press the ESC
switch once, the green LED will blink three times then extinguish and the
motor will ring three times like beep-beep-beep which indicates the full brake
has been set.
After the calibration is finished, keep the throttle in neutral position, the red
LED is blinking, the ESC and the motor is ready to work.
INSTRUCTION MANUAL
Connect Throttle lead to ESC and other end to the Receiver (Throttle Channel, Ch2)
Solder the motor and the ESC.
Connect ESC to battery pack.
CONNECTION
1)
2)
3)
4/83/82/81/8
200A
For best results we recommand you to use screws to fix the ESC to the chassis.
Use a small piece of double-sided tape on the ON/OFF switch.
Note: You could also refer to Instruction Manual for TORO Conversion Kit Hardware(SK-
600003) for more information to fix the ESC.
For a brushless non-sensor system, there is no polarity on the motor side of the
controller. Simply solder the three wires to your motor. If the car runs backwards with
forward throttle, simply swap any two of the motor wires and it will reverse the direction
of the car.
Power
Switch
Receiver
Throttle
lead
Red power wire
(battery positive)
Black power wire
(battery negative)
Battery
Pack
LED Indicator
