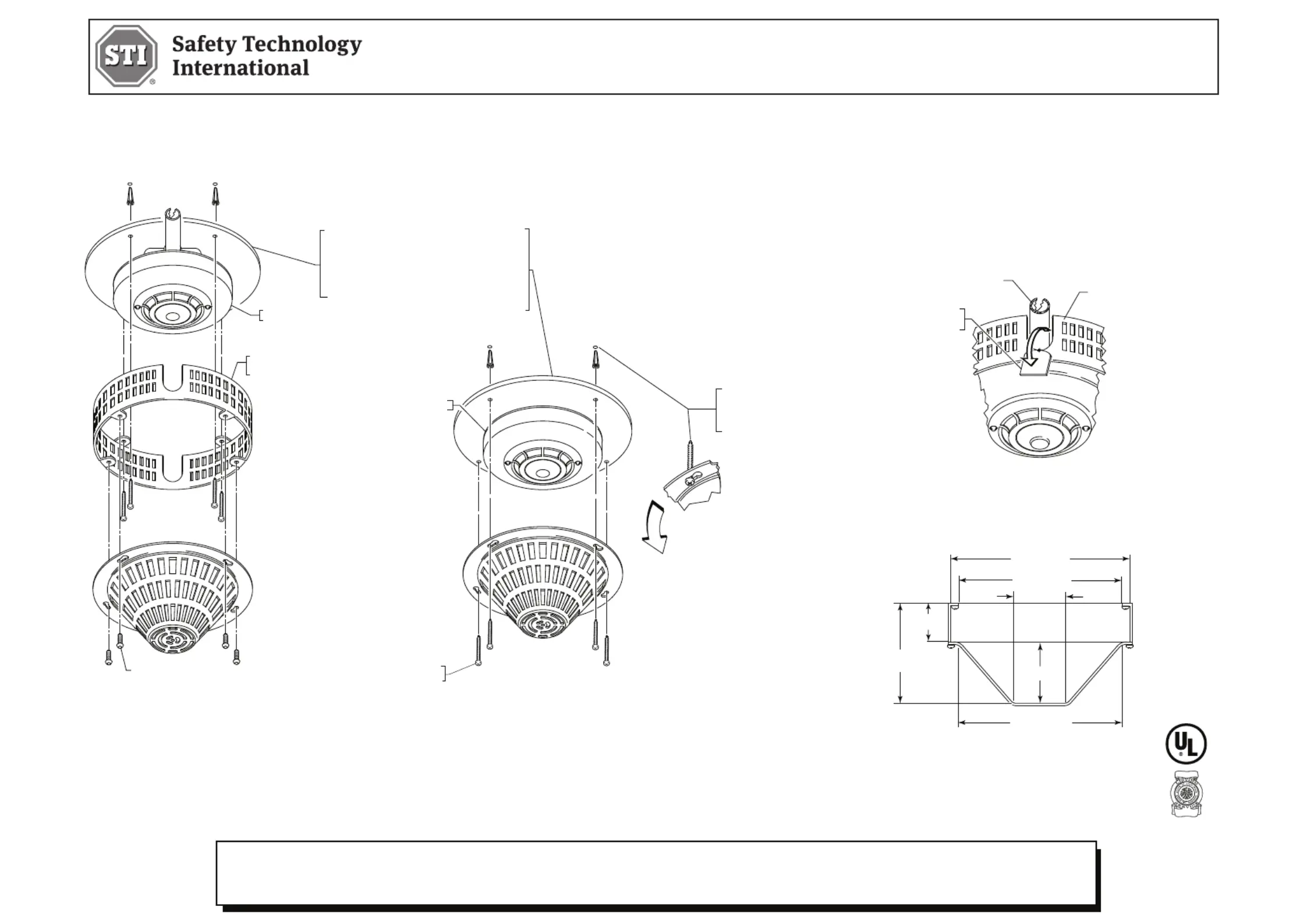

INSTALLATION OF STI-8200 SMOKE DETECTOR GUARD
All specifications and information shown were current as of publication and are subject to change without notice.
8200IS MAY2018
SURFACE MOUNT INSTALLATION
STI-8230 - STAINLESS STEEL
STI-8230 - COLOUR: WHITE
FLUSH MOUNT INSTALLATION
STI-8200-SS - STAINLESS STEEL
STI-8200-W - COLOUR: WHITE
FLUSH MOUNT INSTALLATION
ALLEN HEAD SCREW
STI-8201-SS STAINLESS STEEL SPACER
STI-8201-W COLD ROLLED STEEL
COATED WHITE SPACER
EXISTING SMOKE
DETECTOR
STI-8171 BACKPLATE (OPTIONAL) STI
RECOMMENDS THE USE OF THIS PLATE TO
INSURE SUITABLE PROTECTION ON
UNSTABLE MOUNTING SURFACES.
IN SOME INSTALLATIONS THE FOUR (4)
MOUNTING HOLES MAY HAVE TO BE
ENLARGED OR RE-DRILLED.
SURFACE MOUNT INSTALLATION
EXISTING SMOKE
DETECTOR
TO SERVICE SMOKE DETECTOR LOOSEN
THE FOUR (4) SCREWS AND ROTATE THE
CAGE COUNTER CLOCKWISE AND REMOVE.
NOTE: SAME PROCEDURE WITH OR
WITHOUT SPACER
SCREW #10 x 1 1/2 in.
(4) PROVIDED
GUARD
SPACER
PRODUCT DIMENSIONS
228mm (9 in.)
51mm
(2 in.)
127mm
(5 in.) 76mm (3 in.)
203mm (8 in.)
VIEW SHOWING SPACER INSTALLATION
WITH CONDUIT ENTRY
GRASP TAB,
BEND DOWNWARD
AND REMOVE
203mm (8 in.)
ELECTRICAL CONDUIT
SPACER
71mm (2.8 in.)
APPROVALS
STI-8200-X and STI-8230-X UL Listed No. S3504 for use with the following smoke detectors: System Sensor
Models 2251, 2251T, 2251B, 2251TB, 2251TM, 2251TMB, 2251BR, 2551, 2551T, FTX-P1, FCI Models ASD-PL,
ASD-P, ASD-PH, ASD-PTL, ASD-FILTEREX, ASD-FILTREXF, MCS-ACCLIMATE,ASD-PL2, ASD-PL2F, ASD-PTL2,
ASD-PTL2F, MCD-ACCLIMATE2, MCS-ACCLIMATE2F, ASD-PL2FR, Secutron Models MR1-2251, MR1-2251B,
EST Models 2251F, 2251FB, Mircom Models MIX-2251, MIX-2251B, Intelligent Systems Model ISL 2251, JCI Model
2951J, ADT Model 2951ADT, Fi Pre-Lite Model SD355, Gamewell Model SS- , Honeywell Models TC806B1076,
TC806B1001 under 300 Fpm, Notifier Model FSP-751.
ULC Listed for use with Siemens FP-11C
California State Fire Marshal No. 7300-1416101
Three year warranty or a one year limited warranty (from
date of purchase) on most products. See website for details.
Electronic warranty form at www.sti-usa.com/wc14.
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
European Office
Taylor House • 34 Sherwood Road Bromsgrove
Worcestershire • B60 3DR England
ID8200_Series · Revised 05/18
Printed in England
