INSTALLATION OF STI BEAM SMOKE DAMAGE STOPPERS
®
9623 DEC2019
IMPORTANT:
Do not attempt to install Beam Smoke wire guard until either the reflective
beam smoke detector or both the emitter and receiver have been perfectly
aligned according to the beam smoke installation instructions.
INSTALLATION:
1. Center the wire guard over existing unit, making sure cutout in wire
guard is positioned over beam lens. Use caution not to hit or bump the
detector.
2. Position one clamp. Mark, drill and install one clamp first then complete
installation of remaining clamps. See pictorial for size.
Lag Bolts - If lag shields and lag bolts are used, make sure rawl plug is flush
with surface. Position guard, insert lag bolt and tighten. Bolt should be
selected to assure full thread engagement in rawl plug.
The STI-9623 guard may be spray painted prior to installation.
All specifications and information shown were current as of publication, and are subject to change without notice.

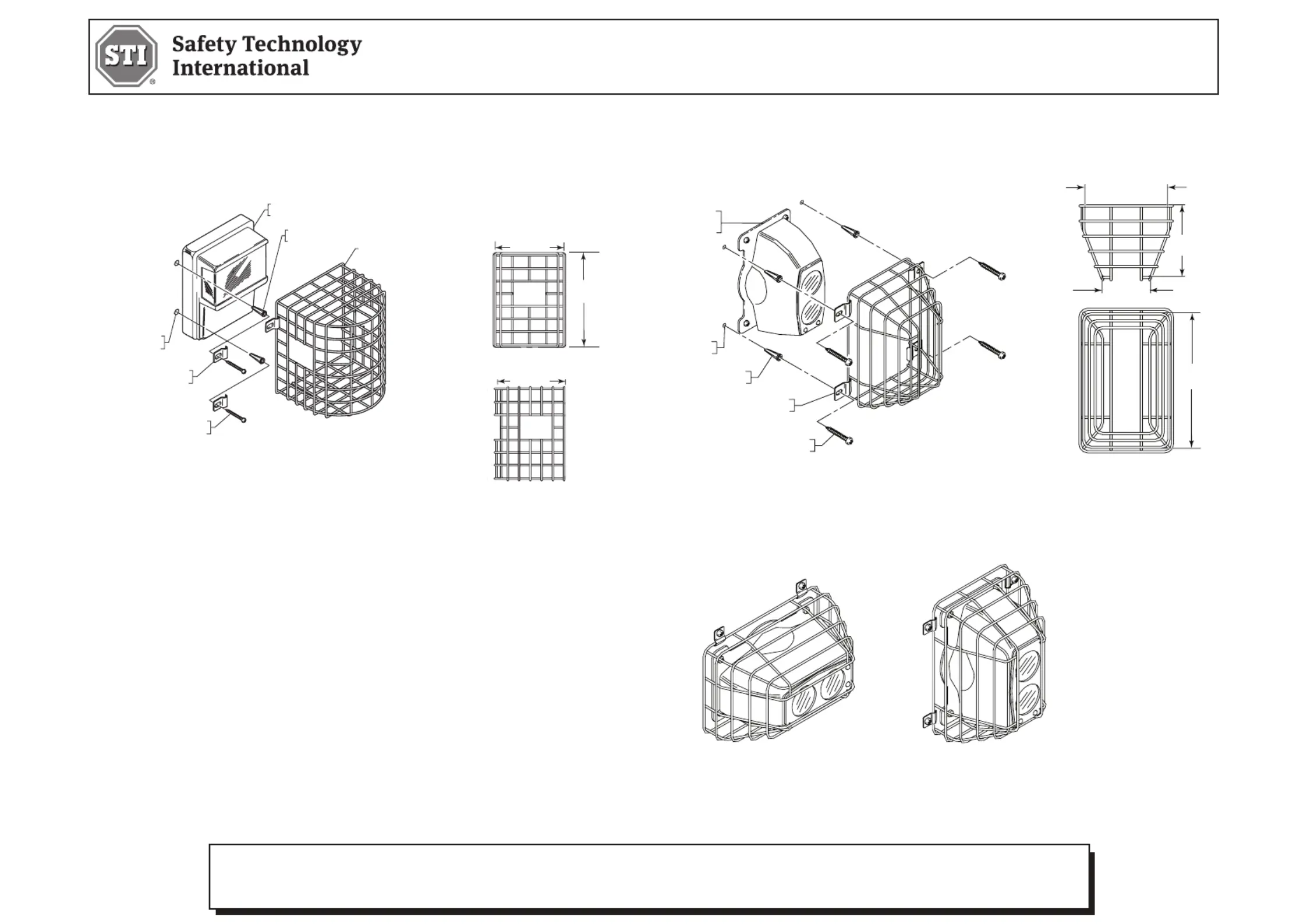

EXISTING DS240 &
DS241 DETECTOR
19033 RAWL PLUG
(4) PROVIDED 9623 GUARD
DRILL (4) .25 in.
6.3mm HOLES
19020 CLAMP
(4) PROVIDED
19013 SCREW
(4) PROVIDED
EXISTING FIRERAY
50/100R
SMOKE BEAM
DRILL (4) .25
6.3mm HOLES
19033 RAWL PLUG
(4) PROVIDED
19020 CLAMP
(4) PROVIDED
19013 SCREW
(4) PROVIDED
6 in.
(152mm)
6 in.
(152mm)
FRONT VIEW
SIDE VIEW
7.75in.
(197mm)
5.5 in.(140mm)
4.75 in.
(120mm)
3.25 in.
(83mm)
8.875 in.
(225mm)
STI-9623 STI-9624
CAN BE MOUNTED VERTICALLY OR HORIZONTALLY
Toll Free: 800-888-4784 • E-mail: info@sti-usa.com
Web: www.sti-usa.com
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: 248-673-9898 • Fax: 248-673-1246
Tel: 44 (0) 1527 520 999 Fax: 44 (0) 1527 501 999
E-mail: info@sti-emea.com • Web: www.sti-emea.com
European Office
Taylor House • • 34 Sherwood Road Bromsgrove
Worcestershire • B60 3DR • England
