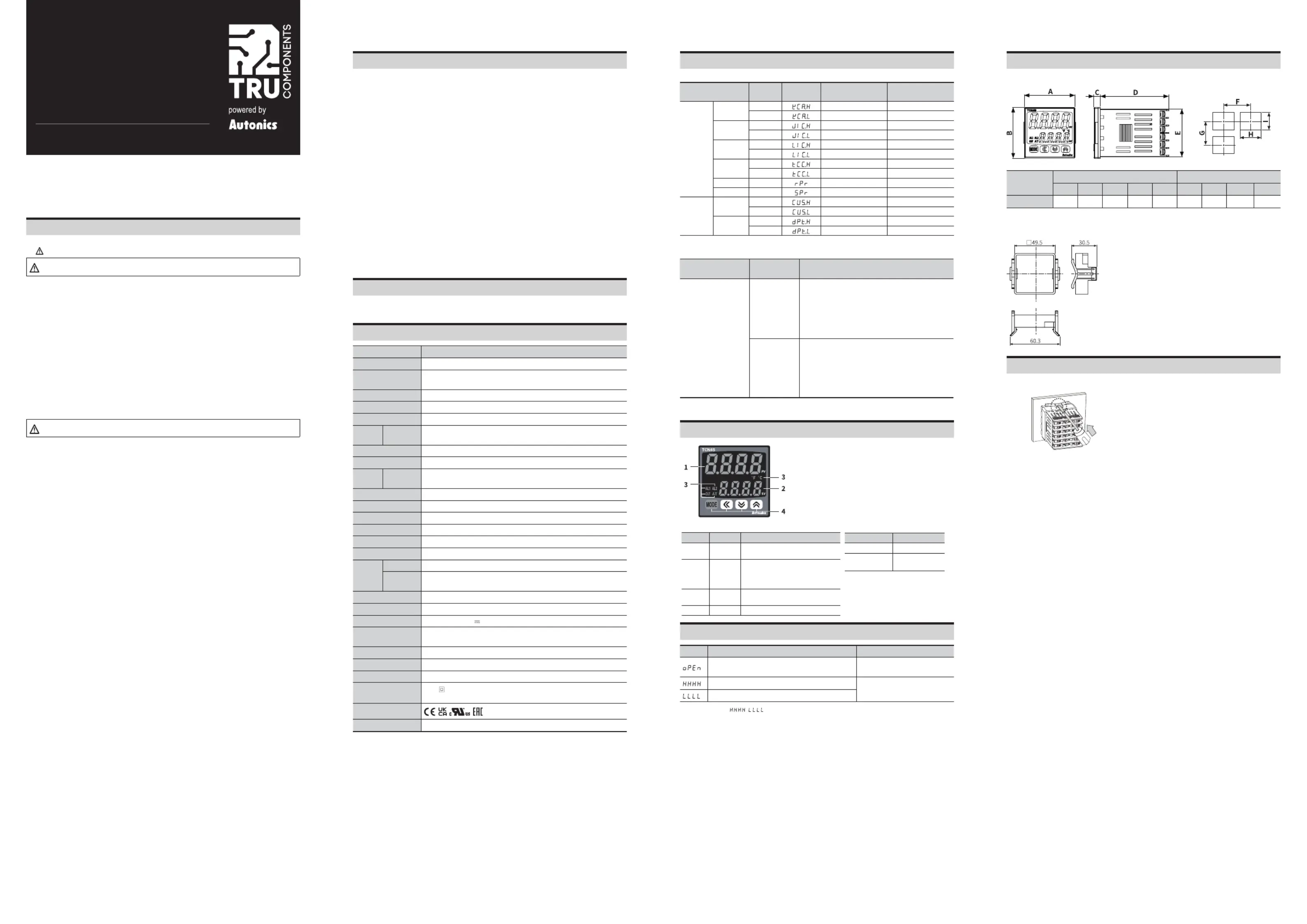

Side 1/2

Read and understand the instruction manual before using the product.

For your safety, read and follow the below safety considerations before using. For your safety,

read and follow the considerations written in the instruction manual.

Keep this instruction manual in a place where you can find easily.

The specifications, dimensions, etc are subject to change without notice for product improvement.

Safety Considerations

• Observe all ‘Safety Considerations’ for safe and proper operation to avoid hazards.

• symbol indicates caution due to special circumstances in which hazards may occur.

Warning Failure to follow instructions may result in serious injury or death

01. Fail-safe device must be installed when using the unit with machinery that may cause

serious injury or substantial economic loss.(e.g. nuclear power control, medical equipment,

ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster

prevention devices, etc.)

Failure to follow this instruction may result in personal injury, economic loss or fire.

02. Do not use the unit in the place where flammable/explosive/corrosive gas, high humidity,

direct sunlight, radiant heat, vibration, impact or salinity may be present.

Failure to follow this instruction may result in explosion or fire.

03. Install on a device panel to use.

Failure to follow this instruction may result in fire or electric shock.

04. Do not connect, repair, or inspect the unit while connected to a power source.

Failure to follow this instruction may result in fire or electric shock.

05. Check ‘Connections’ before wiring.

Failure to follow this instruction may result in fire.

06. Do not disassemble or modify the unit.

Failure to follow this instruction may result in fire or electric shock.

Caution Failure to follow instructions may result in injury or product damage

01. When connecting the power input and relay output, use AWG 20 (0.50 mm 2) cable or over, and

tighten the terminal screw with a tightening torque of 0.74 to 0.90 N m.

When connecting the sensor input and communication cable without dedicated cable, use

AWG 28 to 16 cable and tighten the terminal screw with a tightening torque of 0.74 to 0.90 N

Failure to follow this instruction may result in fire or malfunction due to contact failure.

02. Use the unit within the rated specifications.

Failure to follow this instruction may result in fire or product damage

03. Use a dry cloth to clean the unit, and do not use water or organic solvent.

Failure to follow this instruction may result in fire or electric shock.

04. Keep the product away from metal chip, dust, and wire residue which flow into the unit.

Failure to follow this instruction may result in fire or product damage.

Cautions during Use

• Follow instructions in ‘Cautions during Use’. Otherwise, it may cause unexpected accidents.

• Check the polarity of the terminals before wiring the temperature sensor.

• For RTD temperature sensor, wire it as 3-wire type, using cables in same thickness and length. For

thermocouple (TC) temperature sensor, use the designated compensation wire for extending wire.

• Keep away from high voltage lines or power lines to prevent inductive noise. In case installing power

line and input signal line closely, use line filter or varistor at power line and shielded wire at input

signal line. Do not use near the equipment which generates strong magnetic force or high frequency

noise.

• Install a power switch or circuit breaker in the easily accessible place for supplying or disconnecting

the power.

• Do not use the unit for other purpose (e.g. voltmeter, ammeter), but temperature controller.

• When changing the input sensor, turn off the power first before changing. After changing the input

sensor, modify the value of the corresponding parameter.

• Make a required space around the unit for radiation of heat. For accurate temperature measurement,

warm up the unit over 20 min after turning on the power.

• Make sure that power supply voltage reaches to the rated voltage within 2 sec after supplying power.

• Do not wire to terminals which are not used.

• This unit may be used in the following environments.

- Indoors (in the environment condition rated in ‘Specifications’)

- Altitude Max. 2,000 m

- Pollution degree 2

- Installation category II

Product Components

• Product (+ bracket) • Instruction manual

Specifications

Series TCN4S-24R

Power supply 100 - 240 VAC~ 50/60 Hz

Permissible voltage

range 90 to 110 % of rated voltage

Power consumption ≤ 5 VA

Sampling period 100 ms

Input specification Refer to 'Input Type and Using Range.

Control

output Relay 250 VAC~ 3A, 30 VDC~ 3A, 1a

Alarm output 250 VAC~ 1 A 1a

Display type 7 Segment (red, green), LED type

Control

type

Heating,

Cooling ON/OFF, P, PI, PD, PID Control

Hysteresis 1 to 100 (0.1 to 50.0) °C/°F

Proportional band (P) 0.1 to 999.9 °C/°F

Integral time (I) 0 to 9,999 sec

Derivative time (D) 0 to 9,999 sec

Control cycle (T) 0.5 to 120.0 sec

Manual reset 0.0 to 100.0%

Relay

life

cycle

Mechanical ≥ 5,000,000 operations

Electrical OUT1/2: ≥ 200,000 operations (load resistance: 250 VAC~ 3 A)

AL1/2: ≥ 300,000 operations (load resistance: 250 VAC~ 1 A)

Dielectric strength Between the charging part and the case: 2,000 VAC~ 50/60 Hz for 1 min

Vibration 0.75 mm amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for 2 hours

Insulation resistance ≥ 100 MΩ (500 VDC megger)

Noise immunity ±2 kV square shaped noise (pulse width: 1 µs) by noise simulator R-phase,

S-phase

Memory retention ≈ 10 years (non-volatile semiconductor memory type)

Ambient temperature -10 to 50 °C, storage: -20 to 60 °C (no freezing or condensation)

Ambient humidity 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)

Insulation type Mark: , double or reinforced insulation (dielectric strength between the measuring

input part and the power part: 2 kV)

Certification

Unit weight (packaged) TCN4S: ≈ 100 g (≈ 147 g)

Input Type and Using Range

The setting range of some parameters is limited when using the decimal point display.

Input type Decimal

point Display Using range (°C) Using range (°F)

Thermo

-couple

K (CA) 1 -50 to 1,200 -58 to 2,192

0.1 -50.0 to 999.9 -58.0 to 999.9

J (IC) 1 -30 to 800 -22 to 1,472

0.1 -30.0 to 800.0 -22.0 to 999.9

L (IC) 1 -40 to 800 -40 to 1,472

0.1 -40.0 to 800.0 -40.0 to 999.9

T (CC) 1 -50 to 400 -58 to 752

0.1 -50.0 to 400.0 -58.0 to 752.0

R (PR) 1 0 to 1,700 32 to 3,092

S (PR) 1 0 to 1,700 32 to 3,092

RTD

Cu50 Ω 1 -50 to 200 -58 to 392

0.1 -50.0 to 200.0 -58.0 to 392.0

DPt100 Ω 1 -100 to 400 -148 to 752

0.1 -100.0 to 400.0 -148.0 to 752.0

■Display accuracy

Input type Using

temperature Display accuracy

Thermocouple RTD

At room

temperature

(23°C ±5 °C)

(PV ±0.5% or ±1 °C higher one) ±1-digit

• Thermocouple R, S below 200 °C:

(PV ±0.5% or ±3 °C higher one) ±1-digit

Over 200 °C:

(PV ±0.5% or ±2 °C higher one) ±1digit

• Thermocouple L, RTD Cu50 Ω:

(PV ±0.5% or ±2 °C higher one) ±1-digit

Out of room

temperature

range

(PV ±0.5% or ±2 °C higher one) ±1-digit

• Thermocouple R, S below 200 °C:

(PV ±1.0% or ±6 °C higher one) ±1digit

Over 200 °C:

(PV ±0.5% or ±5 °C higher one) ±1digit

• Thermocouple L, RTD Cu50 Ω:

(PV ±0.5% or ±3 °C higher one) ±1digit

• If the input specification is set to 'decimal point 0.1' display, add ±1 by accuracy standard.°C

Unit Descriptions

1. PV Display part (red)

• RUN mode: Displays PV (Present value)

• Setting mode: Displays parameter name

2. SV Display part (green)

• RUN mode: Displays SV (Setting value)

• Setting mode: Displays parameter setting value

3. Indicator

Display Name Description

AL1/2 Alarm

output Turns ON when the alarm output is ON.

OUT Control

output

Turns ON when control output is ON

• CYCLE/PHASE control of SSR

drive output: Turns ON when MV is

over 3.0% [AC power model]

AT Auto

tuning Flashes during auto tuning every 1 sec

°C, °F Unit Displays selected unit (parameter).

4. Input key

Display Name

[MODE] Mode key

[◄], [▼ ▲], [ ] Setting value

control key

Errors

Display Description Troubleshooting

Flashes when input sensor is disconnected or sensor is

not connected. Check input sensor status.

Flashes when PV is higher than input range.

01) When input is within the rated input

range, this display disappears.

Flashes when PV is lower than input range.

01)

01) Be careful that when / error occurs, the control output may occur by recognizing the maximum or minimum input

depending on the control type.

Dimensions

• Unit: mm

■Panel cut-out

Body Panel cut-out

A B C D E F G H I

TCN4S 48 48 6 64.5 44.8 ≥ 65 ≥ 65 45 +0.6

045 +0.6

■Bracket

TCN4S

Installation Method

■TCN4S

Flathead screwdriver

After mounting the product to panel with bracket, insert the unit into a panel, fasten the bracket by

pushing with a flathead screwdriver.

Dual Display PID Temperature Controllers

TCN4S-24R

Item no.: 3016146

INSTRUCTION MANUAL

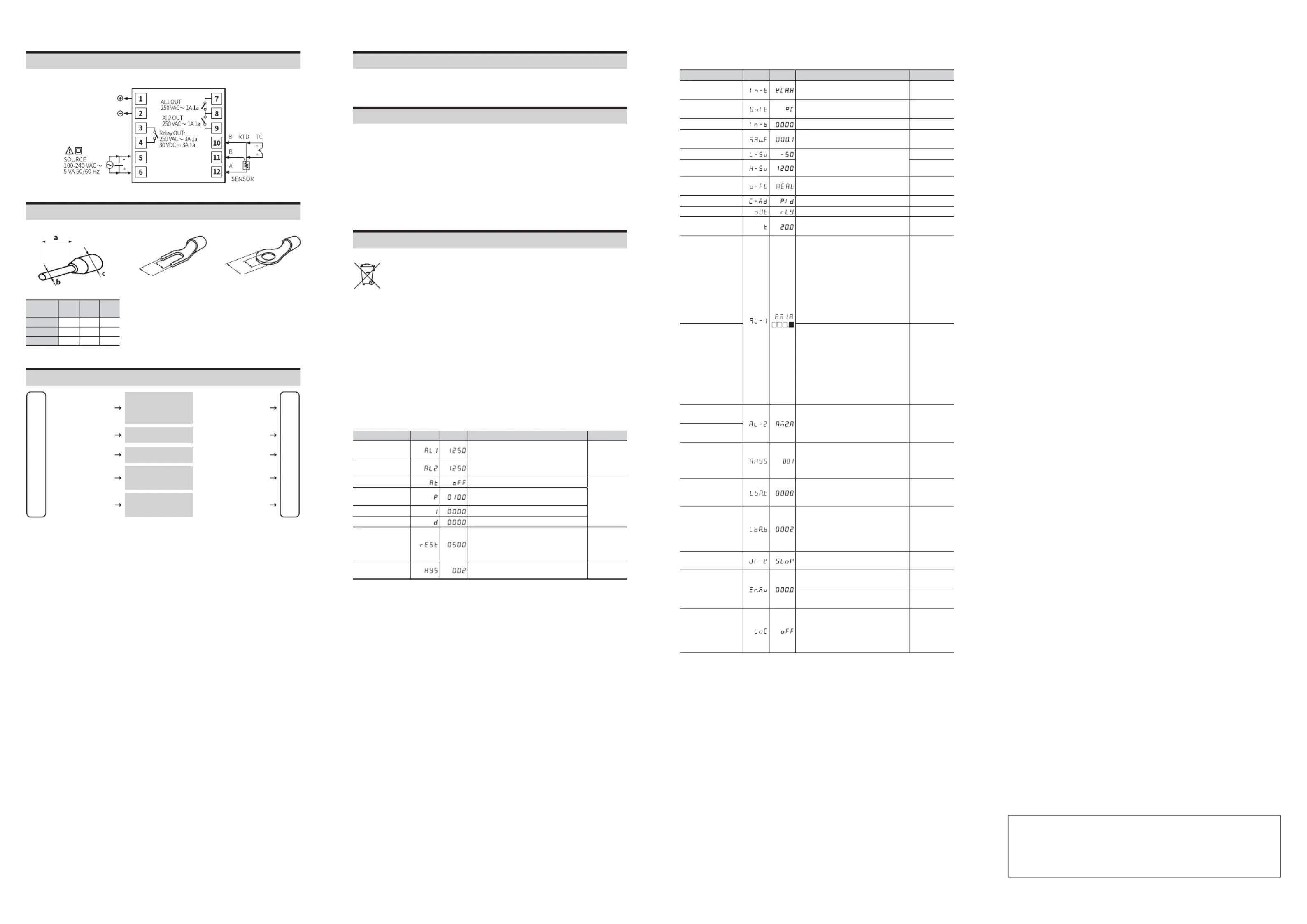

TCD210225AB
