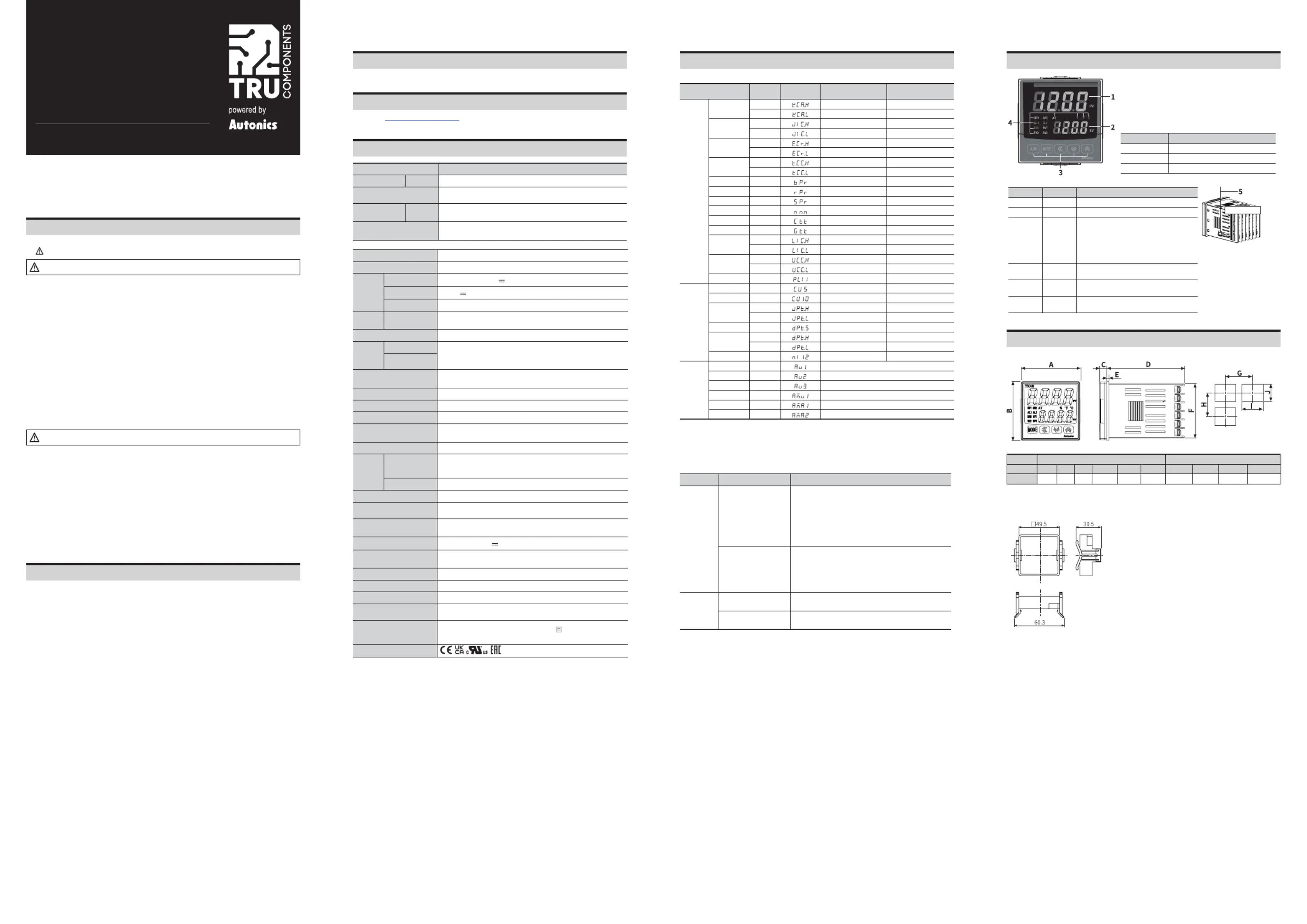

Read and understand the instruction manual before using the product.
For your safety, read and follow the below safety considerations before using. For your safety,
read and follow the considerations written in the instruction manual.
Keep this instruction manual in a place where you can find easily.
The specifications, dimensions, etc are subject to change without notice for product improvement.
Safety Considerations
• Observe all ‘Safety Considerations’ for safe and proper operation to avoid hazards.
• symbol indicates caution due to special circumstances in which hazards may occur.
Warning Failure to follow instructions may result in serious injury or death
01. Fail-safe device must be installed when using the unit with machinery that may cause
serious injury or substantial economic loss.(e.g. nuclear power control, medical equipment,
ships, vehicles, railways, aircraft, combustion apparatus, safety equipment, crime/disaster
prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas, high humidity,
direct sunlight, radiant heat, vibration, impact or salinity may be present.
Failure to follow this instruction may result in explosion or fire.
03. Install on a device panel to use.
Failure to follow this instruction may result in electric shock.
04. Do not connect, repair, or inspect the unit while connected to a power source.
Failure to follow this instruction may result in fire or electric shock.
05. Check ‘Connections’ before wiring.
Failure to follow this instruction may result in fire.
06. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire or electric shock.
Caution Failure to follow instructions may result in injury or product damage
01. When connecting the power input and relay output, use AWG 20 (0.50 mm 2) cable or over, and
tighten the terminal screw with a tightening torque of 0.74 to 0.90 N m.
When connecting the sensor input and communication cable without dedicated cable, use
AWG 28 to 16 cable and tighten the terminal screw with a tightening torque of 0.74 to 0.90 N
m.
Failure to follow this instruction may result in fire or malfunction due to contact failure.
02. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage
03. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire or electric shock.
04. Keep the product away from metal chip, dust, and wire residue which flow into the unit.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in ‘Cautions during Use’. Otherwise, it may cause unexpected accidents.
• Check the polarity of the terminals before wiring the temperature sensor. For RTD temperature sensor,
wire it as 3-wire type, using cables in same thickness and length.
For thermocouple (TC) temperature sensor, use the designated compensation wire for extending wire.
• Keep away from high voltage lines or power lines to prevent inductive noise. In case installing power
line and input signal line closely, use line filter or varistor at power line and shielded wire at input
signal line. Do not use near the equipment which generates strong magnetic force or high frequency
noise.
• Do not apply excessive power when connecting or disconnecting the connectors of the product.
• Install a power switch or circuit breaker in the easily accessible place for supplying or disconnecting
the power.
• Do not use the unit for other purpose (e.g. voltmeter, ammeter), but temperature controller.
• When changing the input sensor, turn off the power first before changing. After changing the input
sensor, modify the value of the corresponding parameter.
• Do not overlapping communication line and power line. Use twisted pair wire for communication line
and connect ferrite bead at each end of line to reduce the effect of external noise.
• Make a required space around the unit for radiation of heat. For accurate temperature measurement,
warm up the unit over 20 min after turning on the power.
• Make sure that power supply voltage reaches to the rated voltage within 2 sec after supplying power.
• Do not wire to terminals which are not used.
• This unit may be used in the following environments.
-Indoors (in the environment condition rated in ‘Specifications’)
-Altitude Max. 2,000 m
-Pollution degree 2
-Installation category II
Product Components
• Product (+ bracket) • Instruction manual
Operating Instructions for download
Use the link www.conrad.com/downloads (alternatively scan the QR code) to download the complete
operating instructions (or new/current versions if available). Follow the instructions on the web page.
Specifications
Series TK4S
Power supply AC type 100 - 240 VAC~ 50/60 Hz
Permissible voltage range 90 to 110 % of rated voltage
Power
consumption AC type ≤ 8 VA
Unit weight (packaged) ≈ 105 g
(≈ 150 g)
Sampling period 50 ms
Input specification Refer to 'Input Type and Using Range'
Control
output
Relay 250 VAC ~ 3 A, 30 VDC 3 A 1a
SSR 11 VDC ±2 V, ≤ 20 mA
Current DC 4-20 mA or DC 0-20 mA (parameter), Load resistance: ≤ 500 Ω
Alarm
output Relay AL1: 250 VAC~ 3 A 1a
Display type 7 segment (red, green, yellow), LED type
Control
type
Heating, Cooling
ON/OFF, P, PI, PD, PID Control
Heating & Cooling
Hysteresis • Thermocouple, RTD: 1 to 100 (0.1 to 100.0) °C/°F
• Analog: 1 to 100 digit
Proportional band (P) 0.1 to 999.9 °C/°F (0.1 to 999.9%)
Integral time (I) 0 to 9,999 sec
Derivative time (D) 0 to 9,999 sec
Control cycle (T) • Relay output, SSR drive output: 0.1 to 120.0 sec
• Selectable current or SSR drive output: 1.0 to 120.0 sec
Manual reset 0.0 to 100.0%
Relay life
cycle
Mechanical OUT1/2: ≥ 5,000,000 operations
AL1/2: ≥ 20,000,000 operations
Electrical ≥ 100,000 operations
Dielectric strength Dependent on the power supply
AC voltage type Between the charging part and the case: 3,000 VAC ~ 50/60 Hz for 1 minute
Vibration 0.75 mm amplitude at frequency of 5 to 55 Hz in each X, Y, Z direction for
2 hours
Insulation resistance ≥ 100 MΩ (500 VDC megger)
Noise immunity ±2 kV square shaped noise by noise simulator (pulse width: 1 µs) R-phase,
S-phase
Memory retention ≈ 10 years (non-volatile semiconductor memory type)
Ambient temperature -10 to 50 °C, storage: -20 to 60 °C (no freezing or condensation)
Ambient humidity 35 to 85%RH, storage: 35 to 85%RH (no freezing or condensation)
Protection structure IP65 (Front panel, IEC standards)
Insulation type Double insulation or reinforced insulation (mark: , dielectric strength
between the measuring input part and the power part: 2 kV)
Certification
Input Type and Using Range
The setting range of some parameters is limited when using the decimal point display.
Input type Decimal
point Display Using range (°C) Using range (°F)
Thermo
-couple
K (CA) 1 -200 to 1,350 to 2,462-328
0.1 -199.9 to 999.9 -199.9 to 999.9
J (IC) 1 -200 to to 1,472800 -328
0.1 -199.9 to -199.9 to 999.9800.0
E (CR) 1 -200 to to 1,472800 -328
0.1 -199.9 to -199.9 to 999.9800.0
T (CC) 1 -200 to 400 to 752-328
0.1 -199.9 to 400.0 -199.9 to 752.0
B (PR) 1 0 to 32 to 3,2721,800
R (PR) 1 0 to 1,750 32 to 3,182
S (PR) 1 0 to 1,750 32 to 3,182
N (NN) 1 -200 to 1,300 to 2,372-328
C (TT) 01) 1 0 to 2,300 32 to 4,172
G (TT) 02) 1 0 to 2,300 32 to 4,172
L (IC) 1 -200 to 900 to 1,652-328
0.1 -199.9 to 900.0 -199.9 to 999.9
U (CC) 1 -200 to 400 to 752-328
0.1 -199.9 to 400.0 -199.9 to 752.0
Platinel II 1 0 to 1,390 32 to 2,534
RTD
Cu50 Ω 0.1 -199.9 to 200.0 -199.9 to 392.0
Cu100 Ω 0.1 -199.9 to 200.0 -199.9 to 392.0
JPt100 Ω 1 -200 to 650 to 1,202-328
0.1 -199.9 to 650.0 -199.9 to 999.9
DPt50 Ω 0.1 -199.9 to 600.0 -199.9 to 999.9
DPt100 Ω 1 -200 to 650 to 1,202-328
0.1 -199.9 to 650.0 -199.9 to 999.9
Nickel120 Ω -801 to 200 -112 to 392
Analog
0 to 10 V - 0 to 10 V
0 to 5 V - 0 to 5 V
1 to 5 V - 1 to 5 V
0 to 100 mV - 0 to 100 mV
0 to 20 mA - 0 to 20 mA
4 to 20 mA - 4 to 20 mA
01) C (TT): Same as existing W5 (TT) type sensor
02) G (TT): Same as existing W (TT) type sensor
• Permissible line resistance per line: ≤ 5 Ω
■Display accuracy
Input type Using temperature Display accuracy
Thermo
-couple RTD
At room temperature
(23 °C ±5 °C)
(PV ±0.3% or ±1 °C higher one) ±1-digit
• Thermocouple K, J, T, N, E below -100 °C and L, U, PLII,
RTD Cu50 Ω, DPt50 Ω:
(PV ±0.3% or ±2 °C higher one) ±1-digit
• Thermocouple C, G and R, S below 200 °C:
(PV ±0.3% or ±3 °C higher one) ±1-digit
• Thermocouple B below 400 °C:
There is no accuracy standards
Out of room temperature
range
(PV ±0.5% or ±2 °C higher one) ±1-digit
• RTD Cu50 Ω, DPt50 Ω:
(PV ±0.5% or ±3 °C higher one) ±1-digit
• Thermocouple R, S, B, C, G:
(PV ±0.5% or ±5 °C higher one) ±1-digit
• Other sensors: ≤ ±5 °C (≤-100 °C)
Analog
At room temperature
(23 °C ±5 °C) ±0.3% F.S. ±1-digit
Out of room temperature
range ±0.5% F.S. ±1-digit
Unit Descriptions
1. PV display part (Red)
• Run mode: Displays PV (Present value).
• Setting mode: Displays parameter name.
2. SV display part (Green)
• Run mode: Displays SV (Setting value).
• Setting mode: Displays parameter setting value.
3. Input key
Display Name
[A/M] Control switching key
[MODE] Mode key
[◄], [▼], [▲] Setting value control key
4. Indicator
Display Name Description
°C, %, °F Unit Displays selected unit (parameter)
AT Auto tuning Flashes during auto tuning every 1 sec
OUT1/2 Control
output
Turns ON when the control output is ON
• SSR output (cycle/phase control)
MV over 5% ON
• Current output
Manual control: 0% OFF, over ON
Auto control: below 2% OFF, over 3% ON
AL1 Alarm
output Turns ON when the alarm output is ON
MAN Manual
control Turns ON during manual control
SV1/2/3 Multi SV The SV indicator is ON which is currently
displayed. (When using multi SV function)
TK4S
5. PC loader port:
For connecting
communication
converter (SCM series).
Dimensions
• Unit: mm
■ Panel cut-out
Body Panel cut-out
A B C D E F G H I J
TK4S 48 48 ≥65 ≥656 64.5 1.7 45 45 +0.6
045 +0.6
0
■Bracket
TK4S
Simultaneous Heating & Cooling
Output PID Temperature Controller
TK4S-14RC
Item no.: 3016144
INSTRUCTION MANUAL
TCD210240AD
