Unstable blood pressure due

to movement during

measurement.

Take another measurement.

Remain still during

measurement.

The systolic and diastolic

values are within 10 mmHg of

each other.

Apply the cuff correctly, and

take another measurement.

The pressure value did not

increase during the inflation.

The cuff is not applied

correctly.

PUL DISPLAY ERROR

The pulse is not detected

correctly.

Device internal error

Remove the batteries and

press the _START_ button, and

then install the batteries again.

If the error still appears, contact

the dealer.

Symbols printed on the device case.

Symbols Function / Meaning

Standby and Turn the device on.

SYS Systolic blood pressure in mmHg

DIA Diastolic blood pressure in mmHg

PUL/min. Pulse per minute

Battery installation guide

Direct current

Type BF: Device, cuff and tubing are designed to provide

special protection against electrical shocks.

EC directive medical device label

EU-representative

Manufacturer

Date of manufacture

WEEE label

SN Serial number

Refer to instruction manual/booklet

Polarity of DC jack

IP International protection symbol

Keep dry

6.6. Using the M

Using the M

Using the MUsing the Monitor

onitor

onitoronitor

6.1.

6.1.6.1.

Installing / Changing The Batteries

Installing / Changing The Batteries Installing / Changing The Batteries

1. Remove the battery cover.

2. Remove the used batteries from

the battery compartment in case

of changing them.

3. Insert new batteries into the

battery compartment as shown,

taking care that the polarities (+)

and (-) are correct.

4. Replace the battery cover. Use

only R6P, LR6 or AA batteries.

CAUTION

Insert the batteries as shown in the battery compartment. If installed

incorrectly, the device will not work.

When blinks on the display and the device announces that the

battery needs to be replaced, replace all batteries with new ones. Do

not mix old and new batteries. It may shorten the battery life, or cause

the device to malfunction. Replace the batteries two seconds or more

after the device turns off.

does not appear when the batteries are drained.

The battery life varies with the ambient temperature and may be shorter

at low temperatures.

Generally, four new R6P batteries will last approximately for three

months when used twice for measurement each day.

Use the specified batteries only. The batteries provided with the device

are for testing the device performance and may have a limited life.

Remove the batteries if the device is not to be used for a long time. The

batteries may leak and cause a malfunction.

6.2.

6.2.6.2.

Connecting The Air Hose

Connecting The Air Hose Connecting The Air Hose

Insert the air connector plug

into the air socket firmly.

6.3.

6.3.6.3.

Connecting The AC Adapter

Connecting The AC Adapter Connecting The AC Adapter

Insert the AC adapter plug into the DC

jack. Then, insert the AC adapter into

an electrical outlet. The AC adapter, the

model TB-233C is sold separately.

When disconnecting the AC

adapter from the electrical outlet,

grasp and pull the AC adapter body

out of the outlet.

When disconnecting the AC adapter plug from the blood pressure

monitor, grasp and pull the AC adapter plug out of the monitor.

6.4.

6.4.6.4.

Selecting The Corr

Selecting The CorrSelecting The Correct Cuff

ect Cuff

ect Cuff ect Cuff

Using the correct cuff size is important for an accurate reading. If the

cuff is not the proper size, the reading may yield an incorrect blood

pressure value.

The arm size is printed on each cuff.

The index and proper fit range, on the cuff, tell you if you are

applying the correct cuff. Refer to "6.5 Applying The Arm Cuff

6.5 Applying The Arm Cuff

6.5 Applying The Arm Cuff6.5 Applying The Arm Cuff".

If the index points outside of the range, contact your local dealer to

purchase a replacement cuff.

The arm cuff is a consumable. If it becomes worn, purchase a new one.

Arm Size Recommended Cuff Size Catalog Number

31 cm to 45 cm Large adult cuff CUF-F-LA

22 cm to 32 cm Adult cuff CUF-F-A

Arm size: The circumference at the biceps.

Note: Models UA-611 and UA-651 are not designed for using a small

cuff.

Symbols printed on the cuff.

Symbols Function / Meaning Recommended Action

Artery Position Mark

Set the mark on

the artery of the upper

arm or in line with the

ring finger on the

inside of the arm.

Index

REF Catalog number

Proper fit range for the adult cuff. It's

printed on the adult cuff.

Over range printed on the adult cuff. Use the large adult cuff

instead of the adult cuff.

Proper fit range for the large adult cuff.

It's printed on the large adult cuff.

Under range printed on the adult cuff.

Under range printed on the large adult

cuff.

Use the adult cuff

instead of the large

adult cuff.

Lot number

Large adult cuff

Adult cuff

6.5.

6.5.6.5.

Applying The Arm Cuff

Applying The Arm Cuff Applying The Arm Cuff

1. Wrap the cuff around the upper arm, about 1 to 2 cm above the inside

of the elbow, as shown.

Place the cuff directly against the skin, as clothing may cause a faint

pulse and result in a measurement error.

2. Constriction of the upper arm, caused by rolling up a shirtsleeve, may

prevent accurate readings.

3. Confirm that the index points within the proper fit range.

Note: During measurement, it is normal for the cuff to feel very tight. (Do

not be alarmed).

7.7. Measurements

Measurements

Measurements Measurements

7.1.

7.1.7.1.

Normal Measureme

Normal MeasuremeNormal Measurement

nt nt

1. Place the cuff on the arm at heart

level (preferably the left arm). Sit

quietly during measurement.

2. Press the _START_ button.

All of the display segments are

displayed. Zero is displayed

blinking briefly. Then the display

changes, as indicated in the

figure at the right, as the

measurement begins. The cuff

starts to inflate. It is normal for the

cuff to feel very tight. A pressure

bar indicator is displayed, as in

the figure at the right, during

inflation.

Note: If you wish to stop inflation at any time,

press the _START_ button again.

3. When inflation is complete,

deflation starts automatically and

the (heart mark) blinks,

indicating that the measurement

is in progress. Once the pulse is

detected, the mark blinks with

each pulse beat.

Note: If an appropriate pressure is not

obtained, the device starts to

inflate

again automatically.

4. When the measurement is

complete, the systolic and

diastolic pressure readings and

pulse rate are displayed. The cuff

exhausts the remaining air and

deflates completely.

5. Press the _START_ button again to turn off the power.

Note: Model UA-611 and UA-651 are provided with an automatic power

shut-off function. Allow at least 3 minutes between measurements on

the same person.

7.2.

7.2.7.2.

Measurement with the Desired Systolic P

Measurement with the Desired Systolic PMeasurement with the Desired Systolic Pressure

ressure

ressureressure

If re-inflation occurs repeatedly,

use the following methods. If your

systolic pressure is expected to

exceed 230 mmHg, use this

procedure.

1. Place the cuff on the arm at heart

level (preferably the left arm).

2. Press the _START_ button.

3. During the zero blinks, press and

hold the button until a _START_

number about 30 to 40 mmHg higher

than your expected systolic pressure

appears.

4. When the desired number is

reached, release the _START_ button

to start measurement. Then continue

to measure your blood pressure as

described on the section "7.1

7.1

7.1 7.1

Normal Measurement

Normal MeasurementNormal Measurement".

7.3.

7.3.7.3.

Notes for Accurate Measurement

Notes for Accurate Measurement Notes for Accurate Measurement

Sit comfortably on a chair. Rest your arm on the table. Do not cross

your legs. Keep your feet on the floor and straighten your back.

Sit down in a comfortable position. Place your arm on a table with your

palm facing upward and the cuff at the same level as your heart.

Place the center of the cuff at the same level as your heart.

Relax for about five to ten minutes before measurement. If you are

excited or depressed by emotional stress, the measurement will reflect

this stress as a higher (or lower) than normal blood pressure reading

and the pulse reading will usually be faster than normal.

Remain still and keep quiet during measurement.

Do not measure immediately after physical exercise or a bath. Rest for

twenty or thirty minutes before taking the measurement.

An individual's blood pressure varies constantly, depending on what

you are doing and what you have eaten. What you drink can have a

very strong and rapid effect on your blood pressure.

This device bases its measurements on the heartbeat. If you have a

very weak or irregular heartbeat, the device may have difficulty

determining your blood pressure.

Should the device detect a condition that is abnormal, it will stop the

measurement and display an error symbol. Refer to the section "5

5 5

Symbols

SymbolsSymbols" for the description of the symbols.

This device is intended for use by adults. Consult with your physician

before using this device on a child. A child should not use this device

unattended.

Try to measure your blood pressure at the same time every day.

The automatic blood pressure monitor's performance may be affected by

excessive temperature or humidity, or altitude.

8.8. Recalling the Memory Data

Recalling the Memory Data

Recalling the Memory Data Recalling the Memory Data

The device automatically stores up to thirty blood pressure and pulse

measurements in memory. Data stored in memory are assigned a data

number in the order of the newest to the oldest. The oldest data displays as

" ". The symbol in the upper left corner of the display indicates that

you are viewing previous data stored in memory.

8.1.

8.1.8.1.

Recalling Data

Recalling Data Recalling Data

1. When nothing is displayed, press

and hold the _START_ button to

recall the stored data.

2. Release the button when

displaying the average data.

3. The data number and stored data

are automatically displayed in

order from the last measurement.

4. The display will turn off

automatically after all data is

displayed.

Note: If you press the _START_ button

while recalling data, the device

turns off.

8.2.

8.2.8.2.

Cleari

CleariClearing Data

ng Data

ng Data ng Data

1. When turning off the device,

press and hold the _START_

button until the " " is

displayed.

2. Select " " to clear

data.

3. Data is cleared when the

mark blinks.

4. The device turns off

automatically.

9.9. What is an Irregular

What is an Irregular

What is an Irregular What is an Irregular Heartbeat

Heartbeat

Heartbeat Heartbeat

The UA-611 and UA-651 provide a blood pressure and pulse rate

measurement even when an irregular heartbeat occurs. An

irregular heartbeat is defined as a heartbeat that varies by 25%

from the average of all heartbeats during the blood pressure

measurement. It is important that you are relaxed, remain still

and do not talk during measurements.

Note: We recommend contacting your physician if you see this

symbol frequently.

10.

10.10.

Pressure Ba

Pressure BaPressure Bar Indicator

r Indicator

r Indicator r Indicator

The indicator monitors the progress of pressure during

measurement.

11.

11.11.

About Blood Pre

About Blood PreAbout Blood Pressure

ssure

ssure ssure

What is Blood Pressure?

Blood pressure is the force exerted by blood against the walls of

the arteries. Systolic pressure occurs when the heart contracts.

Diastolic pressure occurs when the heart expands. Blood

pressure is measured in millimeters of mercury (mmHg). One's

natural blood pressure is represented by the fundamental

pressure, which is measured first thing in the morning while one

is still at rest and before eating.

12.

12.12.

WHO Classification Indicator

WHO Classification Indicator WHO Classification Indicator

Each segment of the bar indicator corresponds to the WHO blood

pressure classification.

: The indicator displays a

segment, based on the

current data,

corresponding to the

WHO classification.

13.

13.13.

Troubleshooting

Troubleshooting Troubleshooting

Problem Possible Reason Recommended Action

Nothing

appears on

the display,

even when

the power is

turned on.

Batteries are

drained. Replace all batteries with new

ones.

Battery terminals

are not in the

correct position.

Reinstall the batteries with

negative and positive terminals

matching those indicated on the

battery compartment.

The cuff

does not

inflate.

Battery voltage is

too low.

blinks. If the

batteries are

drained completely,

the mark does not

appear.

Replace all batteries with new

ones.

The device

does not

measure.

Readings

are too high

or too low.

The cuff is not

applied properly. Apply the cuff correctly.

You moved your

arm or body during

measurement.

Make sure you remain still and

quiet during measurement.

The cuff position is

not correct.

Sit comfortably and still. Place

your arm on a table with your

palm facing upward and the cuff

at the same level as your heart.

If you have a very weak or

irregular heartbeat, the device

may have difficulty in determining

your blood pressure.

Other

The value is

different from that

measured at a

clinic or doctor’s

office.

At a clinic or doctor's office, an

apprehension may cause an

elevated reading. Home

measurement reduces the effects

of outside influences on blood

pressure readings, supplements

the doctor's readings.

Remove the batteries. Place them

back properly and take another

measurement.

Note: If the actions described above do not solve the problem, contact

the dealer. Do not attempt to open or repair this product, as any

attempt to do so will make your warranty invalid.

14.

14.14.

Maintenance

Maintenance Maintenance

Do not open the device. It uses delicate electrical components and

an intricate air unit that could be damaged. If you cannot fix the

problem using the troubleshooting instructions, contact the

authorized dealer in your area or our customer service department.

The A&D customer service will provide technical information, spare

parts and units to authorized dealers.

The device was designed and manufactured for a long service life.

However it is generally recommended to have the device inspected

every 2 years, to ensure proper functioning and accuracy. Please

contact the authorized dealer in your area or A&D for maintenance.

15.

15.15.

Technical Data

Technical Data Technical Data

Type UA-611 , UA-651

Measurement method Oscillometric measurement

Measurement range Pressure: 0 - 299 mmHg

Systolic pressure: 60 - 279 mmHg

Diastolic pressure: 40 - 200 mmHg

Pulse: 40 - 180 beats / minute

Measurement accuracy Pressure: ±3 mmHg

Pulse: ±5 %

Power supply 4 x 1.5V batteries (R6P, LR6 or AA)

Optional AC adapter (TB-233C) (Not included)

Number of measurements

Approx. 700 times LR6 (

alkaline batteries

)

Approx. 200 times R6P (

manganese batteries

)

With pressure value 180 mmHg, room

temperature 23 °C.

Classification Internally powered ME equipment

Continuous operation mode

Clinical test According to ISO81060-2：2013

EMC IEC 60601-1-2: 2014

Memory Last 30 measurements

Operating conditions +10 to +40 °C / 15 to 85 %RH / 800 to 1060 hPa

Transport / Storage conditions

-20 to +60 °C / 10 to 95 %RH / 700 to 1060 hPa

Dimensions Approx. 96 [W] x 68 [H] x 130 [D] mm

Weight Approx. 230 g, excluding the batteries

Ingress protection Device: IP20

Applied part Cuff Type BF

Useful life Device: 5 years (

when used six times a day

)

Cuff: 2 years (

when used six times a day

)

AC adapter:5 years (

when used six times a day

)

Accessory AC adapter/TB233C

The adapter is to connect the device to a

power source at home. Please contact your

local A&D dealer for purchasing. The AC

adapter is required to be inspected or

replaced periodically.

Symbols that are printed on the AC adapter.

Symbols Function / Meaning

For indoor use only

Class II device

Thermal fuse

Fuse

EC directive device label

EAC certification device label

Polarity of AC adapter plug

Accessories sold separately

Cuff Catalog Number Cuff Size Arm Size

CUF-F-LA Large adult cuff 31 cm to 45 cm

CUF-F-A Adult cuff 22 cm to 32 cm

Arm size: The circumference at the biceps.

AC Adapter Catalog Number Plug (Outlet type)

TB-233C Type C

Note: Specifications are subject to change without prior notice.

IP classification is the degrees of protection provided by

enclosures in accordance with IEC 60529. This device is

protected against solid foreign objects of 12 mm diameter and

greater such as a finger. This device is not protected against

water.

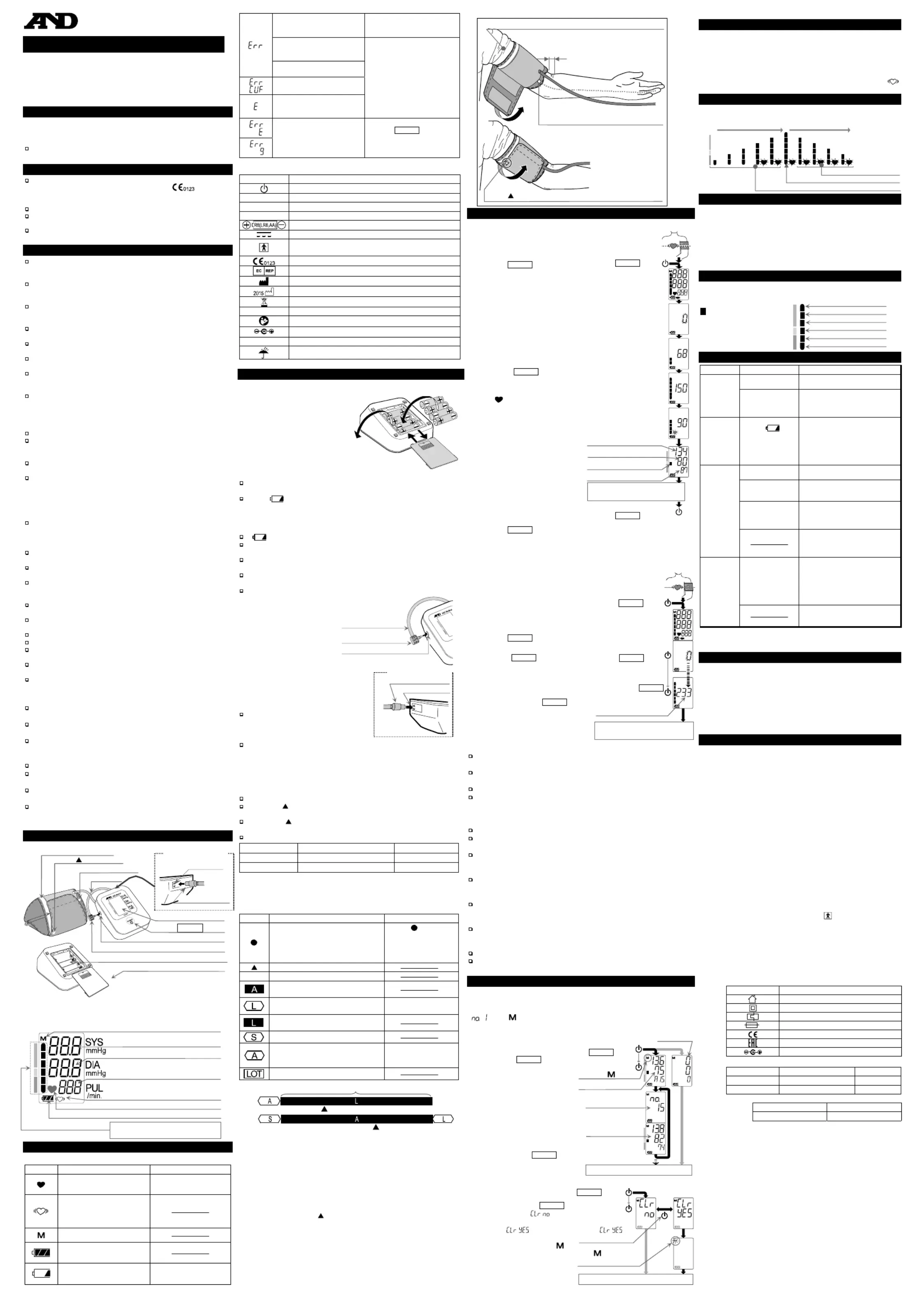

Digital Blood Pressure Monitor

Model UA-611 / UA-651

Instruction Manual Original

1WMPD4002762G

1.1. Dear Customers

Dear Customers

Dear Customers Dear Customers

The A&D blood pressure monitor is one of the most advanced

monitors available and is designed for ease of use and accuracy.

This device will facilitate your daily blood pressure regimen.

We recommend that you read through this manual carefully before

using the device for the first time.

2.2. Preliminary Remarks

Preliminary Remarks

Preliminary Remarks Preliminary Remarks

This device conforms to the European Directive 93/42 EEC for

Medical Products. This is made evident by the mark of

conformity. (0123: The reference number to the involved notified

body)

The device is designed for use on adults, not newborns or infants.

Environment for use. The device is for use to operate by yourself in

the home healthcare environment.

This device is designed to measure blood pressure and pulse rate

of people for diagnosis.

3.3. Precautions

Precautions

Precautions Precautions

Precision components are used in the construction of this device.

Extremes in temperature, humidity, direct sunlight, shock or dust

should be avoided.

Clean the device and cuff with a dry, soft cloth or a cloth dampened with

water and a neutral detergent. Never use alcohol, benzene, thinner or

other harsh chemicals to clean the device or cuff.

Avoid tightly folding the cuff or storing the hose tightly twisted for

long periods, as such treatment may shorten the life of the

components.

Take care to avoid accidental strangulation of babies or infants

with the hose.

Do not twist the air hose during measurement. This may cause

injury due to continuous cuff pressure.

The device and cuff are not water resistant. Prevent rain, sweat

and water from soiling the de vice and cuff.

Measurements may be distorted if the device is used close to

televisions, microwave ovens, cellular telephones, X-ray or other

devices with strong electrical fields.

Wireless communication devices, such as home networking

devices, mobile phones, cordless phones and their base stations,

walkie-talkies can affect this blood pressure monitor.

Therefore, a minimum distance of 30 cm should be kept from

such devices.

When reusing the device, confirm that the device is clean.

Used equipment, parts and batteries are not treated as ordinary

household waste, and must be disposed of according to the

applicable local regulations.

Do not modify the device. It may cause accidents or damage to

the device.

To measure blood pressure, the arm must be squeezed by the

cuff hard enough to temporarily stop blood flow through the

artery. This may cause pain, numbness or a temporary red mark

to the arm. This condition will appear especially when

measurement is repeated successively. Any pain, numbness, or

red marks will disappear with time.

Measuring blood pressure too frequently may cause harm due to

blood flow interference. Check that the operation of the device

does not result in prolonged impairment of blood circulation,

when using the device repeatedly.

Clinical testing has not been conducted on newborn infants and

pregnant woman. Do not use on newborn infants or pregnant woman.

If you have had a mastectomy, please consult a doctor before

using the device.

Do not let children use the device by themselves and do not use

the device in a place within the reach of infants. It may cause

accidents or damage.

There are small parts that m ay cause a choking hazard if

swallowed by mistake by infants.

Do not touch the batteries, the DC jack, and the patient at the

same time. That may result in electrical shock.

Unplug the AC adapter when not in use during the measurement.

Use of accessories not detailed in this manual may compromise safety.

Should the battery short-circuit, it may become hot and

potentially cause burns.

Allow the device to adapt to the surrounding environment before

use (about one hour).

Do not inflate without wrapping the cuff around the upper arm.

Contraindications

The following are precautions for proper use of the device.

Do not apply the cuff on an arm with another medical electrical

equipment attached. The equipment may not function properly.

People who have a severe circulatory deficit in the arm must consult a

doctor before using the device, to avoid medical problems.

Do not self-diagnose the measurement results and start

treatment by yourself. Always consult your doctor for evaluation

of the results and treatment.

Do not apply the cuff on an arm with an unhealed wound.

Do not apply the cuff on an arm receiving an intravenous drip or

blood transfusion. It may cause injury or accidents.

Do not use the device where flammable gases such as

anesthetic gases are present. It may cause an explosion.

Do not use the device in highly concentrated oxygen

environments, such as a high-pressure oxygen chamber or an

oxygen tent. It may cause a fire or explosion.

4.4. Parts Identification

Parts Identification

Parts Identification Parts Identification

Display

5.5. Symbols

Symbols

Symbols Symbols

Symbols that appear on the display

Symbols Function / Meaning Recommended Action

Appears while measurement

is in progress. It blinks when

the pulse is detected.

Measurement is in

progress. Remain as still

as possible.

I.H.B. appears when an

irregular heartbeat is detected.

It may light when a very slight

vibration like shivering or

shaking is detected.

Previous measurements

stored in memory.

FULL BATTERY

The battery power indicator

during measurement.

LOW BATTERY

The battery power is low when

it blinks.

Replace all batteries with

new ones when the mark

blinks.

ir Socke

ir Connector Plug

ir Hose

Proper fit range

Measurement in progress

Inflation complete

Inflation in progress

Cuff

1 to 2 cm

Artery position mark

Secure the fabric fastener

Air hose

Index and Proper fit range

t heart level

Refer to the section

" "

7.1 Normal Measurement

7.1 Normal Measurement7.1 Normal Measurement

Press the _START_ button

The desired pressure

Inflation in progress

Press and hold the

_START_button

Release the _START_

button to stop inflation

Press and hold the

_START_ button

The mark blinks.

Data is cleared.

Release the

button

Select " " to

clear data.

Turns off automatically

5 seconds

Step 1

Step 3

Step 4

Step 2

Press and hold the

_START_button

Release the button

mark

Average data

Data numbe

Stored Data

To next data

Turns off automatically

No data

WHO Classification Indicator

Severe hypertension

Moderate hypertension

Mild hypertension

High normal

Normal

Optimal

Exhausts remaining air

automatically

t heart level

Press the _START_ button

All of the display segments

Zero displa

Starts inflation

Pressurizing

Measurement in progress

Systolic pressure

Diastolic pressure

WHO classification

Pulse rate

Turn off with the

_START_ button

Pressurizing Releasing air

Displa

ir Hose

Arm Cuff

START

Button

Index

Air Socke

Proper fit range

rtery position mar

Air Connector Plug

Battery Compartment

Battery Cove

MEMORY

Systolic Pressure

Diastolic Pressure

Pulse Rate

Heart Mark

Battery Indicator

I.H.B. symbol

(Irregular Heartbeat symbol)

Pressure Bar Indicator and

WHO Classification Indicator

Note: Model UA-611 doesn't have the DC jack for AC adapter.

The DC jack is located on the rear of the model,UA-651 only. The

AC adapter is an optional accessory.(sold separately)

Model UA-651 only

DC jack

C adapter plug

C adapter Plug

ack

Model UA-651 only

Do not roll up shirtsleeve tightly

Produkt Specifikationer

Mærke:	A&D
Kategori:	Blodtryksmåler
Model:	UA-651

Har du brug for hjælp?

Hvis du har brug for hjælp til A&D UA-651 stil et spørgsmål nedenfor, og andre brugere vil svare dig

Dit navn*

Din email*

Skriv dit spørgsmål her

Blodtryksmåler A&D Manualer

A&D UA-651 Manual

31 August 2024

A&D UA-767PBT-C40 Manual

31 August 2024

A&D UA-1020 Manual

31 August 2024

A&D UA-611 Manual

31 August 2024

A&D UA-767PBT-CI Manual

31 August 2024

A&D UA-651SL Plus Manual

31 August 2024

A&D UA-767NFC Manual

31 August 2024

Blodtryksmåler Manualer

Nyeste Blodtryksmåler Manualer

Archos Blood Pressure Monitor - 183 Manual

15 December 2024

ADE Pressure BPM 1401 Manual

15 December 2024

Oregon Scientific BPW128 Manual

15 December 2024

Oregon Scientific BPW211 Manual

15 December 2024

Oregon Scientific BPW120 Manual

15 December 2024

ADE Pressure BPM 1400 Manual

15 December 2024

Oregon Scientific BPW221 Manual

15 December 2024

Mx Onda MX-CP2395 Manual

17 November 2024

A&D Medical UB-525 Manual

28 Oktober 2024

Homedics BPA-P200 Manual

28 Oktober 2024
