Installation and mounting manual for EK- Titan Z Backplate FC
This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability
whatsoever, expressed or implied, for the use of these products, nor their installation. The following instructions are subject to change without notice. Please visit our web site at for updates. www.ekwaterblocks.com
Before installation of this product please read important notice, disclosure and warranty conditions printed on the back of the box.

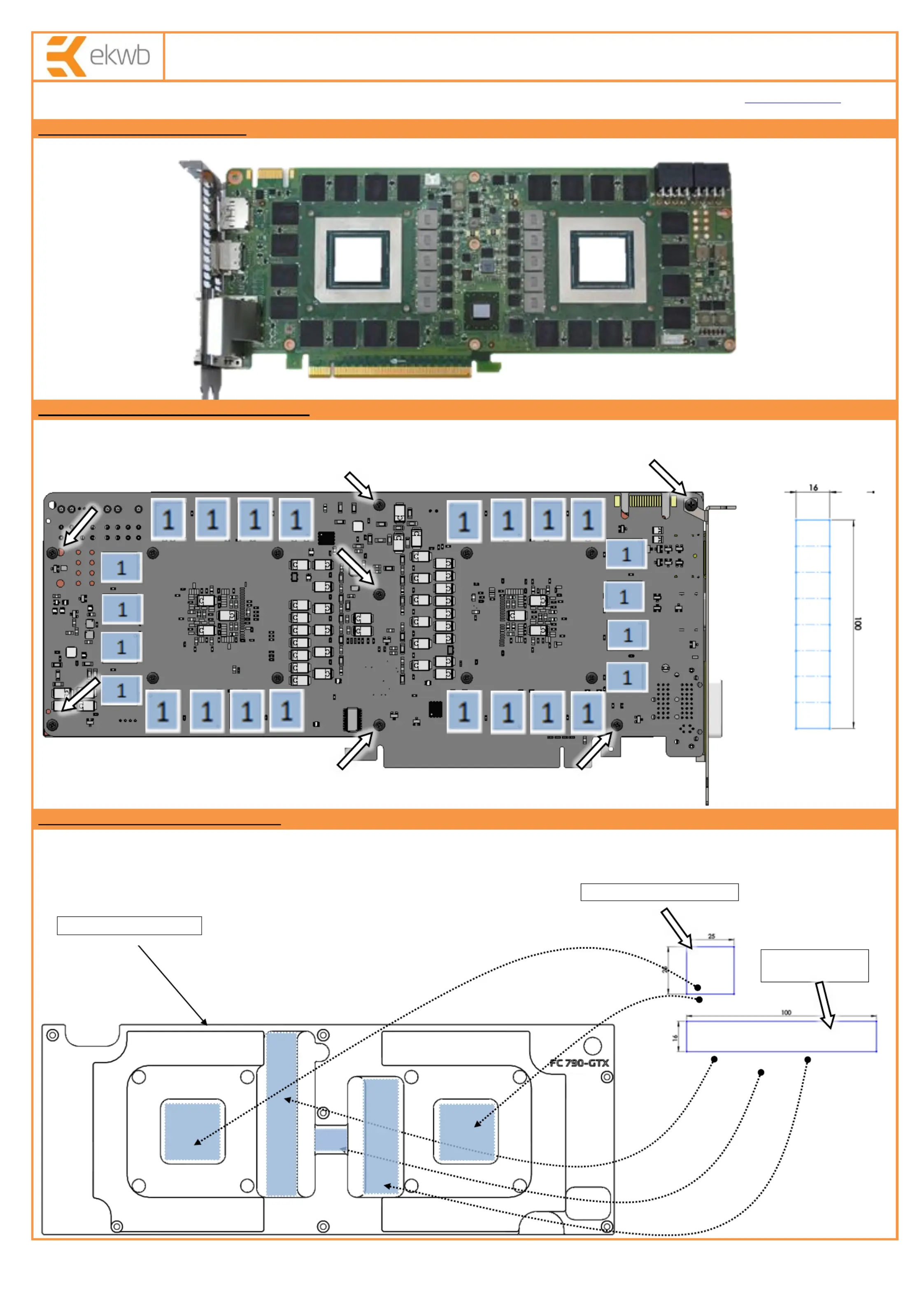

STEP 1: GENERAL INFORMATION. Sample picture of nVidia GeForce Titan Z
STEP 2: PREPARING YOUR GRAPHICS CARD
EK FC- Titan Z Backplate is very easy to install. First install EK-Titan Z water block according to its manual. If you have it already installed the water
block please check the picture below to see which mounting screws are to be left in their position and which are to be removed. Please remove the
six (6) screws marked with arrow. Apply thermal pads on RAMs 3x Thermal Pad D mm (8xRAM–0.5 ).
STEP 3: APPLYING THE THERMAL PADS
EK FC- Titan Z Backplate features passive cooling of the printed circuit board and it’s components therefore it is mandatory to install the enclosed
thermal pad. Please install enclosed 0,5mm thick thermal pad (Thermal Pad A 0,5mm (100x16)) and 1,5mm thick thermal pad (Thermal Pad C – –
1,5mm (50x25)) directly on the large extruded stub on the back ate itself as shown on the picture below. You need to trim the excess thermal pl
pad.
EK- Titan Z Backplate FC
2x Thermal pad
A-0,5mm (100x16)
Thermal pad C -1,5mm (50x25)
